Description
The Mishimoto MMICP-F35T-17KWBK is a direct-fit intercooler pipe kit built specifically for the 2017-2020 Ford F-150 3.5L EcoBoost, finished in a stealthy wrinkle black powder coat. This kit replaces the factory’s weak, unattractive plastic piping with free-flowing aluminum pipes and silicone boots with DuraCore technology, giving the twin-turbo EcoBoost engine a durable path for boost to travel.
Beyond looks, this Mishimoto forced induction upgrade increases pipe volume so the F-150’s induction system can breathe more freely, helping both turbochargers work toward their full performance potential. The mandrel-bent aluminum pipes pair with DuraCore silicone boots and constant-tension worm gear clamps that keep a strong grip as the pipes and boots expand and contract under boost, resisting blowouts that can plague a stock force induction setup. A CNC quick-disconnect flange with a pre-installed o-ring and spring clip on the cold-side pipe simplifies installation, and an additional port on that same pipe can be drilled and tapped for methanol injection or sensors, giving tuners added flexibility as they refine their performance induction forced induction system.
Vehicle Applications
This intercooler pipe kit is a direct fit for the 2017-2020 Ford F-150 XL, XLT, Lariat, King Ranch, Limited, Platinum, SSV, and Raptor, all equipped with the 3.5L V6 EcoBoost engine, and it also fits the 2018-2020 Ford F-150 Police Responder. Whether the truck sees daily duty, patrol work, or track days, this kit replaces the OEM plastic piping across the full 3.5L EcoBoost F-150 lineup, including the second-gen Raptor.
Features
- Direct-fit for 2017-2020 Ford F-150 3.5L EcoBoost
- Increased pipe volume for better flow and power potential
- Cold-side pipe includes a CNC quick-disconnect flange with pre-installed o-ring and spring clip for quick, easy installation
- Additional port on the cold-side pipe can be drilled and tapped for methanol injection or sensors
- Constant-tension worm gear clamps maintain a strong grip as pipes and boots expand and contract
- Available in polished or wrinkle black powder-coated finish; this kit is the wrinkle black version
- Silicone boots feature DuraCore technology for strength and blowout resistance
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Finish: Powder Coated (Wrinkle Black)
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Bend Type: Mandrel
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: Worm Gear
- Clamps Included: Yes
- Engine Codes: 3.5L V6 EcoBoost

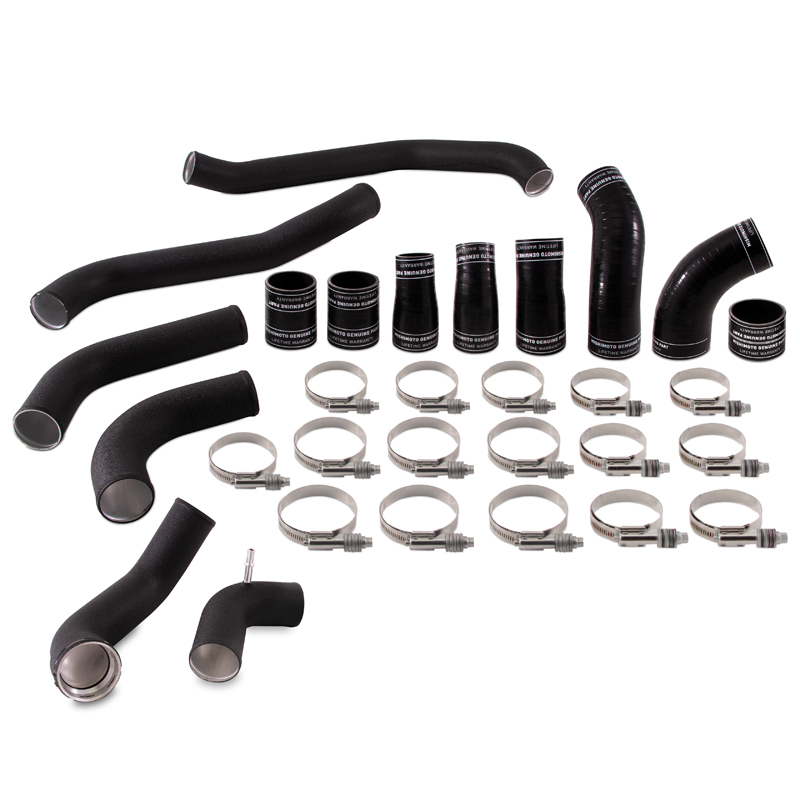

- Kit Includes: (1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange, (1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing, (4) Aluminum Hot-Side Intercooler Pipes, (8) Silicone Boots w/ DuraCore Technology, (16) Constant-Tension Worm Gear Clamps, Mishimoto Lifetime Warranty
- Installation Notes: 27 in-lbs (3NM) recommended torque for all T-bolt and constant-tension T-bolt clamps; operating range is 18-35 in-lbs (2-4NM); do not exceed the maximum torque rating of 35 in-lbs (4NM)
Frequently Asked Questions
What vehicles does this Mishimoto intercooler pipe kit fit?
It is a direct fit for the 2017-2020 Ford F-150 XL, XLT, Lariat, King Ranch, Limited, Platinum, SSV, and Raptor, plus the 2018-2020 Ford F-150 Police Responder, all equipped with the 3.5L V6 EcoBoost engine.
What materials are used in this kit?
The kit uses aluminum piping paired with silicone boots featuring DuraCore technology.
Which finish does this specific kit come in?
This kit (MMICP-F35T-17KWBK) is finished in wrinkle black powder coat; a polished finish is also available.
What is included with this intercooler pipe kit?
It includes two aluminum cold-side intercooler pipes (one with a CNC quick-disconnect flange, one with a CNC IAT sensor housing), four aluminum hot-side intercooler pipes, eight silicone boots with DuraCore technology, and sixteen constant-tension worm gear clamps.
What torque should be used on the clamps?
A torque of 27 in-lbs (3NM) is recommended for all T-bolt and constant-tension T-bolt clamps, with an operating range of 18-35 in-lbs (2-4NM); the maximum torque rating of 35 in-lbs (4NM) should not be exceeded.
Does this kit come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
