Description

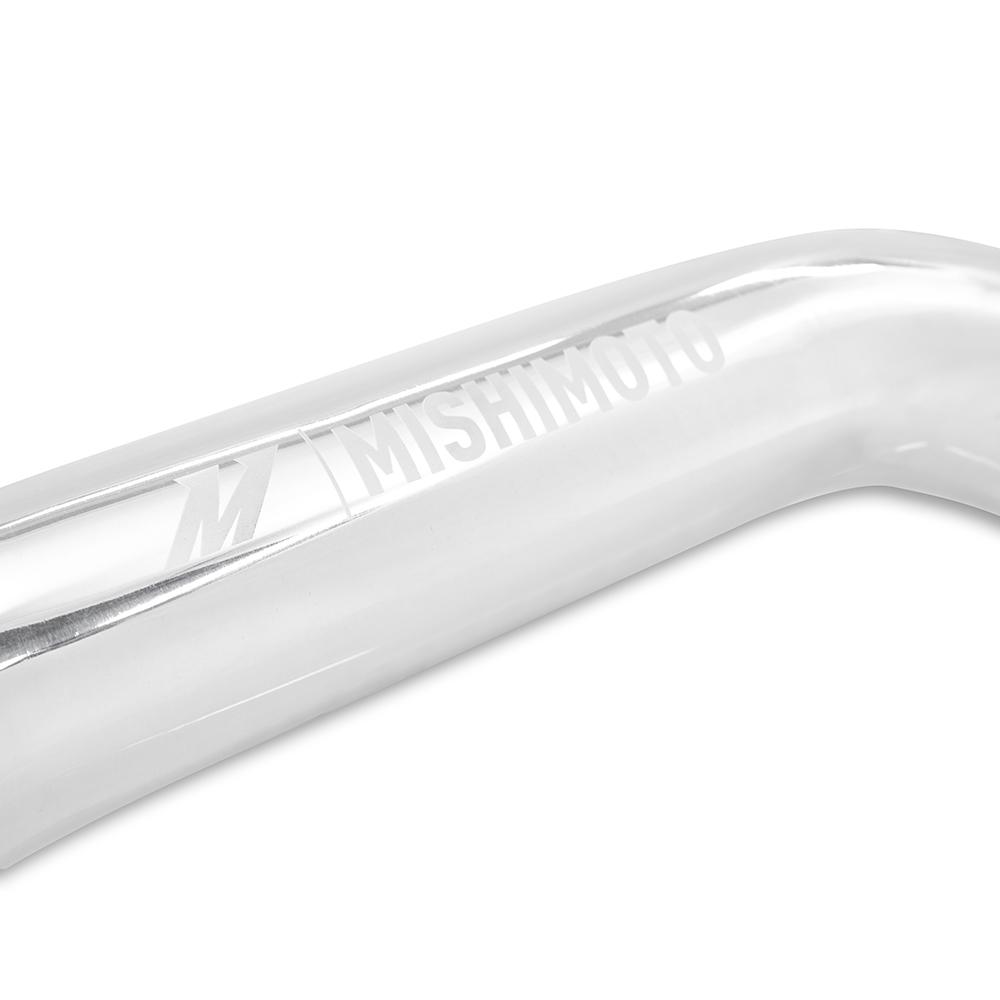

The Mishimoto Intercooler Pipe and Boot Kit (MMICP-F2D-99KP) is a direct-fit replacement for the hot- and cold-side intercooler piping on 1999-2003 Ford F-Series trucks equipped with the 7.3L Powerstroke. This kit swaps in a pair of mandrel-bent aluminum pipes finished in polished aluminum, paired with Mishimoto Silicone Boots and Constant-Tension T-bolt Clamps built to stand up to the boost pressure these turbodiesel engines generate.
As part of a healthy forced induction system, the piping between the turbo and intercooler has to withstand constant heat, pressure, fuel, and oil exposure without leaking or blowing apart. The boots in this kit use Mishimoto’s DuraCore Technology as their innermost layer, a synthetic material that offers superior resistance to those conditions compared to normal silicone, helping extend the life of the boots and prevent leaks and blowouts. The included Constant-Tension T-bolt Clamps are designed to deliver accurate, consistent holding power, adding another layer of reliability to the connection points. Mishimoto notes that this kit is designed to install in under one hour and recommends pairing it with the Mishimoto Ford 7.3L Powerstroke Performance Intercooler for the best results. It’s backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This Mishimoto pipe and boot kit is built for the 1999-2003 Ford F-250, F-350, and F-450 Super Duty in Lariat, XL, and XLT trims, and extends coverage to the F-350 King Ranch and F-450 Base for the 2003 model year. F-550 Super Duty owners are covered as well, with Lariat, XL, and XLT trims fitting 1999-2003 and the F-550 Base trim covered for 2001-2003. On the SUV side, this kit fits the 2000-2003 Ford Excursion Limited and XLT, along with the 2003 Excursion Eddie Bauer.
Features
- Direct fit for the 7.3L Powerstroke, 1999-2003
- Mandrel-bent polished aluminum pipes for maximum durability

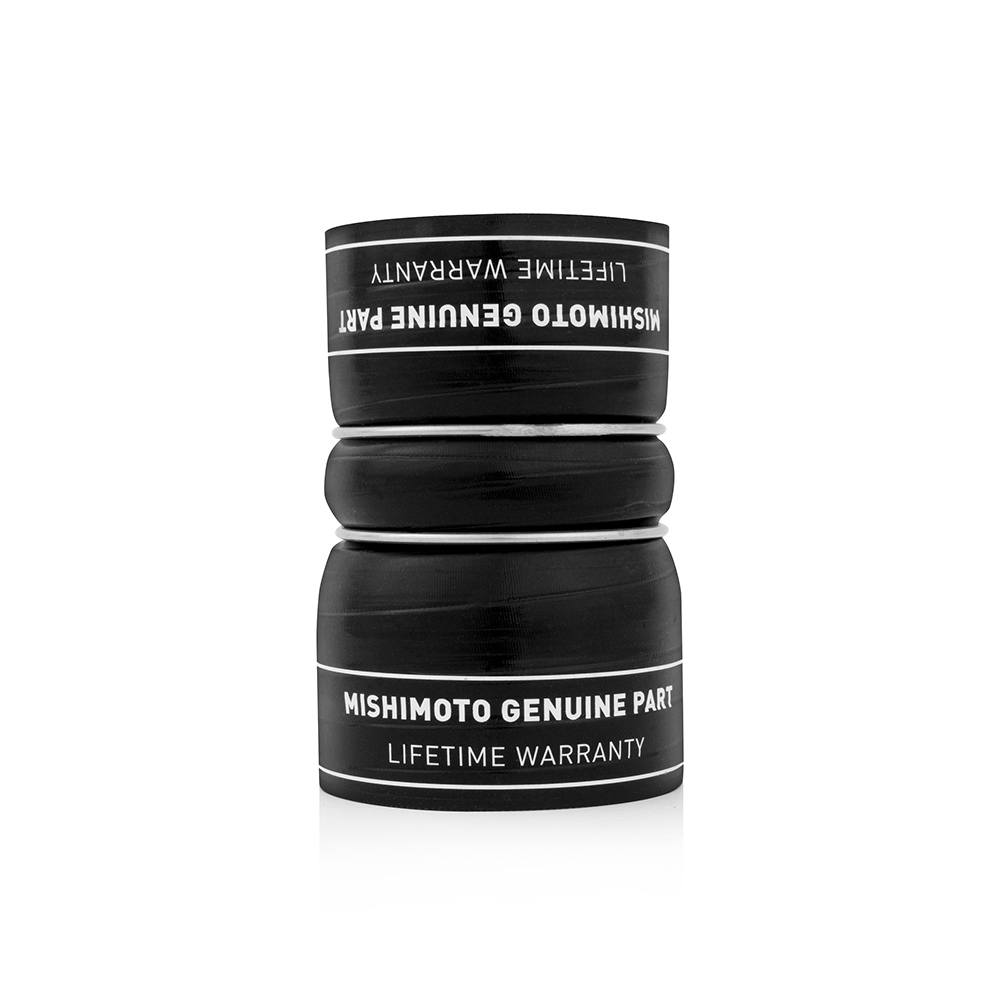

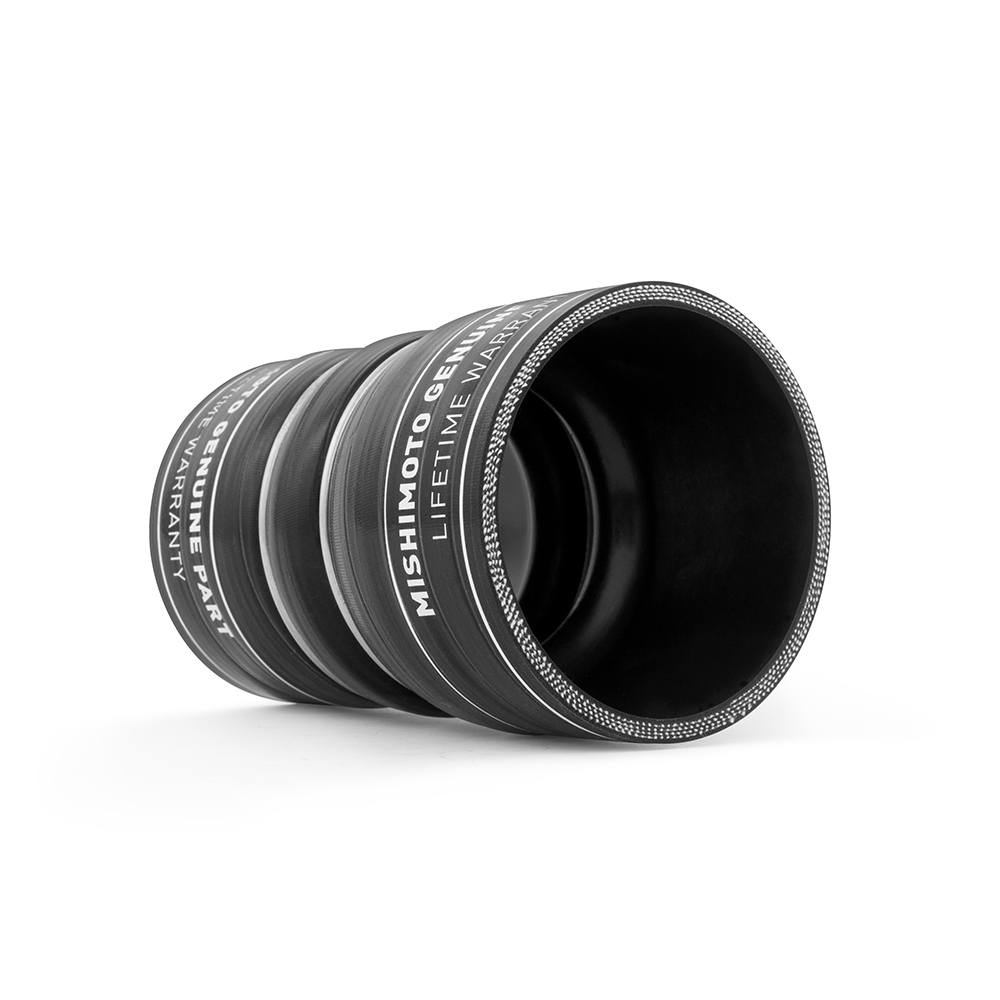

- Includes Mishimoto Silicone Boots with DuraCore Technology and Mishimoto Constant-Tension T-bolt Clamps
- Installs in under one hour
- Available in a polished or wrinkle-black finish
- Backed by the Mishimoto Lifetime Warranty

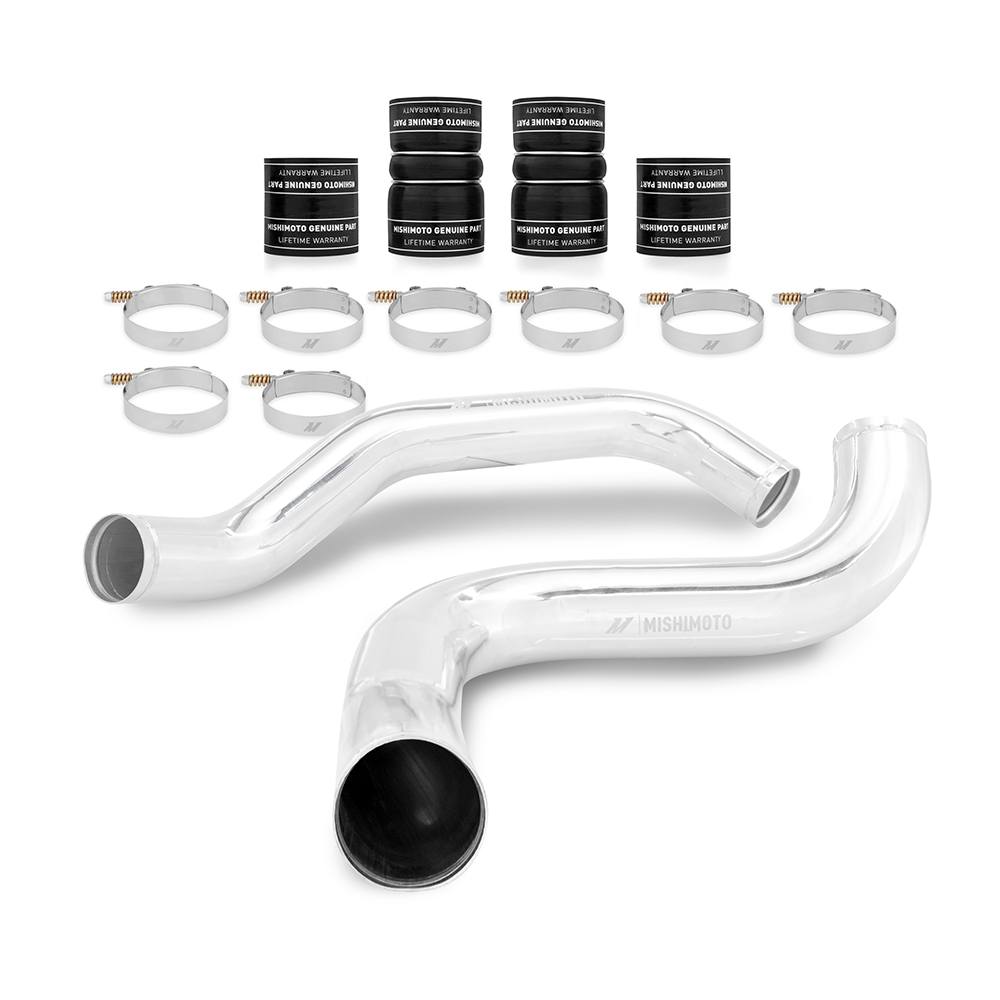

- Kit includes (2) intercooler pipes, (4) silicone boots with DuraCore Technology, and (8) constant-tension T-bolt clamps
Specifications
- Brand: Mishimoto
- Part Number: MMICP-F2D-99KP
- Product Type: Forced Induction
- Finish/Pipe Color: Polished
- Pipe Material: Aluminum
- Pipe Bend Type: Mandrel
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: T-Bolt
- Clamps Included: Yes
- Kit Contents: (2) Intercooler Pipes, (4) Silicone Boots with DuraCore Technology, (8) Constant-Tension T-Bolt Clamps, Mishimoto Lifetime Warranty
- Installation Torque: 27 in-lbs (3NM) recommended for T-bolt and constant-tension T-bolt clamps; operating range of 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM)
Frequently Asked Questions
What does this Mishimoto intercooler pipe kit include?
It includes two intercooler pipes, four Silicone Boots with DuraCore Technology, eight Constant-Tension T-Bolt Clamps, and the Mishimoto Lifetime Warranty.
What finish options are available for this kit?
This kit is available in a polished finish or a wrinkle-black powder-coated finish.
Which vehicles does the MMICP-F2D-99KP fit?
It fits the 1999-2003 Ford F-250, F-350, and F-450 Super Duty (Lariat, XL, XLT), the F-350 King Ranch and F-450 Base for 2003, the F-550 Super Duty (Lariat, XL, XLT for 1999-2003 and Base for 2001-2003), and the 2000-2003 Ford Excursion Limited and XLT plus the 2003 Excursion Eddie Bauer.
What is Mishimoto’s DuraCore Technology?
DuraCore is the synthetic material that forms the innermost layer of Mishimoto’s Silicone Diesel Boots, providing superior resistance to heat, pressure, fuel, and oil compared to normal silicone, which helps prevent leaks and blowouts.
What torque should be used on the included clamps?
Mishimoto recommends 27 in-lbs (3NM) for the T-bolt and constant-tension T-bolt clamps, with an operating range of 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM).
What product does Mishimoto recommend pairing with this kit?
Mishimoto recommends pairing this kit with the Mishimoto Ford 7.3L Powerstroke Performance Intercooler for the best performance.
