Description
The Mishimoto MMINT-F27T-15KBBK is a direct-fit forced induction upgrade engineered specifically for the 2015-2017 Ford F-150 2.7L V6 EcoBoost. This kit pairs a Stealth Black bar-and-plate intercooler with matching black aluminum piping and Mishimoto Silicone Boots featuring DuraCore technology, replacing the factory plastic tubing that limits airflow on the twin-turbo 2.7L engine.
Built for owners who want more from their forced induction system without sacrificing durability, this intercooler and pipe combination increases total pipe volume by 38-percent over the factory plastic pipes while growing intercooler core volume by 77-percent and external fin surface area by 163-percent versus stock. The result, per Mishimoto testing, is a 10F (5.5C) reduction in intake air temperature. The cold-side pipe includes a CNC quick-disconnect flange with a pre-installed O-ring and spring clip for straightforward installation, while constant-tension worm gear clamps and DuraCore silicone boots maintain a strong seal as pipes and boots expand and contract under boost. The all-aluminum, TIG-welded intercooler uses cast end tanks and bar-and-plate core construction, giving this induction system the strength needed to support real forced induction gains on the 2.7L EcoBoost’s two turbochargers.
Vehicle Applications
This Mishimoto intercooler and pipe kit is a specific fit for the 2015-2017 Ford F-150 equipped with the 2.7L V6 EcoBoost engine, covering Lariat, XL, and XLT trims for model years 2015 through 2017. It is engineered around the 2.7L V6 EcoBoost engine code and P552 chassis code for a true direct-fit installation.
Features
- Direct fit for 2015-2017 Ford F-150 2.7L EcoBoost
- 38-percent increase in total internal pipe volume over the stock plastic pipes
- Cold-side pipe includes CNC quick-disconnect flange with pre-installed O-ring and spring clip for quick, easy installation
- Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
- Constant-tension worm gear clamps maintain a strong grip as pipes and boots expand and contract
- 10F (5.5C) reduction in intake air temperature
- 77-percent increase in internal intercooler core volume and 163-percent increase in external fin surface area versus stock
- All-aluminum, TIG-welded intercooler construction with cast end tanks
- Available with black intercooler and black pipes (this listing)
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-F27T-15KBBK
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- End Tank Material: Aluminum, Cast Construction
- Intercooler Type: Air-to-Air
- Core Height: 9.4 in
- Core Thickness: 4.7 in
- Core Length: 19.6 in
- Overall Height: 9.5 in
- Overall Length: 29 in
- Inlet Diameter: 2.5 in
- Hot Side Pipe Inside Diameter: 2.5 in
- Pipe Material: Aluminum
- Pipe Finish: Powder Coated
- Pipe Color: Black
- Coupler Material: Silicone
- Coupler Color: Black
- Core Color: Black
- Grade Type: Performance
- Maximum Boost Pressure: 50 PSI
- Hose Clamps Included: Yes
- Engine Codes: 2.7L V6 EcoBoost
- Chassis Code: P552
- Applications: 2015-2017 Ford F-150 2.7L V6 EcoBoost
- CARB EO Number: D-759-6
Frequently Asked Questions
Which vehicles does the Mishimoto MMINT-F27T-15KBBK intercooler and pipe kit fit?
This kit is a specific fit for the 2015-2017 Ford F-150 Lariat, XL, and XLT trims equipped with the 2.7L V6 EcoBoost engine.
What does this kit replace on the 2.7L EcoBoost F-150?
It replaces the factory plastic intercooler piping with free-flowing, durable aluminum piping and silicone boots featuring DuraCore technology.
How much does this kit improve airflow over the stock components?
The pipes offer a 38-percent increase in total internal volume over the stock plastic pipes, while the intercooler increases core volume by 77-percent and external fin surface area by 163-percent over stock.
Does this intercooler reduce intake air temperatures?
Yes, Mishimoto reports a 10F (5.5C) reduction in intake air temperature with this intercooler.
What is included in the Mishimoto intercooler and pipe kit?

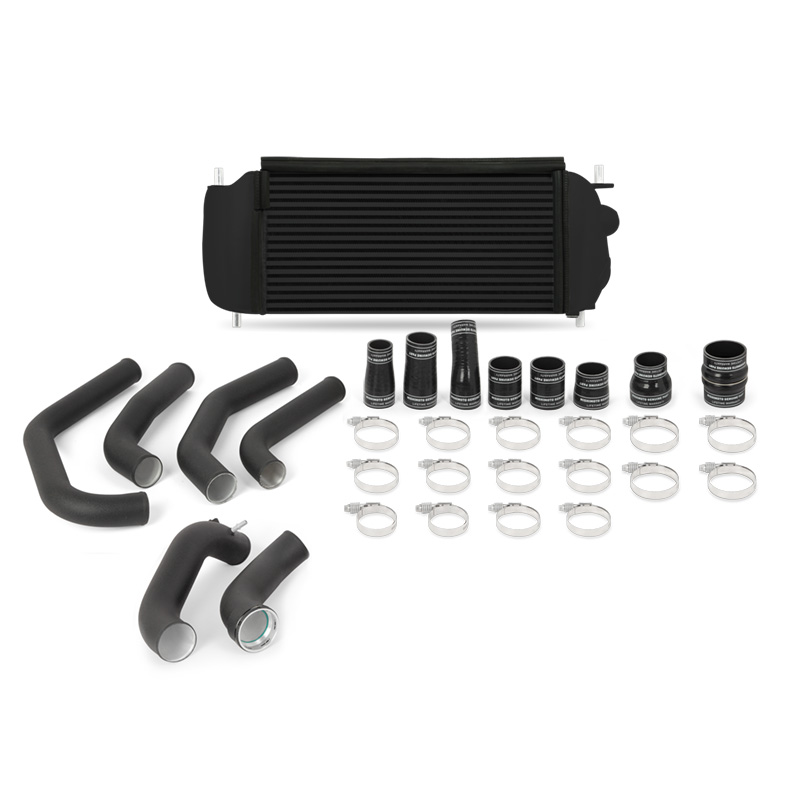

The kit includes one Mishimoto intercooler with assembled rubber trim, one aluminum intercooler pipe with a CNC quick-disconnect flange, one aluminum intercooler pipe with a CNC IAT sensor housing, four additional aluminum intercooler pipes, eight silicone boots with DuraCore technology, two high-torque worm gear clamps, fourteen constant-tension T-bolt clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
What is the maximum boost pressure rating for this kit?
The maximum boost pressure rating listed for this kit is 50 PSI.
