Description
The Mishimoto MMICP-MUS4-15WBK Intercooler Pipe Kit is a forced induction upgrade engineered specifically for the 2015-2023 Ford Mustang EcoBoost, replacing the restrictive factory hot-side and cold-side intercooler piping with 2.5-inch and 2.75-inch mandrel-bent aluminum tubing. Offered in either a polished or wrinkle black finish, this kit is designed to improve spool-up, unlock additional power potential, and clean up engine bay aesthetics without requiring any modification to surrounding components.
Built for owners looking to sharpen their EcoBoost Mustang’s induction system, this forced induction piping kit routes air more efficiently between the turbocharger and intercooler by eliminating the tight, restrictive bends found in the factory setup. Four-layer silicone couplers with heat-resistant embedded fibers seal each connection point and stand up to sustained heat and pressure, while stainless steel T-bolt clamps keep every joint secure for the long haul. A precision CNC-machined BPV flange lets you retain your stock EcoBoost Mustang blow-off valve, and the kit is compatible with both the stock intercooler and Mishimoto’s own performance intercoolers, making it a straightforward performance induction upgrade for anyone building out their forced induction system.
Vehicle Applications
This Mishimoto intercooler pipe kit is a direct fit for the 2015-2023 Ford Mustang EcoBoost and 2015-2023 Ford Mustang EcoBoost Premium, covering the S550 chassis equipped with the 2.3L EcoBoost engine. Installation requires no cutting or modification of existing engine bay components and can typically be completed in under one hour.
Features
- Direct-fit design for the 2015-2023 Ford Mustang EcoBoost
- Replaces both hot-side and cold-side intercooler pipes and couplers
- Installs in under one hour with no modification required
- 2.5-in hot-side and 2.75-in cold-side mandrel-bent aluminum pipes eliminate restrictive factory bends
- CNC-machined BPV flange on the hot-side pipe allows quick installation of stock or stock-style BPVs
- Pre-marked CNC-machined area on the cold-side pipe allows for quick installation of meth injection or a boost gauge
- Available in polished or wrinkle black finish
- Compatible with both the stock intercooler and Mishimoto performance intercoolers
- Includes Mishimoto silicone couplers and Mishimoto T-bolt clamps
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMICP-MUS4-15WBK
- Product Type: Forced Induction
- Applications: 2015-2023 EcoBoost Mustang
- Engine Code: 2.3L EcoBoost
- Chassis Code: S550
- Finish: Powder Coated
- Pipe Material: Aluminum
- Pipe Bend Type: Mandrel
- Hot Side Pipe Inside Diameter: 2.5 in
- Cold Side Pipe Inside Diameter: 2.75 in
- Pipe Quantity: 2 aluminum pipes (one with CNC-machined NPT bung, one with CNC-machined BPV flange)
- Coupler Material: Silicone (four-layer, heat-resistant embedded fibers)
- Coupler Color: Black
- Clamp Type: T-bolt (Stainless Steel)
- Clamps Included: Yes

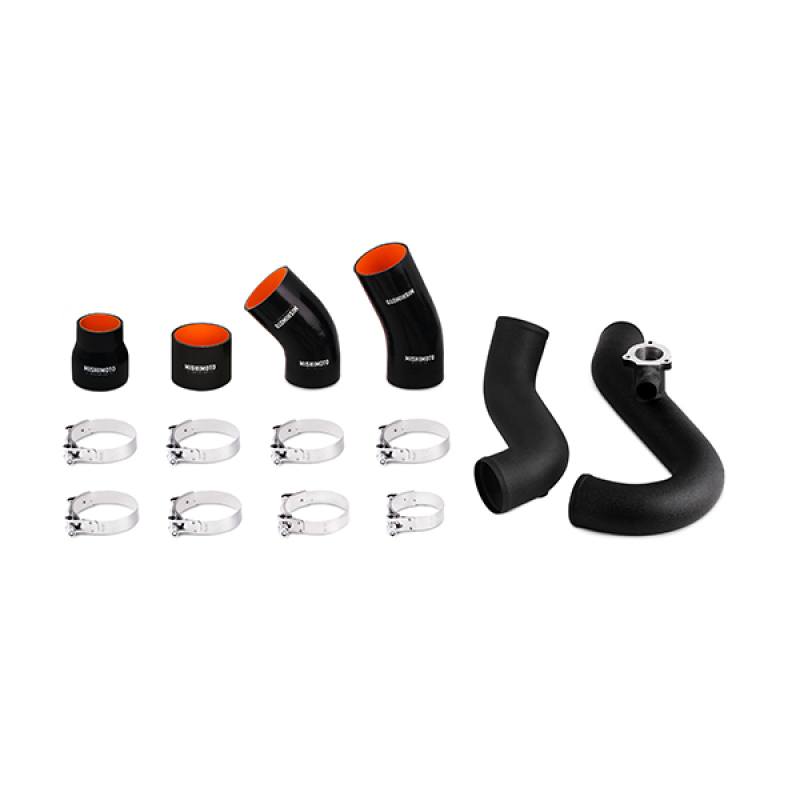

- Kit Includes: (1) Aluminum Pipe w/ CNC-Machined NPT Bung, (1) Aluminum Pipe w/ CNC-Machined BPV Flange, (4) Silicone Couplers, (1) 2.0-in T-bolt Clamp, (4) 2.75-in T-bolt Clamps, (3) 3.0-in T-bolt Clamps, Mishimoto Lifetime Warranty
- CARB EO Number: D-759-23
- Available Finish Option: Wrinkle Black
Frequently Asked Questions
What vehicles does the Mishimoto MMICP-MUS4-15WBK fit?
This kit is a direct fit for the 2015-2023 Ford Mustang EcoBoost and 2015-2023 Ford Mustang EcoBoost Premium, which use the S550 chassis and 2.3L EcoBoost engine.
What pipe diameters does this intercooler pipe kit use?
The kit uses a 2.5-inch hot-side pipe and a 2.75-inch cold-side pipe, both mandrel-bent aluminum for smooth airflow.
Can I keep my stock blow-off valve with this kit?
Yes, the hot-side pipe includes a precision CNC-machined BPV flange that allows you to retain the stock EcoBoost Mustang BPV.
Is this kit compatible with aftermarket intercoolers?
Yes, this pipe kit fits both the stock intercooler and Mishimoto performance intercoolers.
What finishes are available for this kit?
The Mishimoto Mustang EcoBoost Intercooler Pipe Kit is available in either a polished or wrinkle black finish.
How long does installation take?
Installation is simple, requires no modification to any parts in the engine bay, and can be completed in under one hour.
