Description
The Mishimoto Performance Intercooler and Intercooler Pipe & Boot Kit bundle (MMINT-BR23-21KPBK) pairs a bar-and-plate intercooler with a full pipe and boot kit engineered specifically for the 2.3L EcoBoost Ford Bronco. Built with a huge 4.7-inch thick core, CNC-machined 6061 aluminum flanges, and TIG-welded cast aluminum end tanks, this forced induction upgrade replaces the factory plastic-tank tube-and-fin intercooler with a far more durable all-aluminum induction system.
As a dedicated performance induction upgrade, this Mishimoto bundle improves how efficiently your 2.3L EcoBoost’s forced induction system manages charge air. Independent testing showed a 21.2°F reduction in outlet temperature, a 7 percent increase in flow versus the stock intercooler, a 175 percent increase in fin surface area, and a 77 percent increase in core volume. Those gains translated into 5.68 hp and 5.32 lb-ft of torque on the dyno, and in trail-simulation heat-soak testing — six back-to-back dyno runs — outlet temperatures still ran 20°F cooler than stock. Whether you’re crawling trails or cruising, this induction engine upgrade is built to keep pulling in cooler, denser air. Adaptive cruise control and 360-degree camera functionality are fully retained.
Vehicle Applications
This intercooler and pipe kit bundle is a specific fit for the 2.3L EcoBoost-powered Ford Bronco. Coverage includes the 2021–2024 Ford Bronco Badlands, Big Bend, Black Diamond, and Outer Banks, the 2021–2023 Ford Bronco Base, the 2022–2024 Ford Bronco Everglades, and the 2023–2024 Ford Bronco Heritage Edition.
Features
- Direct fit for 2021-2024 Ford Bronco 2.3L EcoBoost models
- 21.2°F reduction in outlet temperature over the stock intercooler
- Dyno-proven gains of 5.68 hp and 5.32 lb-ft of torque
- 4.7-inch thick intercooler core for maximum flow
- 175 percent increase in fin surface area and 77 percent increase in core volume
- 7 percent less restrictive than the stock intercooler

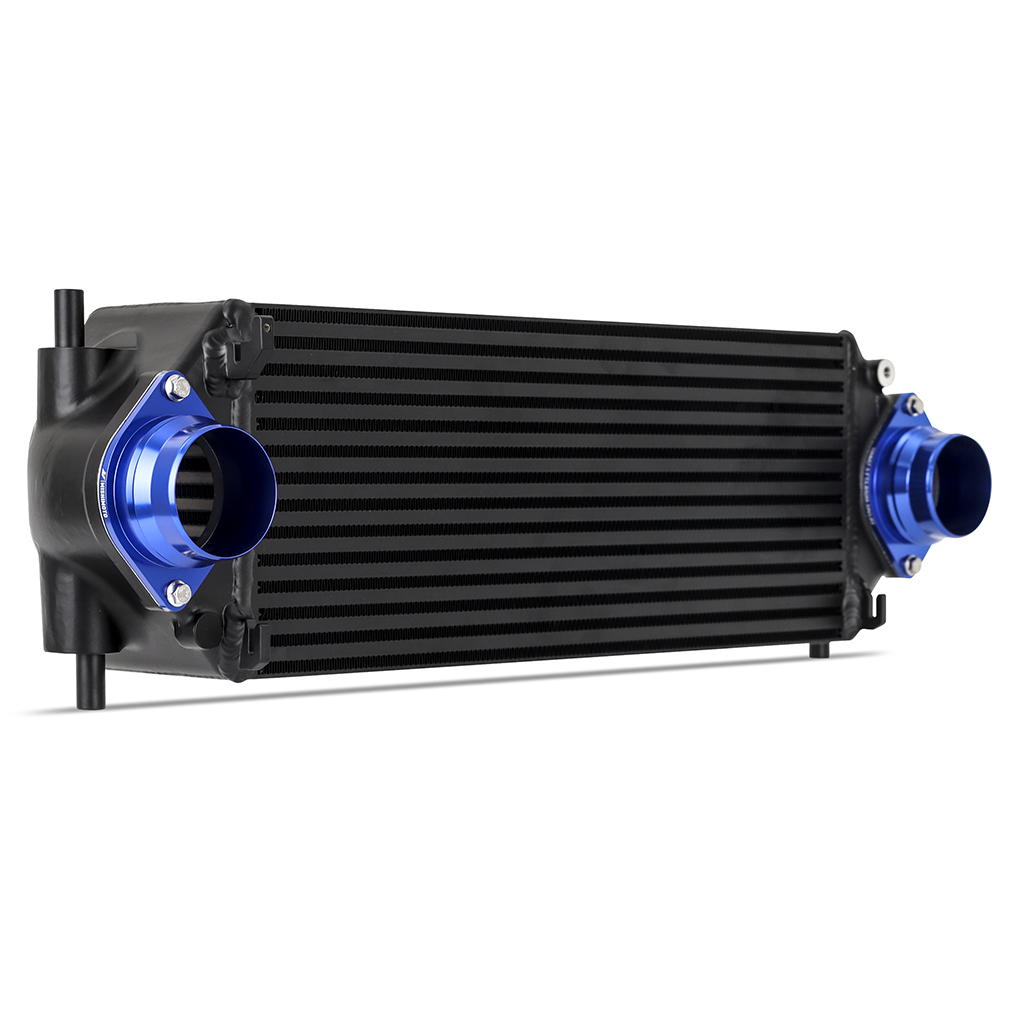

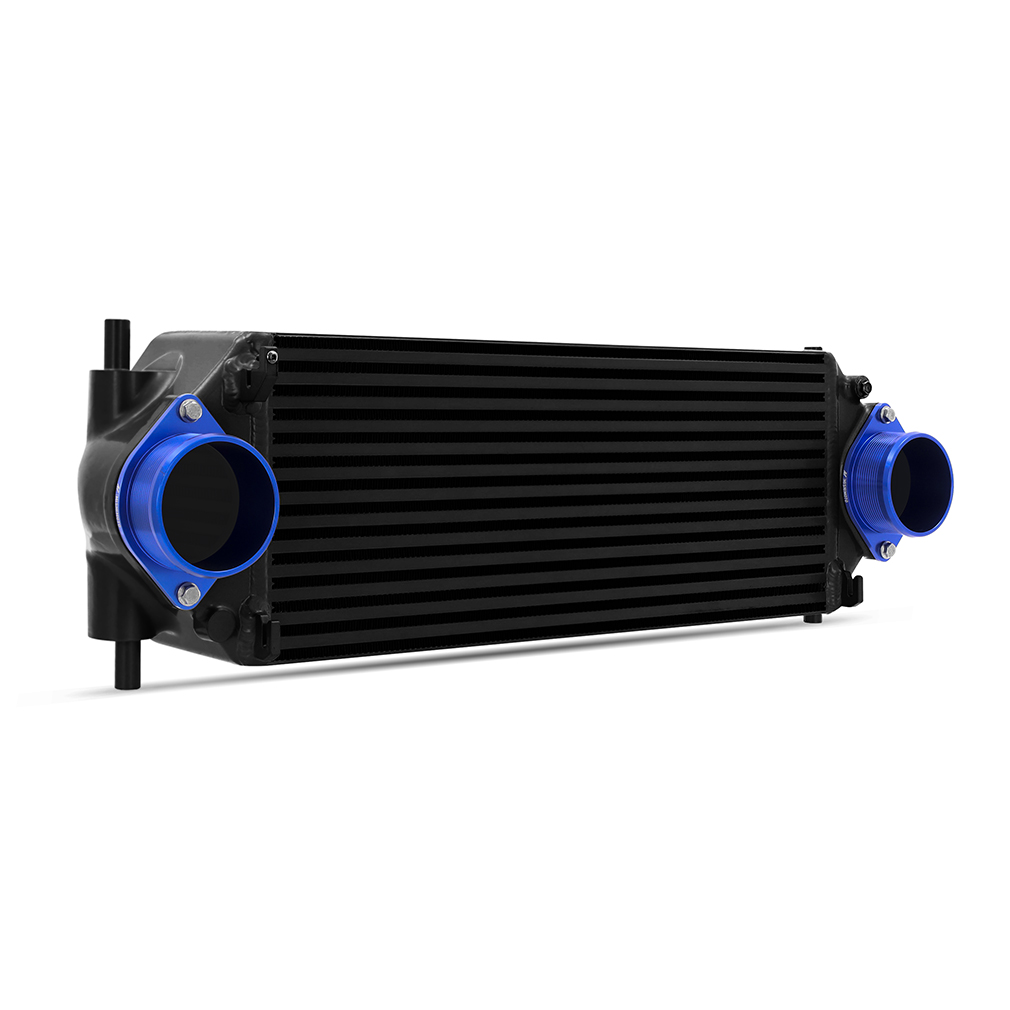

- All-aluminum, TIG-welded construction with a durable bar-and-plate core

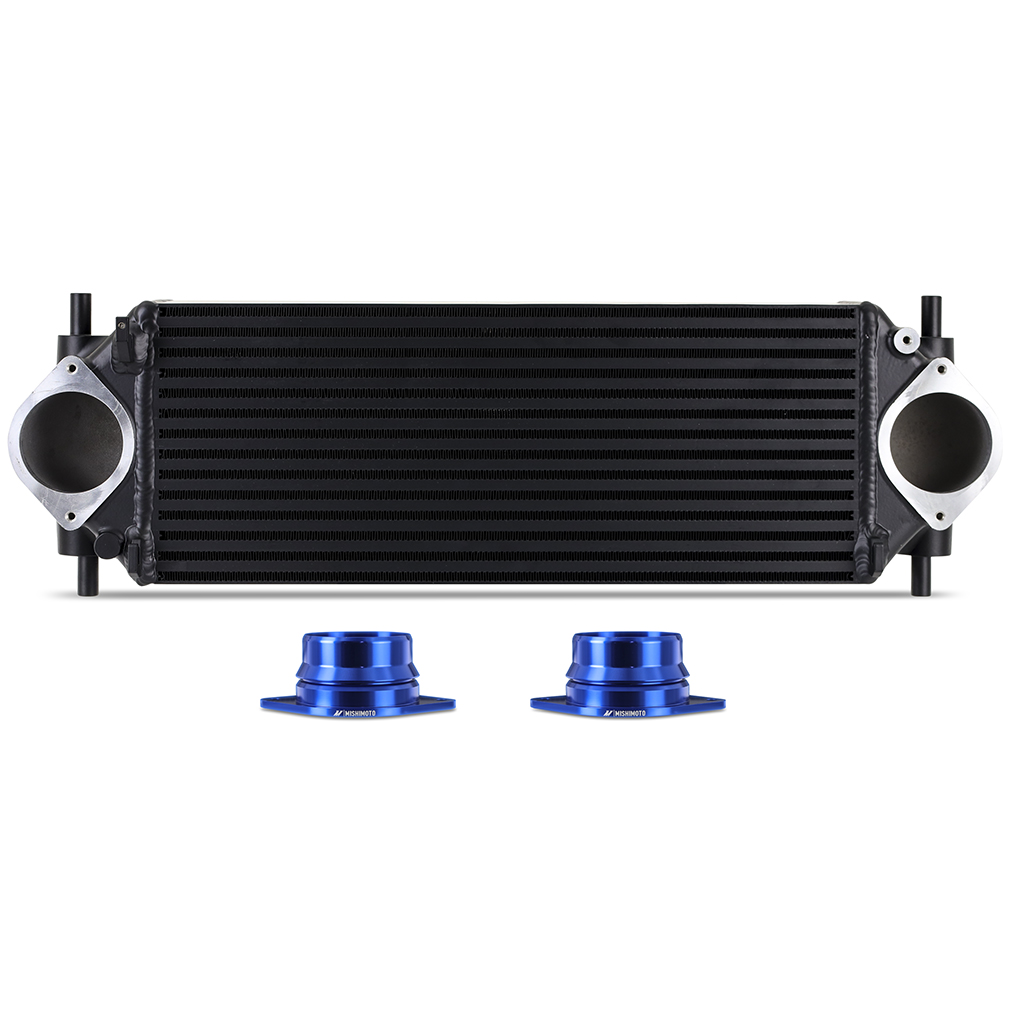

- CNC-machined 6061 aluminum inlet and outlet flanges
- Cast aluminum end tank construction

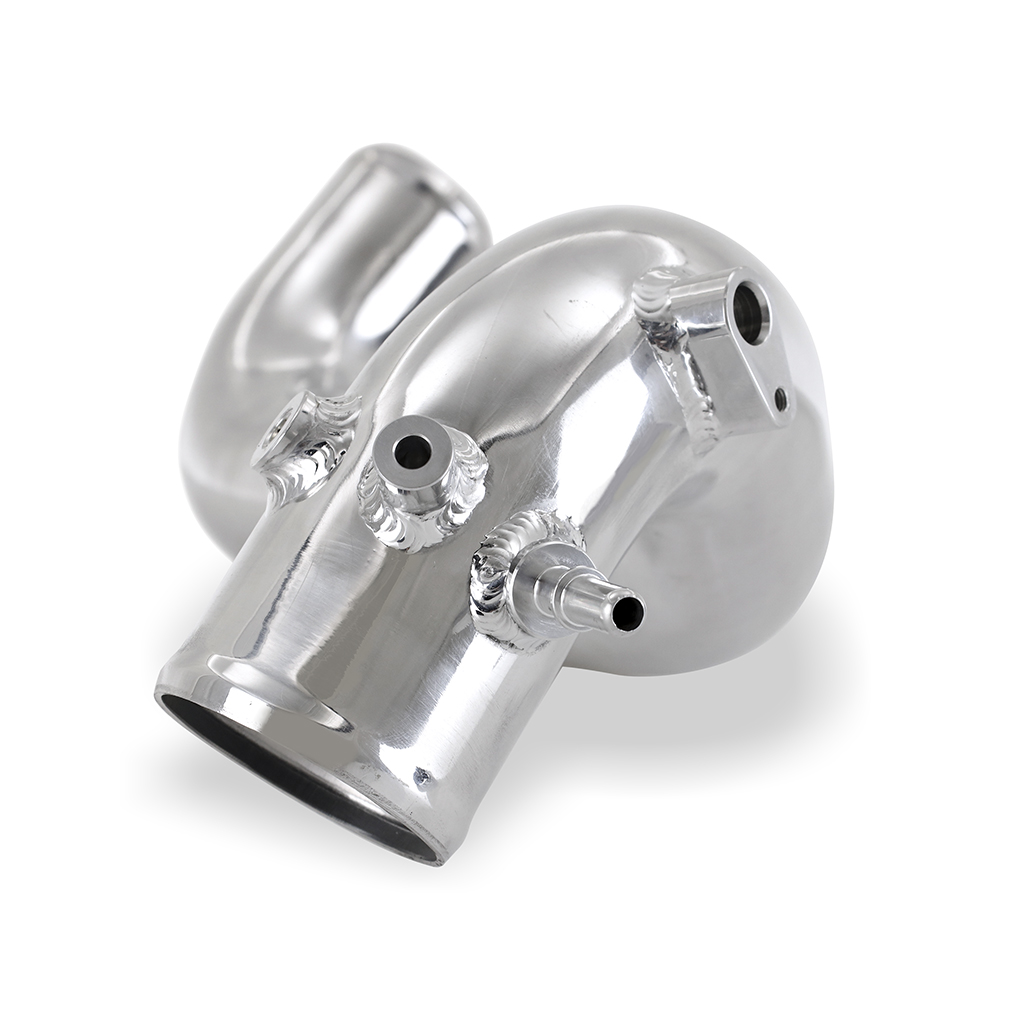

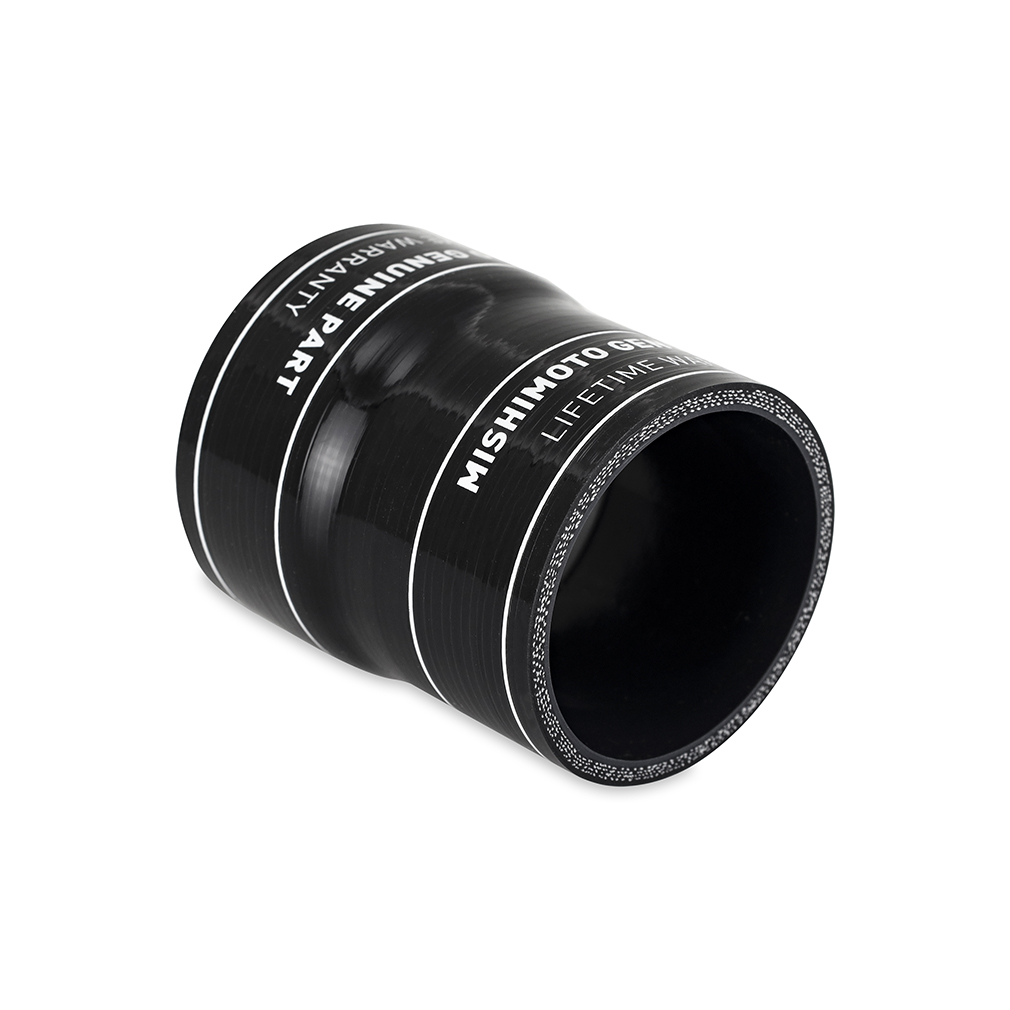

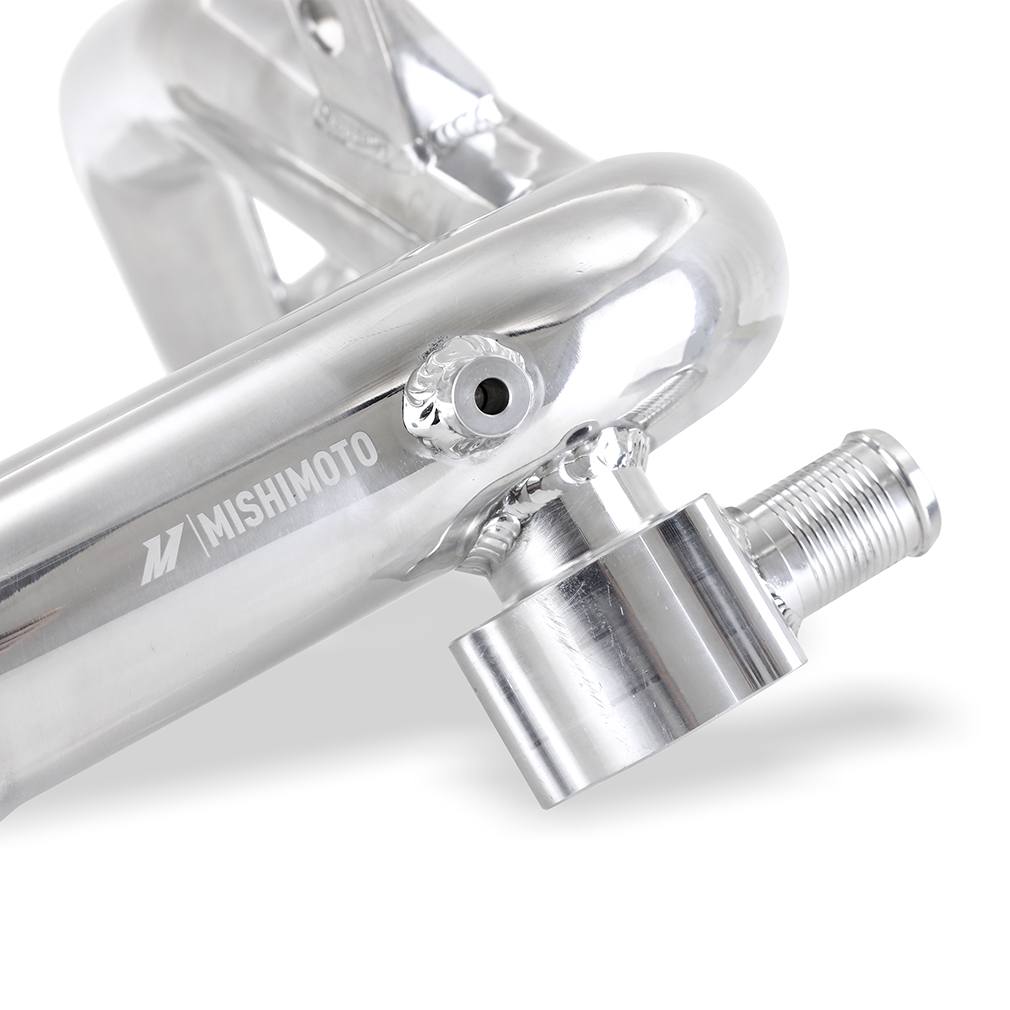

- Polished aluminum, powder-coated intercooler pipes with black silicone couplers
- Does not interfere with adaptive cruise control or 360-degree cameras

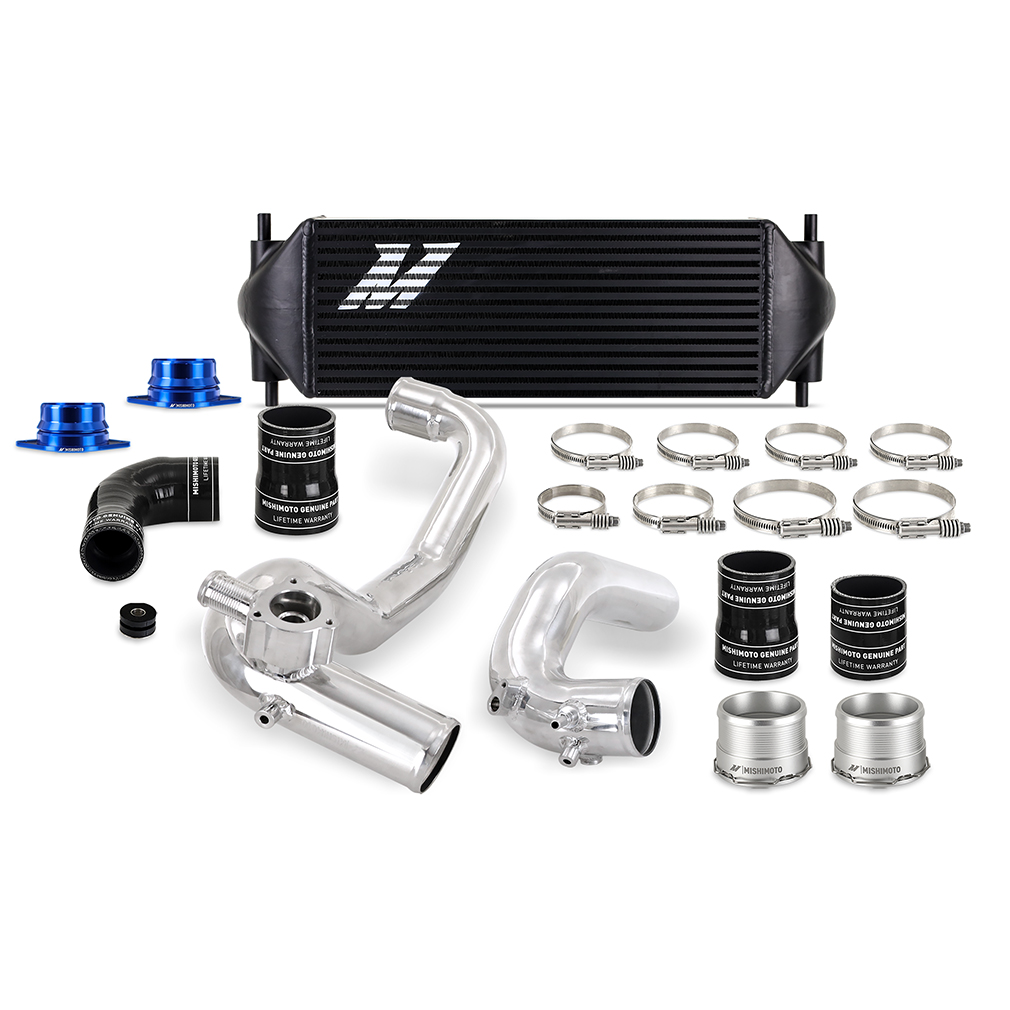

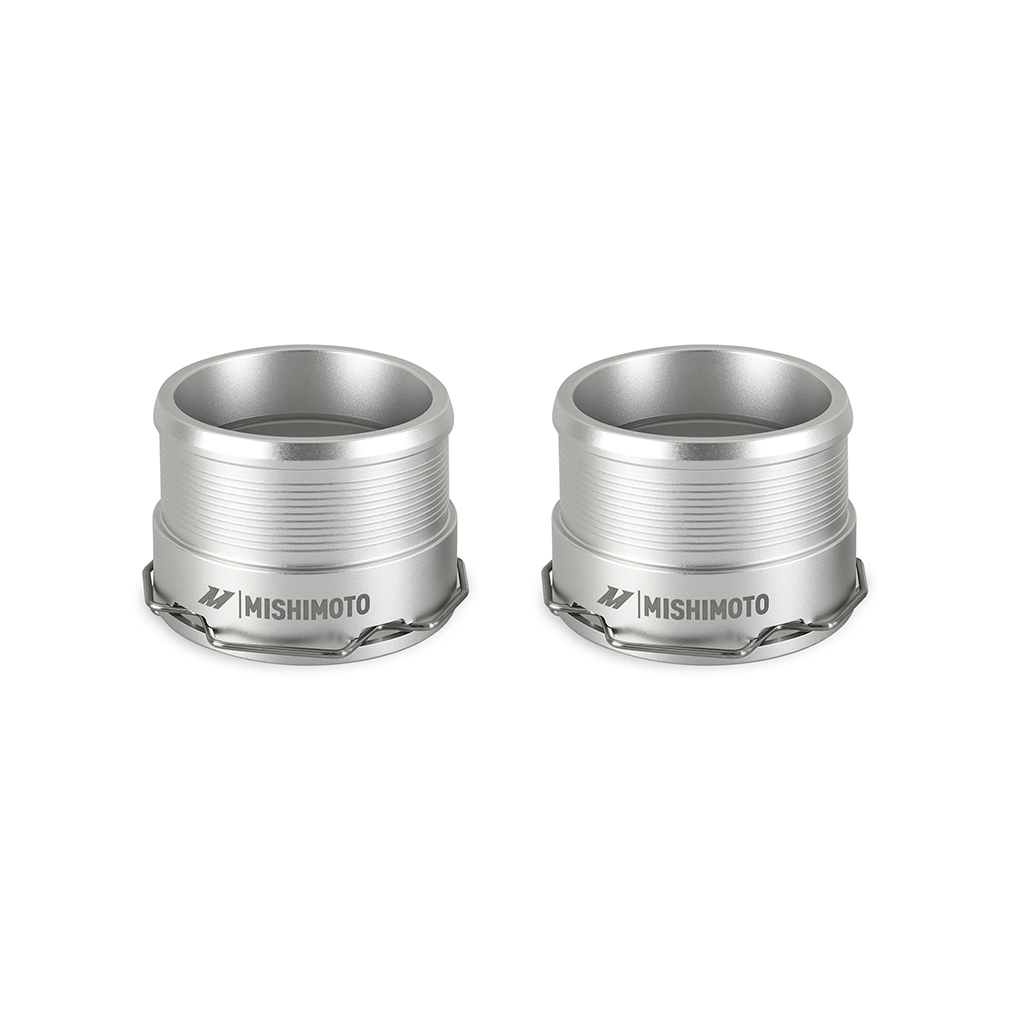

- Includes (1) Mishimoto intercooler, (2) intercooler pipes, (2) pipe adapters, (4) silicone boots, (8) constant-tension worm gear clamps, and mounting hardware
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-BR23-21KPBK
- Product Type: Forced Induction
- Intercooler Type: Air-to-Air
- Core Construction: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Black
- Core Thickness: 4.7 in
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Pipe Material: Aluminum
- Pipe Color: Polished
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Universal or Specific Fit: Specific
Frequently Asked Questions
What is included in the Mishimoto MMINT-BR23-21KPBK bundle?
The bundle includes (1) Mishimoto intercooler, (2) Mishimoto intercooler pipes, (2) intercooler pipe adapters, (4) silicone boots, (8) constant-tension worm gear clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
Which vehicles does this intercooler and pipe kit fit?
This bundle is a specific fit for the 2021–2024 Ford Bronco Badlands, Big Bend, Black Diamond, and Outer Banks, the 2021–2023 Ford Bronco Base, the 2022–2024 Ford Bronco Everglades, and the 2023–2024 Ford Bronco Heritage Edition with the 2.3L EcoBoost engine.
How much of a performance improvement does this bundle provide?
Testing showed a 21.2°F reduction in outlet temperature, a 7 percent increase in flow over stock, and dyno-proven gains of 5.68 hp and 5.32 lb-ft of torque. In trail-simulation heat-soak testing over six back-to-back dyno runs, outlet temperatures remained 20°F cooler than stock.
Will this intercooler interfere with adaptive cruise control or the 360-degree camera system?
No, all functionality of adaptive cruise control and 360-degree cameras is retained with this Mishimoto intercooler and pipe kit.
What is the core construction and material of the Mishimoto intercooler?
The intercooler features a durable bar-and-plate core made of aluminum, with cast aluminum end tanks and CNC-machined 6061 aluminum inlet and outlet flanges, all TIG-welded together.
What warranty comes with this Mishimoto product?
This Mishimoto Performance Intercooler and Pipe & Boot Kit bundle is backed by the Mishimoto Lifetime Warranty.
