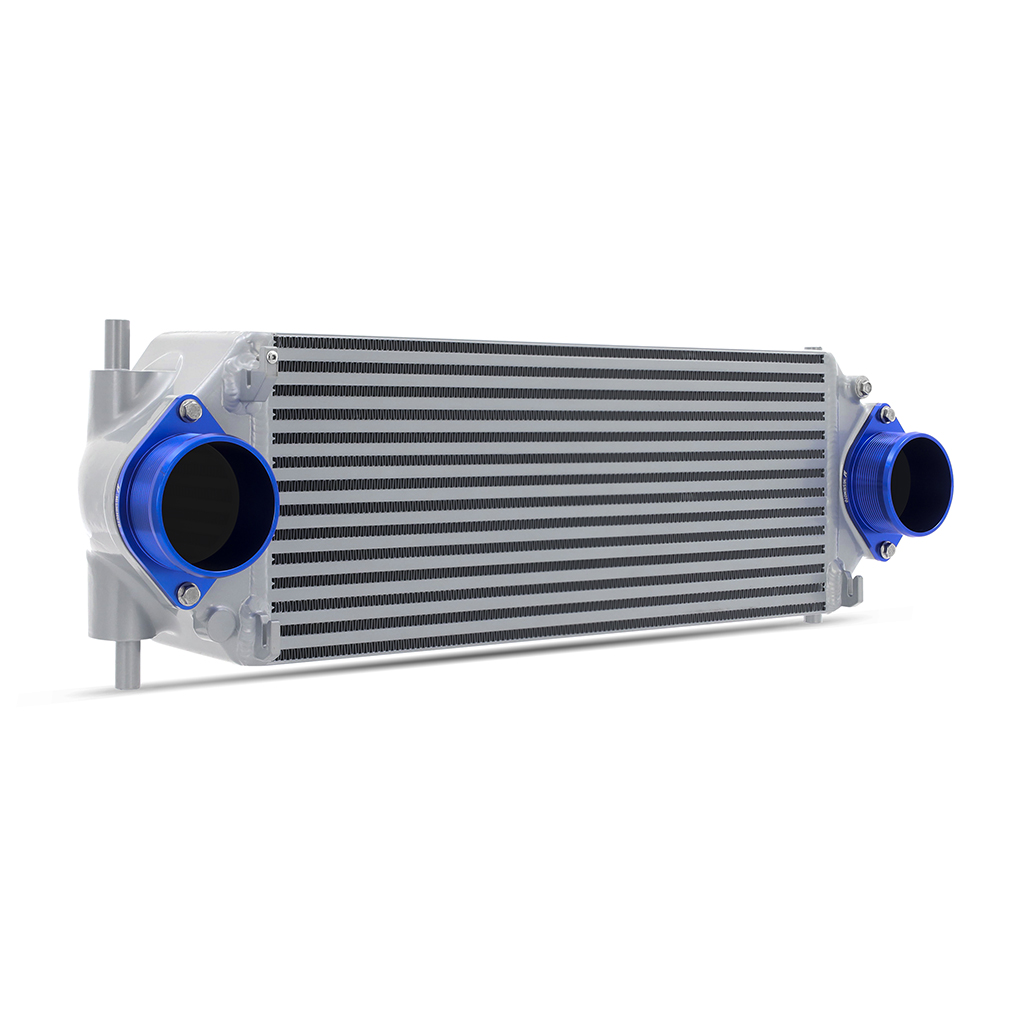

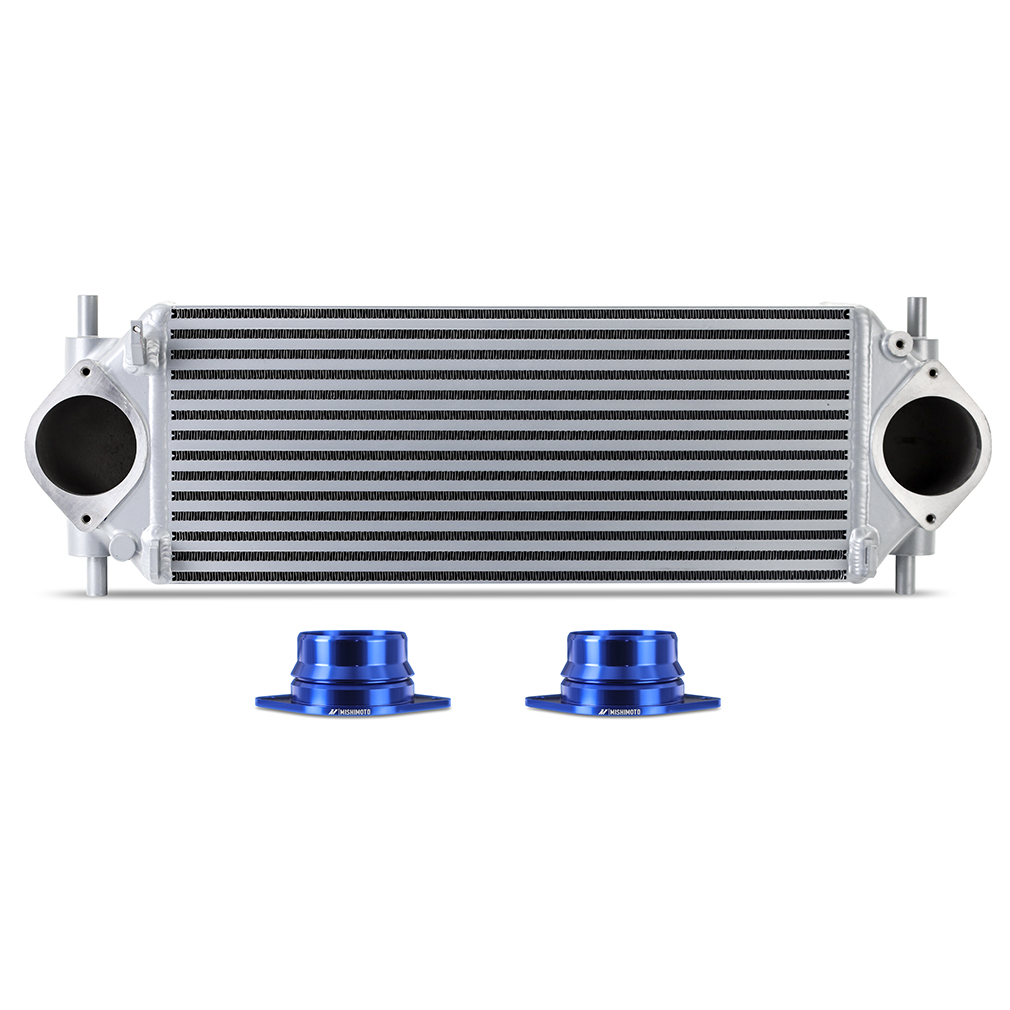

The Mishimoto Performance Intercooler and Intercooler Pipe & Boot Kit bundle (MMINT-BR23-21KPSL) is purpose-built for the 2.3L EcoBoost-powered Ford Bronco, pairing a huge 4.7-inch thick intercooler core with a full set of replacement pipes, silicone boots, and hardware to take the place of the factory tube-and-fin intercooler. Engineered by Mishimoto specifically for this platform, this forced induction upgrade combines a bar-and-plate core, cast aluminum end tanks, and CNC-machined 6061 aluminum flanges into one robust, TIG-welded assembly.
As a dedicated forced induction system upgrade, this induction system bundle is designed to move more air with less restriction than the stock setup, which pays off in real-world driving. Mishimoto’s performance induction testing showed a 21.2F reduction in outlet temperature over the stock intercooler, a 7 percent increase in flow, a 175 percent increase in fin surface area, and a 77 percent increase in core volume. Combined, these gains translated to 5.68 hp and 5.32 lb-ft of torque over the factory setup, with especially strong results during trail simulation heat-soak testing, where outlet temperatures stayed 20F cooler than stock even after six back-to-back dyno runs. Whether you’re crawling trails or sitting in traffic, this force induction improvement is built to keep charge air cooler for longer.
Vehicle Applications
This Mishimoto intercooler and pipe kit bundle is a specific fit for the 2.3L EcoBoost Ford Bronco lineup, covering the 2021-2024 Badlands, 2021-2024 Big Bend, 2021-2024 Black Diamond, and 2021-2024 Outer Banks trims, along with the 2021-2023 Base, 2022-2024 Everglades, and 2023-2024 Heritage Edition trims. Installation retains full functionality of adaptive cruise control and 360-degree cameras.
Features
- Direct fit for 2021-2024 Ford Bronco 2.3L EcoBoost models
- 21.2F reduction in outlet temperature over the stock intercooler
- Dyno-proven power gains of 5.68 hp and 5.32 lb-ft of torque
- 4.7-inch thick intercooler core for maximum flow
- 175 percent increase in fin surface area over stock
- 77 percent increase in core volume over stock
- 7 percent less restrictive than the stock intercooler
- All-aluminum, TIG-welded construction with a durable bar-and-plate core
- CNC-machined 6061 aluminum inlet and outlet flanges
- Cast aluminum end tanks for added durability
- Does not interfere with adaptive cruise control or 360-degree cameras
- Patent No. US D1,042,547 S
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Color: Silver
- Core Construction: Bar-and-plate
- Intercooler Type: Air-to-air
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Pipe Material: Aluminum
- Pipe Color/Finish: Polished, powder coated
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Fit Type: Specific fit (Silver Intercooler, Polished Intercooler Pipes)

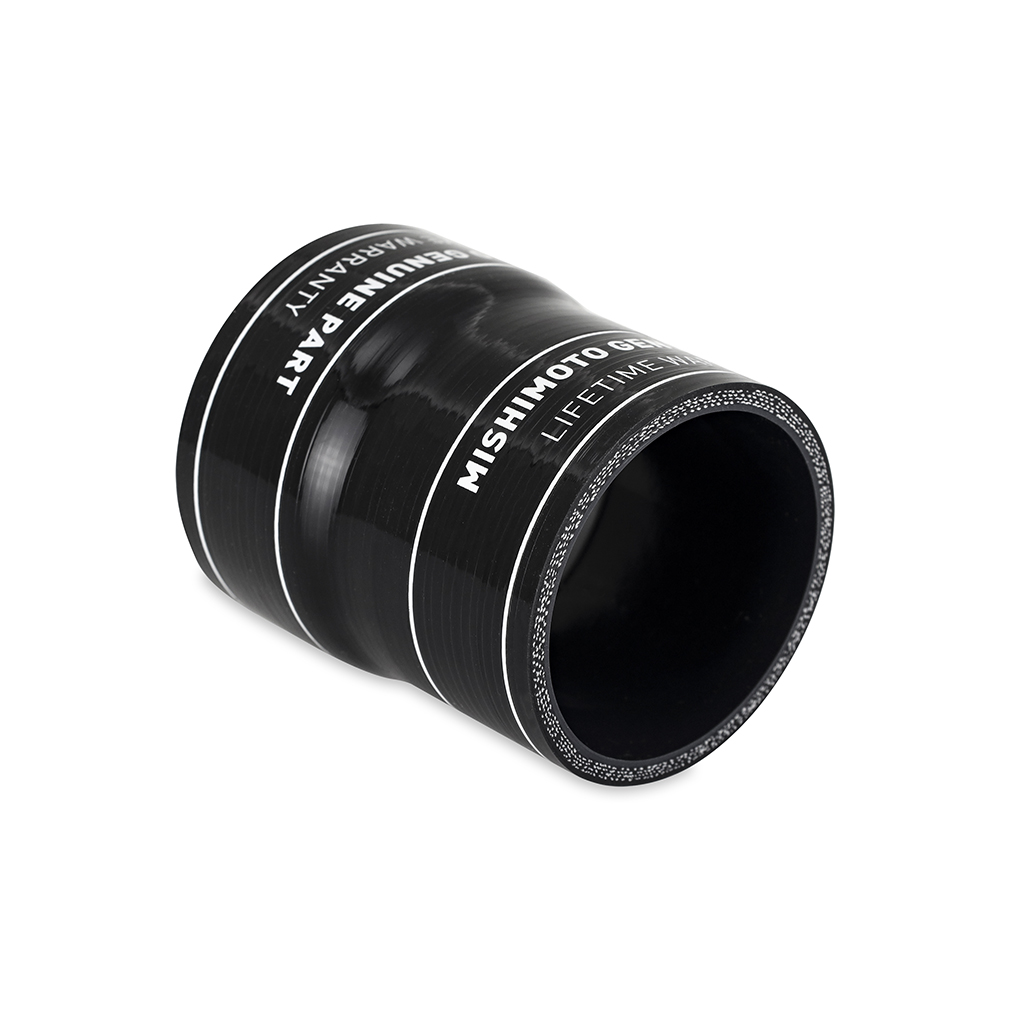

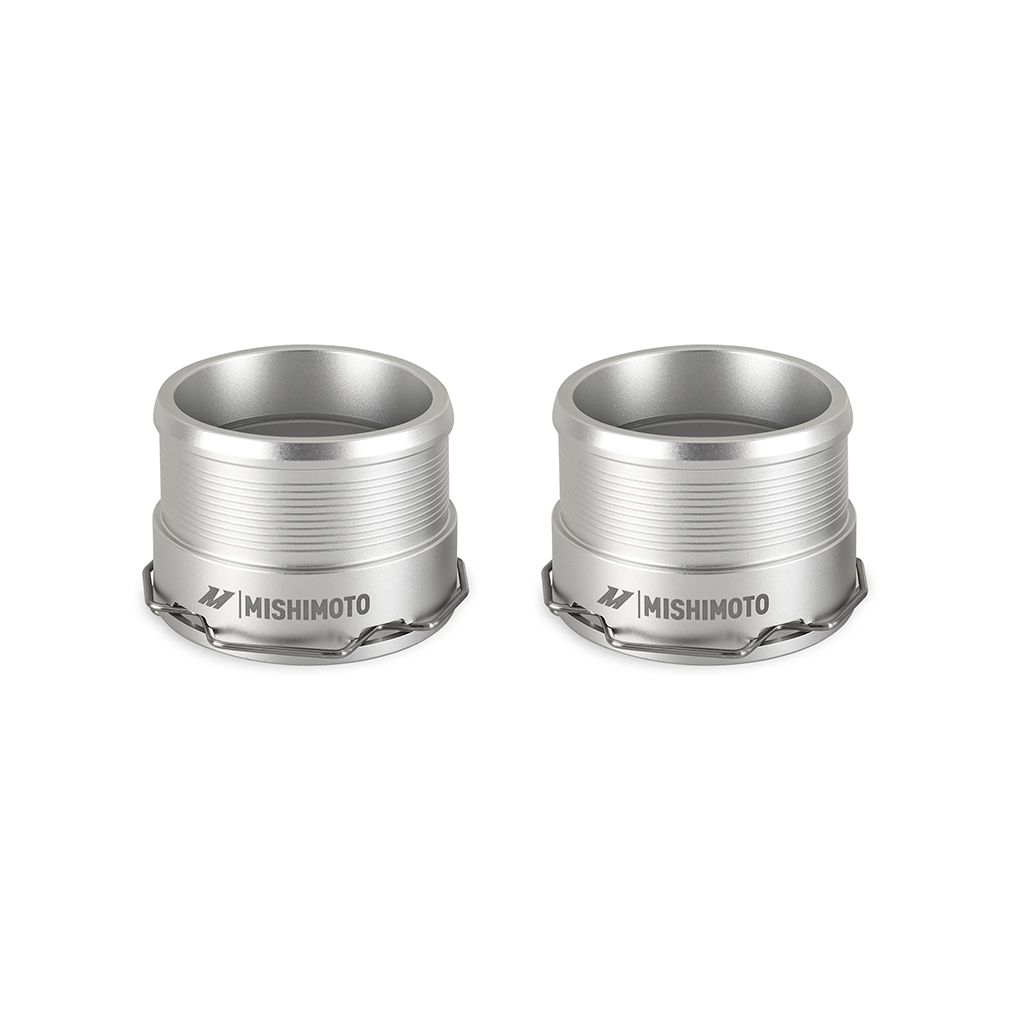

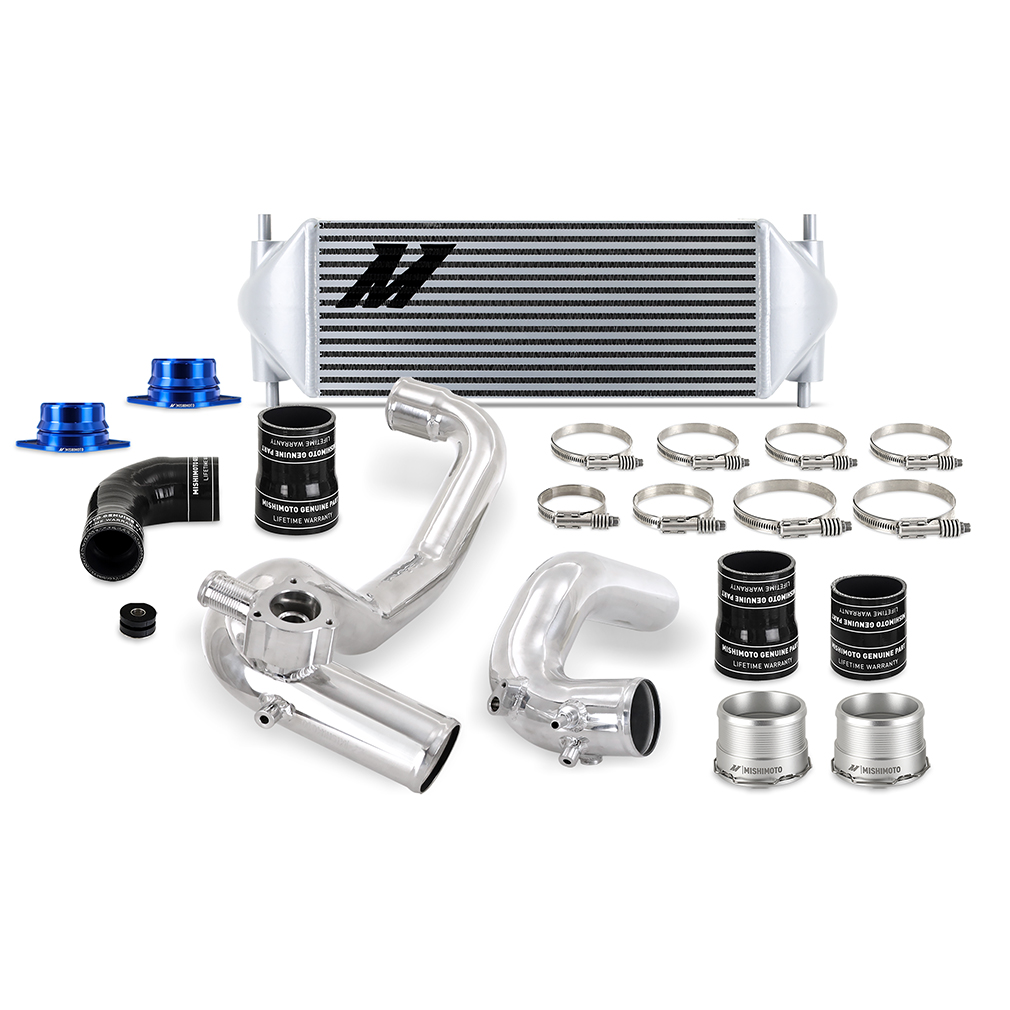

- Kit Includes: (1) Mishimoto Intercooler, (2) Mishimoto Intercooler Pipes, (2) Intercooler Pipe Adapters, (4) Silicone Boots, (8) Constant-Tension Worm Gear Clamps, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does this Mishimoto intercooler and pipe kit fit?
It is a specific fit for 2021-2024 Ford Bronco Badlands, Big Bend, Black Diamond, and Outer Banks; 2021-2023 Ford Bronco Base; 2022-2024 Ford Bronco Everglades; and 2023-2024 Ford Bronco Heritage Edition, all with the 2.3L EcoBoost engine.
What comes in the box?
The kit includes one Mishimoto intercooler, two intercooler pipes, two intercooler pipe adapters, four silicone boots, eight constant-tension worm gear clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
How much of a performance improvement does this provide?
Testing showed a 21.2F reduction in outlet temperature, a 7 percent increase in flow, and dyno-proven gains of 5.68 hp and 5.32 lb-ft of torque over the stock intercooler.
Will this interfere with adaptive cruise control or my Bronco’s cameras?
No, all functionality of adaptive cruise control and 360-degree cameras is retained.
What warranty is included?
This bundle is backed by the Mishimoto Lifetime Warranty.
