Description

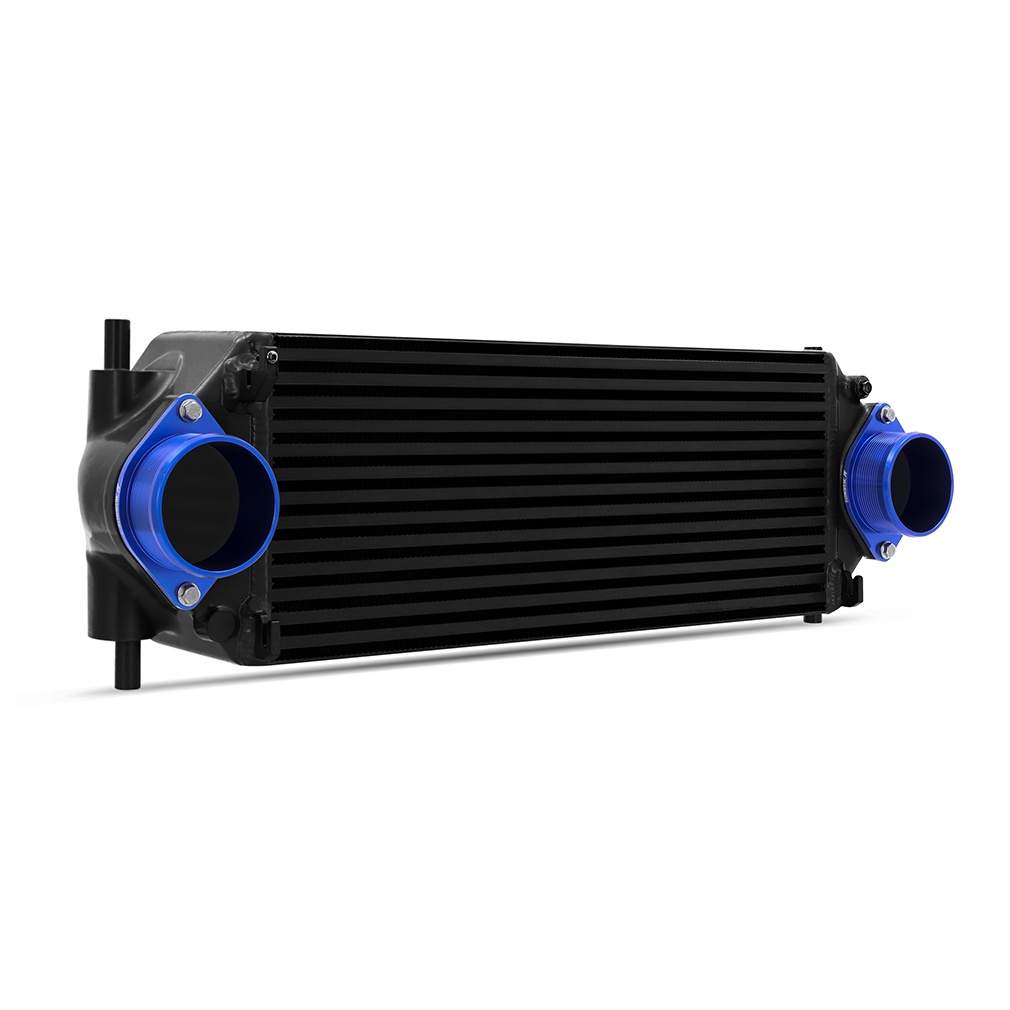

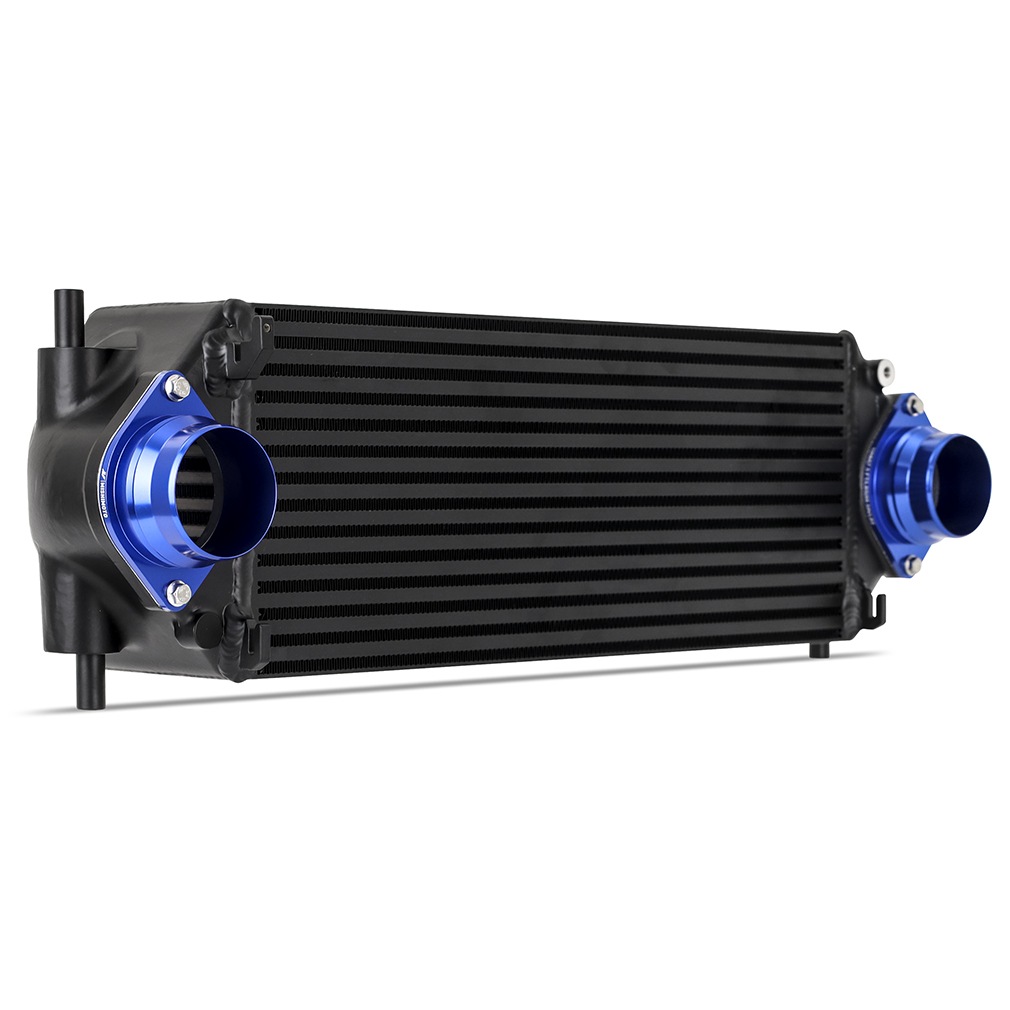

The Mishimoto Performance Intercooler and Intercooler Pipe & Boot Kit (MMINT-BR23-21KBBK) bundles two purpose-built forced induction components into one upgrade for the 2.3L EcoBoost Ford Bronco. This Black Intercooler and Black Intercooler Pipes package replaces the factory plastic-end-tank tube-and-fin intercooler with a bar-and-plate core and cast, TIG-welded aluminum end tanks, giving the Bronco’s forced induction system a more durable, higher-flowing air-charge path.
Built around a huge 4.7-inch thick core with CNC-machined 6061 aluminum inlet and outlet flanges, this Mishimoto performance induction upgrade is engineered to move more air with less restriction than the stock intercooler and pipes. In Mishimoto’s own testing, the combined intercooler and pipe kit reduced outlet temperatures by 21.2°F and increased flow by 7 percent over stock, translating into dyno-proven gains of 5.68 hp and 5.32 lb-ft of torque. During trail-simulation heat-soak testing, after six back-to-back dyno runs the kit still delivered outlet temperatures 20°F cooler than the factory setup — a real advantage for a forced induction turbo application that sees repeated boost cycles, whether crawling trails or sitting in traffic. The kit retains full functionality of adaptive cruise control and 360-degree cameras, so none of the Bronco’s factory driver-assist features are compromised by this induction system upgrade.
Vehicle Applications
This Mishimoto intercooler and pipe kit is a direct-fit, specific application for the 2.3L EcoBoost Ford Bronco. Coverage spans the 2021–2024 Ford Bronco Badlands, Big Bend, Black Diamond, and Outer Banks trims, the 2021–2023 Ford Bronco Base, the 2022–2024 Ford Bronco Everglades, and the 2023–2024 Ford Bronco Heritage Edition.
Features
- Direct fit for 2021-2024 Ford Bronco 2.3L
- 21.2°F reduction in outlet temperature over the stock intercooler
- Dyno-proven power gains of 5.68 hp and 5.32 lb-ft of torque
- 4.7-inch thick intercooler core for maximum flow
- 175% increase in fin surface area and 77% increase in core volume versus stock
- 7% less restrictive than the stock intercooler
- All-aluminum, TIG-welded construction with a durable bar-and-plate core
- CNC-machined 6061 aluminum inlet and outlet flanges
- Cast aluminum end tanks for added durability
- Does not interfere with adaptive cruise control or 360-degree cameras
- Patent Pending design
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-BR23-21KBBK
- Product Type: Forced Induction
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Color: Black
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Universal or Specific Fit: Specific

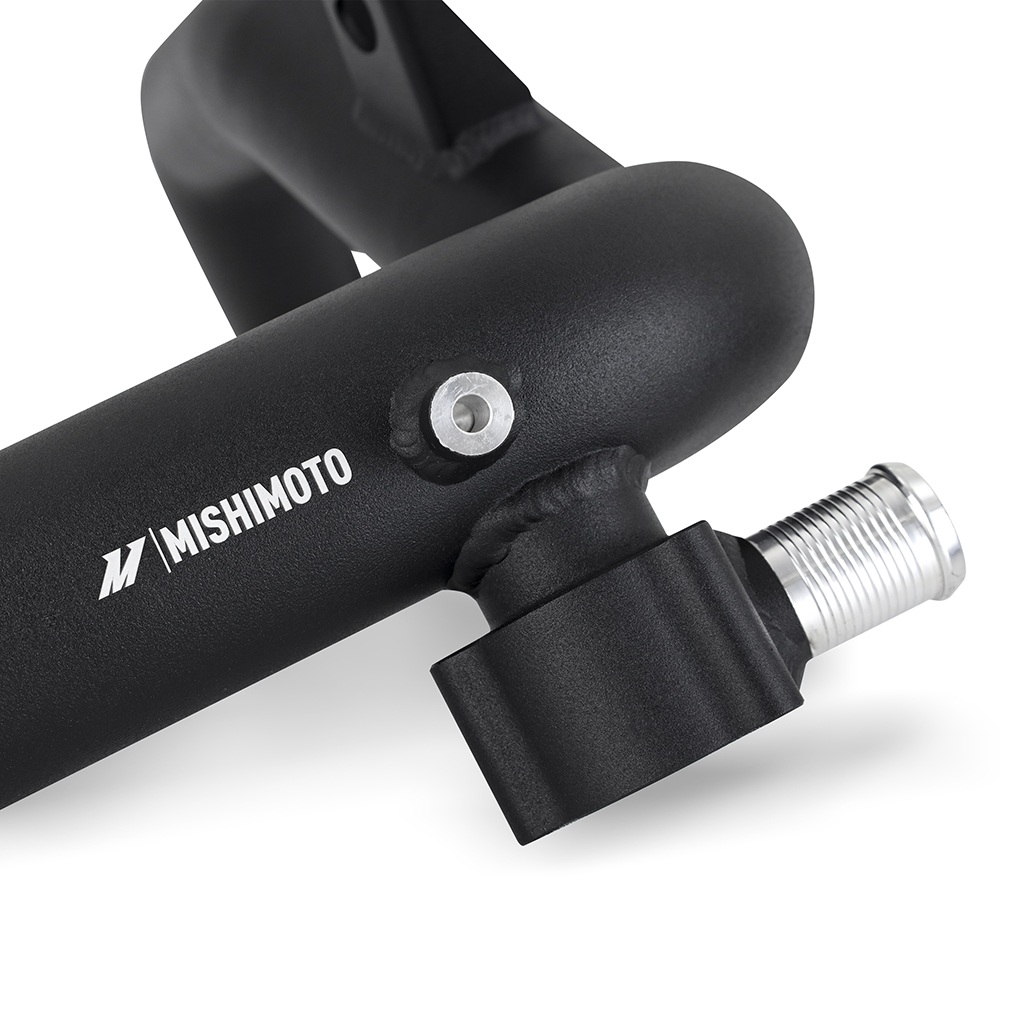

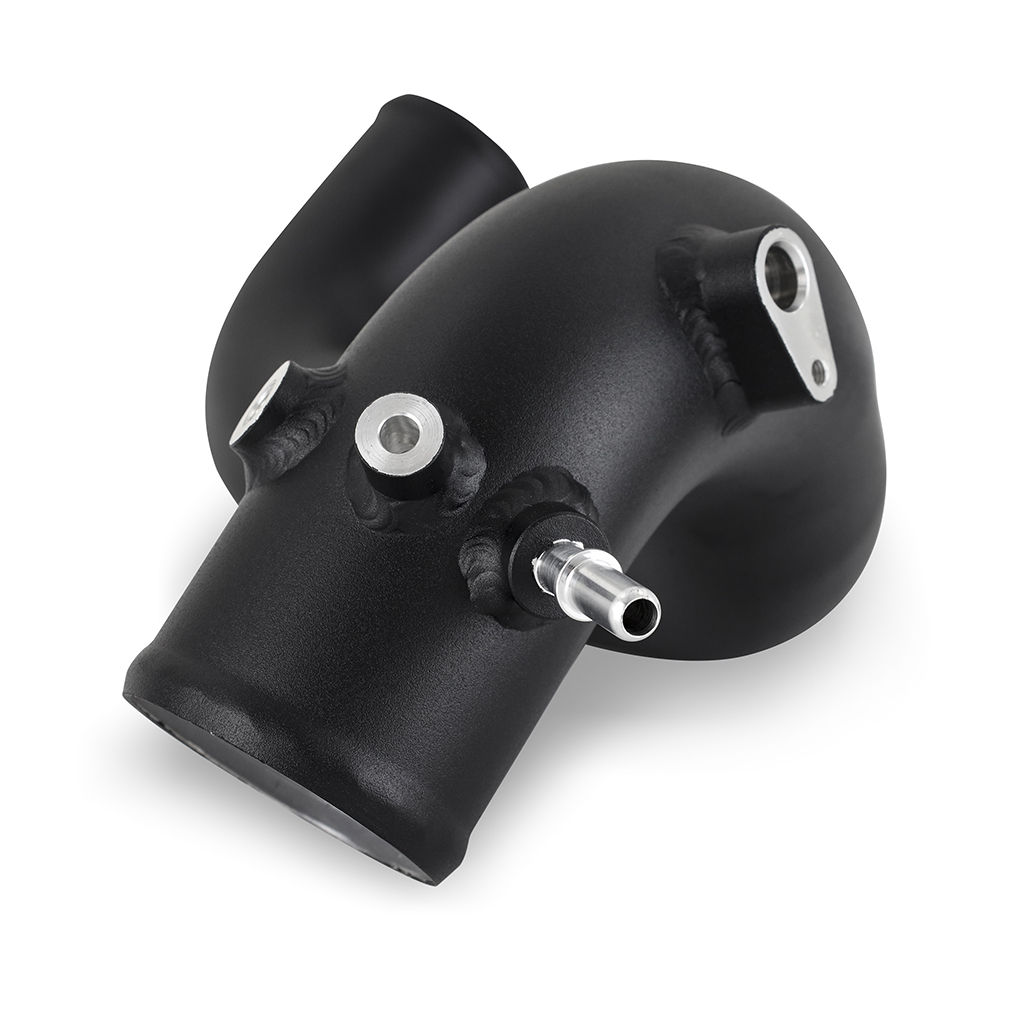

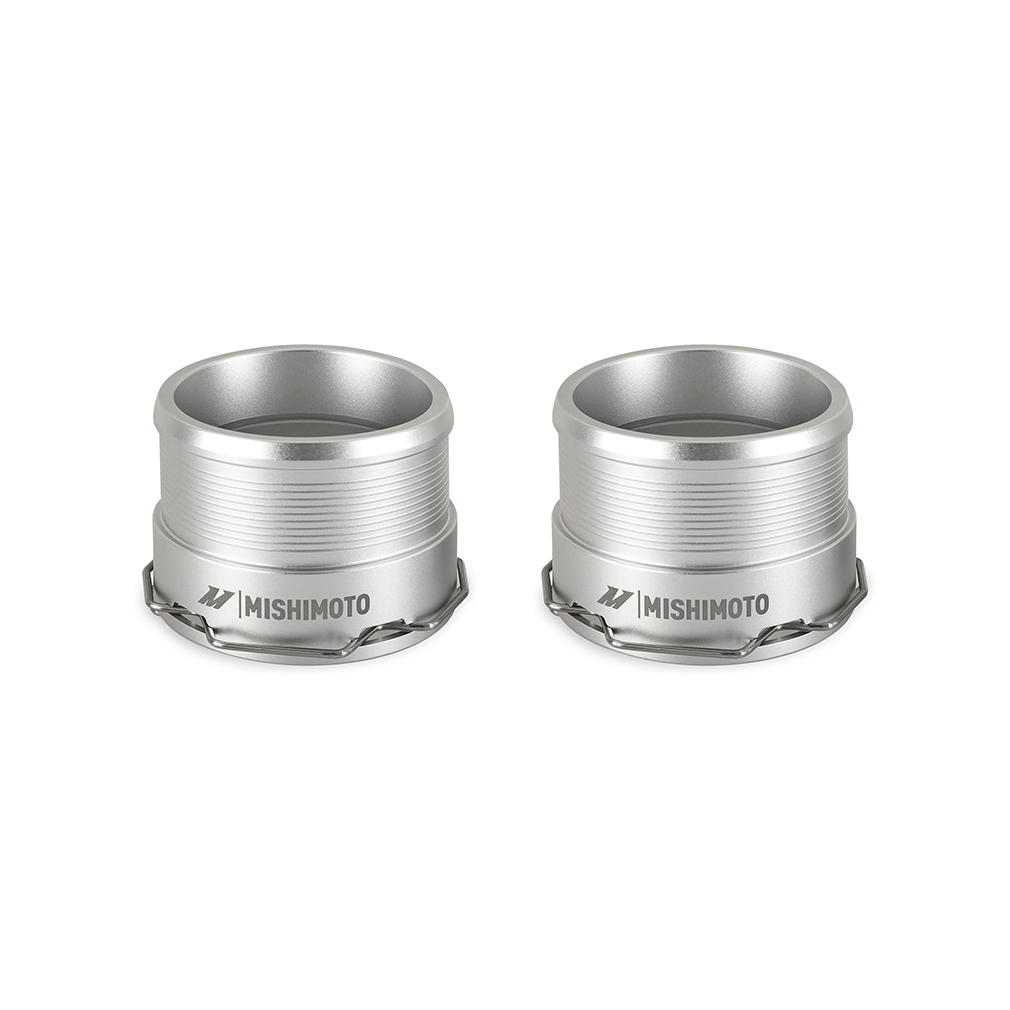

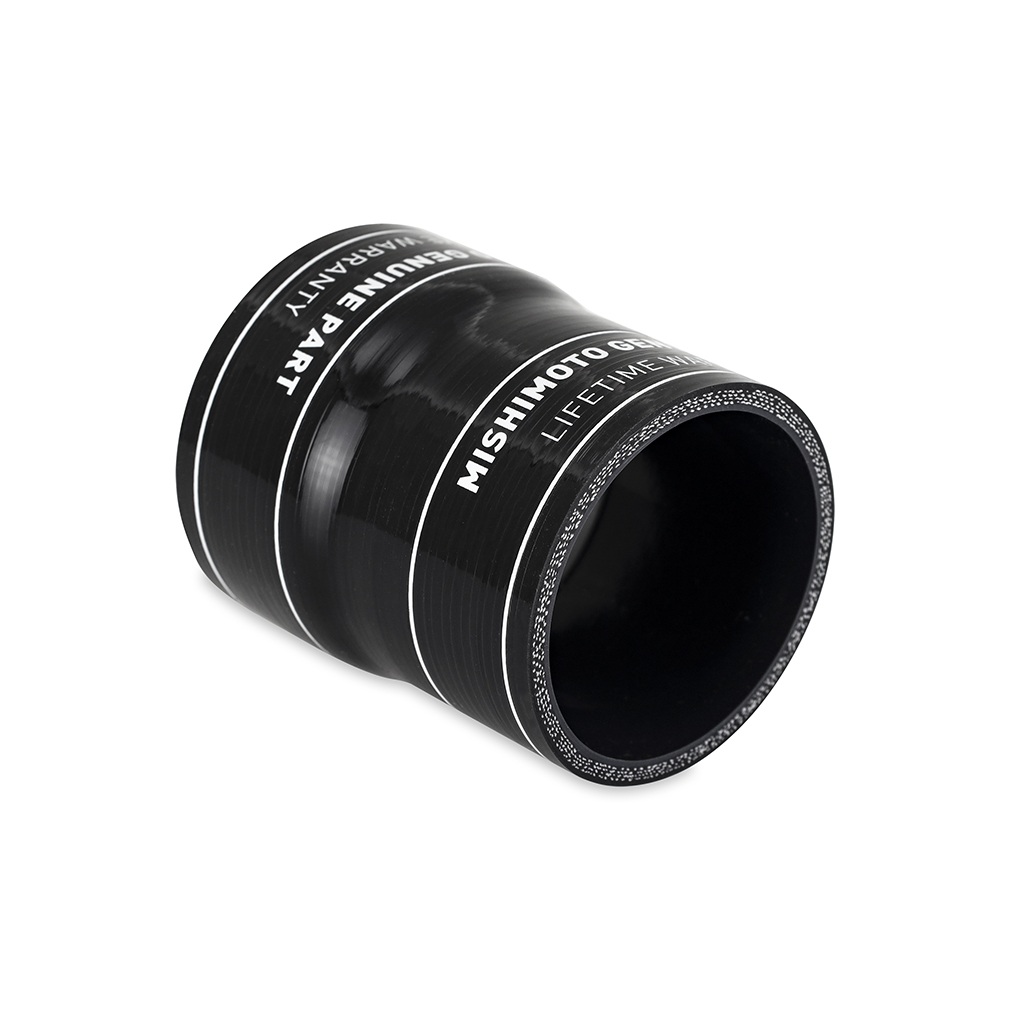

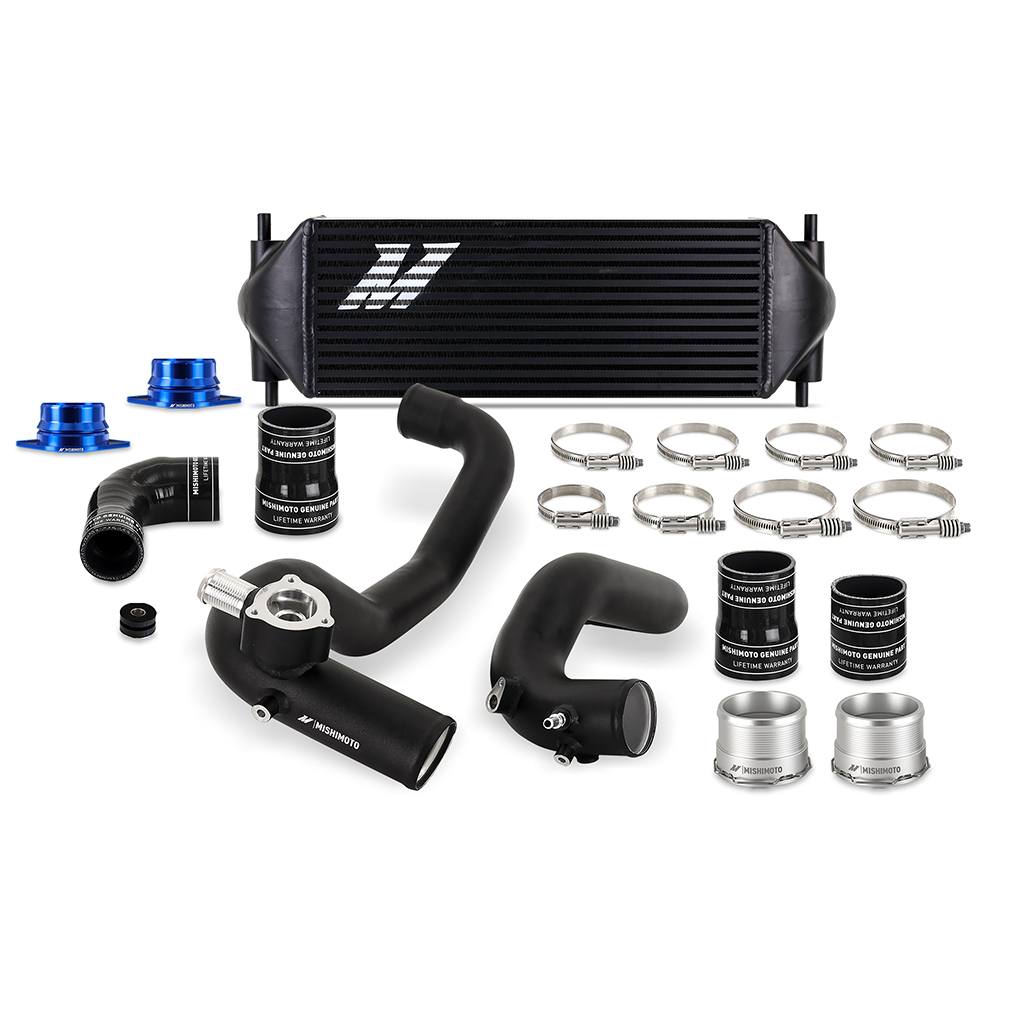

- Kit Includes: (1) Mishimoto Intercooler, (2) Mishimoto Intercooler Pipes, (2) Intercooler Pipe Adapters, (4) Silicone Boots, (8) Constant-Tension Worm Gear Clamps, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-BR23-21KBBK fit?
This kit is a specific fit for the 2.3L EcoBoost Ford Bronco, covering the 2021–2024 Badlands, Big Bend, Black Diamond, and Outer Banks trims, the 2021–2023 Base trim, the 2022–2024 Everglades trim, and the 2023–2024 Heritage Edition.
What performance gains does the Mishimoto Performance Intercooler and Pipe Kit provide?
Mishimoto testing showed a 21.2°F reduction in outlet temperature, a 7% increase in flow over stock, and dyno-proven gains of 5.68 hp and 5.32 lb-ft of torque compared to the factory intercooler and pipes.
Does this kit affect adaptive cruise control or the 360-degree camera system?
No. The kit retains full functionality of adaptive cruise control and 360-degree cameras.
What is the core construction and thickness of the Mishimoto intercooler?
The intercooler uses a bar-and-plate core construction with a 4.7-inch thick core, cast aluminum end tanks, and CNC-machined 6061 aluminum inlet and outlet flanges.
What is included with the Mishimoto Intercooler and Pipe & Boot Kit?
The kit includes (1) Mishimoto Intercooler, (2) Mishimoto Intercooler Pipes, (2) Intercooler Pipe Adapters, (4) Silicone Boots, (8) Constant-Tension Worm Gear Clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
Is this intercooler kit backed by a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
