Description
The Mishimoto Intercooler and Pipe Kit (MMINT-MUS4-24KBKBK) is a direct-fit forced induction upgrade built specifically for the 2024+ Ford Mustang EcoBoost. This black cooler, black pipe configuration pairs a bar-and-plate intercooler with cast aluminum end tanks to a full set of hot-side and cold-side aluminum pipes, replacing the factory intercooler and piping in the stock location while delivering a 60% increase in core volume.

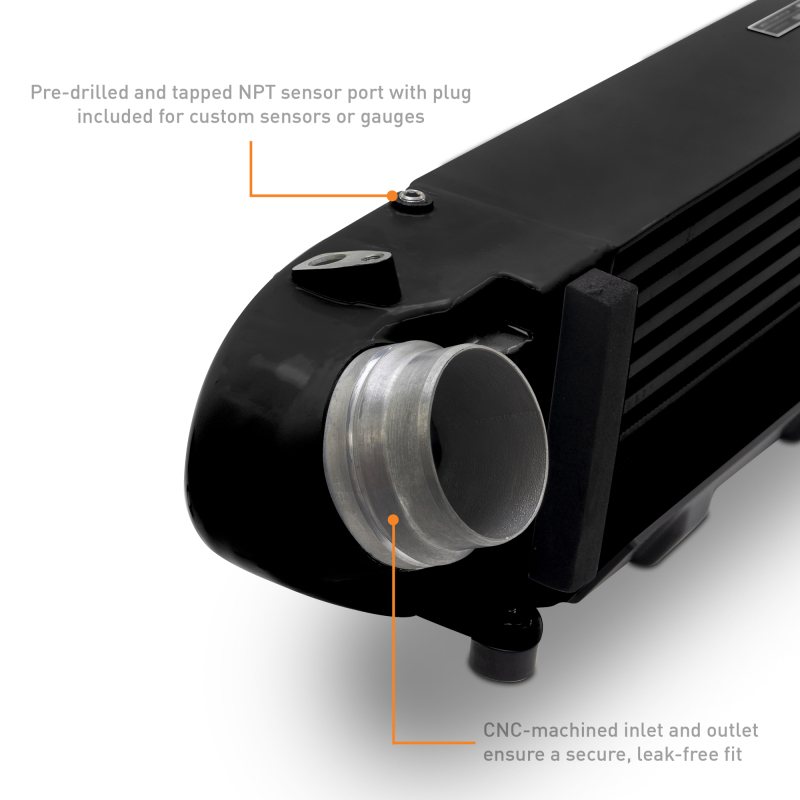

As a purpose-engineered forced induction system, this kit is designed to lower charged-air temperatures at the outlet by up to 60°F and support gains of up to 12 hp and 11 ft-lbs of torque on a stock tune, with no tuning required. Oversized 63mm inlets and outlets, a diverter plate for even air distribution, and an ID-matched transition coupler keep airflow smooth through the induction system, while the bar-and-plate core with cast aluminum end tanks is rated to support up to 526 hp and a maximum boost pressure of 50 PSI. A pre-drilled NPT port is included for auxiliary sensors or data logging, giving performance-minded owners flexibility as their build evolves.
Vehicle Applications
This kit is a specific-fit application engineered for the S650-chassis Ford Mustang, covering the 2024–2026 Mustang EcoBoost and 2024–2026 Mustang EcoBoost Premium, both equipped with the 2.3L EcoBoost I4 engine. It is not designed for any other Mustang generation, trim, or engine platform outside of this listed coverage.
Features
- Gains of up to 12 hp and 11 ft-lbs of torque on a stock tune
- Reduces charged-air temperatures at outlet by up to 60°F

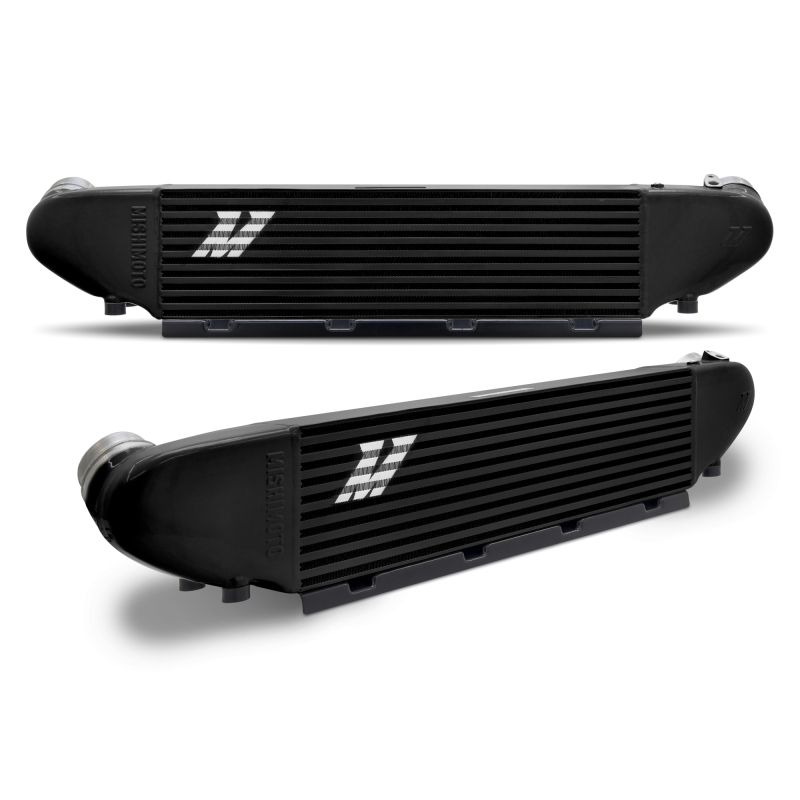

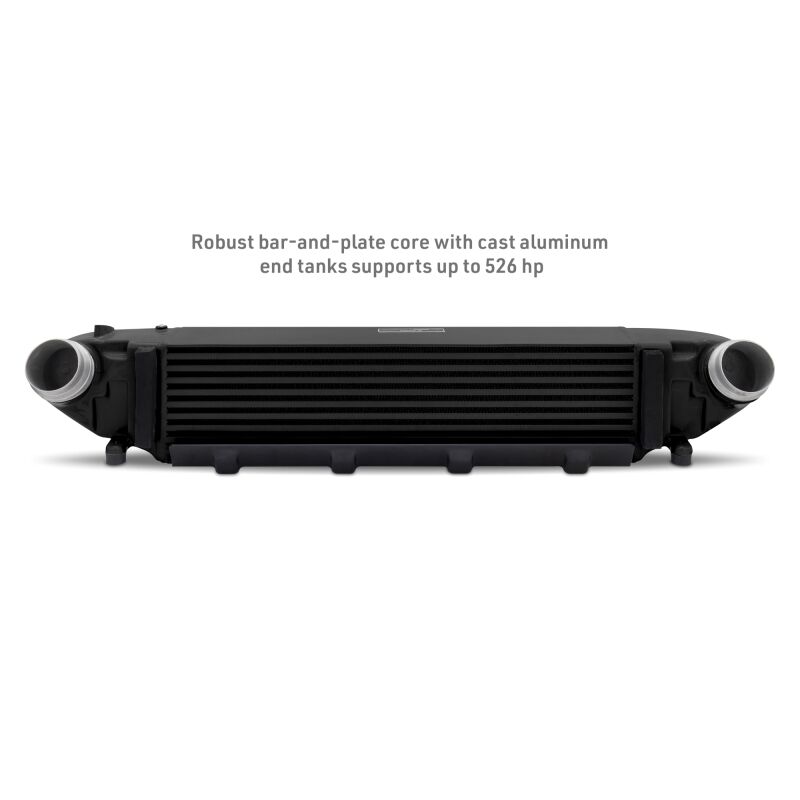

- Robust bar-and-plate core with cast aluminum end tanks supports up to 526 hp

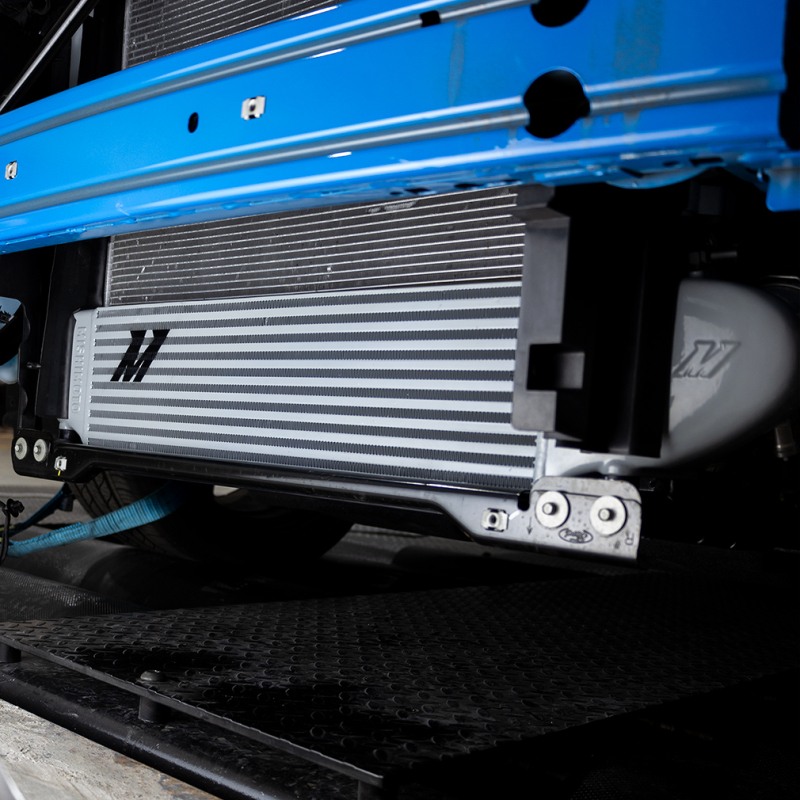

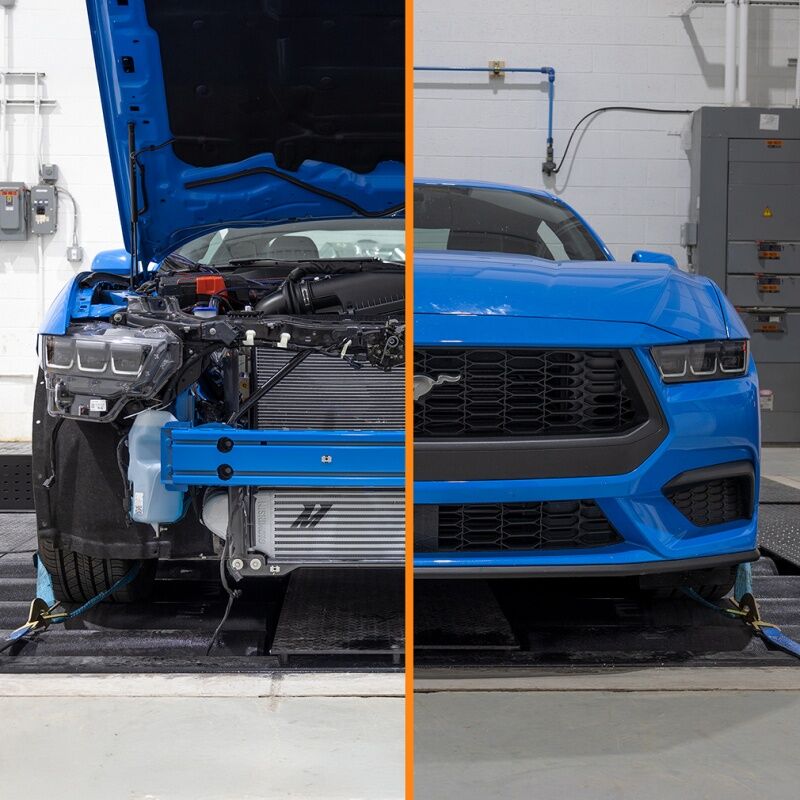

- Maximized core sits in the stock location below the crash bar to maintain even airflow and prevent heat pockets

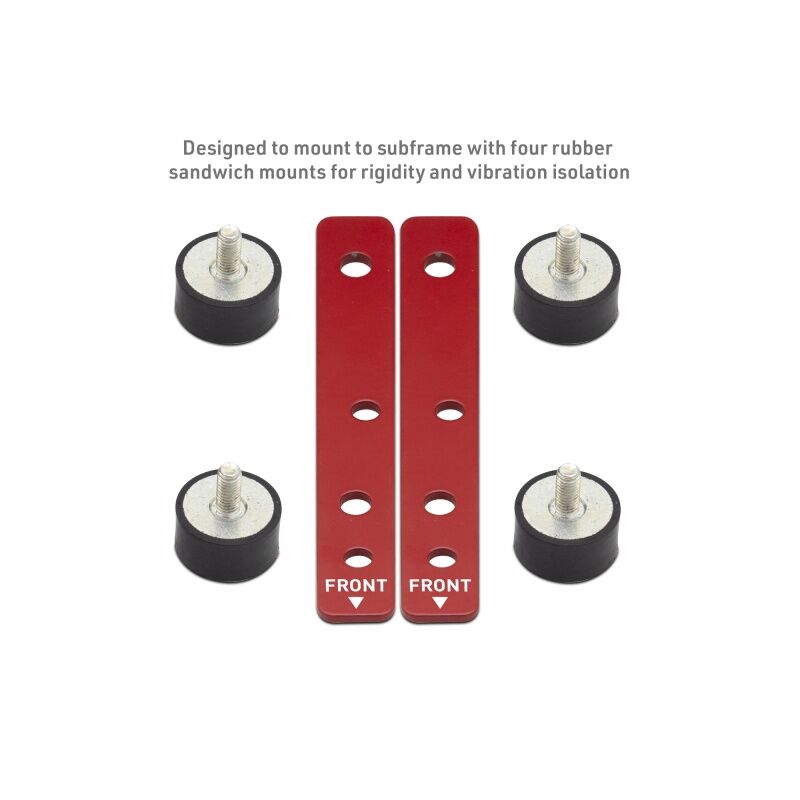

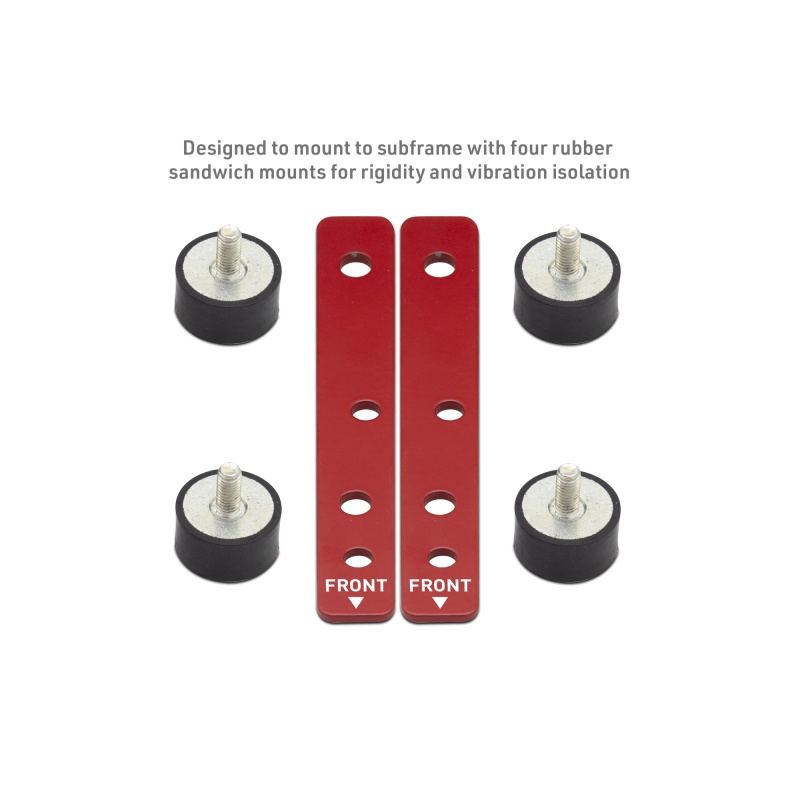

- Mounts to the subframe using four EPDM rubber sandwich mounts for rigidity and vibration isolation

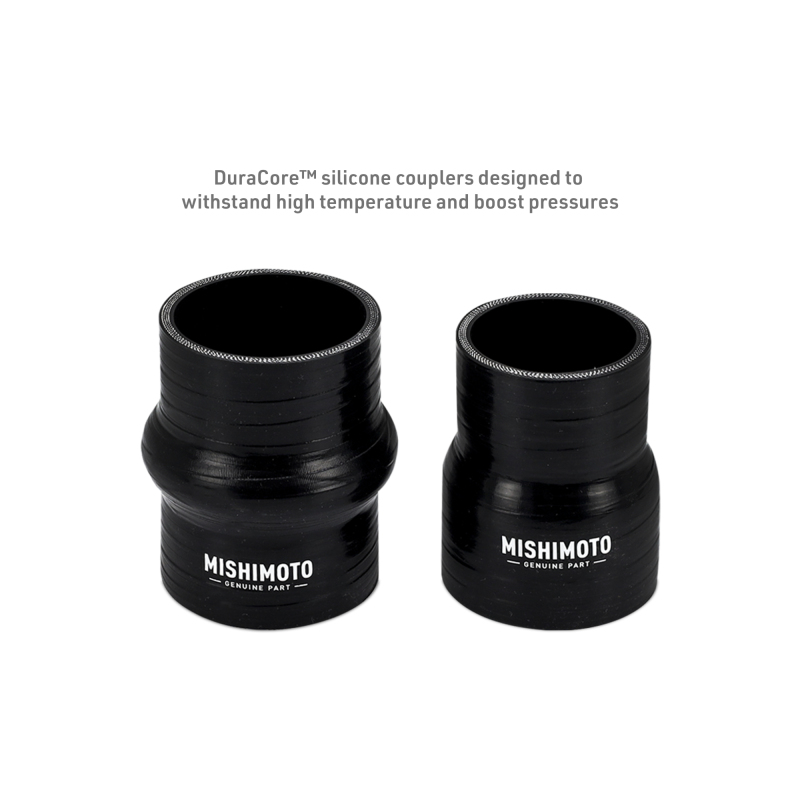

- DuraCoreâ„¢ silicone couplers designed to withstand high temperature and boost pressures

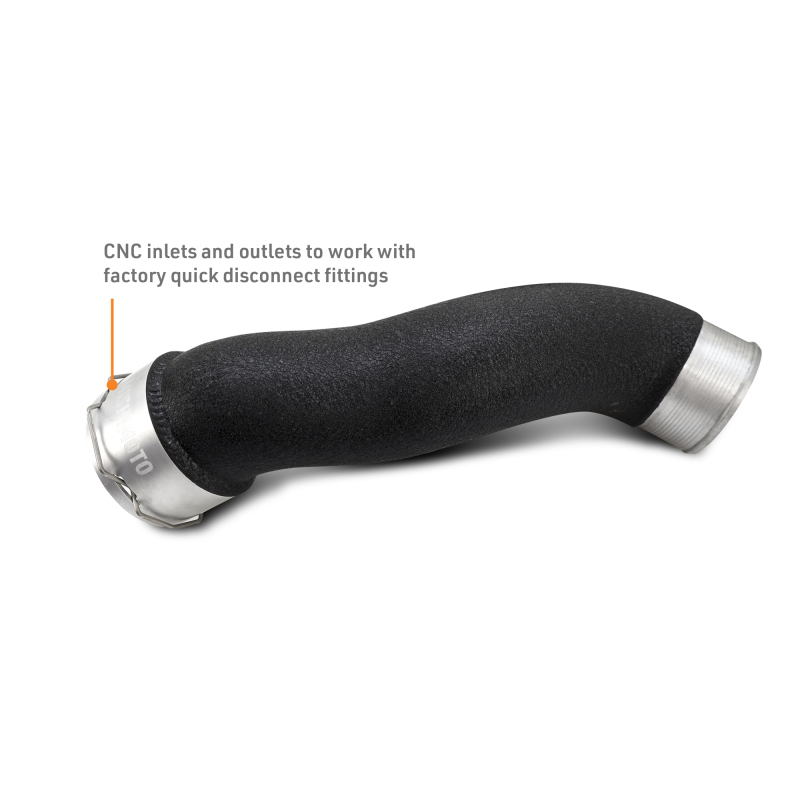

- Includes CNC-machined quick-disconnect fittings and high-torque worm-gear clamps for secure fitment

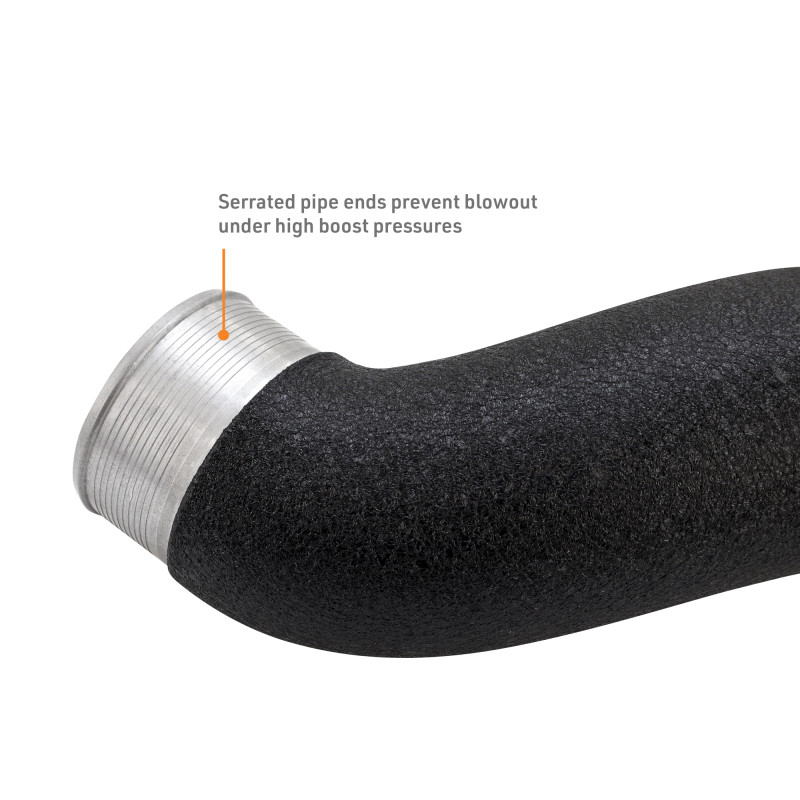

- Cast end sections on both pipes provide a smooth transition for maximum airflow and precise fitment
- ID-matched transition coupler on the cold side for smooth airflow into the intercooler
- Diverter plate in the hot-side end tank offers even airflow distribution
- Foam sealing strips and a custom-formed bottom air deflector maximize airflow and reduce noise and vibration
- Cast turbo outlet elbow integrates the blow-off valve seat and retains factory harness clipping points
- Extra clearance allows compatibility with the Mishimoto performance radiator
- Available in polished or wrinkle black pipe finishes and silver or black intercooler cores
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum, Cast construction
- Core Height: 6.08 in
- Core Thickness: 3.54 in
- Core Length: 22.83 in
- Inlet Diameter: 2.44 in
- Outlet Diameter: 2.44 in
- Hot Side Pipe Inside Diameter: 2.44 in
- Cold Side Pipe Inside Diameter: 2.44 in
- Pipe Material: Aluminum, Black finish, Powder Coated
- Coupler Material: Silicone, Black
- Hose Clamps Included: Yes
- Maximum Boost Pressure: 50 PSI
- Maximum Horsepower: 526 hp
- Overall Length: 35.7 in
- Overall Width: 5.3 in
- Overall Height: 6.5 in
- Weight: 17 lbs
- Engine Code: 2.3L EcoBoost I4
- Chassis Code: S650

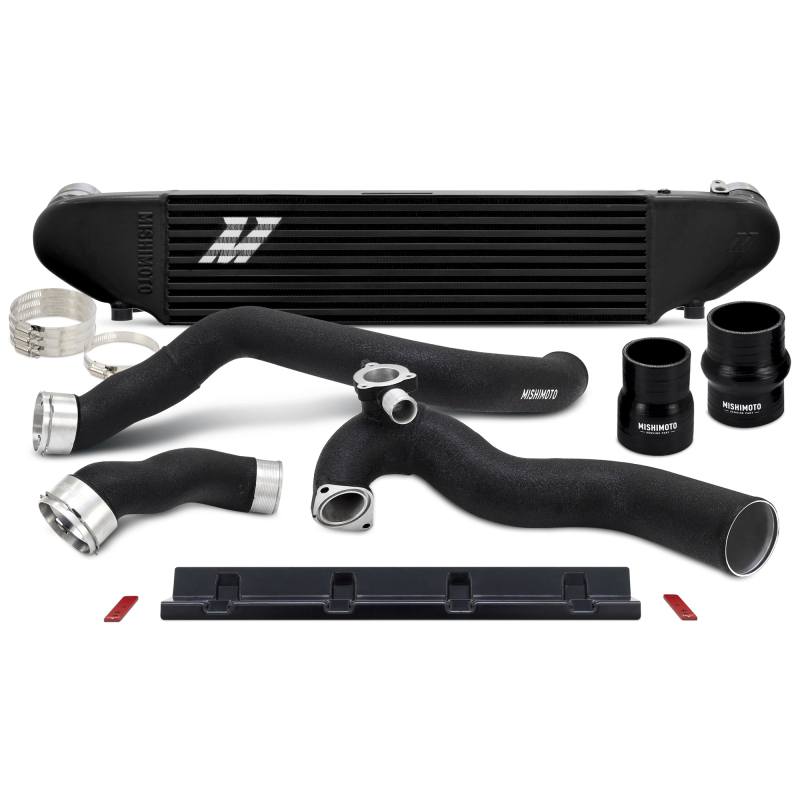

- Includes: (1) Mishimoto Performance Intercooler, (1) Deflector Panel Kit, (1) Bracket Kit, (2) Hot Side Pipes, (1) Cold Side Pipe, (2) DuraCore Couplers, (4) Spring Clamps, (2) O-Rings, (3) Buttonhead Locking Bolts, (1) Tree Clip Zip Tie, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto Intercooler and Pipe Kit fit?
This kit is a specific-fit application for the 2024–2026 Ford Mustang EcoBoost and 2024–2026 Ford Mustang EcoBoost Premium, both equipped with the 2.3L EcoBoost I4 engine on the S650 chassis.
How much power can I gain with this intercooler and pipe kit?
Mishimoto states gains of up to 12 hp and 11 ft-lbs of torque are possible on a stock tune, with no tuning required.
What is the maximum horsepower and boost this kit supports?
The bar-and-plate core with cast aluminum end tanks supports up to 526 hp and a maximum boost pressure of 50 PSI.
What finishes are available for this kit?
The intercooler is available in silver or black, and the pipes are available in polished or wrinkle black finishes; this specific kit (MMINT-MUS4-24KBKBK) is the black cooler with black pipes configuration.
What is included in the Mishimoto Intercooler and Pipe Kit?
The kit includes one Mishimoto Performance Intercooler, one Deflector Panel Kit, one Bracket Kit, two Hot Side Pipes, one Cold Side Pipe, two DuraCore couplers, four spring clamps, two O-rings, three buttonhead locking bolts, one tree clip zip tie, and the Mishimoto Lifetime Warranty.
Does this intercooler affect intake air temperature?
Yes, Mishimoto states the kit reduces charged-air temperatures at the outlet by up to 60°F.
