Description
The Mishimoto Performance Intercooler Pipes, part number MMICP-BR27-21MWBK, are purpose-built for the 2021+ Ford Bronco’s 2.7L twin-turbo EcoBoost V6 — the engine that already sends 330 horsepower and 325 lb.-ft. of torque to the trail. Where the factory piping relies on plastic and rubber sections that fatigue over time, Mishimoto engineered a cast and mandrel-bent aluminum replacement designed to survive thousands of heat cycles and hold boost under real off-road abuse.

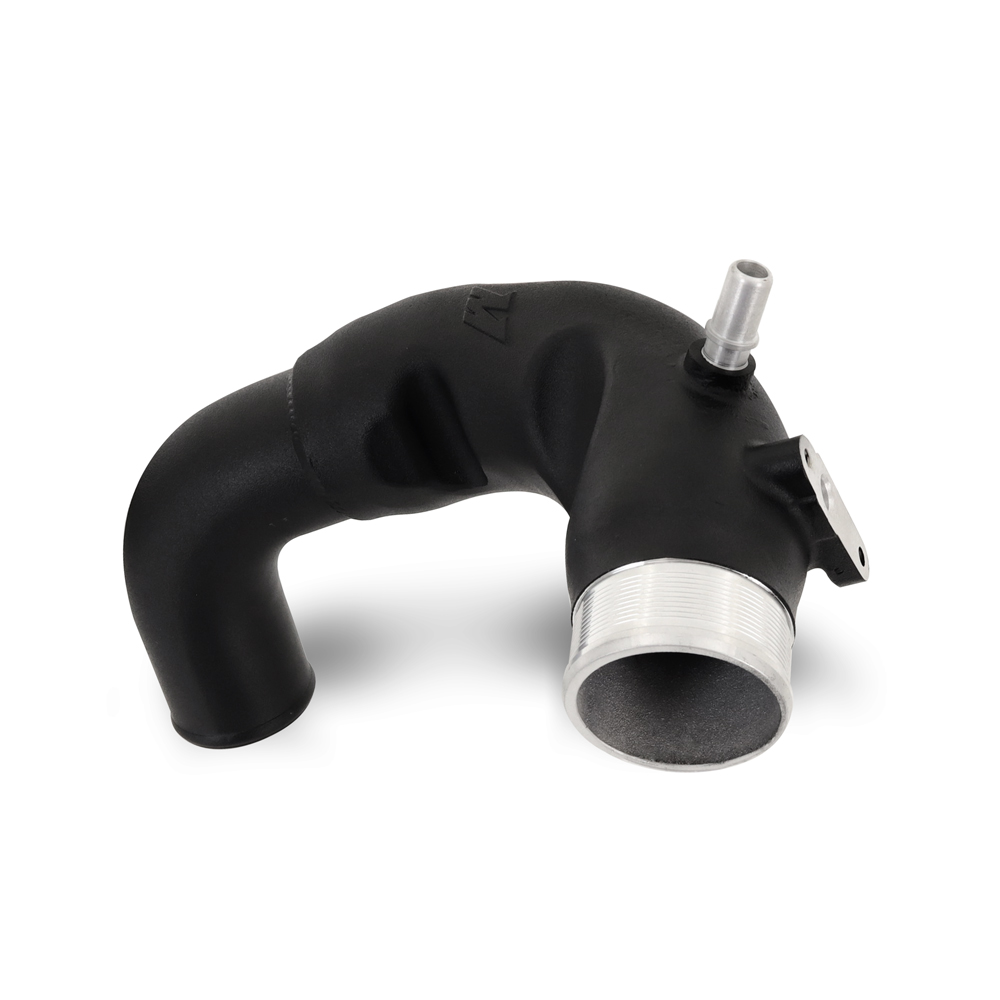

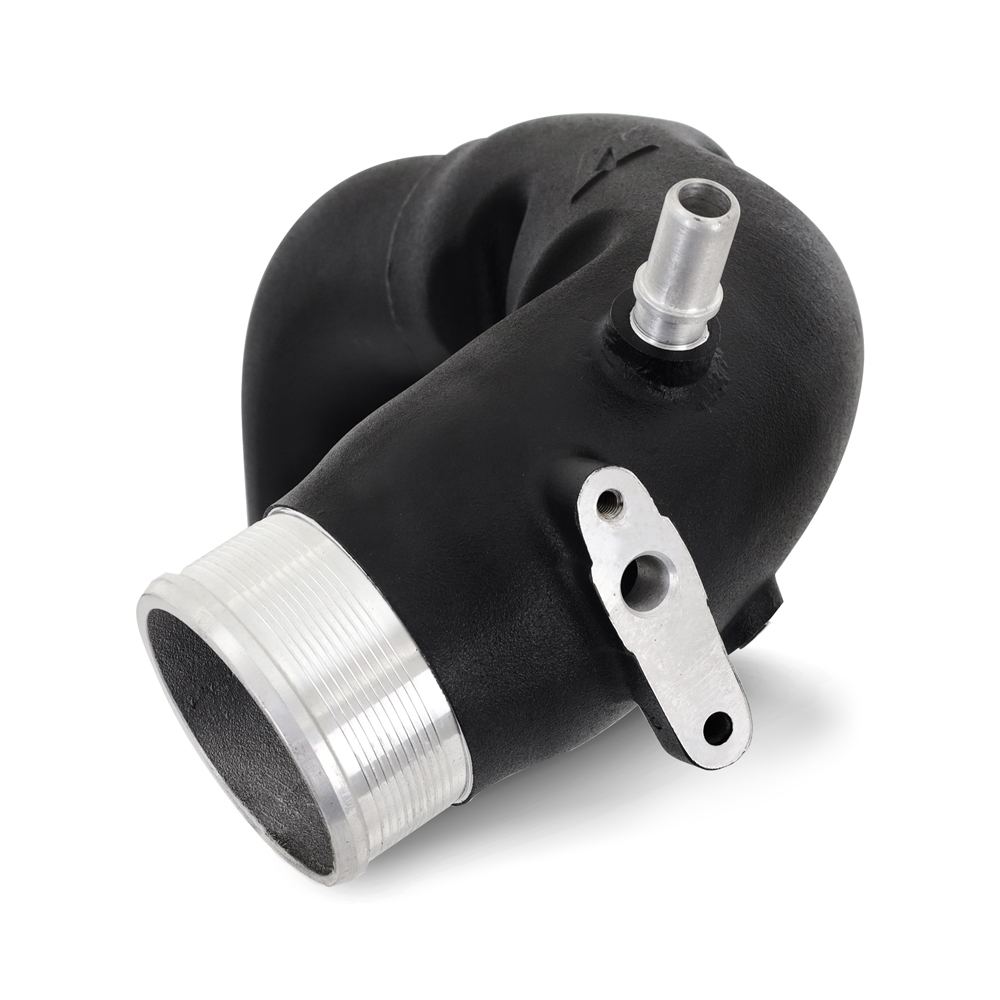

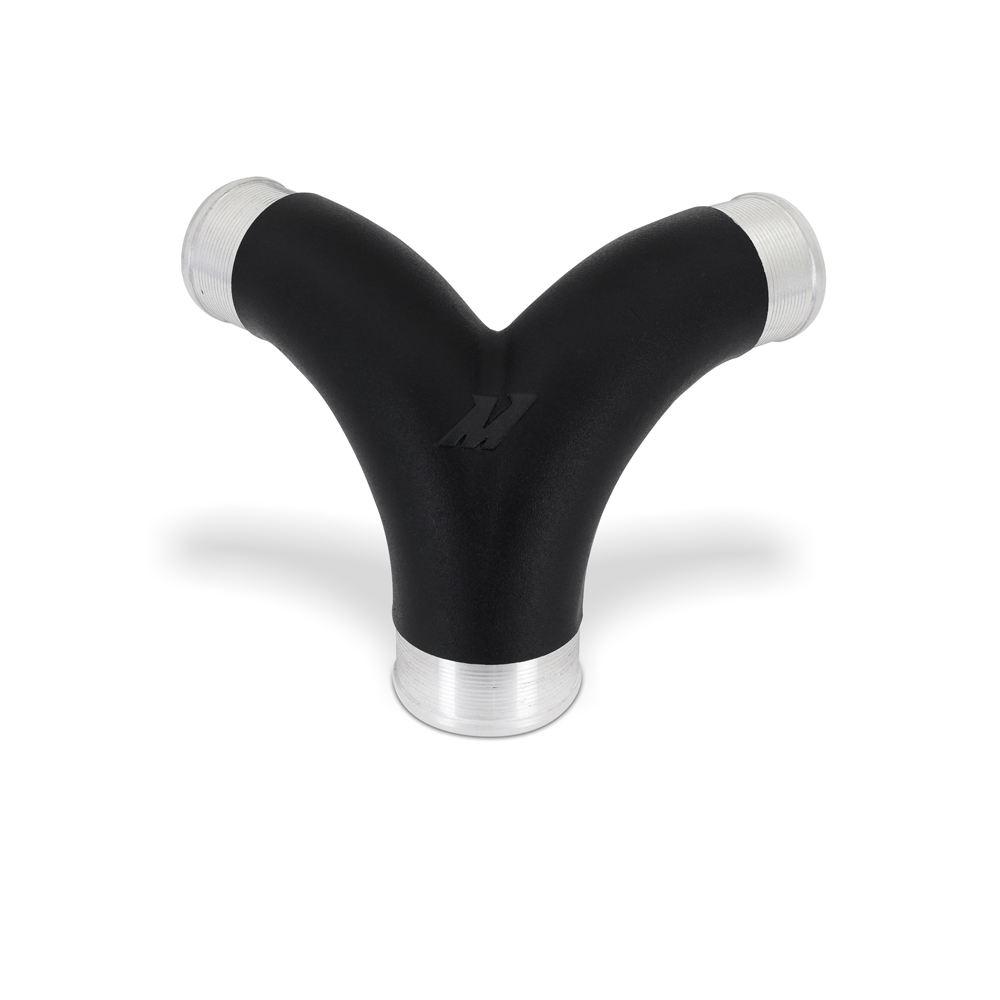

This forced induction system upgrade replaces the factory hot-side Y-pipe, throttle body inlet, and rubber transition sections with a cast-aluminum and mandrel-bent aluminum induction system that resists cracking and increases boost tolerance. Serrated coupler connections at the Y-pipe and throttle body lock the silicone boots in place so boost pressure stays where it belongs, even under demanding conditions. By reducing restriction by up to 34.2-percent versus the stock pipes, this performance induction upgrade lets the Bronco’s turbo engine pull in more air, translating into dyno-proven gains of 5.4 HP and 6.1 lb-ft. of torque on the stock tune.
Vehicle Applications
This kit is a direct fit for the 2021+ Ford Bronco equipped with the 2.7L EcoBoost V6 (chassis code U725). Coverage spans the Bronco Badlands and Outer Banks trims from 2021–2026, the Big Bend, Black Diamond, and Wildtrak trims from 2021–2024, the Base trim from 2021–2023, the First Edition (2021 only), the Heritage Limited Edition (2023–2024), the Heritage Edition (2024–2026), and the Stroppe Edition (2025–2026).
Features
- Direct fit for 2021+ Ford Bronco 2.7L EcoBoost
- Up to 34.2-percent less restrictive than stock intercooler pipes
- Dyno-proven power gains of 5.4 HP and 6.1 lb-ft. of torque on stock tune
- 2-1/4-inch to 2-1/2-inch hot-side piping and 2-3/4-inch cold-side piping
- Available with high-mount or stock location intercooler for improved cooling and power

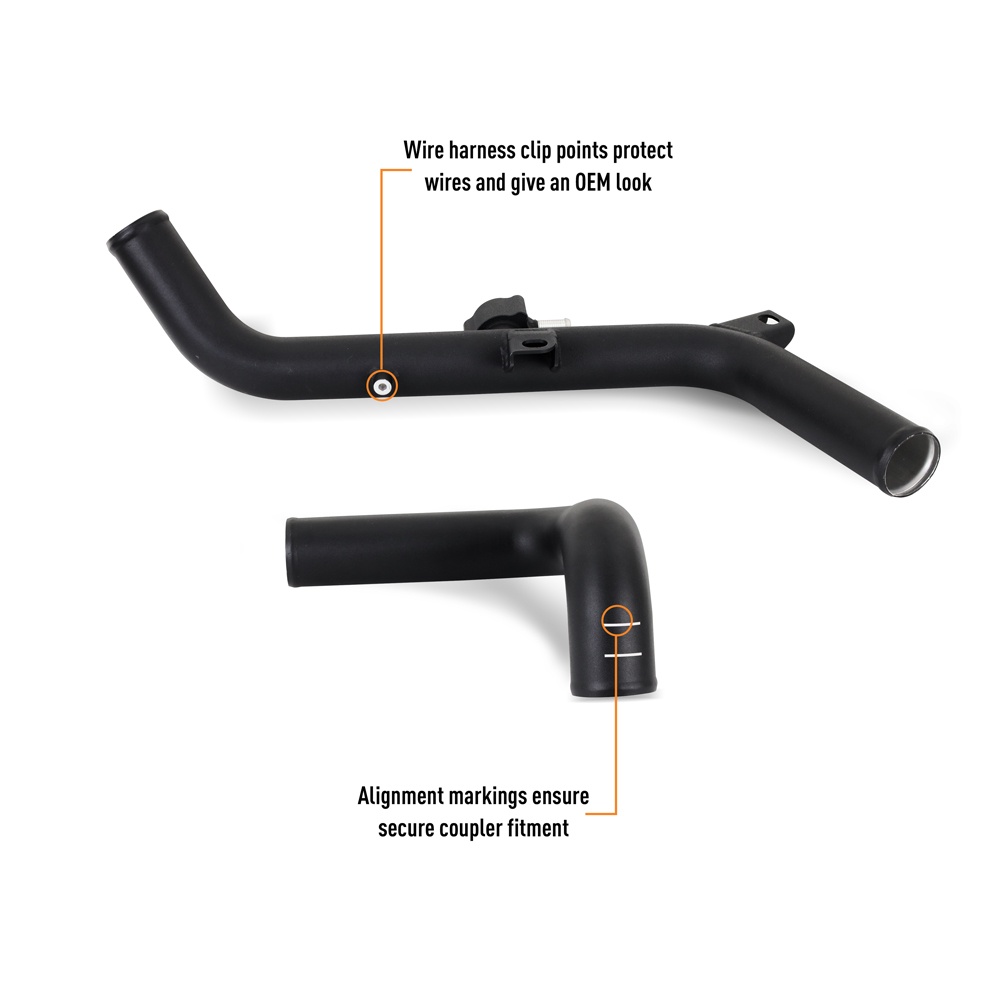

- Constructed from durable cast and mandrel-bent aluminum for superior boost tolerance

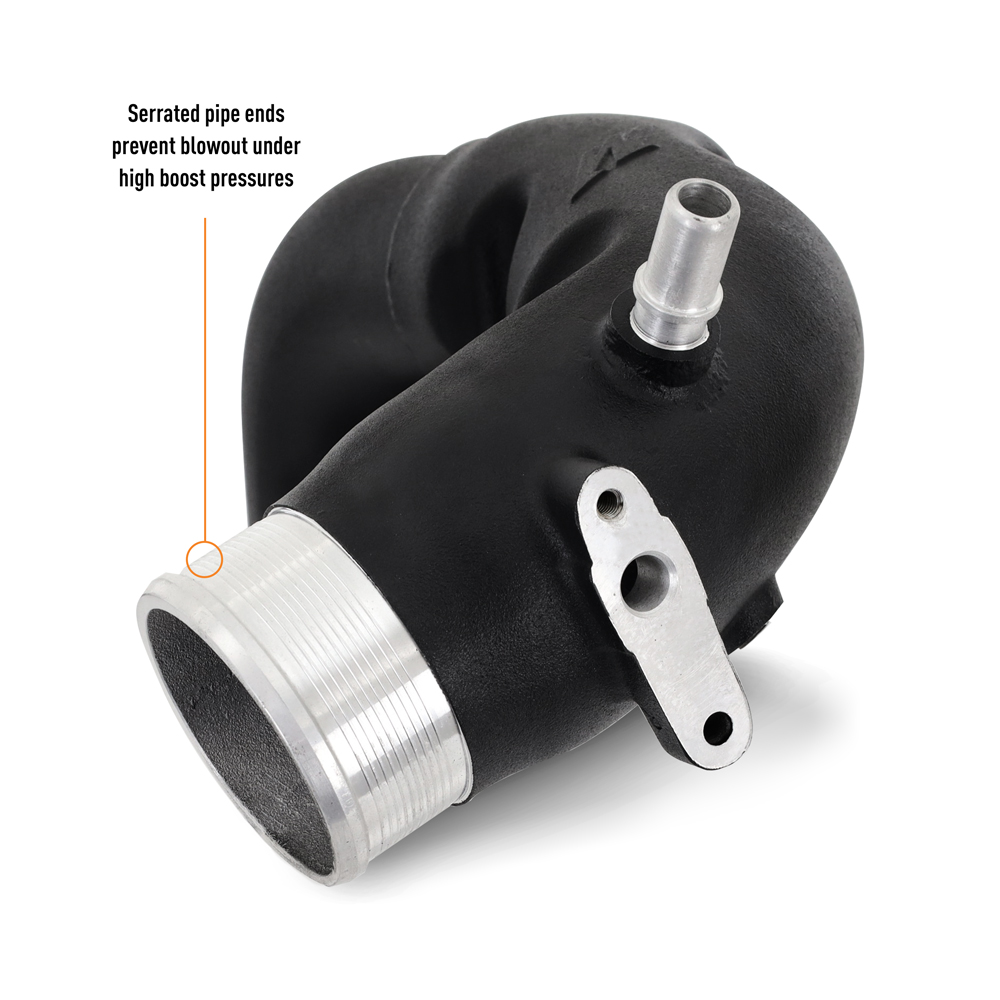

- Serrated coupler connections ensure a secure fit under high boost pressures
- Precision CNC-machined components for exacting fit and performance
- Micro-wrinkle black powder coat adds stealthy style and protects pipes from the elements
- 1/8-NPT port in cold-side pipe for methanol injection or additional sensors

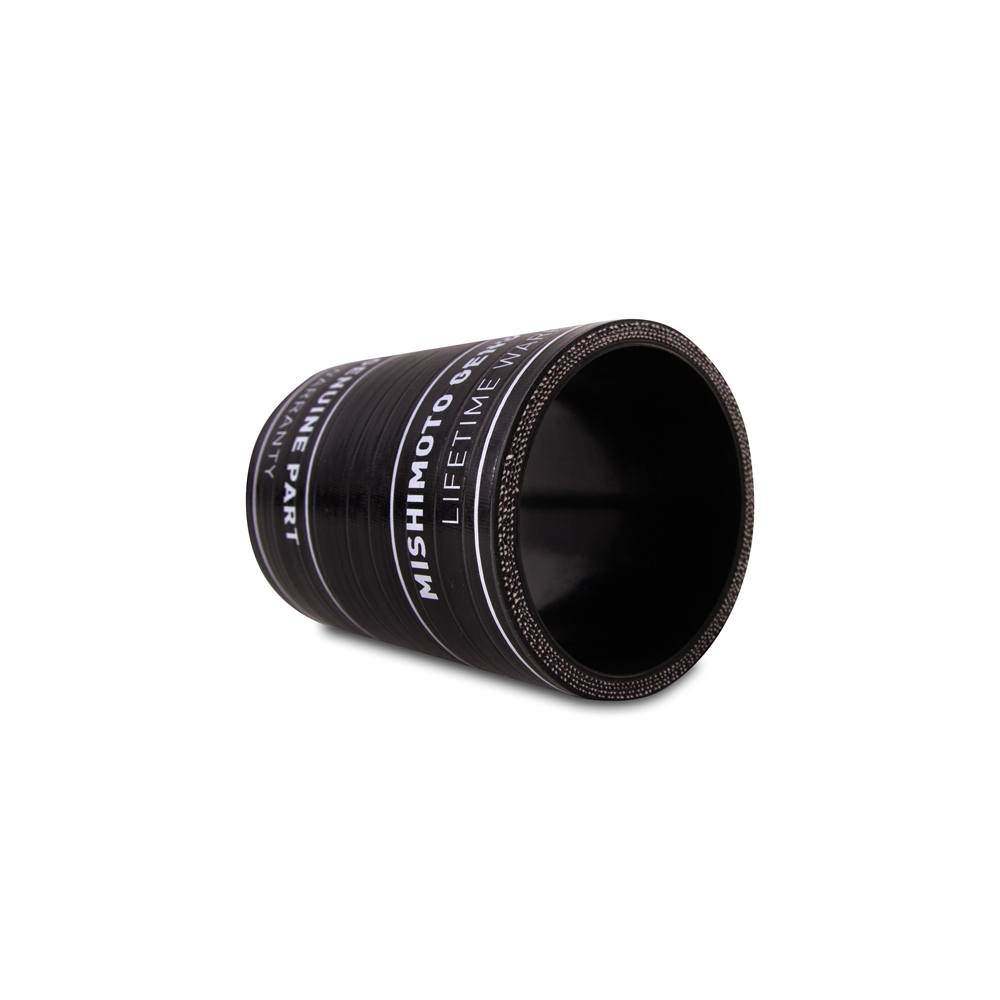

- Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
- Constant-tension worm gear clamps keep a strong grip as pipes expand and contract
Specifications
- Brand: Mishimoto
- Part Number: MMICP-BR27-21MWBK
- Product Type: Forced Induction
- Pipe Material: Aluminum
- Pipe Color: Black
- Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: Worm Gear
- Clamp Quantity: 18
- Pipe Bend Type: Mandrel
- Hot-Side Piping: 2-1/4-inch to 2-1/2-inch
- Cold-Side Piping: 2-3/4-inch
- Weight: 20.3 lbs
- Vehicle Application: 2021+ Ford Bronco V6 2.7L Turbo
- Engine Code: 2.7L EcoBoost
- Chassis Code: U725
- Maximum Recommended Horsepower: 1000
- Maximum Recommended Boost Pressure: 50 PSI

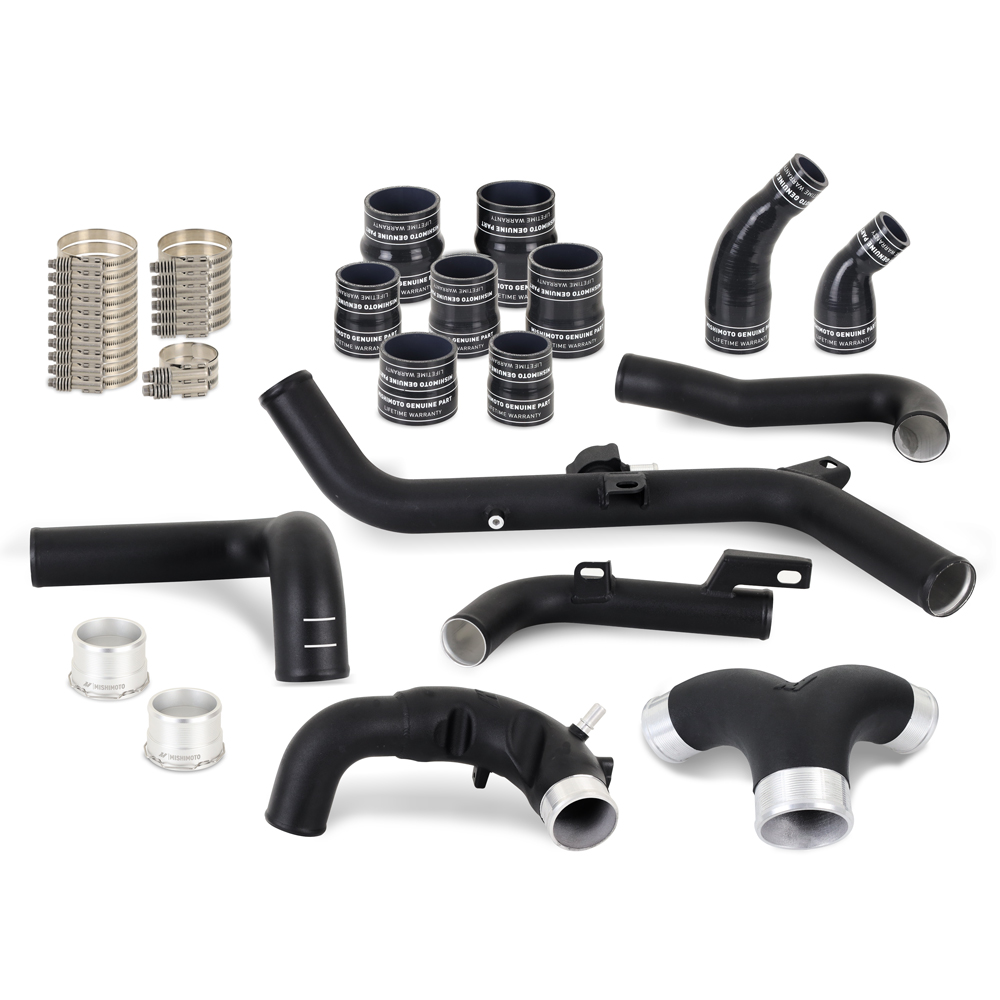

- Includes: (4) Hot-Side Intercooler Pipes, (2) Cold-Side Intercooler Pipes, (7) Intercooler Pipe Boots, (18) Worm Gear Clamps, (2) CNC-Machined Intercooler Quick-Disconnect Adapters, Mishimoto Lifetime Warranty
- Patent No.: US D1,051,944 S
- Warranty: Mishimoto Lifetime Warranty
Frequently Asked Questions
What is included with the Mishimoto Performance Intercooler Pipes (MMICP-BR27-21MWBK)?
The kit includes (4) Hot-Side Intercooler Pipes, (2) Cold-Side Intercooler Pipes, (7) Intercooler Pipe Boots, (18) Worm Gear Clamps, (2) CNC-Machined Intercooler Quick-Disconnect Adapters, and the Mishimoto Lifetime Warranty.
Which Ford Bronco models does this fit?
This kit is a direct fit for the 2021+ Ford Bronco 2.7L EcoBoost (chassis code U725), covering the Badlands and Outer Banks (2021″2026), Big Bend, Black Diamond, and Wildtrak (2021″)2024), Base (2021″)2023), First Edition (2021), Heritage Limited Edition (2023″)2024), Heritage Edition (2024″)2026), and Stroppe Edition (2025″)2026).
How much power can I expect from these intercooler pipes?
Mishimoto reports dyno-proven power gains of 5.4 HP and 6.1 lb-ft. of torque on the stock tune, thanks to up to 34.2-percent less restriction compared to the stock pipes.
What materials are these pipes made from?
The pipes are constructed from cast and mandrel-bent aluminum with a black powder-coated finish, and use black silicone couplers secured with worm gear clamps.
What are the maximum recommended horsepower and boost pressure for this kit?
The maximum recommended horsepower is 1000, and the maximum recommended boost pressure is 50 PSI.
Do these intercooler pipes come with a warranty?
Yes, they are backed by the Mishimoto Lifetime Warranty.
âš WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Not CARB approved. This item is not legal for sale or use on pollution-controlled motor vehicles in California or states that adopt California emissions standards. Intended for off-road / competition use where permitted by law.
