Description

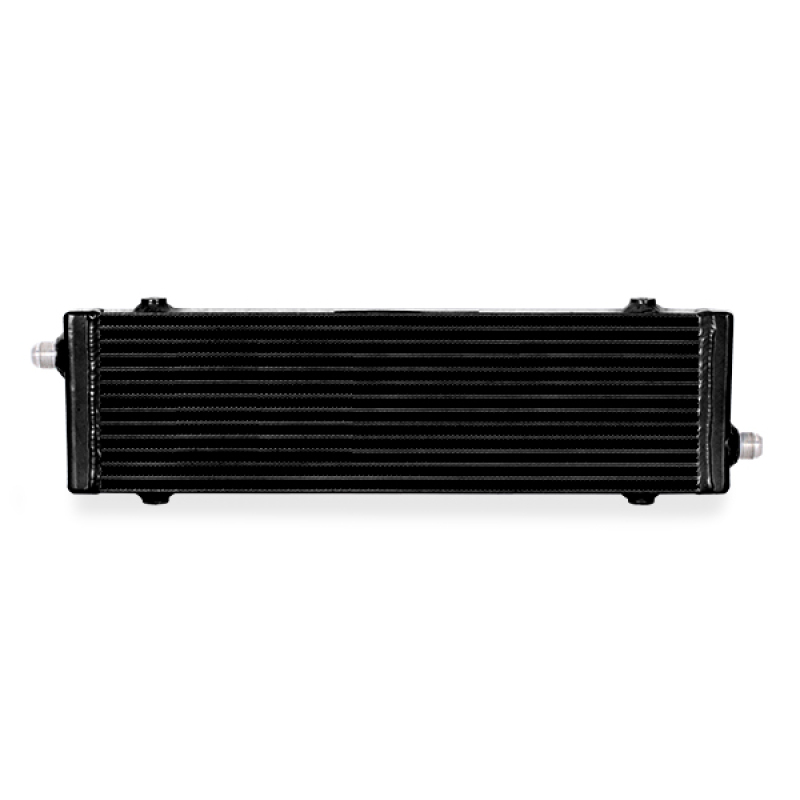

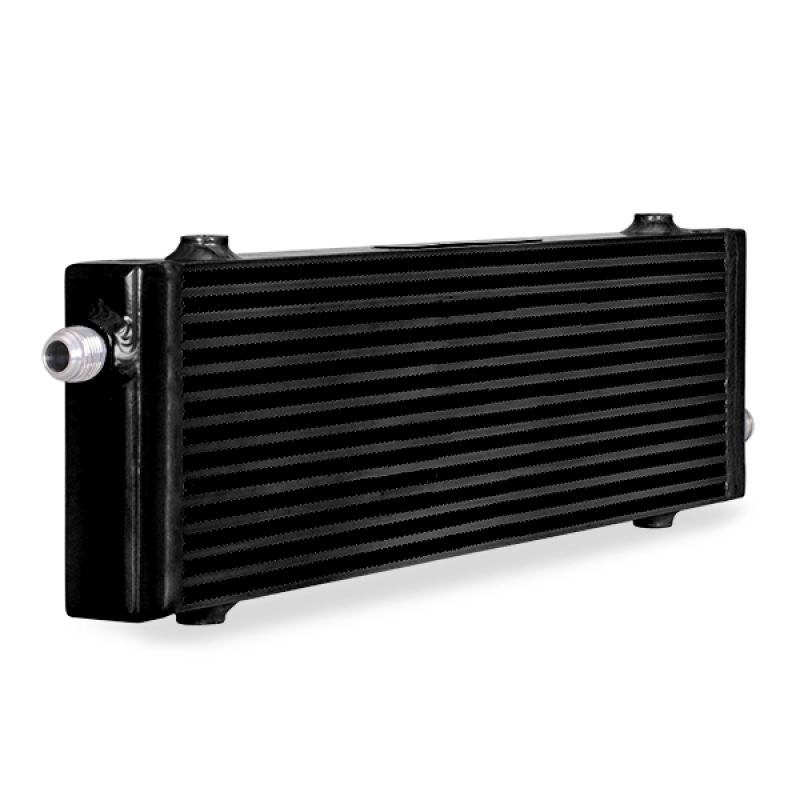

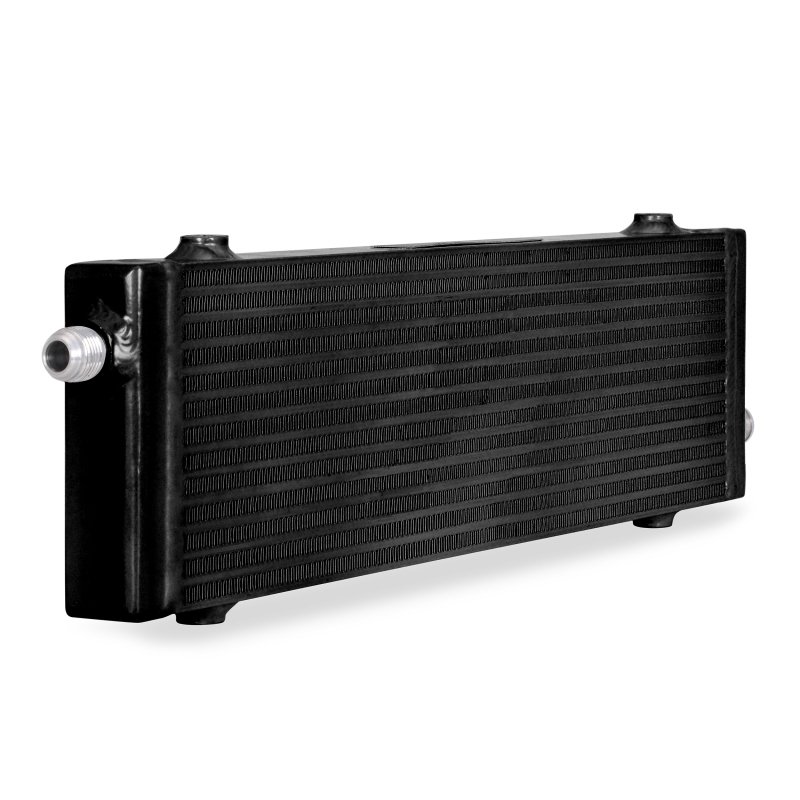

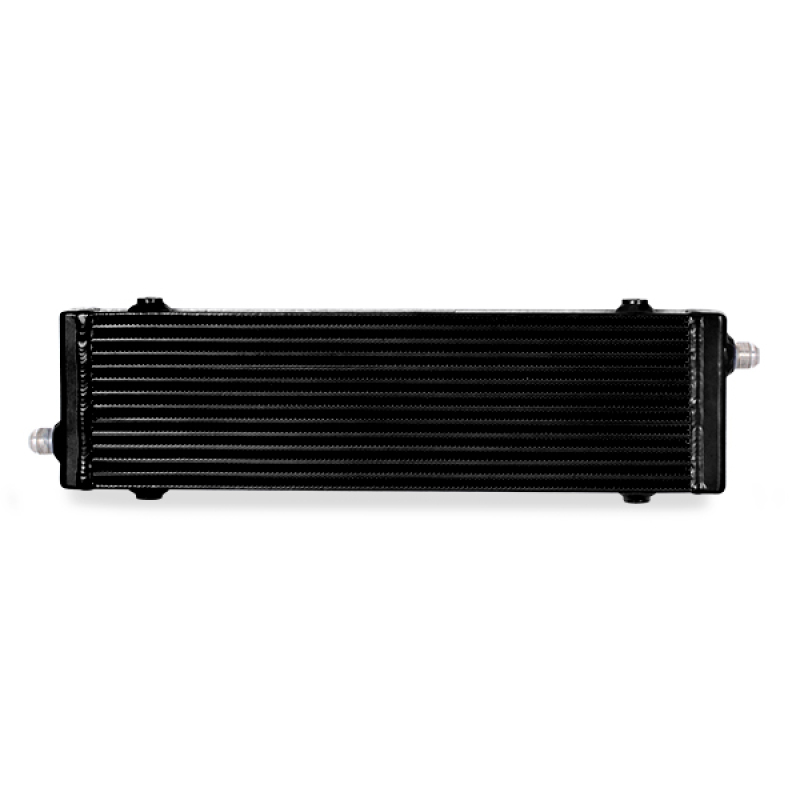

The Mishimoto MMOC-SP-LBK is a large single pass race oil cooler finished in stealth black, built for drivers who push their engines hard on track. Unlike a dual pass design, oil enters one side of this cooler’s core and exits the other, moving through a bar-and-plate construction that’s sized for serious cooling capacity. This stealth black variant skips the Mishimoto “M” logo found on the silver version, giving it a cleaner, more discreet look wherever it’s mounted.
Oil that runs too hot loses the viscosity that keeps it thick, slippery, and effective at lubricating an engine’s hardest-working components. Adding this Mishimoto oil cooler to a cooling system gives hot oil a dedicated path to shed heat before it recirculates, helping protect high-wear parts inside the block and keep temperatures in check when the goal is a podium finish rather than watching a gauge. Because it’s built for custom installation rather than a specific factory fitment, this Mishimoto cooler suits builders assembling their own oil cooling setup who want a durable, performance-grade core rather than a vehicle-specific kit.
Vehicle Applications
This Mishimoto race oil cooler is designed for use in custom applications rather than a single factory fitment, making it well suited to builders adapting an oil cooling system for their own engine bay. No specific OEM chassis, engine code, or model-year application is listed for this part, so it’s intended to be plumbed into a custom or aftermarket oil cooling system using its -10AN inlet and outlet fittings.
Features
- Durable bar-and-plate cooler design for use in custom applications
- M8x1.25 welded bungs for attaching brackets
- -10AN fittings for attaching oil lines
- 100-percent aluminum construction with CNC end tanks
- Reduces oil temperatures with minimal pressure loss
- Increased oil system capacity for increased cooling capability

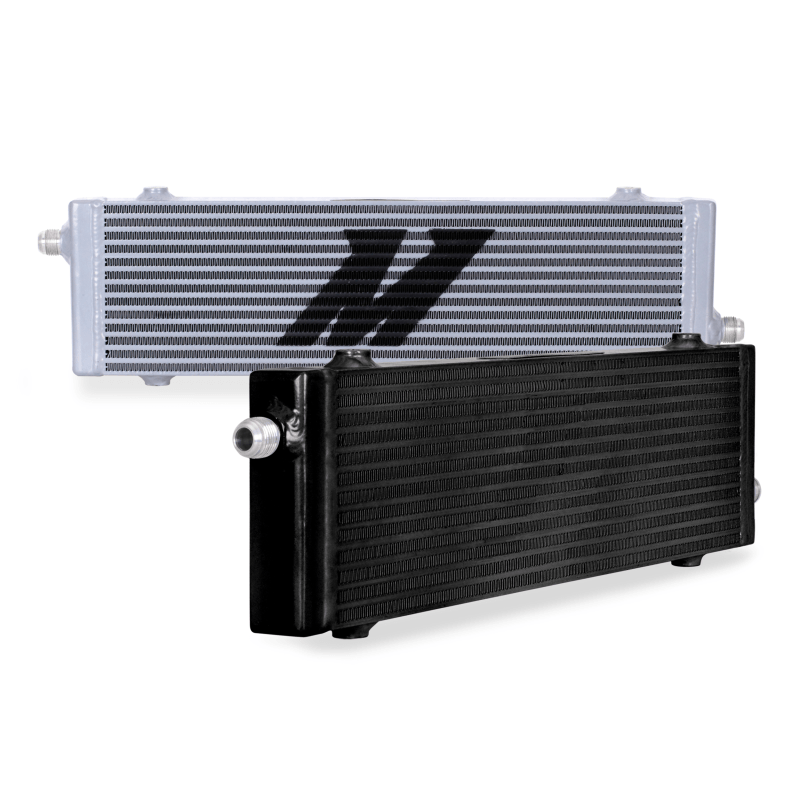

- Also available in Sleek Silver, while this listing is the Stealth Black option
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Finish: Anodized, Black
- Core Type: Bar-and-Plate
- Core Color: Black
- Grade Type: Performance
- Core Height: 5.51 in
- Core Thickness: 1.57 in
- Overall Width: 1.57 in
- Overall Height: 6.3 in
- Overall Length: 22.56 in
- Fluid Capacity: 0.8 qt
- Inlet Fitting: -10AN, AN Flare, Male, 0.625 in outside diameter
- Outlet Fitting: -10AN, AN Flare, Male, 0.625 in outside diameter
- Includes: (1) Oil Cooler, Mishimoto Lifetime Warranty
Frequently Asked Questions
What color is the Mishimoto MMOC-SP-LBK oil cooler?
This oil cooler is finished in stealth black. Unlike the silver version, the black option does not have the Mishimoto “M” logo.
What size fittings does this oil cooler use?
It uses -10AN fittings with an AN Flare fitting type and male gender on both the inlet and outlet, each with a 0.625 in outside diameter.
What type of core does this oil cooler have?
It uses a Performance-grade bar-and-plate core with a black core color.
What are this oil cooler’s dimensions?
The core measures 5.51 in in height and 1.57 in thick. Overall, the cooler is 22.56 in long, 1.57 in wide, and 6.3 in tall.
What is included with this oil cooler?
The package includes one oil cooler, backed by the Mishimoto Lifetime Warranty.
Is this oil cooler designed for a specific vehicle?
No specific vehicle application is listed for this part; it is built as a single pass core intended for custom oil cooling installations.
