Description

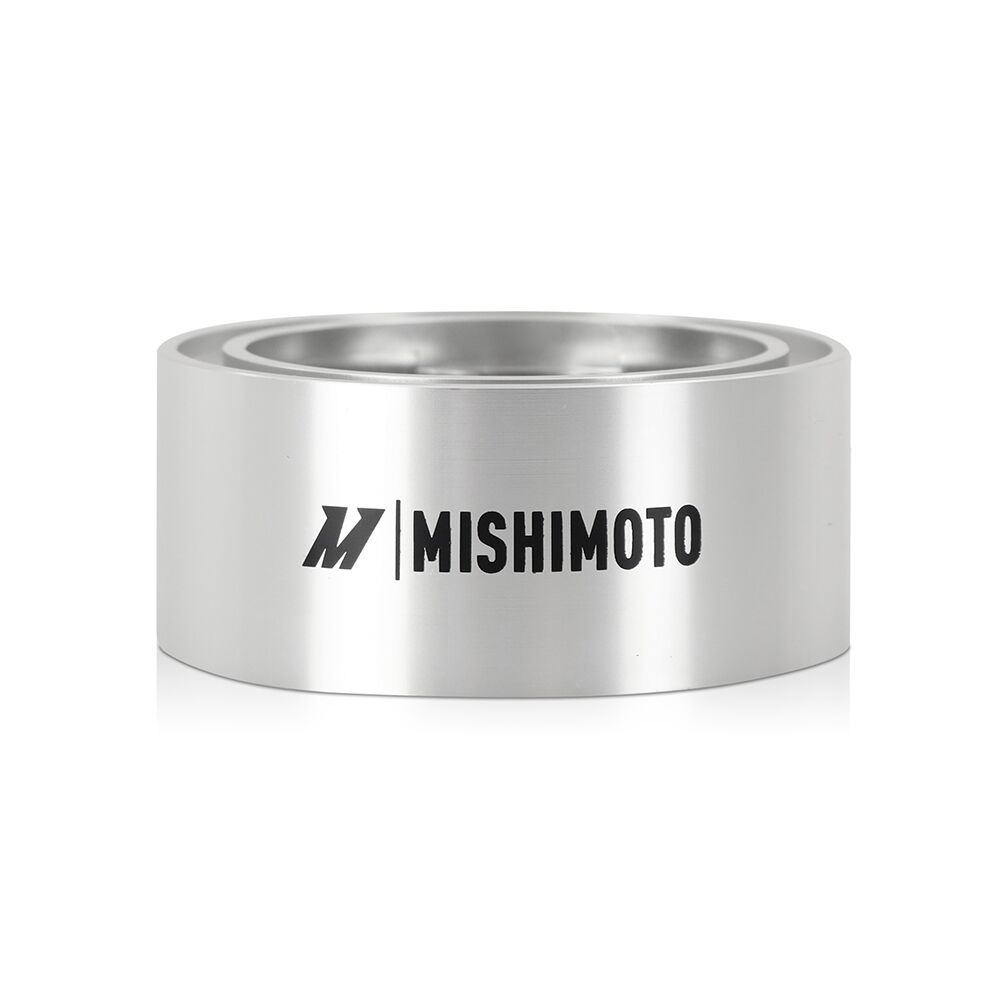

The Mishimoto MMOC-SPC32-M20SL is a purpose-built oil filter spacer machined for the M20 x 1.5 oil filter thread, engineered to solve two common headaches at once: clearing tight oil filter landings for a sandwich plate and giving you a clean spot to add oil-side sensors or feeds. Machined from billet 6061 aluminum and finished in a durable anodized silver, it’s the kind of small, precise Mishimoto cooling component that quietly makes bigger modifications possible.
Whether you’re installing an oil cooler sandwich plate on an engine with a recessed or hard-to-access oil filter landing, or you need a way to tap into pressurized oil for a gauge, sending unit, probe, or a turbocharger oil feed, this Mishimoto oil filter spacer is built to handle it. It creates 1.25 inches of additional clearance beneath the oil filter, and its two 1/8-in NPT ports mean you no longer have to drill, tap, or improvise a mounting point for oil pressure monitoring or turbo plumbing. A CNC-machined stainless-steel center bolt and a precision-designed nitrile O-ring work together to maintain a leak-free seal, while internal laser etching marks the correct mounting direction so installation goes smoothly the first time.
Vehicle Applications
This spacer is built around the M20 x 1.5 oil filter thread, making it suited to engines that use that thread size and that have recessed or otherwise inaccessible oil filter landings where an oil sandwich plate or added sensor port is needed. Mishimoto also offers this spacer for other common oil filter thread sizes, so builders working across different engine platforms with tight filter clearance or oil-feed requirements have an option engineered for their specific thread.
Features
- Constructed from billet 6061 CNC-machined aluminum
- Provides additional filter clearance on engines with recessed oil filter landings
- Robust nitrile O-ring provides a leak-free seal and optimal resistance to degradation
- Includes two 1/8-in NPT ports for adding probes, sensors, sending units, oil feeds, etc.
- Can be installed independently or in conjunction with oil filter sandwich plates
- High-quality CNC-machined stainless-steel oil filter center bolt
- Available for most common oil filter thread sizes

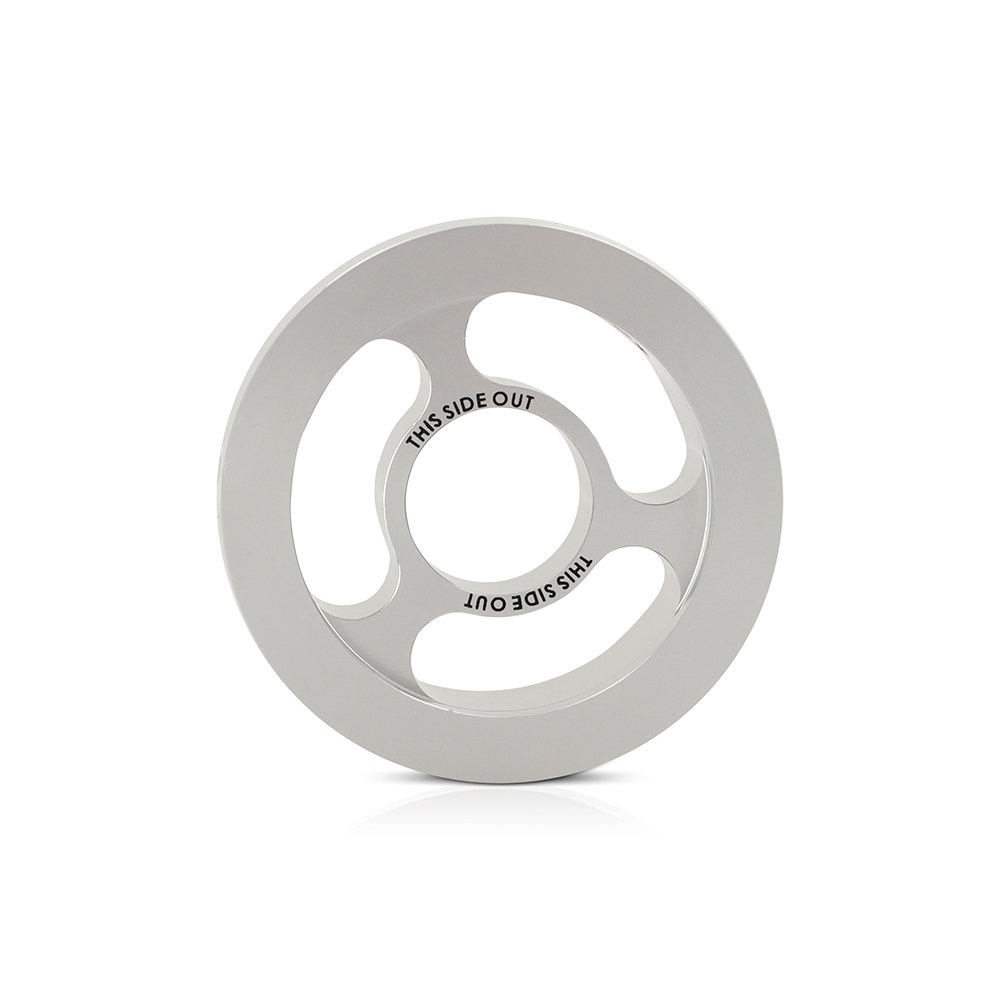

- Internal laser etching indicates mounting direction, simplifying installation
- Durable anodized silver finish resists corrosion
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-SPC32-M20SL
- Thread Size: M20 x 1.5
- Base Height: 1.25 in
- Color/Finish: Silver, Anodized
- Grade Type: Performance

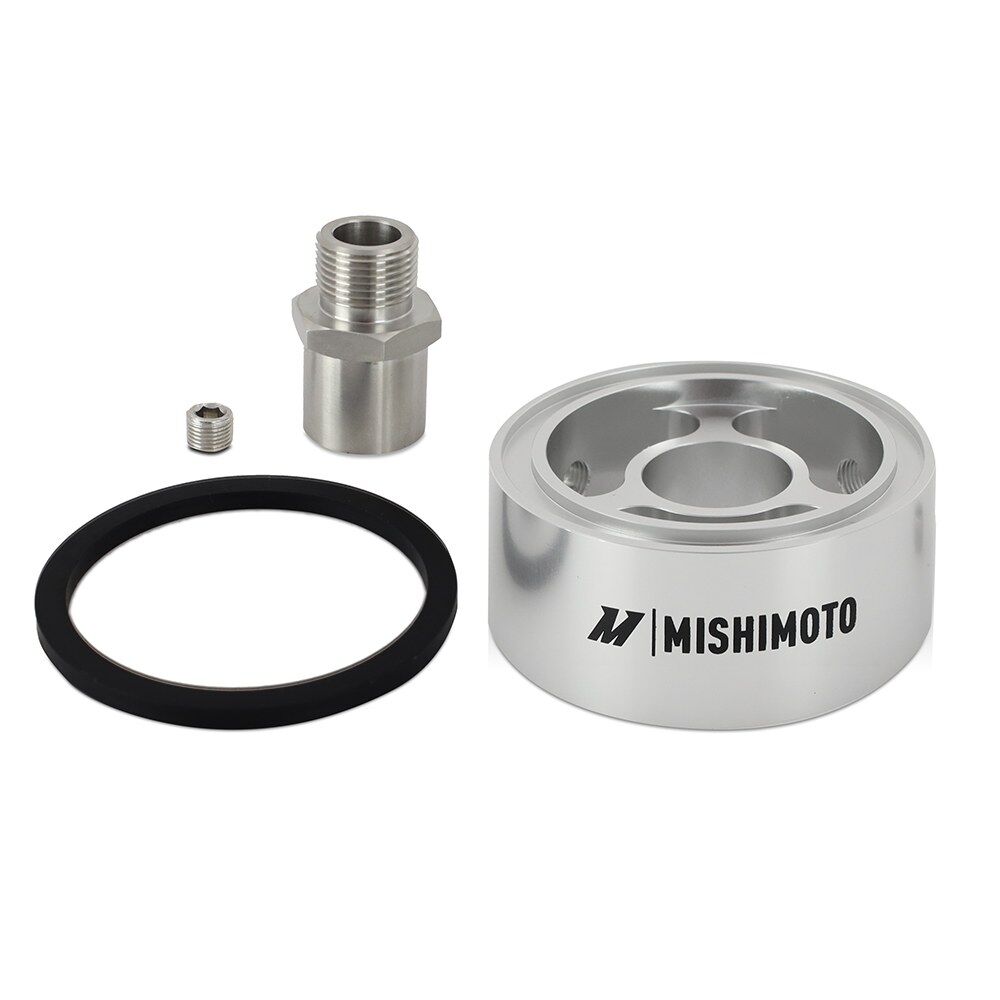

- Includes: CNC-Machined 6061 Aluminum Oil Filter Spacer, CNC-Machined Stainless Steel Oil Filter Center Bolt, Oil Filter Spacer O-Ring, 1/8-in NPT Plugs, Mishimoto Lifetime Warranty
Frequently Asked Questions
What thread size does this Mishimoto oil filter spacer fit?
This spacer is designed for the M20 x 1.5 oil filter thread.
How much additional clearance does the spacer provide?
It provides 1.25 inches of additional clearance, making it ideal for clearing obstructions when adding an oil sandwich plate.
Can I add an oil pressure gauge or turbo oil feed using this spacer?
Yes, it incorporates two 1/8-in NPT ports for probes, sensors, sending units, or pressurized oil feeds, making it easy to add an oil pressure gauge or supply an oil feed for a turbocharger.
What is included with this oil filter spacer?
It includes a CNC-machined 6061 aluminum oil filter spacer, a CNC-machined stainless-steel oil filter center bolt, an oil filter spacer O-ring, 1/8-in NPT plugs, and the Mishimoto Lifetime Warranty.
What materials and finish are used on this spacer?
It is constructed from billet 6061 CNC-machined aluminum with a durable anodized silver finish, paired with a stainless-steel center bolt and a nitrile O-ring for a leak-free seal.
Does this Mishimoto oil filter spacer come with a warranty?
Yes, this oil filter spacer includes the Mishimoto Lifetime Warranty.
