Description

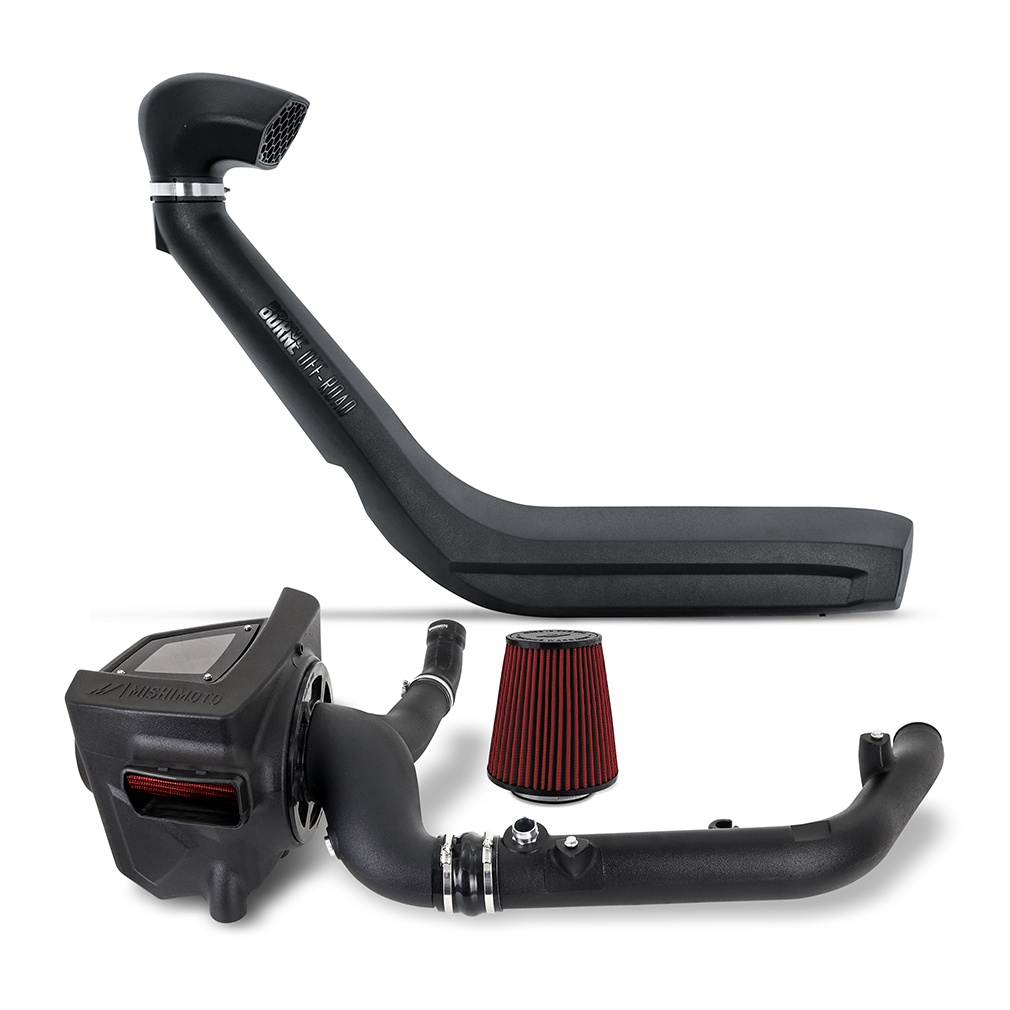

The Mishimoto MMB-BR27-21 is a combined Borne Off-Road snorkel and Mishimoto performance cold air intake built specifically for the 2021+ Ford Bronco 2.7L EcoBoost. This isn’t a single generic air intake filter bolted to a stock tube—it’s a two-part air intake system that relocates the fresh air inlet to roof height while replacing the restrictive factory airbox with a high-flow design, giving your Bronco’s EcoBoost engine cleaner, cooler air whether you’re crawling rocks or cruising the highway.
A well-designed cold air intake exists to feed an engine as much cool, clean air as possible, and that job gets harder when a turbocharged engine like the Bronco’s 2.7L EcoBoost is pulling in dusty trail air or splashing through mud. The Borne Off-Road snorkel tube is rotationally molded from durable, UV-resistant cross-linked polyethylene and moves the inlet up to the roofline, topped with a 6-inch inlet and steel mesh cover that can be swapped for a pre-filter. Paired with it, the Mishimoto intake uses a 4.5-in high-flow filter and rotomolded construction to cut restriction by 39.6% versus the stock intake system, translating into dyno-proven gains of 7.5 HP and 7.4 lb.-ft of torque on a stock tune while maintaining a safe air/fuel ratio.
Vehicle Applications
This snorkel and intake package is engineered for the 2021+ Ford Bronco 2.7L EcoBoost and fits a wide range of Bronco trims. Coverage includes the Badlands and Outer Banks trims from 2021 through 2026, the Big Bend, Black Diamond, and Wildtrak trims from 2021 through 2024, the Base trim from 2021 through 2023, the 2021 First Edition, the Heritage Limited Edition from 2023 through 2024, the Heritage Edition from 2024 through 2026, and the Stroppe Edition for 2025 through 2026.
Features
- Borne Off-Road snorkel raises the fresh air inlet to roof level to capture cooler, cleaner air on the trail

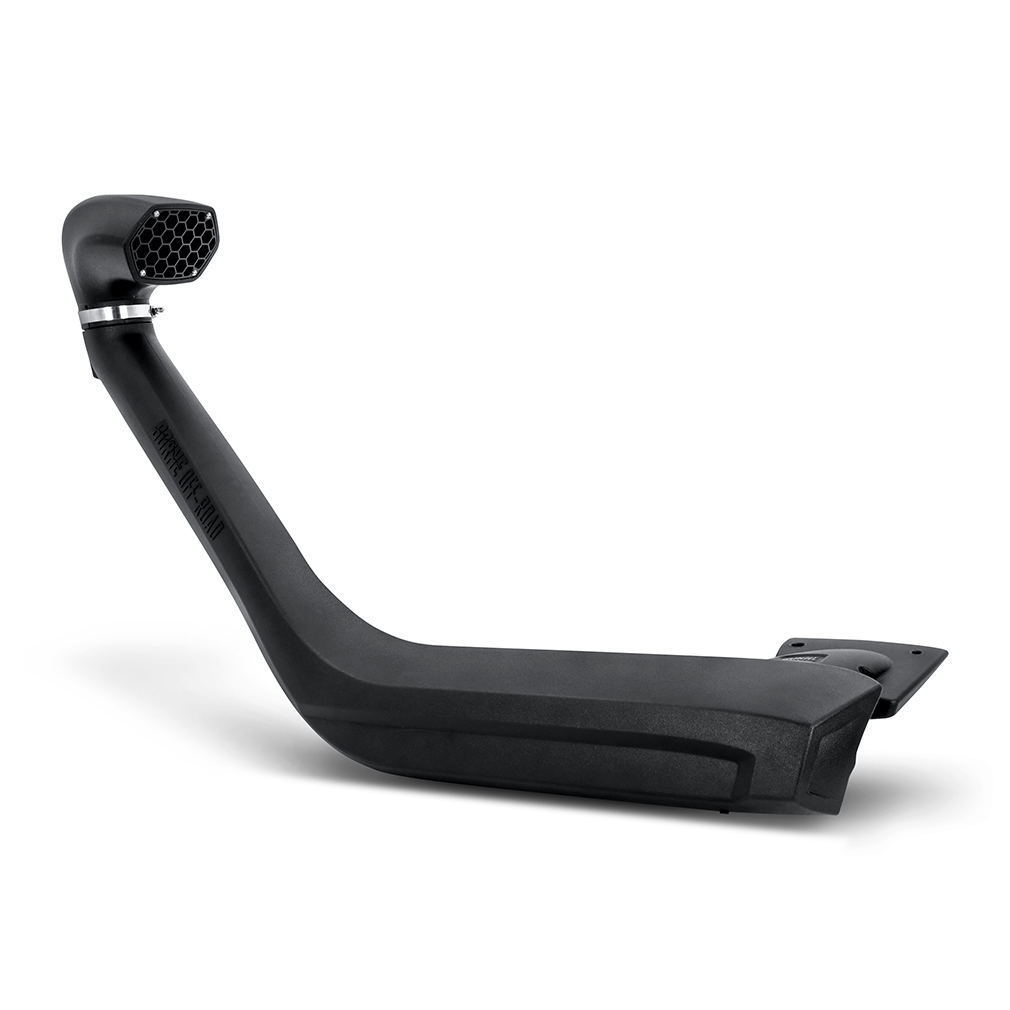

- Rotational-molded, UV-resistant cross-linked polyethylene snorkel tube built to handle sun exposure and trail debris
- 6-inch snorkel inlet with steel mesh cover, removable to accept an optional pre-filter
- Mishimoto intake is 39.6% less restrictive than the stock intake, yielding dyno-proven gains of 7.5 HP and 7.4 lb.-ft of torque on stock tune

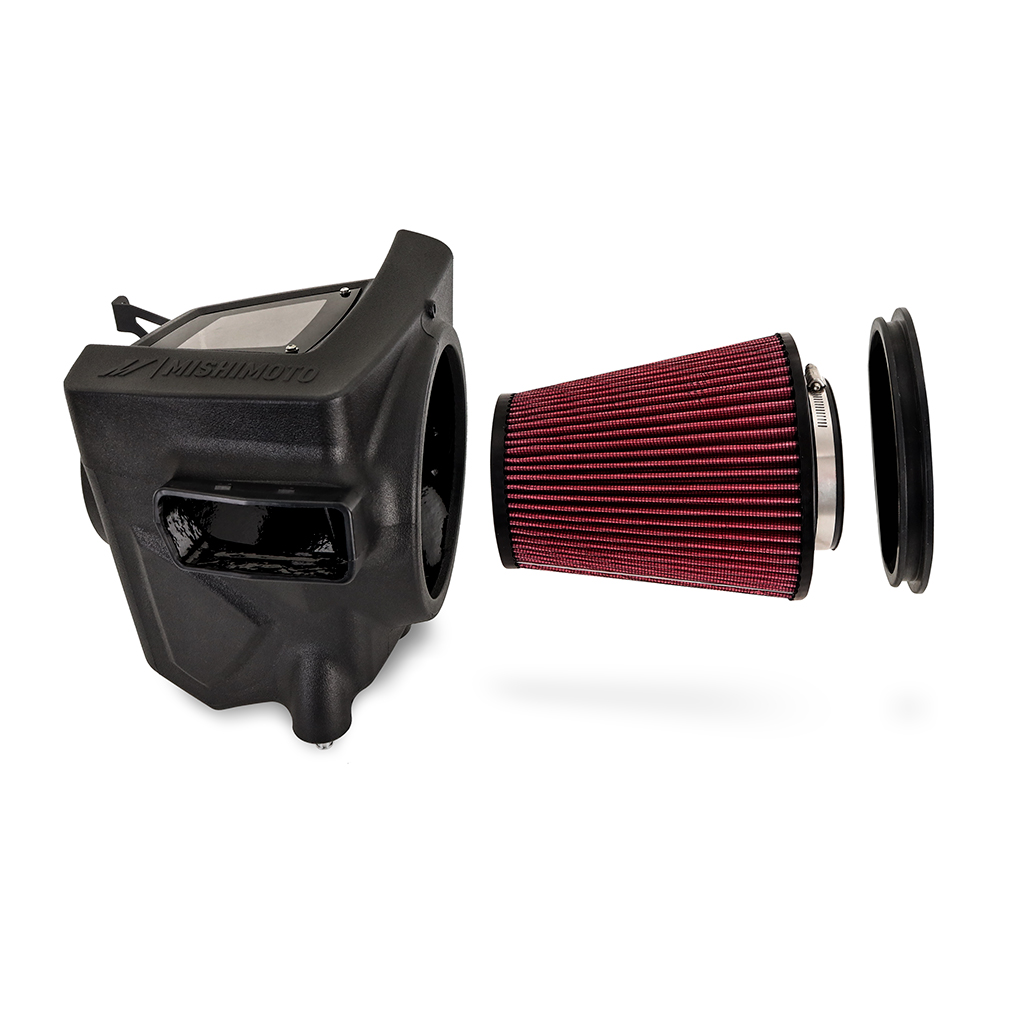

- 4.5-in high-flow filter maintains a safe air/fuel ratio on stock tune
- Includes a removable fresh-air intake block-off/airbox plug to protect the filter on the trail while allowing better flow on-road

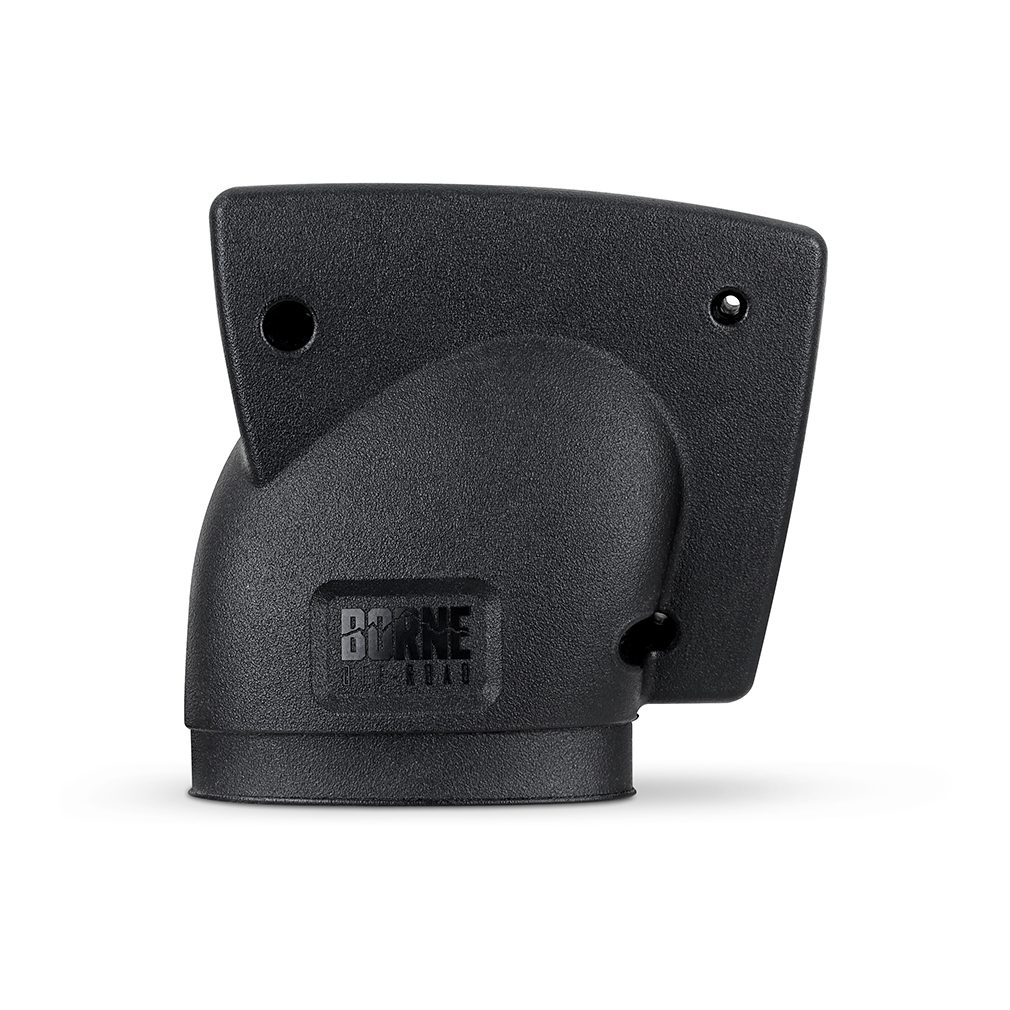

- Airbox adapter included for a seamless fit without cutting the factory airbox
- Snorkel inlet features drains to help prevent water intrusion
- Precision-engineered using 3D printing, CAD modeling, and flow bench technology
- Increases induction noise
- Compatible with optional Badlands Yellow and Outer Banks Blue airbox lids (sold separately as MMAI-BR-LIDS)
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMB-BR27-21
- Product Type: Air Intake System (snorkel + intake package)
- Filter Material: Multi-layered cotton
- Filter Color: Red
- Hose Material: Polyethylene
- Hose Color: Black
- Grade Type: Performance
- Filter Option: Oiled Filter

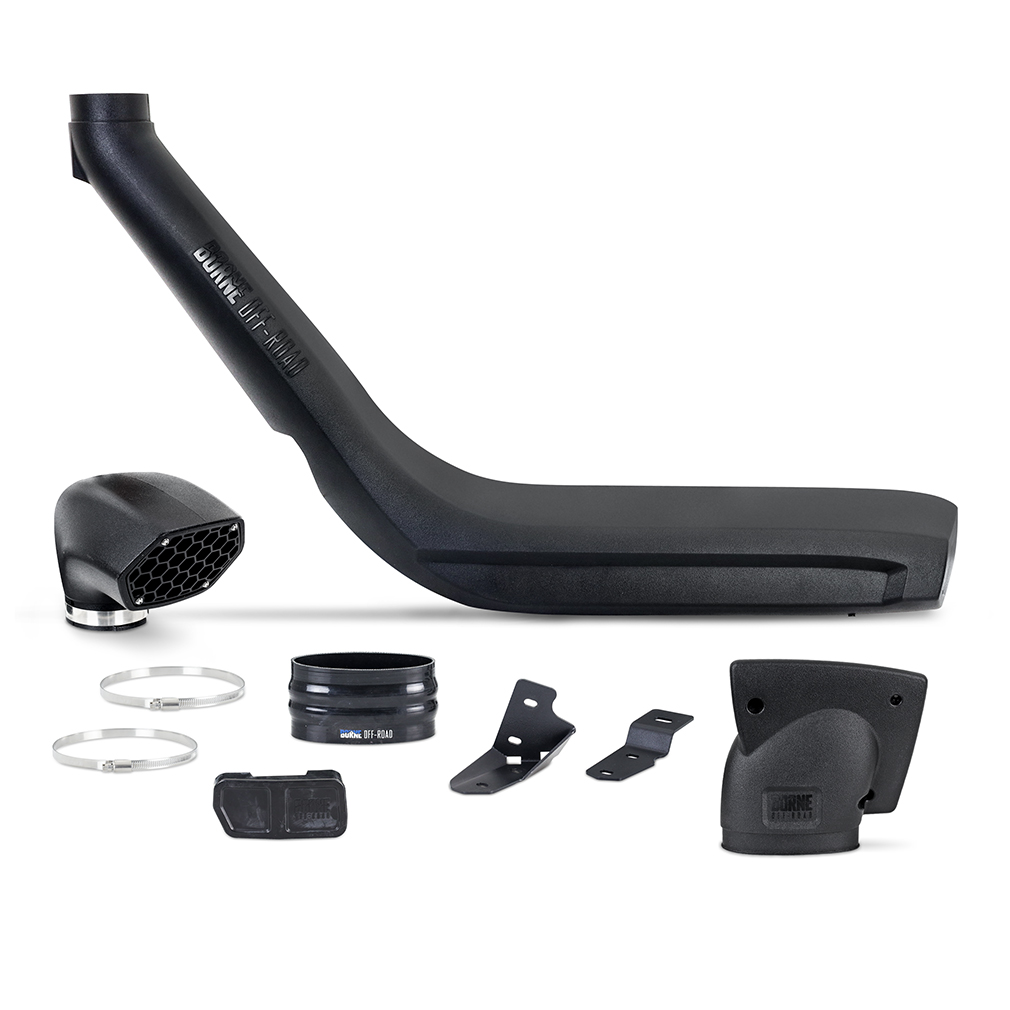

- Includes: (1) Borne Off-Road Snorkel Tube, (1) Borne Off-Road Fender Tube, (1) Borne Off-Road Snorkel Inlet, (1) Snorkel-To-Airbox Adapter, (1) Snorkel-To-Airbox Adapter Gasket, (1) Fender Tube Mounting Bracket, (1) A-Pillar Mounting Bracket, (1) Stock Airbox Plug, (2) Worm Gear Clamps, (1) Fender Modification Template, (1) Intake Airbox, (2) Intake Tubes, (1) Air Intake Tube Grommet, (1) Air Filter, (1) Airbox Lid, (4) Worm Gear Clamps, (2) Silicone Intake Couplers, Mounting Hardware, Mishimoto Lifetime Warranty
- Caution: This snorkel alone does not increase the vehicle’s water fording limit; fording water above the stock recommended limit may require modifying other components to avoid water damage
- Patent Nos. US D1,048,102 S & D1103885
- Warranty: Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMB-BR27-21 snorkel and intake kit fit?
It fits the 2021+ Ford Bronco 2.7L EcoBoost, including the Badlands and Outer Banks (2021–2026), Big Bend, Black Diamond, and Wildtrak (2021–2024), Base (2021–2023), First Edition (2021), Heritage Limited Edition (2023–2024), Heritage Edition (2024–2026), and Stroppe Edition (2025–2026).
How much power does this cold air intake system add?
The Mishimoto intake, combined with the Borne Off-Road snorkel, produces dyno-proven gains of 7.5 HP and 7.4 lb.-ft of torque on a stock tune, thanks to the intake being 39.6% less restrictive than the stock intake.
What is the snorkel tube made from?
The Borne Off-Road snorkel tube is precision rotational-molded from durable, UV-resistant cross-linked polyethylene designed to withstand heat and trail debris.
Does the snorkel increase the Bronco’s water fording capability?
No. This snorkel alone does not increase the vehicle’s water fording limit; fording water above the stock recommended limit may require modifying other components to avoid water damage.
What filter material does the Mishimoto intake use?
It uses a multi-layered cotton, oiled, red 4.5-in high-flow air filter as part of the intake system.
What is included with the MMB-BR27-21 kit?
The kit includes the Borne Off-Road snorkel tube, fender tube, snorkel inlet, snorkel-to-airbox adapter and gasket, mounting brackets, stock airbox plug, worm gear clamps, fender modification template, Mishimoto intake airbox, intake tubes, air intake tube grommet, air filter, airbox lid, silicone intake couplers, mounting hardware, and is backed by the Mishimoto Lifetime Warranty.
âš WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Not CARB approved. This item is not legal for sale or use on pollution-controlled motor vehicles in California or states that adopt California emissions standards. Intended for off-road / competition use where permitted by law.
