Description
The Mishimoto MMBCC-T1-19 is a direct-fit catch can kit purpose-built for GM’s T1 platform, the chassis underpinning the 2019+ Chevrolet Silverado 1500 and GMC Sierra 1500 along with their SUV siblings. Because these trucks run direct-injected 5.3L L83 and 6.2L L87 V8 engines, blow-by gases can carry oil and carbon deposits directly onto the intake valves, and this kit is Mishimoto’s engineered answer to that problem. At its core sits a 6061-T6 billet aluminum, twist-off catch can with an internal air diverter, baffle, and sintered bronze filter that separate fuel, oil, and water vapor from crankcase gases before they ever reach the intake tract.
Rather than letting blow-by recirculate into the intake or foul the oil pan, this Mishimoto catch can kit diverts crankcase gases into the can, where turbulators and baffles trap contaminants for easy draining at your next oil change. A 50-micron bronze filter scrubs remaining carbon from the gases so only clean air returns to the intake, helping guard against the power-robbing carbon buildup that direct-injection engines are prone to and reducing the chance of blow-by contaminating the intake mixture. Keeping oil and carbon out of the intake and out of the crankcase oil supports cleaner combustion and helps protect engine oil from the fouling that can accelerate wear.
Vehicle Applications
This Mishimoto catch can kit (MMBCC-T1-19) is a direct fit for the 2019–2026 Chevrolet Silverado 1500 across trims such as WT, LT, LTZ, High Country, RST, Trail Boss, and ZR2 (Custom coverage runs 2019–2024, SSV covers 2019–2021, and PPV covers 2023–2026), as well as the 2019–2026 Chevrolet Suburban (Commercial coverage runs 2021–2024) and 2019–2026 Chevrolet Tahoe (Police coverage spans 2019–2020 and 2023–2024). On the GMC side it fits the 2019–2026 GMC Sierra 1500 (Base trim covers 2019–2021, with AT4X, Denali Ultimate, and Pro trims beginning in 2022) and the 2019–2026 GMC Yukon (SLE and SLT trims run 2019–2024, AT4 begins in 2021, Denali Ultimate begins in 2023, and AT4 Ultimate and Elevation trims begin in 2025). All of these vehicles share the 5.3L L83 or 6.2L L87 V8 engine this kit is designed to protect.
Features
- Direct-fit design for 2019+ Chevrolet/GMC 1500 trucks and SUVs with 5.3L/6.2L V8 engines
- Installs in under an hour
- Protects intake valves from power-robbing carbon buildup
- Prevents blow-by from contaminating the intake mixture and causing knock

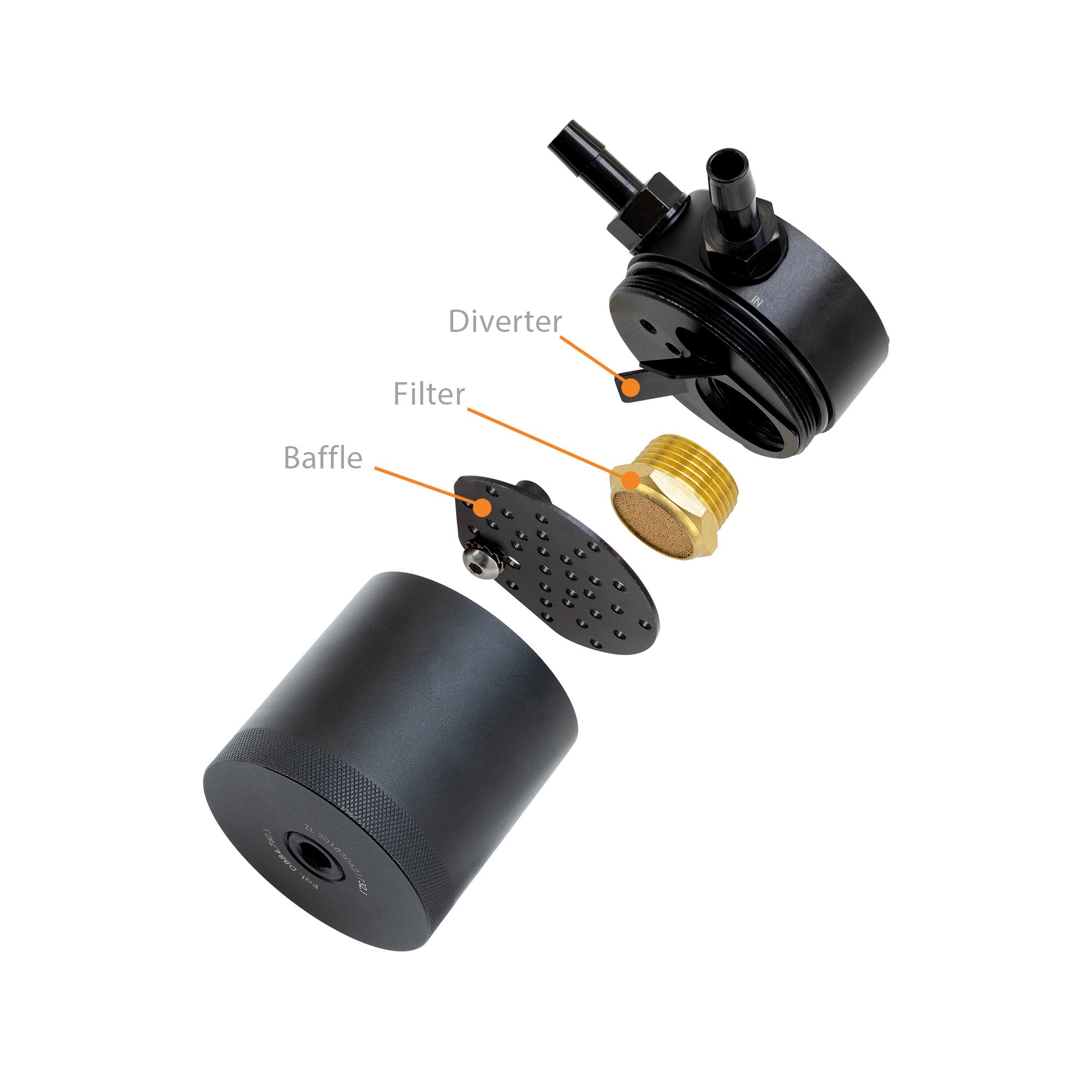

- Internal air diverter, baffle, and 50-micron sintered bronze filter maximize oil separation
- Catch can captures blow-by, preventing it from fouling engine oil

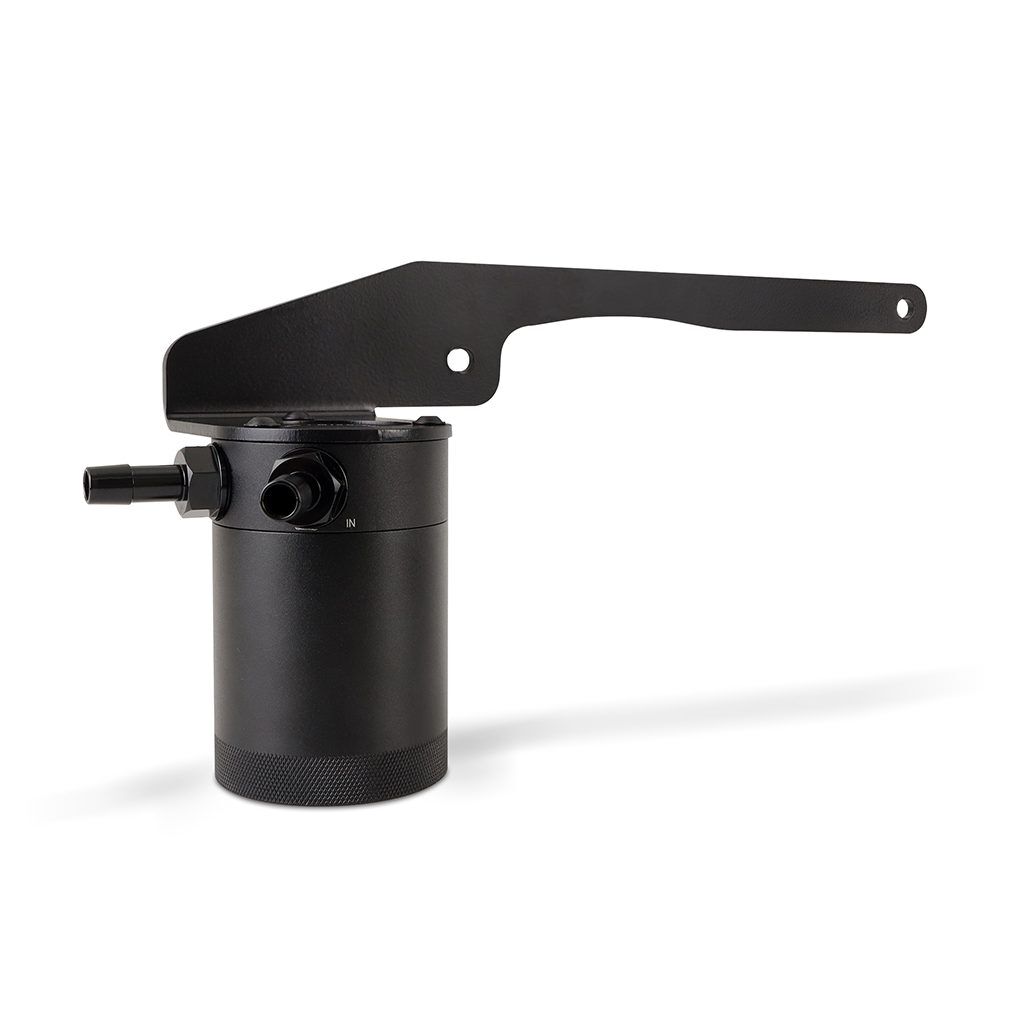

- Direct-fit bracket mounts the catch can away from engine vibration

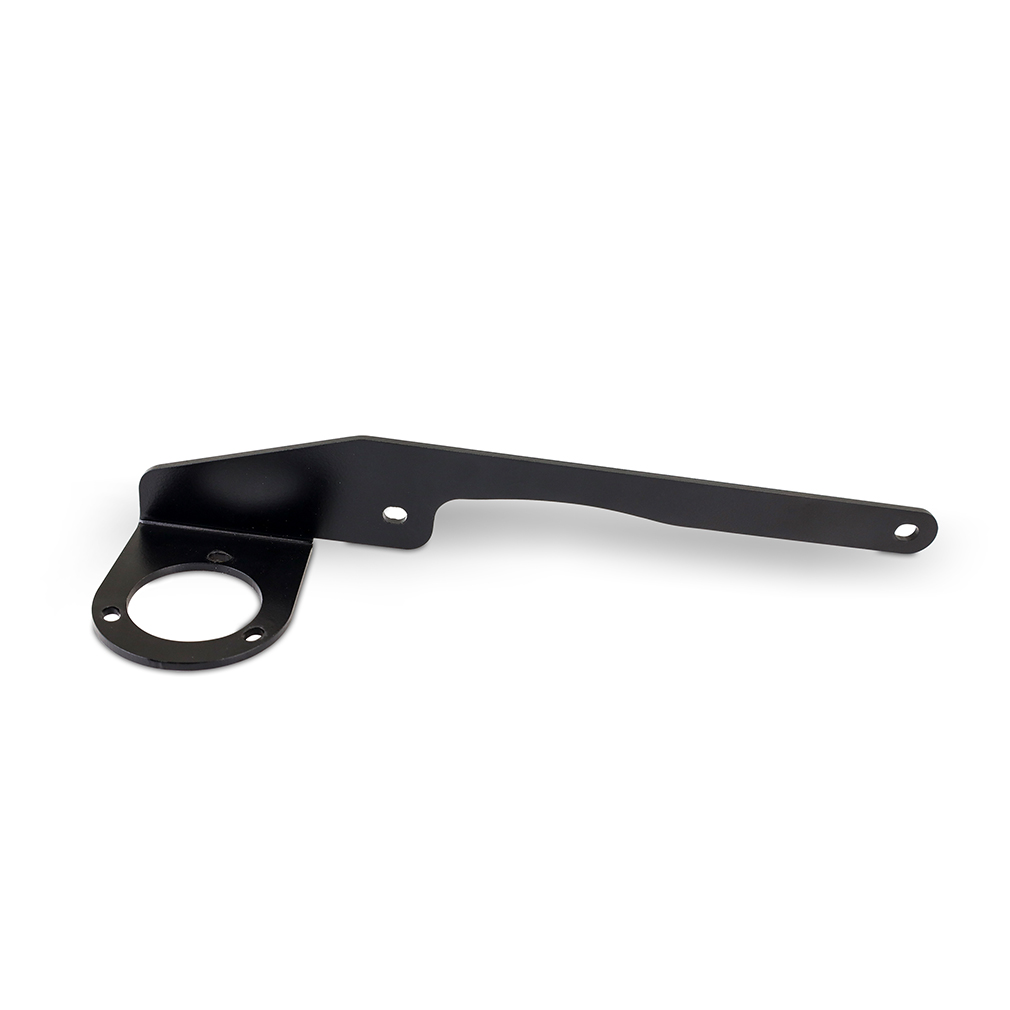

- Sturdy 3mm-thick steel brackets withstand rough roads and off-road abuse

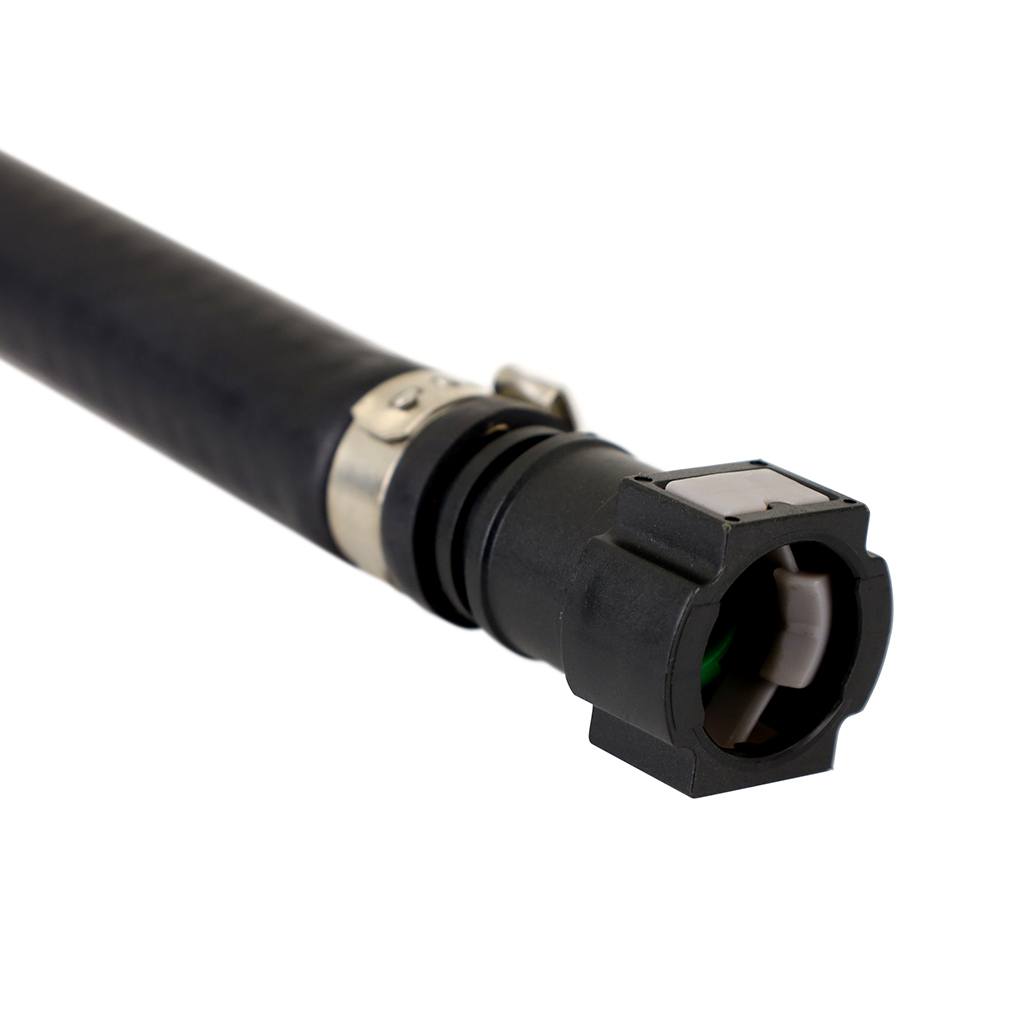

- Pre-installed quick-disconnect fittings for clean installation
- Filter and can are fully serviceable
- Backed by the Mishimoto Lifetime Warranty
Specifications

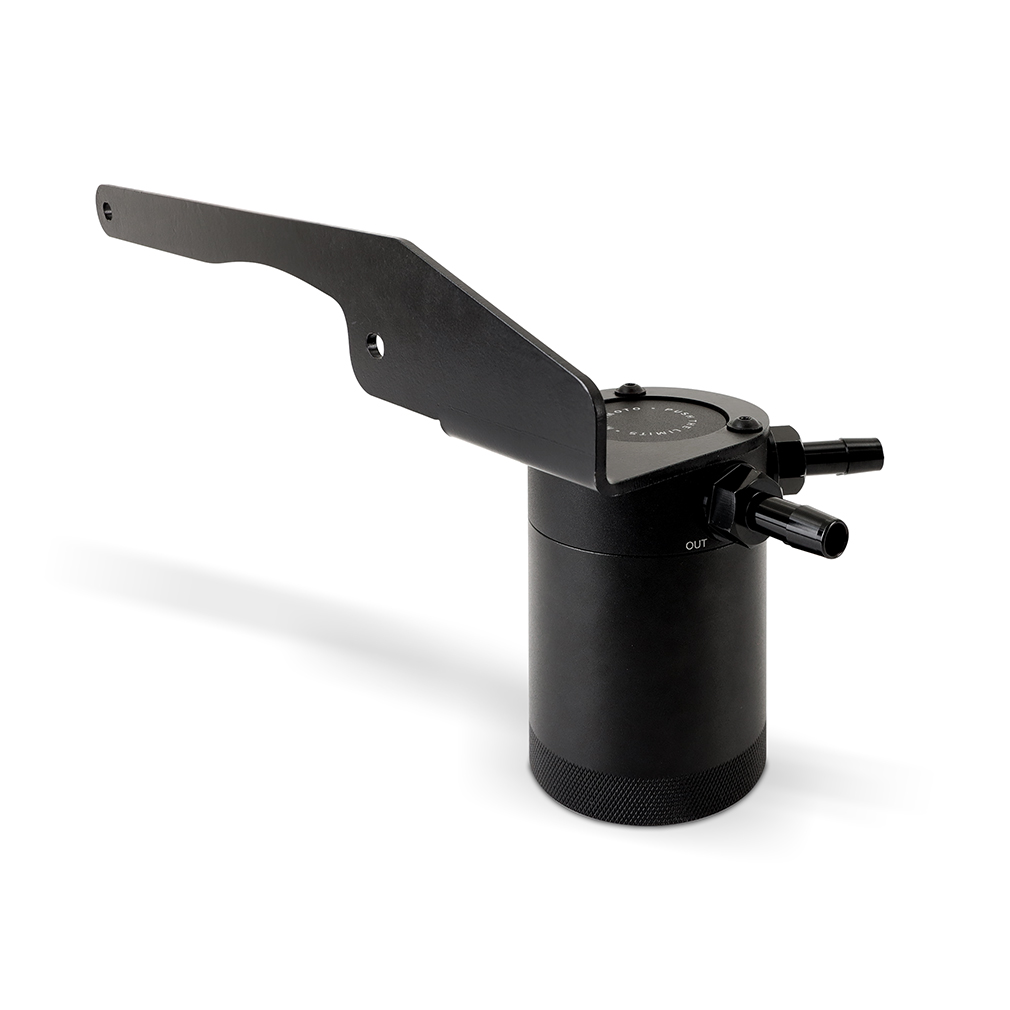

- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Color/Finish: Black, Anodized
- Can Outside Diameter: 2.5 in
- Height: 3.7 in
- Inlet/Outlet Thread: M16x1.5
- Inlet Port Inside Diameter: 0.6 in
- Outlet Port Inside Diameter: 0.6 in

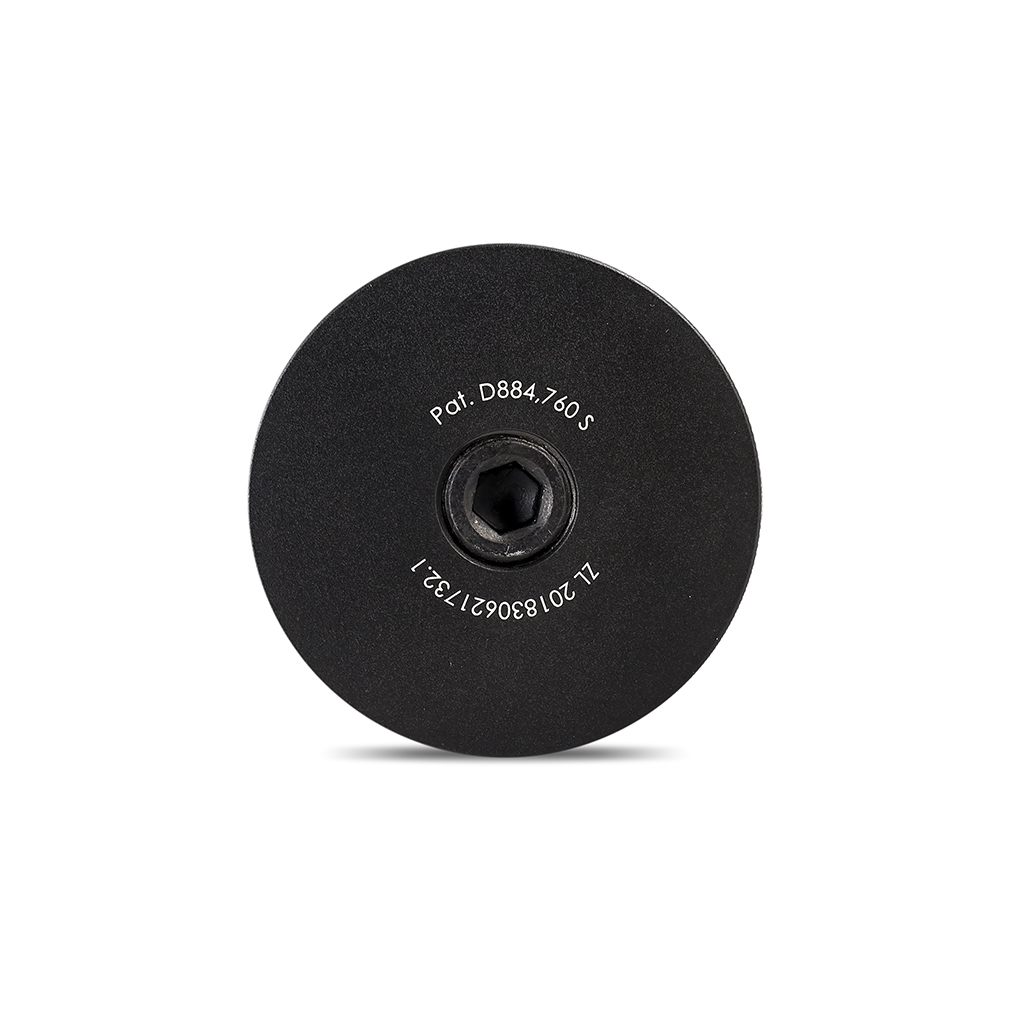

- Drain Plug Thread Size: 3/8-NPT
- Mounting Bracket Included: Yes
- Hose Included: Yes
- Drain Plug Included: Yes
- Interior Baffle: Yes
- Engine Codes: 5.3L L83, 6.2L L87
- Chassis Code: T1

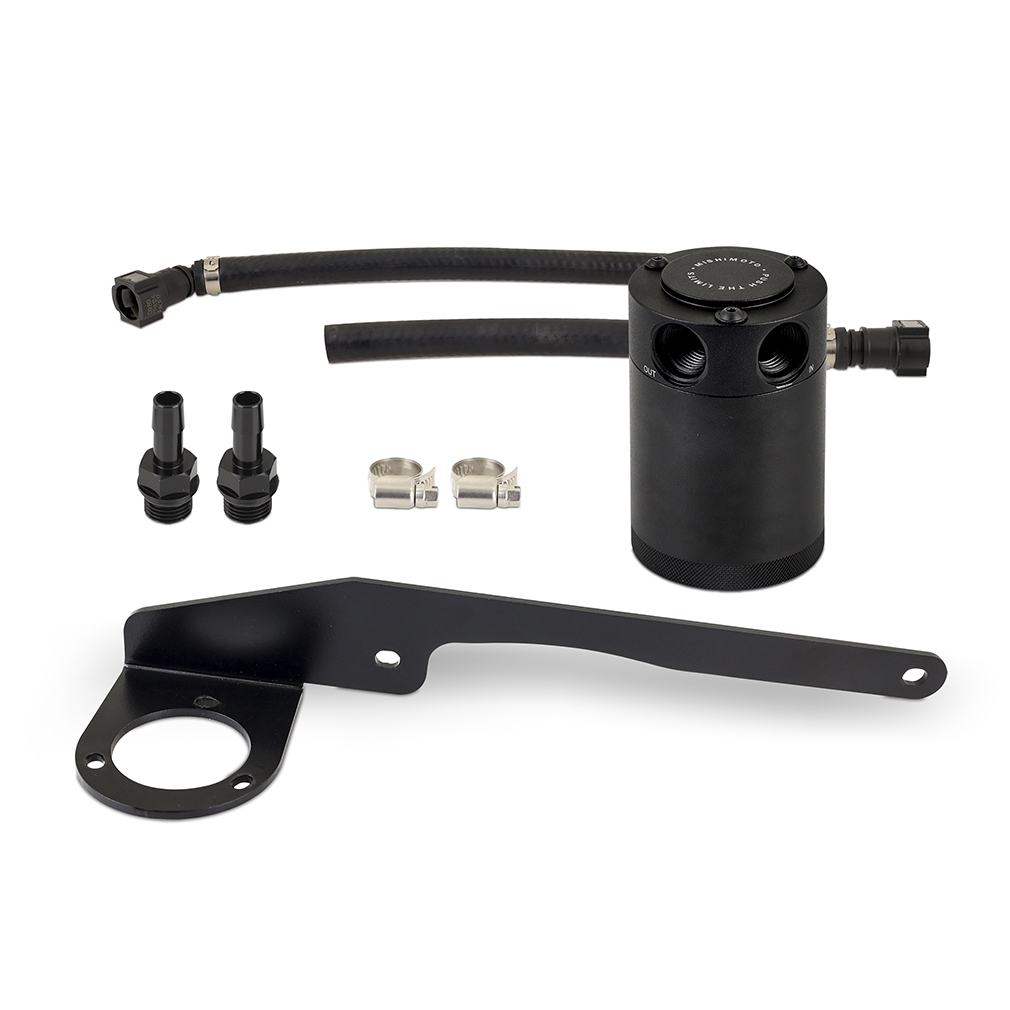

- Includes: (1) Direct-Fit Mounting Bracket, (1) 3 fl. oz. Black, Anodized 6061-Aluminum Catch Can, (2) CNC-Machined Aluminum Barbed Fittings, (2) Hoses w/ Pre-Installed Quick-Disconnect Fittings, (2) Worm Gear Clamps, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
Which vehicles does the Mishimoto MMBCC-T1-19 catch can kit fit?
It is a direct fit for the 2019–2026 Chevrolet Silverado 1500 (Custom: 2019–2024, SSV: 2019–2021, PPV: 2023–2026), 2019–2026 Chevrolet Suburban and Tahoe (Commercial: 2021–2024, Tahoe Police: 2019–2020 and 2023–2024), and 2019–2026 GMC Sierra 1500 and Yukon (Sierra Base: 2019–2021; Yukon SLE/SLT: 2019–2024, AT4: 2021+, Denali Ultimate: 2023+, AT4 Ultimate/Elevation: 2025+), all equipped with the 5.3L L83 or 6.2L L87 V8.
What engines does this catch can kit work with?
This kit is designed for the 5.3L L83 and 6.2L L87 V8 engines used in the T1 platform Chevrolet and GMC trucks and SUVs listed in the fitment.
What does the MMBCC-T1-19 kit include?
The kit includes one direct-fit mounting bracket, one 3 fl. oz. black anodized 6061-aluminum catch can, two CNC-machined aluminum barbed fittings, two hoses with pre-installed quick-disconnect fittings, two worm gear clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
How often should I check or drain the catch can?
Mishimoto recommends checking the contents of the baffled catch can every 1,000 miles until a baseline is established, since oil blow-by accumulation varies with ambient temperature and driving conditions; the contents should not be allowed to rise above the internal baffle.
What material is the catch can made from and how does it open?
The catch can is machined from 6061-T6 billet aluminum with a black anodized finish and uses a twist-off design for easy servicing of the can and filter.
Does this kit come with a warranty?
Yes, the Mishimoto MMBCC-T1-19 catch can kit is backed by the Mishimoto Lifetime Warranty.
