Description

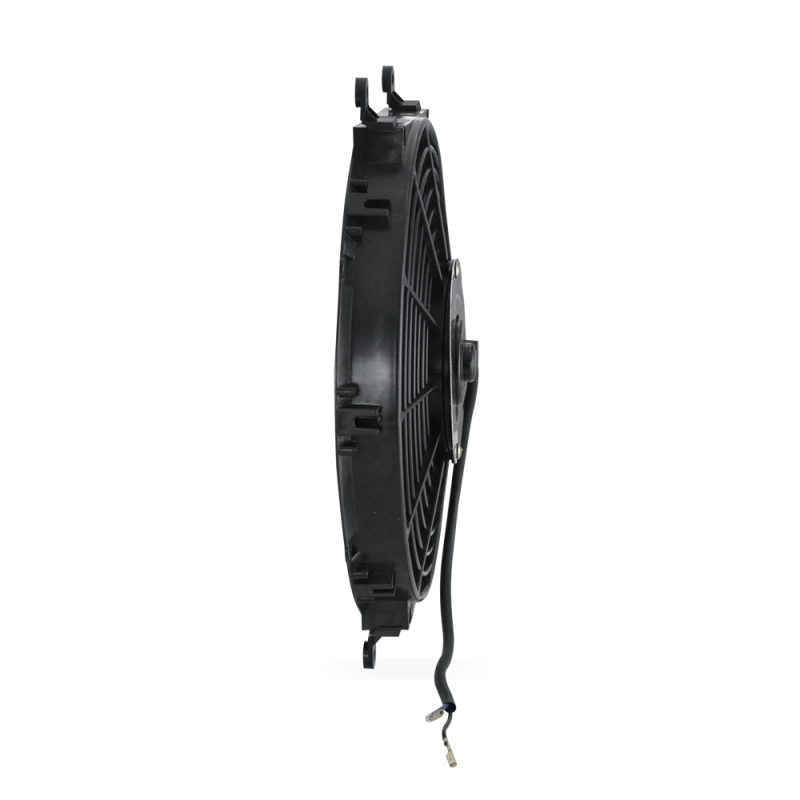

The Mishimoto MMFAN-12C is a 12-inch curved blade electric cooling fan engineered as a direct upgrade to a factory-style fan, purpose-built for shoppers who need more efficient cooling or who are running into clearance issues caused by aftermarket parts. With its slim 2.5-inch profile, this Mishimoto fan mounts flush against a radiator, making it easy to tuck into tight engine bays without sacrificing airflow.
Built for versatility, this Mishimoto Cooling product is a universal-fit fan rather than a vehicle-specific unit, so it pairs well with custom radiator setups, swaps, and builds where a slim, high-output fan is needed. It moves up to 1150 CFM of maximum airflow and is easily reversible, letting it function as either a pusher or a puller fan depending on the cooling layout of your build. The compact 12-inch diameter and thin 2.5-inch depth help free up engine bay space compared to bulkier factory fan assemblies, while the curved plastic blade design and electrical operation keep the unit lightweight and straightforward to wire in.
Vehicle Applications
The Mishimoto MMFAN-12C is designed as a universal cooling fan rather than being tied to a single make or model, which makes it a practical option across a wide range of custom cooling setups. Because it is universal, Mishimoto recommends pairing it with the separately available Mishimoto universal fan mount kit (P/N: MMFAN-MOUNT) to properly secure the fan to a radiator or shroud during installation.
Features
- 12-inch outside diameter with a slim 2.5-inch hub depth for flush radiator mounting
- Curved plastic fan blades, ten blades total, finished in black
- Maximum airflow rating of 1150 CFM at up to 2000 RPM
- Electrically operated fan with a pull airflow direction that is easily reversible for pusher or puller use
- 12-volt operation with a running amp draw of 7.6A and a starting amp draw of 12.7A

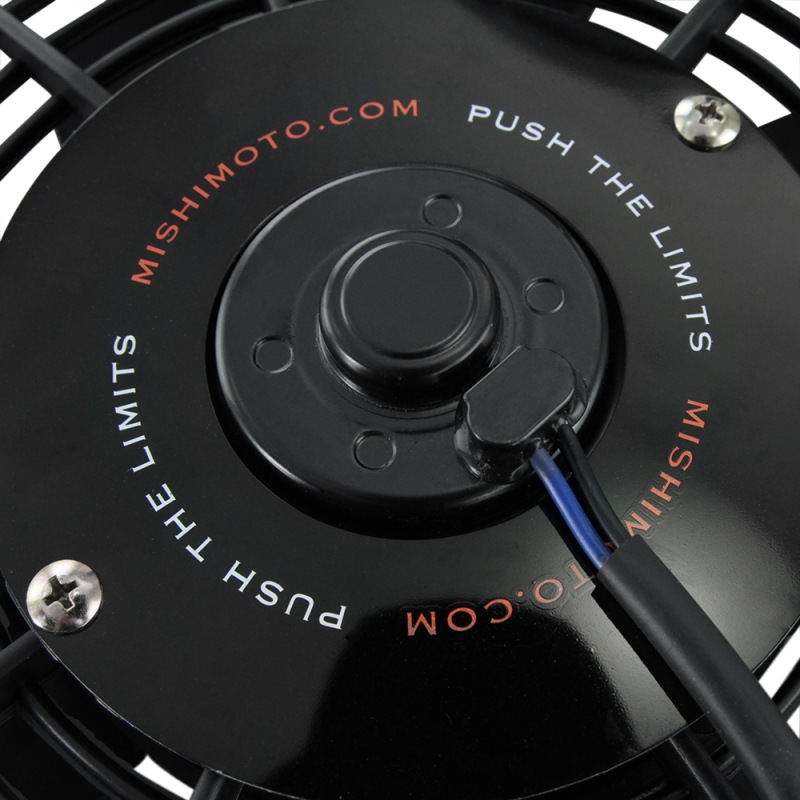

- Female snap-plug terminal wiring connection

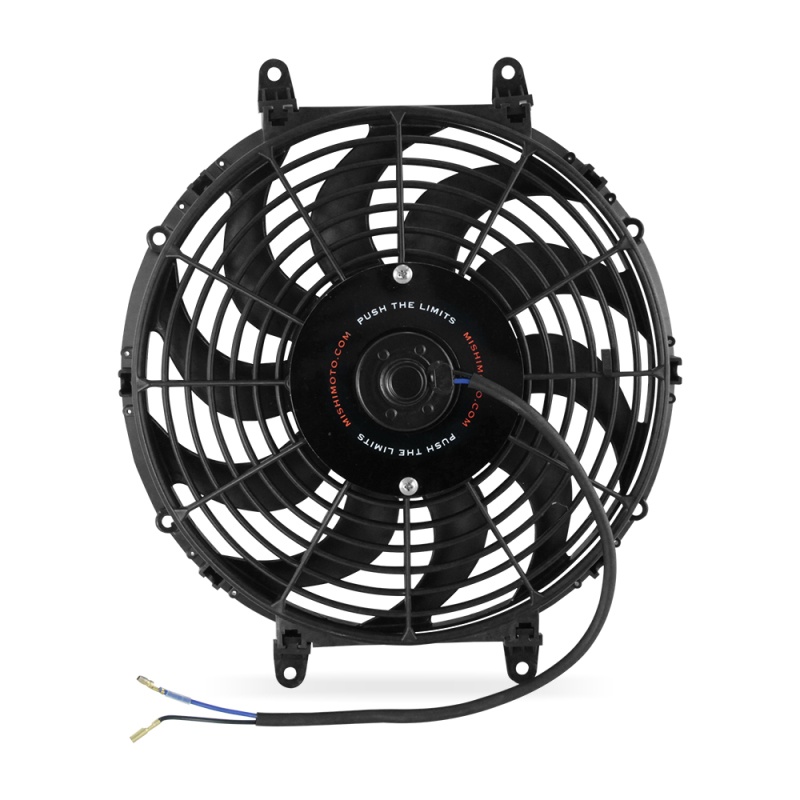

- ABS plastic shroud and mounting bracket included; mounting hardware and wiring harness are not included
- Performance grade construction backed by the Mishimoto Lifetime Warranty

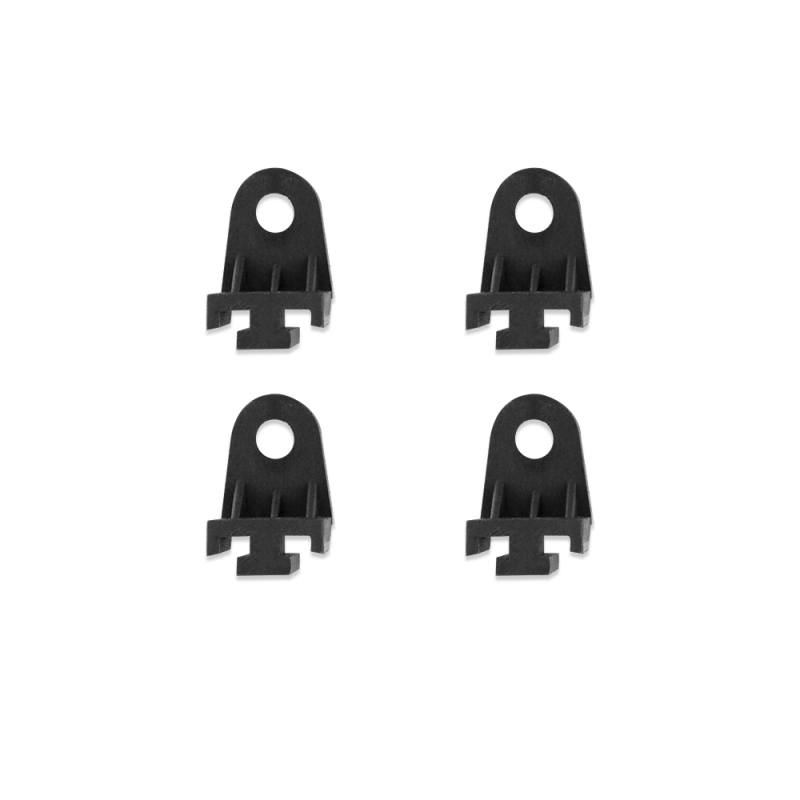

- Includes (1) Mishimoto Fan and (4) Mounting Tabs
Specifications
- Brand: Mishimoto
- Part Number: MMFAN-12C
- Product Type: Cooling
- Outside Diameter: 12 in
- Hub Depth: 2.5 in
- Blade Material: Plastic
- Blade Type: Curved
- Blade Quantity: 10
- Blade Color: Black
- Reversible: Yes
- Electrical or Mechanical: Electrical
- Airflow Direction: Pull
- Maximum CFM: 1150
- Maximum RPM: 2000
- Voltage: 12
- Amp Draw (Start): 12.7
- Amp Draw (Running): 7.6
- Wiring Connection: Female Snap-Plug Terminal
- Wiring Harness Included: No
- Mounting Hardware Included: No
- Mounting Bracket Included: Yes
- Shroud Included: Yes
- Shroud Material: Acrylonitrile Butadiene Styrene (ABS)
- Motor Included: Yes
- Blade Included: Yes
- Control Module Included: No
- Fan Clutch Mounted: No
- Grade Type: Performance
- Includes: (1) Mishimoto Fan, (4) Mounting Tabs, Mishimoto Lifetime Warranty
Frequently Asked Questions
What is the outside diameter of the Mishimoto MMFAN-12C cooling fan?
The Mishimoto MMFAN-12C has a 12-inch outside diameter and a slim 2.5-inch hub depth.
Can the Mishimoto MMFAN-12C be used as either a pusher or puller fan?
Yes, the fan is easily reversible for use as a pusher or puller fan. Reversing polarity and physically flipping the fan blades can enable pusher functionality, but the fan’s original design is optimized for puller configuration, which may limit performance when used as a pusher.
What is the maximum airflow of this Mishimoto fan?
The Mishimoto MMFAN-12C provides a maximum airflow rating of 1150 CFM at up to 2000 RPM.
Is mounting hardware included with the MMFAN-12C?
Mounting hardware is not included, though a mounting bracket is included along with (4) mounting tabs. For universal installation, Mishimoto recommends using the separately sold Mishimoto universal fan mount kit (P/N: MMFAN-MOUNT).
What is included in the box with the MMFAN-12C?
The package includes (1) Mishimoto Fan, (4) Mounting Tabs, and the Mishimoto Lifetime Warranty.
What are the amp draw specifications for this fan?
The Mishimoto MMFAN-12C has a starting amp draw of 12.7A and a running amp draw of 7.6A, operating on 12 volts.
