Description
The Mishimoto MMFAN-14 is a 14-inch universal electric cooling fan engineered as a direct upgrade path when an OEM fan falls short or when aftermarket radiators and intercoolers create clearance and fitment headaches. Built with a slim profile, it mounts flush against a radiator, freeing up valuable engine bay real estate without sacrificing airflow.
This Mishimoto cooling fan is designed to move up to 1300 CFM of air while spinning up to 2200 RPM, giving builders a genuine performance-grade option for tight engine bays. Its ten straight, black plastic blades are reversible, so the same fan can function as either a pusher or a puller depending on how your cooling system is laid out, though Mishimoto notes the design is originally optimized for puller configuration. Paired with the included ABS shroud, motor, and blades, the MMFAN-14 is built to be a complete, ready-to-wire cooling upgrade rather than a bare motor assembly.
Vehicle Applications
The Mishimoto MMFAN-14 is a universal-fit electric fan, meaning it is not tied to a specific make, model, or year in the source specifications. Instead, it’s intended to be installed on whatever radiator or cooling setup needs an upgrade, from OEM fan replacement to custom builds where aftermarket radiators or intercoolers have created fitment conflicts. For a proper universal installation, Mishimoto recommends pairing the MMFAN-14 with the separately sold Mishimoto universal fan mount kit (P/N: MMFAN-MOUNT).
Features
- High-flow design provides up to 1300 CFM of airflow
- Universal fitment for OEM fan upgrades or aftermarket fitment issues
- Compact 14-inch diameter with an overall thickness of only 2.65-in for increased engine bay clearance
- Easily reversible for use as a pusher or puller fan

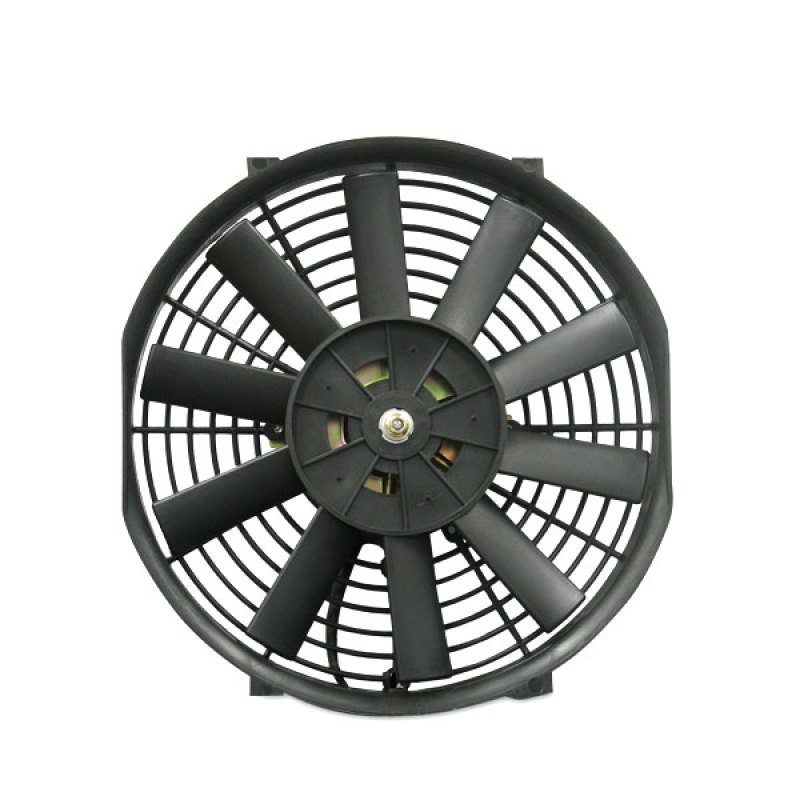

- Ten straight, black plastic fan blades
- Includes ABS plastic shroud for optimal fan operation
- Female snap-plug terminal wiring connection
- Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFAN-14
- Outside Diameter: 14 in
- Hub Depth: 2.5 in
- Blade Quantity: 10
- Blade Material: Plastic
- Blade Type: Straight
- Blade Color: Black
- Reversible: Yes
- Voltage: 12V
- Maximum RPM: 2200
- Maximum CFM: 1300
- Amp Draw (Start): 15.1
- Amp Draw (Running): 7.8
- Airflow Direction: Pull
- Wiring Connection: Female Snap-Plug Terminal
- Shroud Included: Yes
- Shroud Material: Acrylonitrile Butadiene Styrene (ABS)
- Motor Included: Yes
- Blade Included: Yes
- Mounting Bracket Included: Yes
- Mounting Hardware Included: No
- Wiring Harness Included: No
- Control Module Included: No
- Fan Clutch Mounted: No
- Grade Type: Performance
- Electrical or Mechanical: Electrical

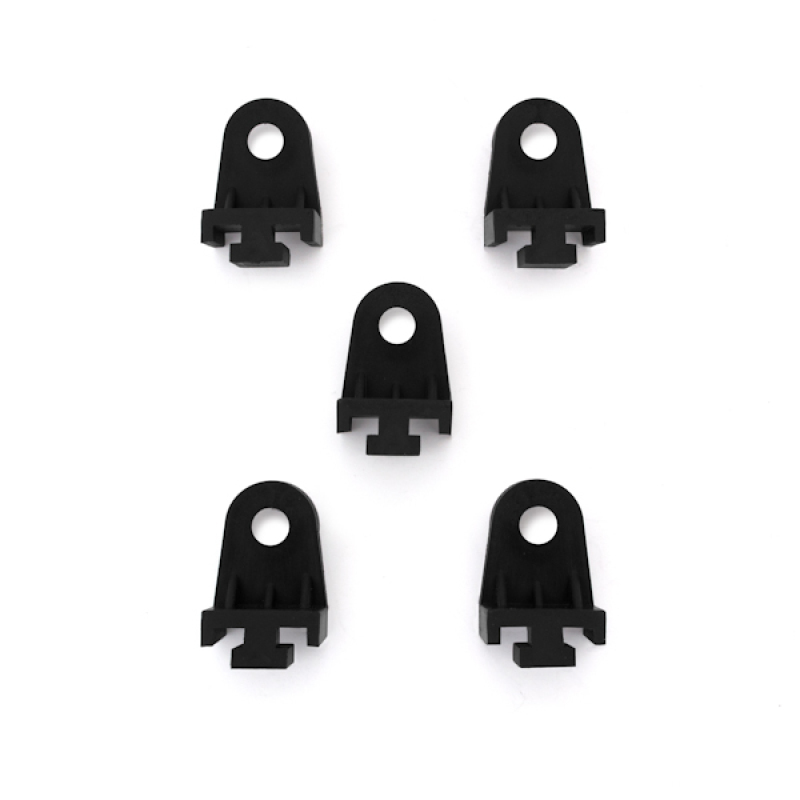

- Includes: (1) Mishimoto Fan, (4) Mounting Tabs, Mishimoto Lifetime Warranty
Frequently Asked Questions
Is the Mishimoto MMFAN-14 a universal-fit fan?
Yes, the MMFAN-14 is designed for universal installation. For proper mounting, Mishimoto recommends using the separately sold Mishimoto universal fan mount kit (P/N: MMFAN-MOUNT).
How much airflow does the MMFAN-14 produce?
The MMFAN-14 provides a maximum airflow rating of 1300 CFM and can reach up to 2200 RPM.
Can this fan be used as either a pusher or a puller?
Yes, the fan is reversible. Reversing polarity and physically flipping the fan blades enables pusher functionality, but the fan’s original design is optimized for puller configuration, which may limit performance when reversed.
What is included with the Mishimoto MMFAN-14?
The package includes (1) Mishimoto Fan, (4) Mounting Tabs, and the Mishimoto Lifetime Warranty.
Does the MMFAN-14 include mounting hardware or a wiring harness?
A mounting bracket is included, but mounting hardware and a wiring harness are not included.
What is the amperage draw of this fan?
The fan has a starting amp draw of 15.1 amps and a running amp draw of 7.8 amps, and it operates on 12 volts.
