Description

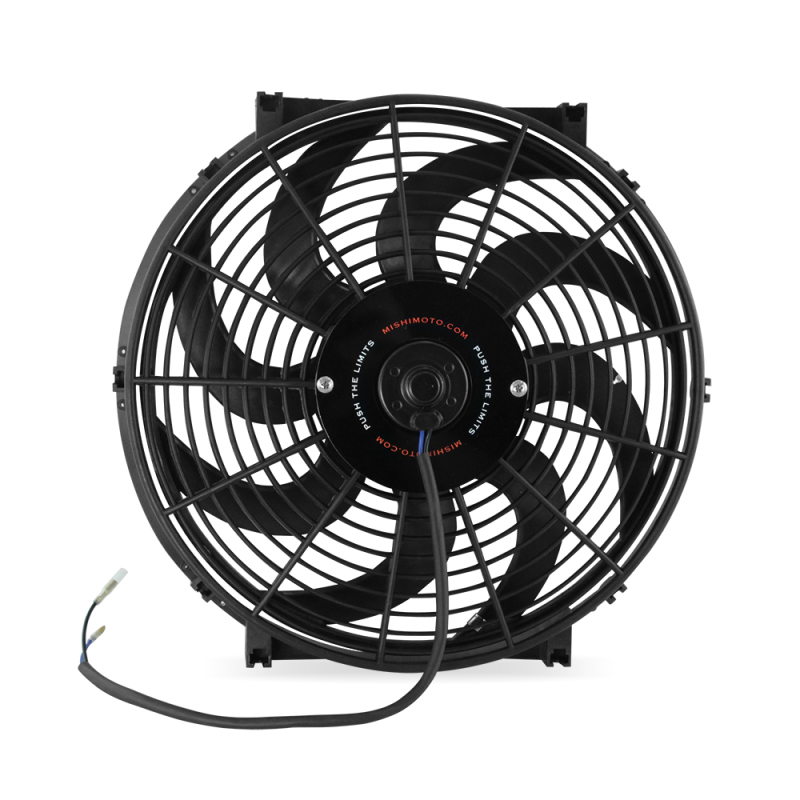

The Mishimoto MMFAN-14C is a 14-inch curved blade electric cooling fan engineered as a direct upgrade to a worn or underperforming OEM fan, or as a solution when aftermarket radiators and intercoolers create fitment headaches under the hood. Its slim profile lets it sit flush against a radiator core, freeing up valuable engine bay space without sacrificing airflow.

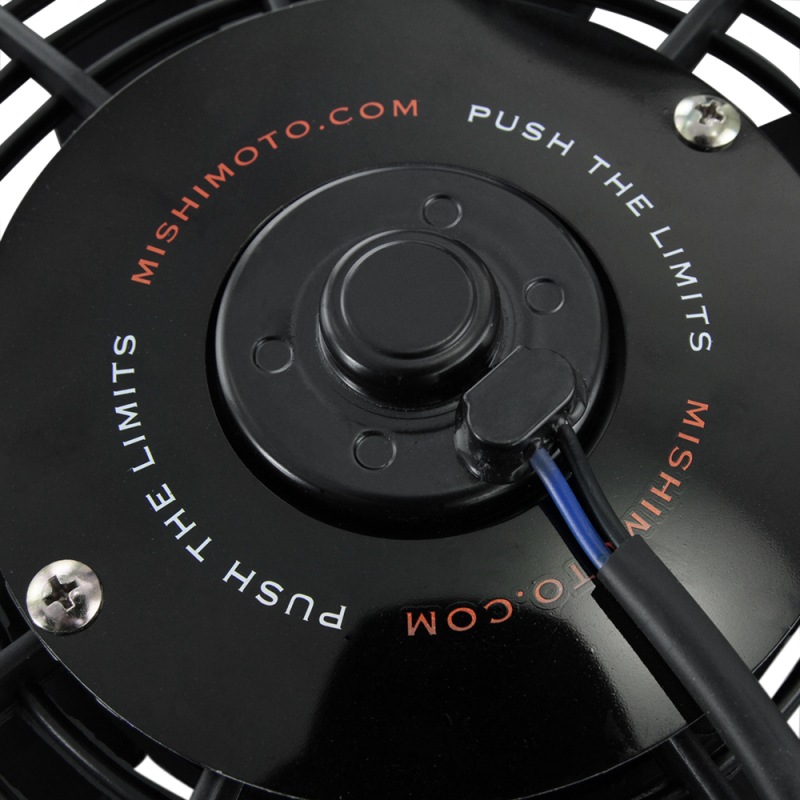

Built around a plastic curved blade design finished in black, this Mishimoto cooling fan is rated to move up to 1330 CFM at a maximum of 2200 RPM, giving builders a genuine high-flow option for demanding cooling setups. It runs on 12V power, draws 15.1 amps on startup and 7.8 amps running, and connects via a female snap-plug terminal. Because the fan is fully reversible, it can be configured as either a puller or a pusher fan, though Mishimoto notes it is originally optimized for puller (pull) airflow direction, so performance may be affected when reversed for pusher use. Mishimoto also recommends pairing the fan with a shroud for optimal operation, and a shroud constructed of ABS plastic is included with this unit.
Vehicle Applications
The MMFAN-14C is a universal-fit cooling fan rather than a model-specific component, making it a practical option for a wide range of engine bay layouts. It’s intended for installations where an OEM fan needs replacing for more efficient cooling, or where an aftermarket radiator, intercooler, or oil cooler has created clearance or fitment issues with the factory fan. For a complete universal installation, Mishimoto offers its separate Universal Fan Mount Kit (P/N: MMFAN-MOUNT), designed to secure this fan to virtually any application.
Features
- High-flow fan design provides up to 1330 CFM of maximum airflow
- Universal fitment for use across a wide range of engine bays

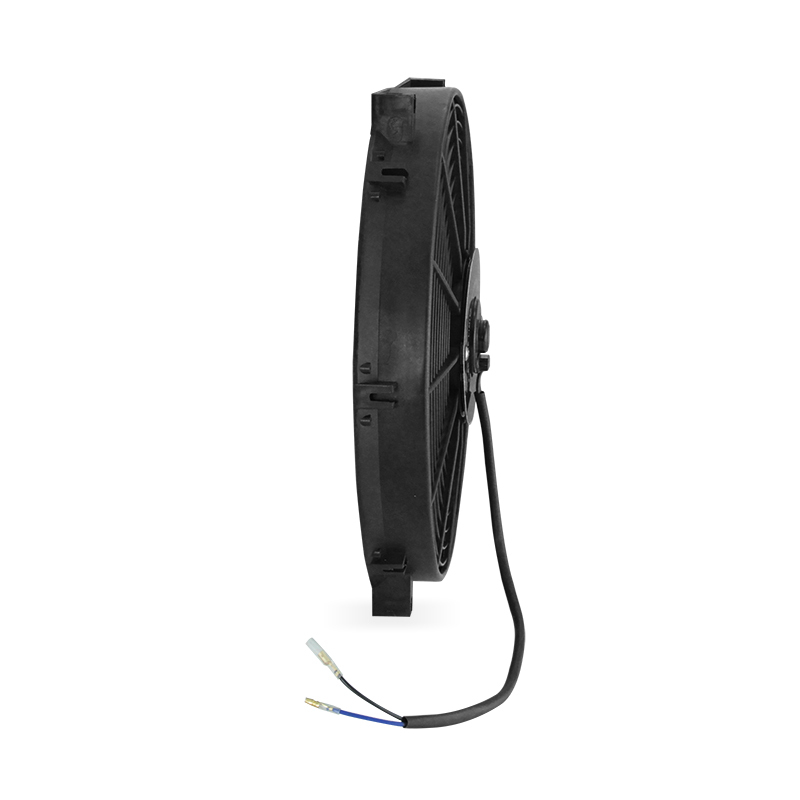

- Compact 14-inch diameter with an overall thickness of only 2.65 inches for increased engine bay clearance
- Curved plastic fan blades finished in black
- Easily reversible for use as a pusher or puller fan
- Electric motor included, rated for 12V operation
- ABS plastic fan shroud included
- Mounting bracket included; additional mounting hardware sold separately
- Female snap-plug terminal wiring connection (wiring harness not included)
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFAN-14C
- Product Type: Cooling
- Outside Diameter: 14 in
- Hub/Overall Depth: 2.5 in
- Blade Type: Curved
- Blade Material: Plastic
- Blade Color: Black
- Blade Included: Yes
- Reversible: Yes
- Voltage: 12V
- Amp Draw (Start): 15.1A
- Amp Draw (Running): 7.8A
- Maximum RPM: 2200
- Maximum CFM: 1330
- Airflow Direction: Pull
- Wiring Connection: Female Snap-Plug Terminal
- Wiring Harness Included: No
- Mounting Hardware Included: No
- Mounting Bracket Included: Yes
- Motor Included: Yes
- Electrical or Mechanical: Electrical
- Shroud Included: Yes
- Shroud Material: Acrylonitrile Butadiene Styrene (ABS)
- Fan Clutch Mounted: No
- Control Module Included: No
- Grade Type: Performance

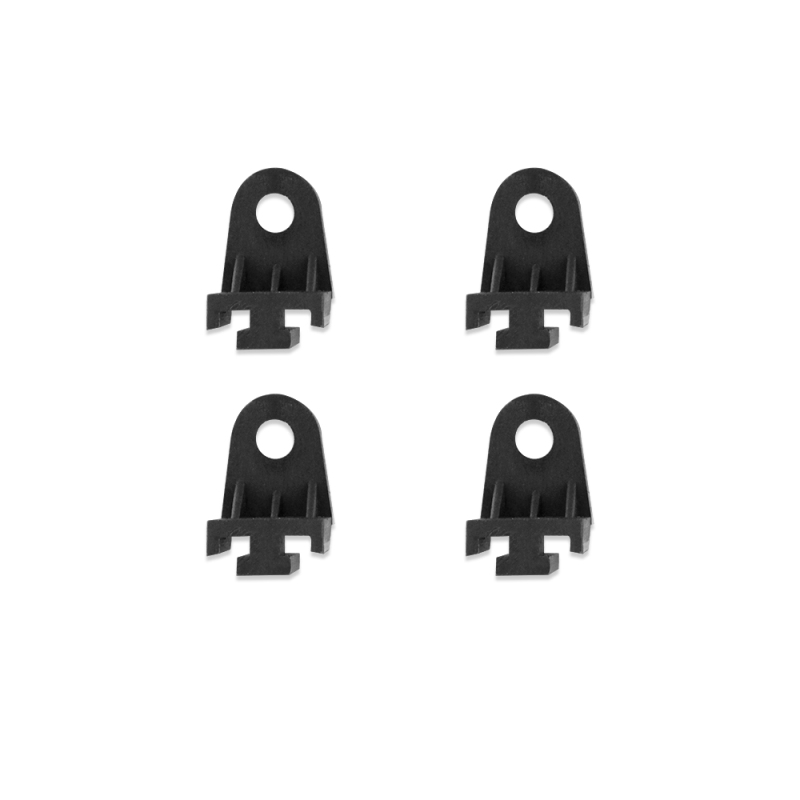

- Includes: (1) Mishimoto Fan, (4) Mounting Tabs, Mishimoto Lifetime Warranty
Frequently Asked Questions
What size is the Mishimoto MMFAN-14C?
It has a 14-inch outside diameter and an overall thickness of only 2.65 inches, with a hub/overall depth of 2.5 inches, keeping it compact for tight engine bays.
Is this fan reversible?
Yes, the MMFAN-14C is easily reversible for use as either a pusher or puller fan. Mishimoto notes that reversing polarity and physically flipping the blades enables pusher functionality, though the fan’s original design is optimized for puller configuration, which may limit performance when reversed.
What is included with the fan?
Each MMFAN-14C ships with (1) Mishimoto fan, (4) mounting tabs, and the Mishimoto Lifetime Warranty. An ABS plastic shroud and electric motor are also included.
How much airflow does the fan produce?
The fan delivers up to 1330 CFM of maximum airflow at up to 2200 RPM.
Does the fan include mounting hardware?
A mounting bracket is included, but additional mounting hardware is not included. For universal installation, Mishimoto recommends its separate Universal Fan Mount Kit (P/N: MMFAN-MOUNT).
What are the electrical specifications?
The MMFAN-14C operates on 12V, drawing 15.1 amps at startup and 7.8 amps while running, and connects via a female snap-plug terminal wiring connection.
