Description

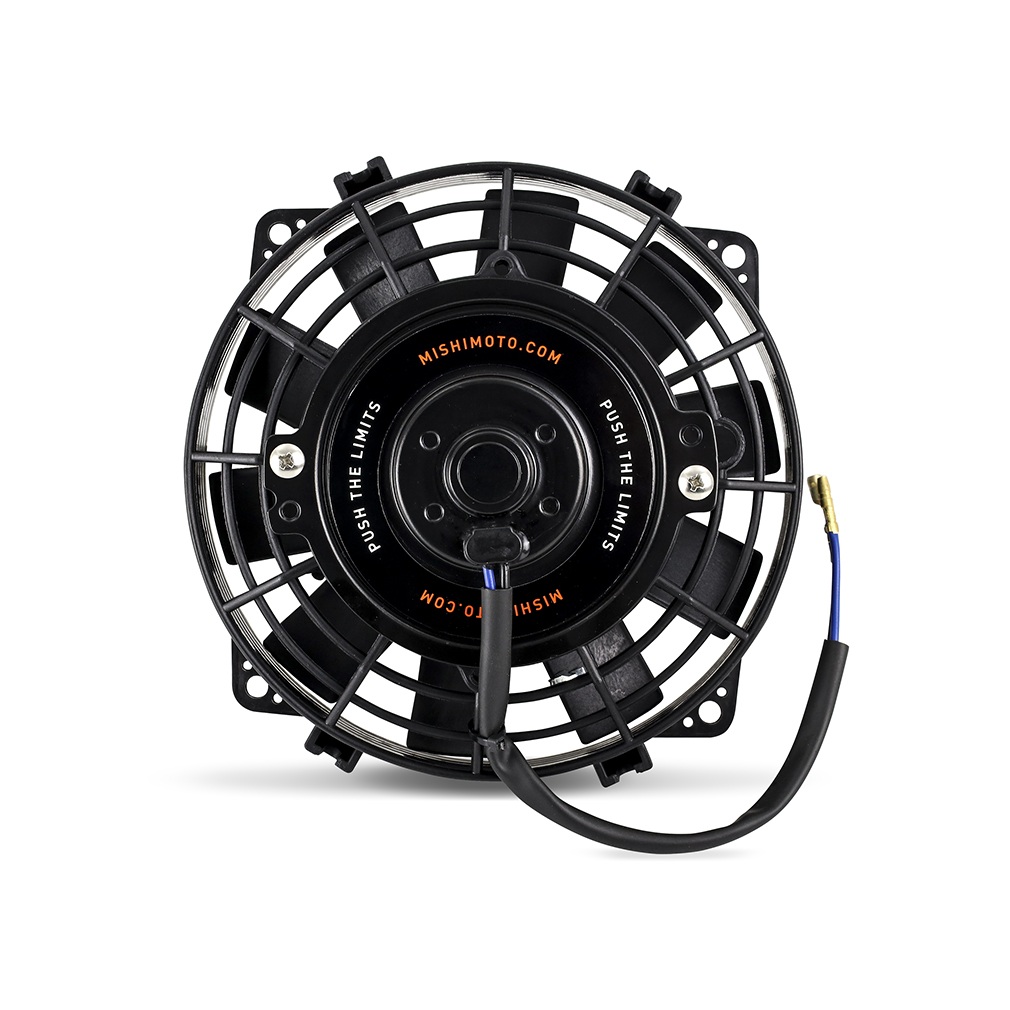

The Mishimoto MMFAN-6 is a 6-inch slim electric cooling fan engineered to slot into tight engine bays where a traditional fan simply won’t fit. At just 2.36 inches deep, this compact unit can mount flush against a radiator, making it a go-to solution for upgrading an OEM fan or solving fitment conflicts created by aftermarket intercoolers, radiators, or shrouds.
Despite its small footprint, the MMFAN-6 moves 415 CFM of airflow, giving it real cooling capability in a compact package. It ships with a plug connector on the fan wiring along with a matching connector pigtail, simplifying the wiring process for a clean, straightforward installation. The fan is reversible, so it can be configured to pull or push air depending on the cooling layout, and it pairs with the Mishimoto Universal Fan Mount Kit for a secure universal installation. Like other Mishimoto cooling products, the MMFAN-6 is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
The Mishimoto 6″ Slim Electric Fan is built for universal fitment, designed to work across a wide range of engine bay layouts rather than being tied to one specific make or model. Its slim 2.36-inch profile and 6-inch outside diameter make it especially useful for builds where space behind the radiator, intercooler, or an auxiliary cooler is limited, whether you’re upgrading a factory electric fan or adding supplemental cooling to a custom setup.
Features
- High-flow design provides 415 CFM of airflow
- Universal fitment for a wide range of applications
- Compact 6-inch diameter and 2.36-inch overall thickness frees up engine bay space
- Easily reversible for use as a pusher or puller fan
- Includes a plug connector on the fan wiring plus a matching connector pigtail for easier installation
- ABS plastic shroud included
- 10 black plastic straight blades
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Part Number: MMFAN-6
- Outside Diameter: 7.28 in

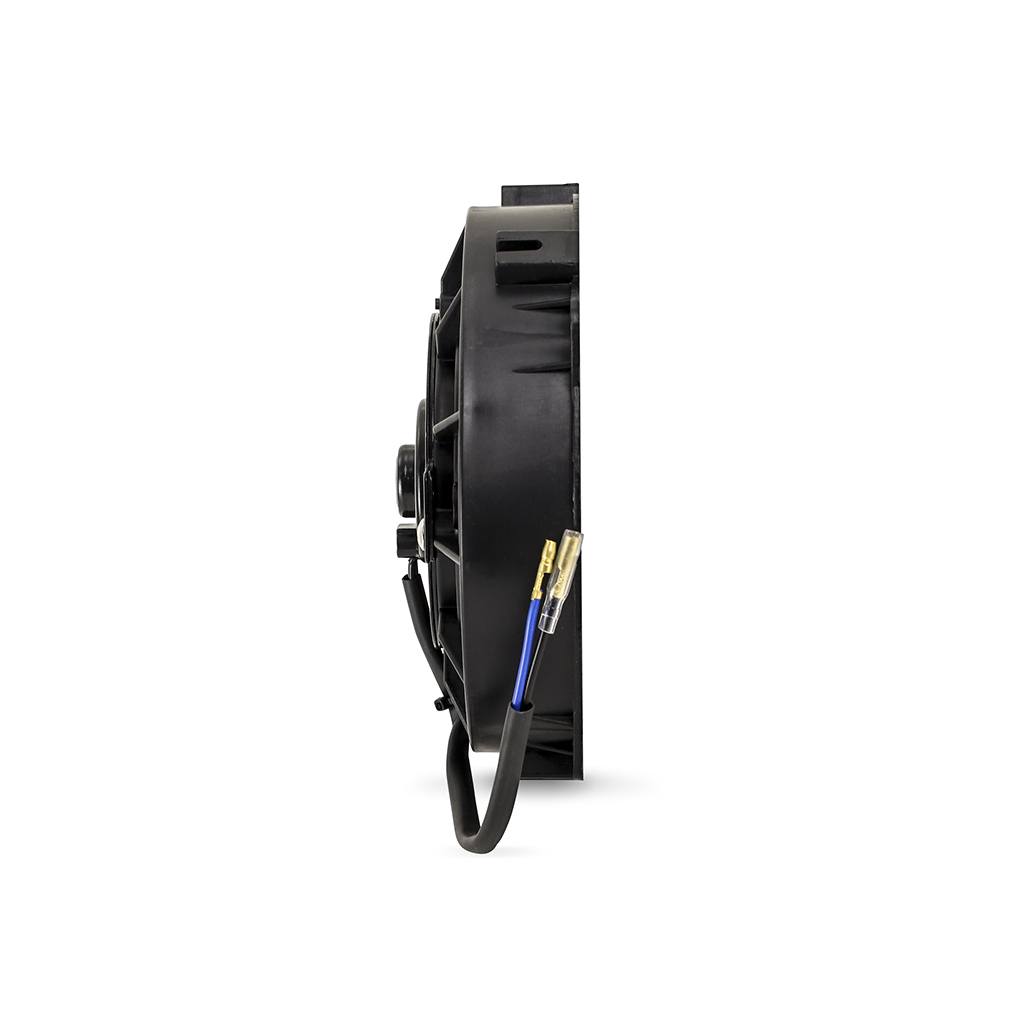

- Overall Depth: 2.36 in
- Hub Depth: 3.14 in
- Voltage: 12V
- Amp Draw (Start): 8.2A
- Amp Draw (Running): 2.82A
- Maximum RPM: 3000
- Maximum CFM: 600
- Airflow Direction: Pull (reversible)
- Blade Quantity: 10
- Blade Material: Plastic
- Blade Type: Straight
- Blade Color: Black
- Reversible: Yes
- Shroud Included: Yes
- Shroud Material: ABS
- Motor Included: Yes
- Electrical or Mechanical: Electrical
- Wiring Harness Included: No
- Wiring Connection: Female Snap-Plug Terminal
- Mounting Hardware Included: No
- Mounting Bracket Included: Yes
- Control Module Included: No
- Fan Clutch Mounted: No
- Grade Type: Performance

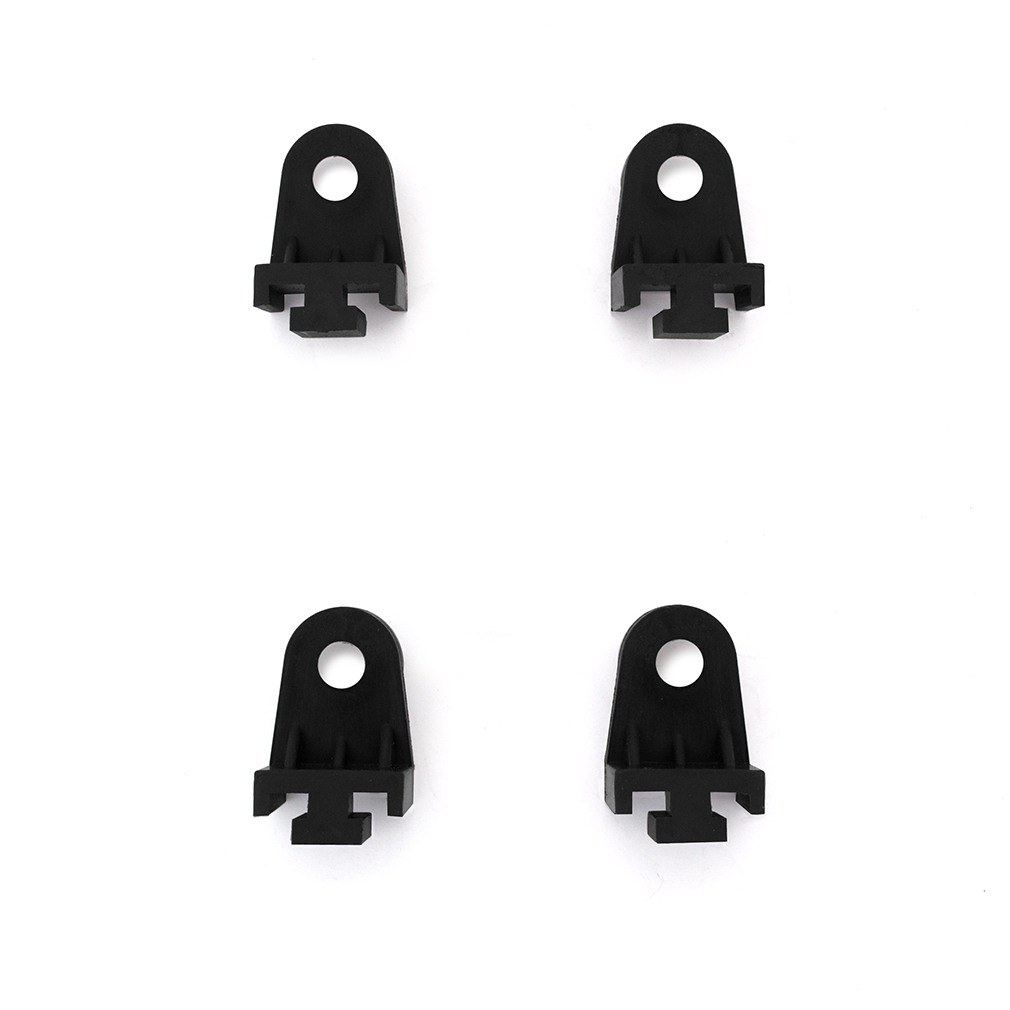

- Includes: (1) Mishimoto Fan, (4) Mounting Tabs, Mishimoto Lifetime Warranty
Frequently Asked Questions
What is the airflow rating of the Mishimoto MMFAN-6?
According to Mishimoto, the MMFAN-6 provides 415 CFM of airflow, with a listed maximum CFM rating of 600.
How deep is this fan?
The fan measures 2.36 inches deep overall, with a hub depth of 3.14 inches.
Is the MMFAN-6 reversible?
Yes, it is easily reversible for use as a pusher or puller fan, though it is designed by default to pull air.
What comes included with the fan?
It includes (1) Mishimoto Fan, (4) Mounting Tabs, a plug connector on the fan wiring, a connector pigtail, and the Mishimoto Lifetime Warranty.
What voltage and amp draw does this fan use?
It runs on 12V, drawing 8.2A at start and 2.82A while running.
Does it come with mounting hardware?
Mounting hardware is not included, but Mishimoto offers a Universal Fan Mount Kit for universal installation.
