Description

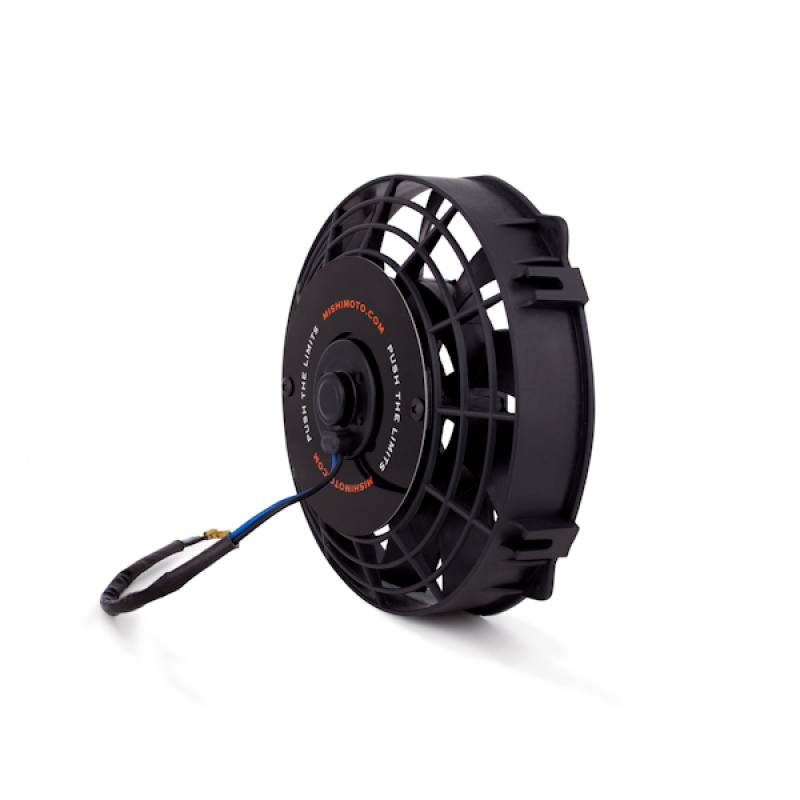

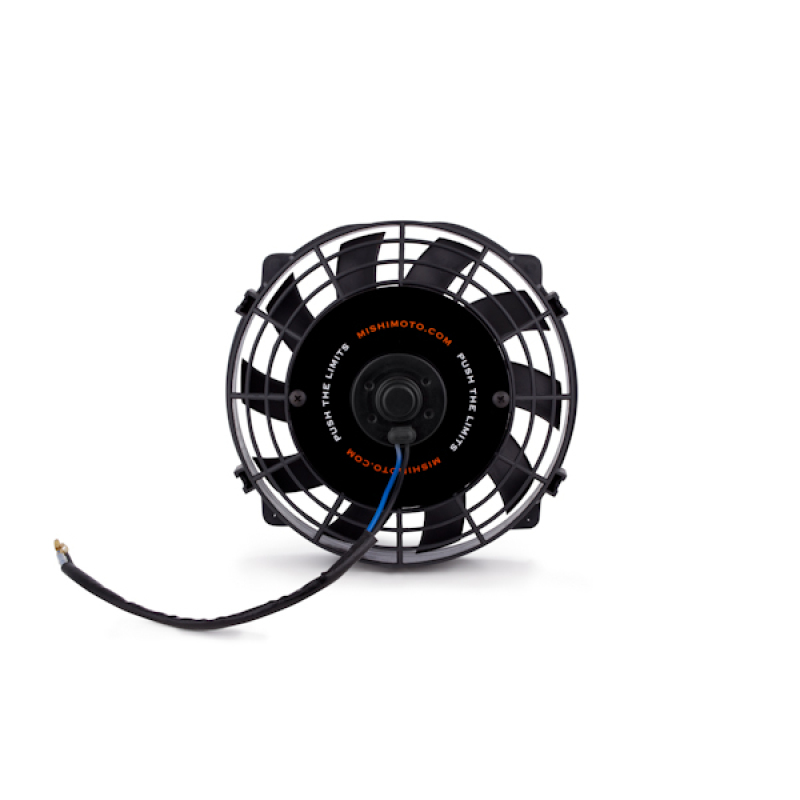

The Mishimoto MMFAN-8 is a purpose-built universal electric cooling fan engineered to replace a stock OEM fan when you need more efficient cooling or when an aftermarket radiator, intercooler, or other component creates a fitment conflict. Its slim, compact profile lets it mount flush against a radiator, and with the optional Mishimoto universal fan mount kit (P/N: MMFAN-MOUNT), installation becomes a genuinely universal solution rather than a vehicle-specific one.

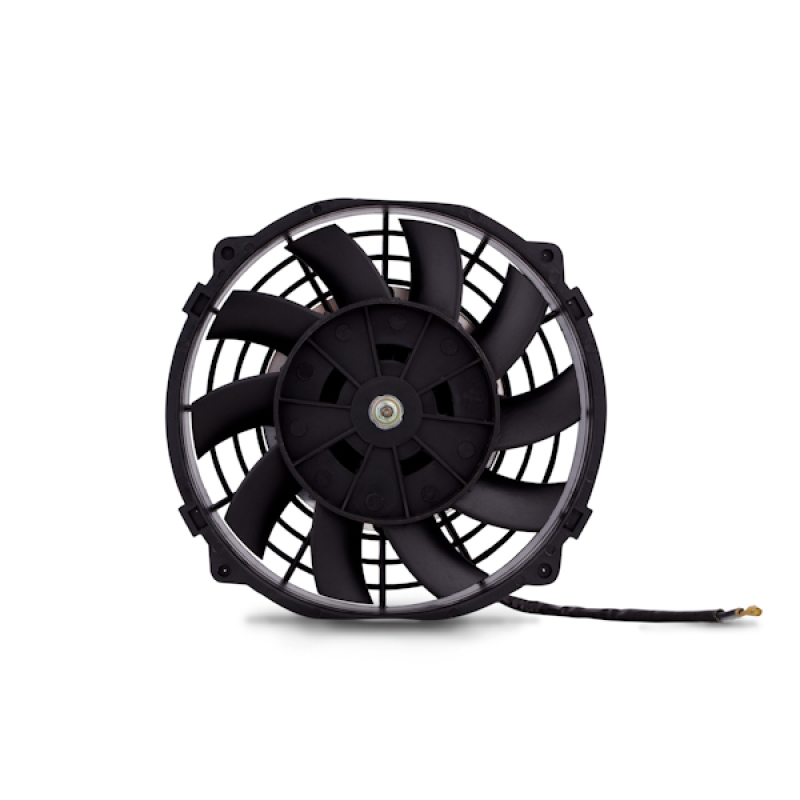

Built around a curved 10-blade black plastic fan wheel and a 12V electric motor, the MMFAN-8 is rated to move up to 600 CFM of airflow at a maximum of 3000 RPM, giving it real cooling capability in a footprint small enough to free up valuable engine bay space. Classified as a Performance-grade cooling fan, it’s designed to be easily reversible, allowing it to function as either a puller or pusher fan depending on your cooling setup. This flexibility, combined with its slim build and Female Snap-Plug Terminal wiring connection, makes it a practical upgrade for anyone tackling a Mishimoto cooling fan swap or building a custom electric fan setup where a low-profile, high-flow fan is required.
Vehicle Applications
The Mishimoto MMFAN-8 is designed for universal installation rather than a single make or model, making it suited to a wide range of engine bays where a compact, high-flow electric fan is needed. For a clean, secure universal fit, Mishimoto recommends pairing the MMFAN-8 with its separately available universal fan mount kit (MMFAN-MOUNT), which is designed specifically to complement this fan’s slim profile and mounting tabs.
Features
- High-flow design delivers up to 600 CFM of airflow
- Slim, space-saving profile designed to mount flush against a radiator
- Reversible operation for use as either a pusher or puller fan; reversing polarity and physically flipping the blades enables pusher functionality, though the fan’s original design is optimized for puller configuration, which may limit performance in that mode
- Curved black plastic fan blades, 10 blades total
- 12V electric motor included
- Female Snap-Plug Terminal wiring connection
- Mounting bracket included for installation
- Compatible with the optional Mishimoto universal fan mount kit (MMFAN-MOUNT) for universal fitment
- Backed by the Mishimoto Lifetime Warranty
- Includes: (1) Mishimoto Fan, (4) Mounting Tabs, Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFAN-8
- Product Type: Cooling
- Outside Diameter: 8 in
- Hub Depth: 3.14 in
- Maximum CFM: 600
- Maximum RPM: 3000
- Voltage: 12V
- Blade Quantity: 10
- Blade Material: Plastic
- Blade Type: Curved
- Blade Color: Black
- Reversible: Yes
- Grade Type: Performance
- Electrical or Mechanical: Electrical
- Motor Included: Yes
- Blade Included: Yes
- Mounting Bracket Included: Yes
- Mounting Hardware Included: No
- Wiring Harness Included: No
- Control Module Included: No
- Fan Clutch Mounted: No
- Airflow Direction: Pull
- Wiring Connection: Female Snap-Plug Terminal
Frequently Asked Questions
How much airflow does the Mishimoto MMFAN-8 provide?
The Mishimoto MMFAN-8 is rated for a maximum of 600 CFM of airflow.
Can the MMFAN-8 be used as either a pusher or puller fan?
Yes, it is reversible. Reversing polarity and physically flipping the fan blades can enable pusher functionality, but the fan’s original design is optimized for puller configuration, which may limit performance in pusher mode.
What is included with the Mishimoto MMFAN-8?
It includes (1) Mishimoto Fan, (4) Mounting Tabs, and the Mishimoto Lifetime Warranty.
Does the MMFAN-8 fit a specific make or model?
The MMFAN-8 is designed for universal installation. For a secure universal fit, it can be paired with the separately available Mishimoto universal fan mount kit (P/N: MMFAN-MOUNT).
What voltage does the Mishimoto MMFAN-8 run on?
The fan operates on 12V.
What type of wiring connection does this fan use?
The MMFAN-8 uses a Female Snap-Plug Terminal wiring connection.
