Description
The Mishimoto MMICP-F35T-17KP is a direct-fit intercooler pipe kit purpose-built for the 2017-2020 Ford F-150 3.5L V6 EcoBoost and second-generation Raptor, engineered to replace the factory’s weak plastic piping with a full aluminum and silicone DuraCore setup. This forced induction upgrade increases pipe volume so the twin-turbo EcoBoost engine can breathe more freely, and it’s offered in either a polished finish or a stealthy wrinkle black powder-coat to match your build.
As a forced induction system component, this kit is designed to keep boost pressure exactly where it belongs: moving air efficiently between the turbochargers and intercooler. The larger-volume aluminum piping and DuraCore silicone couplers work together as a complete induction system upgrade, reducing the flex and heat-soak issues common with factory plastic pipes. Constant-tension worm gear clamps maintain a secure seal as the pipes and boots expand and contract under boost, so this force induction hardware resists blowouts and keeps performance induction consistent from the show floor to the track. The cold-side pipe also features a CNC quick-disconnect with a pre-installed o-ring and spring clip for straightforward installation, plus an additional port that can be drilled and tapped for methanol injection or sensors, giving tuners added flexibility as they build out their induction engine setup.
Vehicle Applications
This Mishimoto intercooler pipe kit is a direct fit for the 2017-2020 Ford F-150 equipped with the 3.5L V6 EcoBoost engine, covering the King Ranch, Lariat, Limited, Platinum, XL, and XLT trims across those model years. It also fits the 2018-2020 F-150 Police Responder and the 2017-2020 F-150 SSV, as well as the 2017-2020 Ford F-150 Raptor. For those looking to maximize the twin-turbo EcoBoost’s potential, Mishimoto notes this pipe kit pairs well with the Mishimoto 2015+ F-150 EcoBoost Intercooler.
Features
- Direct-fit design for 2017-2020 Ford F-150 3.5L EcoBoost and Raptor
- Increased pipe volume for better flow and power potential
- Aluminum construction with a mandrel pipe bend type
- Silicone boots with DuraCore technology for strength and blowout resistance
- Cold-side pipe includes a CNC quick-disconnect with pre-installed o-ring and spring clip for quick, easy installation
- Additional port on the cold-side pipe can be drilled and tapped for methanol injection or sensors
- Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract
- Available in a polished finish or wrinkle black powder-coated finish
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMICP-F35T-17KP
- Product Type: Forced Induction / Intercooler Pipe Kit
- Pipe Material: Aluminum
- Pipe Bend Type: Mandrel
- Coupler Material: Silicone (DuraCore technology)
- Coupler Color: Black
- Clamp Type: Worm Gear (constant-tension)
- Finish Options: Polished or wrinkle black powder-coat
- Engine Code: 3.5L V6 EcoBoost

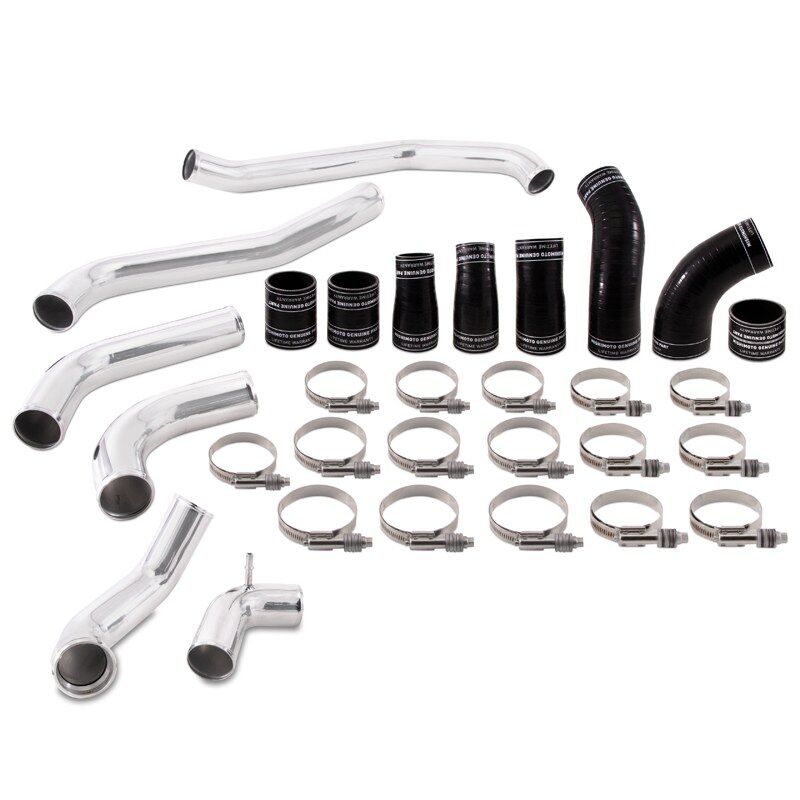

- Kit Includes: (1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange, (1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing, (4) Aluminum Hot-Side Intercooler Pipes, (8) Silicone Boots w/ DuraCore Technology, (16) Constant-Tension Worm Gear Clamps, Mishimoto Lifetime Warranty
- Installation Note: 27 in-lbs (3NM) recommended torque for T-bolt and constant-tension T-bolt clamps; operating range 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM) maximum
Frequently Asked Questions
What vehicles fit the Mishimoto MMICP-F35T-17KP intercooler pipe kit?
This kit is a direct fit for the 2017-2020 Ford F-150 3.5L V6 EcoBoost in King Ranch, Lariat, Limited, Platinum, XL, and XLT trims, the 2018-2020 F-150 Police Responder, the 2017-2020 F-150 SSV, and the 2017-2020 Ford F-150 Raptor.
What material is the Mishimoto intercooler pipe kit made from?
The pipes are constructed from aluminum with a mandrel bend design, paired with silicone boots that use Mishimoto’s DuraCore technology.
What finish options are available for this pipe kit?
This kit is available with either a polished finish or a wrinkle black powder-coated finish.
What clamps are used in this kit?
The kit uses constant-tension worm gear clamps designed to maintain a strong grip as the pipes and boots expand and contract.
What is included in the Mishimoto MMICP-F35T-17KP kit?
The kit includes one aluminum cold-side intercooler pipe with a CNC quick-disconnect flange, one aluminum cold-side intercooler pipe with a CNC IAT sensor housing, four aluminum hot-side intercooler pipes, eight silicone boots with DuraCore technology, sixteen constant-tension worm gear clamps, and the Mishimoto Lifetime Warranty.
Does this kit include a warranty?
Yes, this Mishimoto intercooler pipe kit is backed by the Mishimoto Lifetime Warranty.
