Description

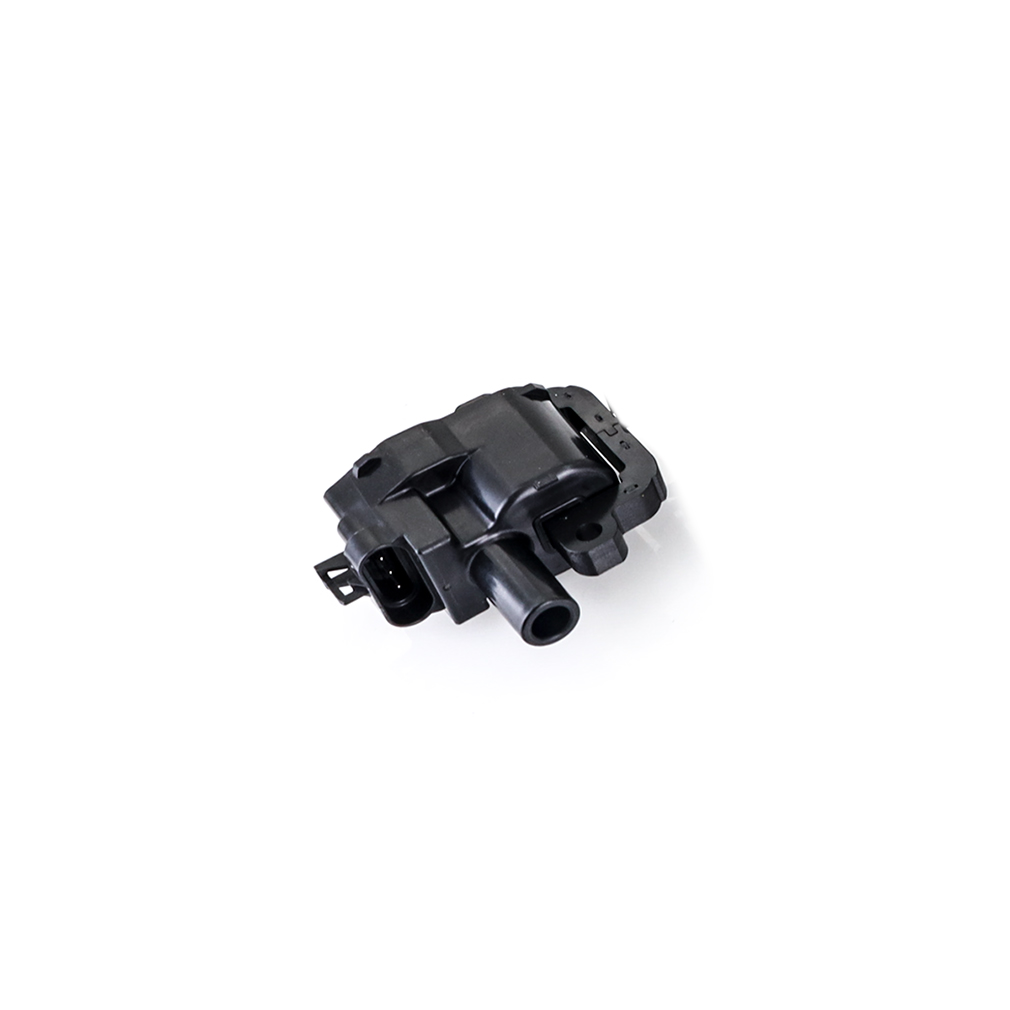

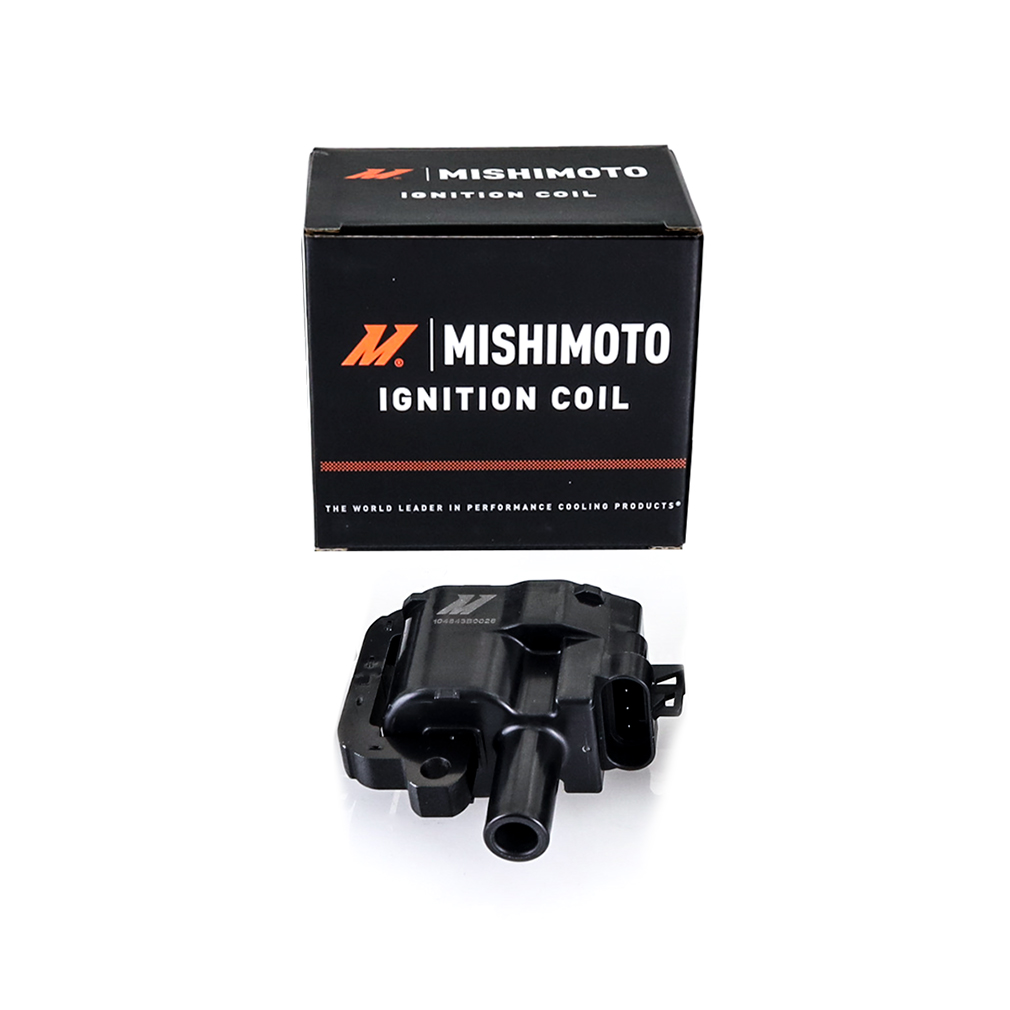

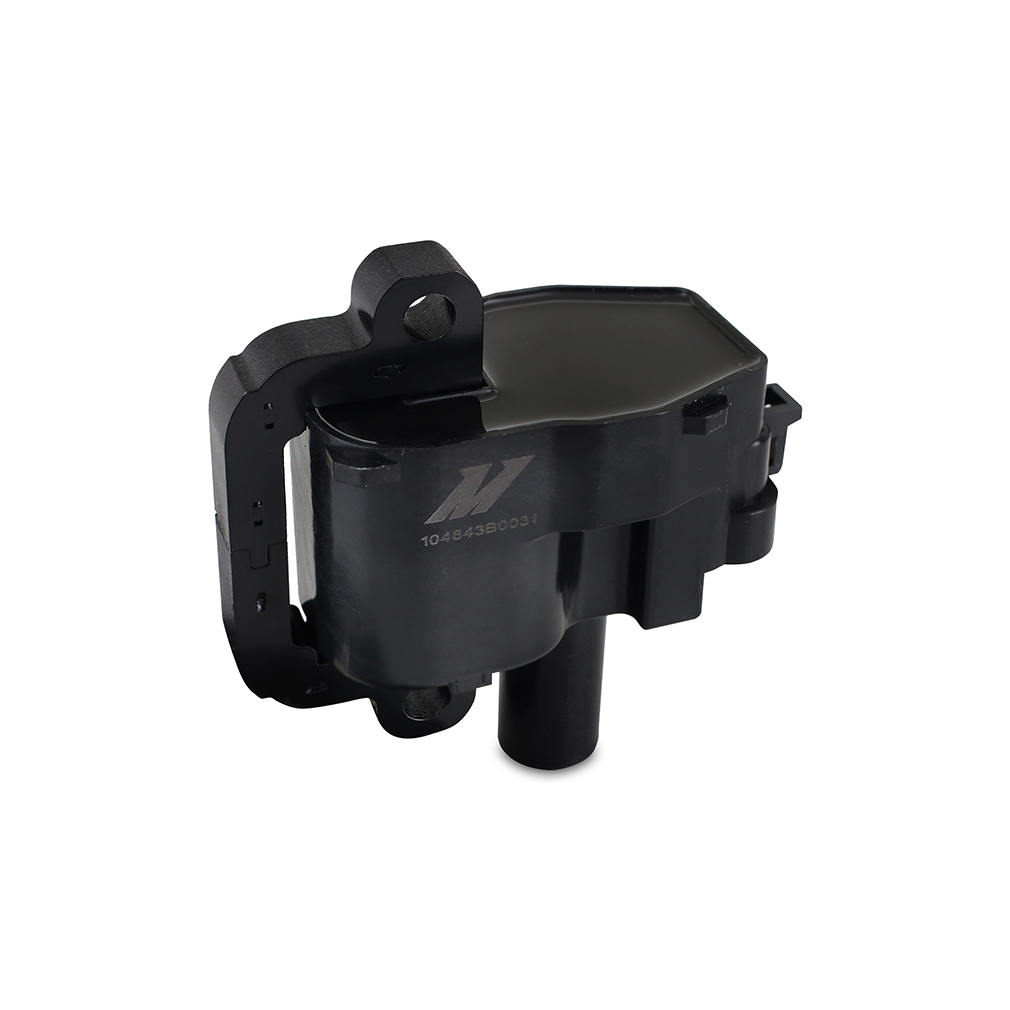

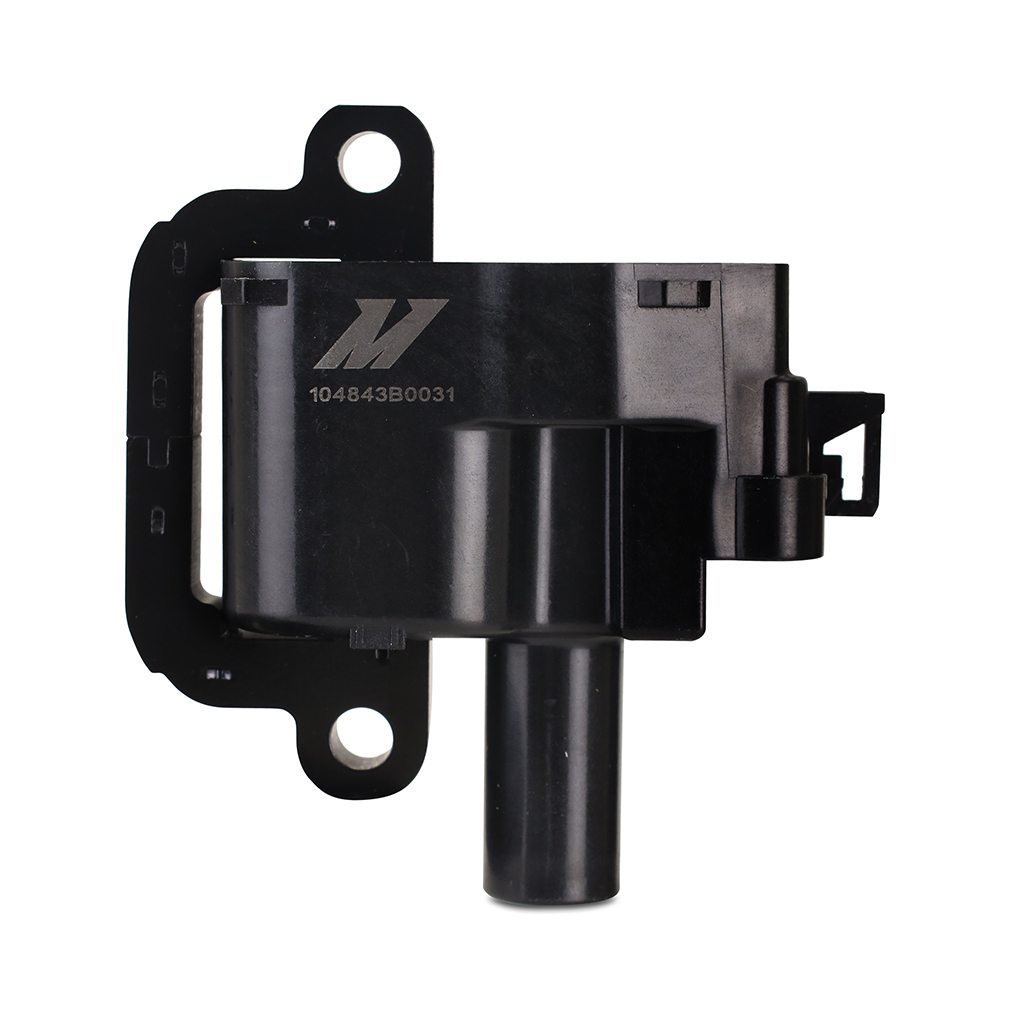

The Mishimoto MMIG-LS1-97 is a single coil-on-plug (COP) ignition coil engineered as a direct-fit, standard-replacement unit for GM LS1 and LS6 engines. Housed in a high-quality phenolic resin outer shell built to hold up in high-temperature engine bay environments, this coil is designed and tested to meet or exceed OEM GM performance specifications, and it’s backed by the Mishimoto Lifetime Warranty.
A properly running engine depends on fuel, air, compression, and spark working together, and before chasing more power out of an LS engine it pays to confirm every one of those systems is performing as intended. A weak spark from a tired ignition coil can lead to misfiring, rough idling, poor gas mileage, and even damage to the catalytic converter. This Mishimoto ignition coil refreshes the ignition system to help ensure a strong spark on both stock and modified vehicles, improving engine startup, idle quality, and overall restored performance. It’s available as this single unit or as part of a set of 8, giving owners flexibility whether they need to replace one coil or refresh the entire ignition system.
Vehicle Applications
This Mishimoto ignition coil is a specific-fit part covering a wide range of GM LS1/LS6-equipped vehicles. It fits the Chevrolet Corvette from 1997-2004, the Chevrolet Camaro and Pontiac Firebird from 1998-2002, the Cadillac CTS from 2004-2005, and the Pontiac GTO for 2004. It also covers a broader group of GM trucks and vans built for the 2001-2002 model years, including the Chevrolet Silverado 2500 HD and 3500, Chevrolet Suburban 2500, Chevrolet Express 3500, GMC Sierra 2500 HD and 3500, GMC Savana 3500, and GMC Yukon XL 2500, along with the Chevrolet Avalanche 2500 for 2002. Additionally, it fits the Chevrolet P30 and GMC P3500 for the 1998-1999 model years. This coil is built for engines carrying the LS1 and LS6 engine codes and directly replaces GM part numbers 12556450, 12558948, D580, and 19421259.
Features
- Direct fit for 1997-2002 GM LS1 and LS6 engines
- High-quality replacement coils available in a set of 8 or as a single unit
- Designed and tested to meet or exceed OEM GM performance specifications
- Improves engine startup, idle, and restores performance
- Refreshes the ignition system to help ensure strong spark on stock and modified vehicles
- High-quality phenolic resin outer shell for durability in high-temperature environments
- Backed by the Mishimoto Lifetime Warranty
- Distributorless coil-on-plug (COP) ignition type
- Sold as a single coil; coil wire not included
- Replaces GM part numbers 12556450, 12558948, D580, and 19421259
Specifications
- Brand: Mishimoto
- Part Number: MMIG-LS1-97
- Product Type: Ignition Coil
- Ignition Type: Distributorless
- Coil Type: COP Coil
- Coil Wire Included: No
- Oil Filled: No
- Universal or Specific Fit: Specific
- Grade Type: Standard Replacement
- Option: Single Coil
- Color: Black
- Terminal Type: Blade
- Connector Gender: Female
- Terminal Gender: Female
- Length: 3.38 IN
- Overall Height: 3.57 IN
- Engine Codes: LS1, LS6
- Includes: Mishimoto Ignition Coil(s), Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMIG-LS1-97 ignition coil fit?
It fits the Cadillac CTS (2004-2005), Chevrolet Camaro and Pontiac Firebird (1998-2002), Chevrolet Corvette (1997-2004), Pontiac GTO (2004), Chevrolet Avalanche 2500 (2002), Chevrolet P30 and GMC P3500 (1998-1999), and a range of Chevrolet and GMC 2500/3500 trucks and vans (2001-2002), all equipped with GM LS1 or LS6 engines.
Is this a single coil or a set?
This listing is for a single coil; the same Mishimoto ignition coil is also available as a set of 8.
Does it include a coil wire?
No, a coil wire is not included with this ignition coil.
What ignition type is this coil?
It is a distributorless coil-on-plug (COP) ignition coil.
What GM part numbers does this coil replace?
It replaces GM part numbers 12556450, 12558948, D580, and 19421259.
What can a weak ignition coil cause?
A weak spark from a worn ignition coil can result in misfiring, rough idling, poor gas mileage, and damage to the catalytic converter.
