Description

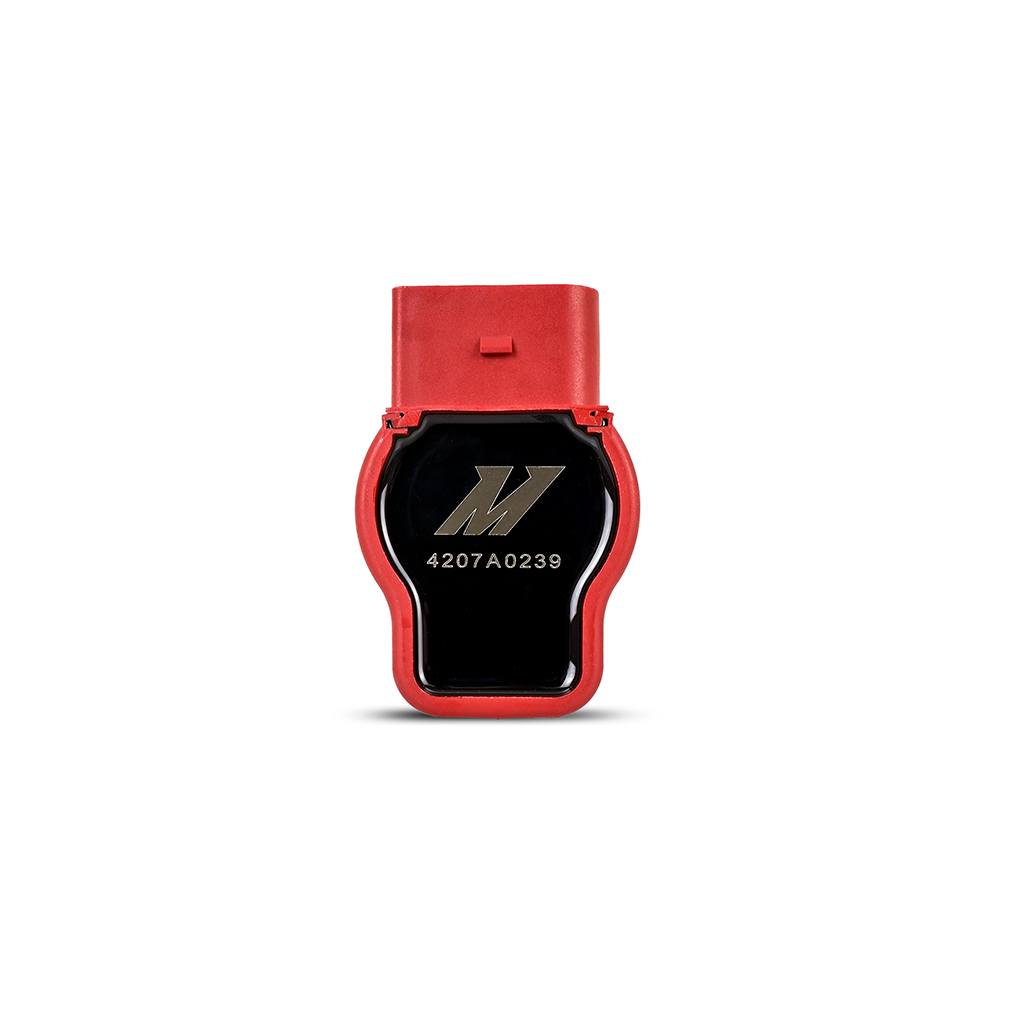

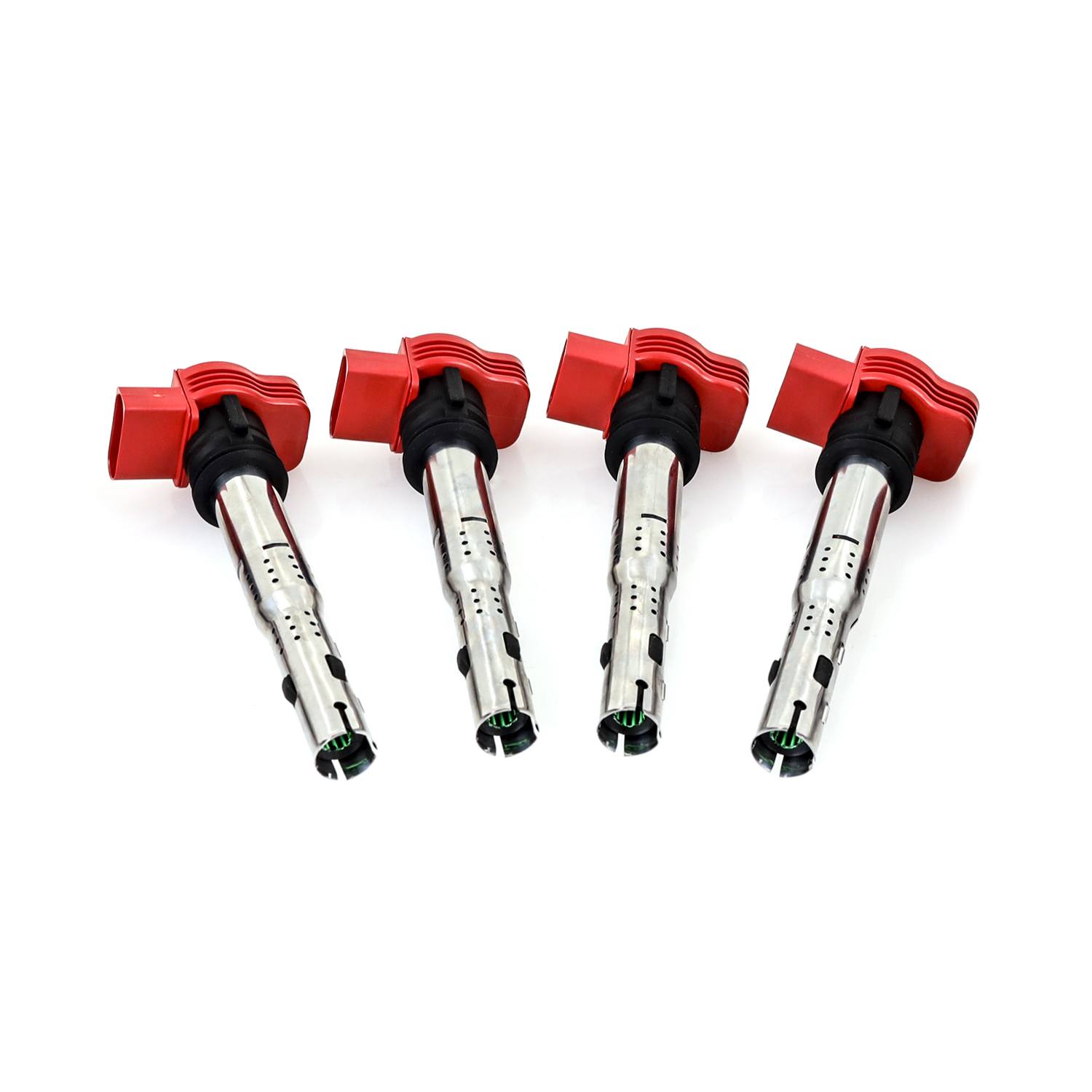

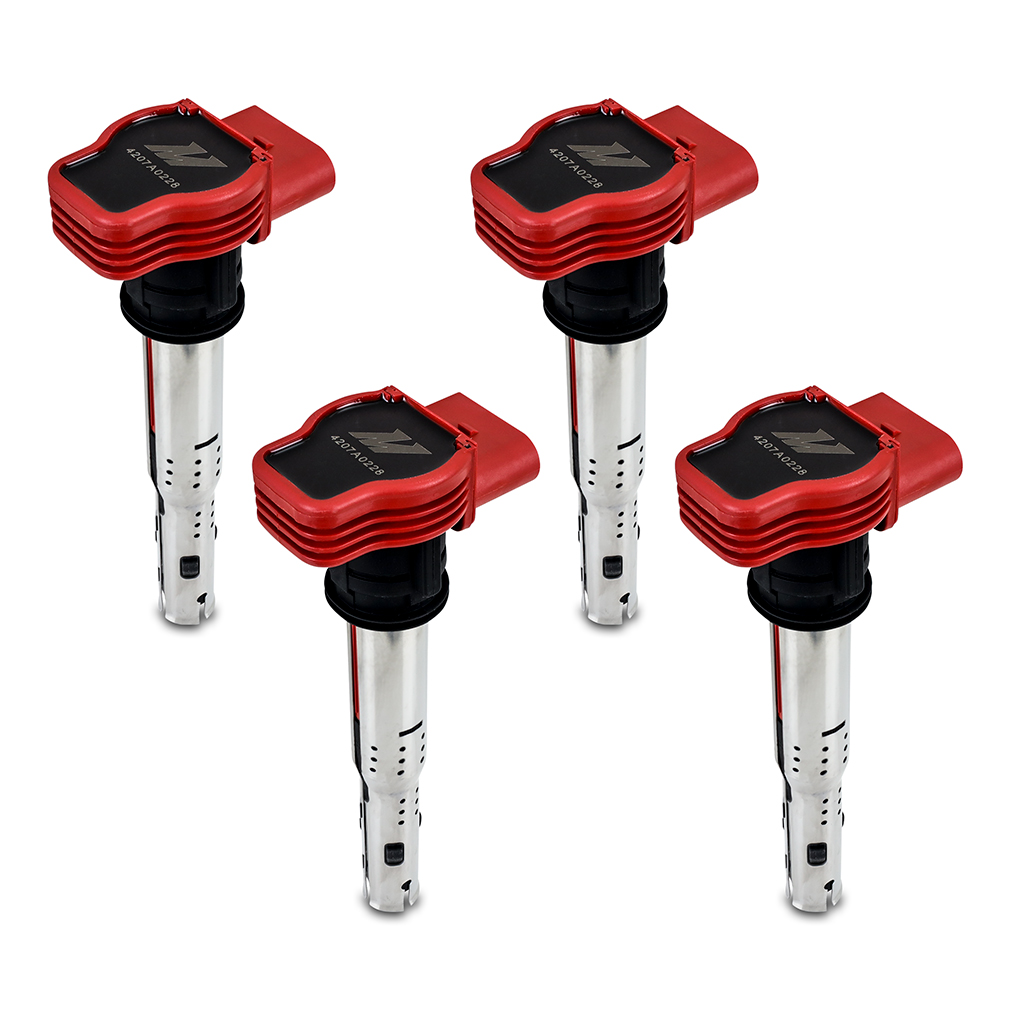

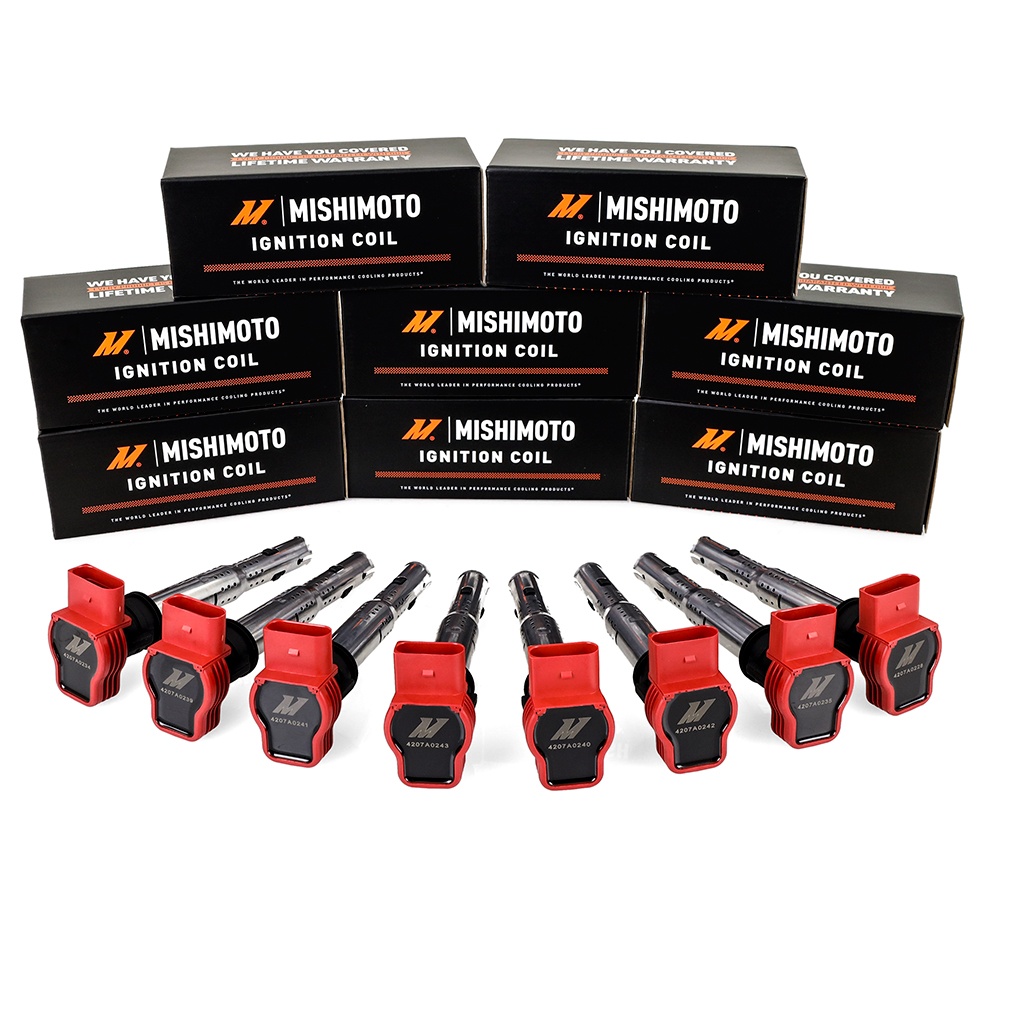

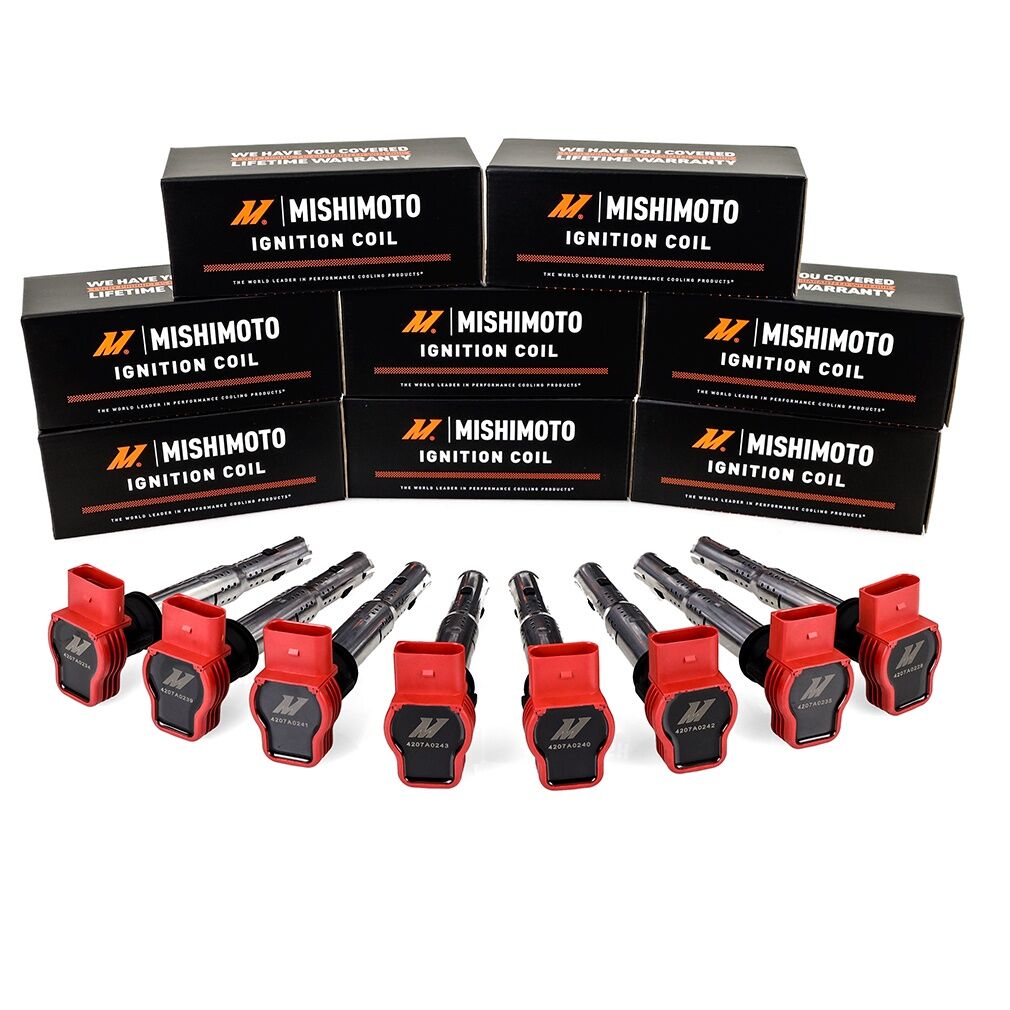

The Mishimoto MMIG-VW-0604 is a direct-fit ignition coil engineered specifically for turbocharged Volkswagen and Audi TSI, FSI, and TFSI engines. Built with a phenolic resin outer shell and a lower boot pre-lubricated with dielectric grease, this coil is designed to restore strong, consistent spark to engines that have started to misfire or lose power under boost. Available as a single coil or as a set, it gives owners a straightforward way to knock out an important maintenance item before chasing bigger horsepower goals.
A properly running engine depends on fuel, air, compression, and spark, and a weak or failing ignition coil can quietly rob a TSI, FSI, or TFSI engine of performance long before other symptoms show up. Mishimoto designed and tested this ignition coil to meet or exceed OEM VW/Audi performance standards, making it a dependable Mishimoto ignition coil option whether you’re replacing a single worn unit or refreshing the whole ignition system with a full set. Paired with new spark plugs, it’s intended to help bring a stock or modified vehicle back to what Mishimoto calls Stage 0 readiness, with improved startup, a smoother idle, and restored performance. The phenolic resin frame is built to hold up in high-temperature environments under the hood, while the precision lower boot keeps moisture out of the plug well to help prevent spark plug contamination.
Vehicle Applications
This Mishimoto ignition coil is a specific-fit part covering a wide range of Audi and Volkswagen TSI/FSI/TFSI applications. On the Audi side, it fits the A4 (2006–2008, 2016) and A4 Quattro (2005–2009, 2016), A5 Quattro (2008–2010), A6 (2006–2011) and A6 Quattro (2005–2018), A7 Quattro (2012–2018), A8 Quattro (2007–2018), Q5 (2009–2017), Q7 (2007–2015, 2017–2019), R8 (2008–2012, 2014–2015), S4 (2010–2016), S5 (2008–2017), S6 (2007–2011), S8 (2007–2009), and SQ5 (2014–2017). On the Volkswagen side, it covers the Beetle (2012–2013), CC (2009–2017), Eos (2007–2016), Golf R (2012–2013), GTI (2006–2014), Jetta (2006–2010, 2012–2013), Passat (2006–2010), Tiguan (2009–2017), and Tiguan Limited (2017–2018). Engine coverage is listed under the Volkswagen/Audi TFSI engine code family, spanning most Audi and VW FSI, TSI, and TFSI engines.
Features
- Direct fit for 2006-2008 Volkswagen GTI and many VW/Audi TSI/FSI/TFSI engines
- High-quality replacement coils available in full sets or single units
- Designed and tested to meet or exceed OEM VW/Audi performance specifications
- Improves engine startup, idle, and restores performance
- Refreshes ignition system ensuring strong spark for stock and modified vehicles
- Durable rubber boot provides barrier against moisture, oil, and debris
- High-quality phenolic resin outer shell ensures longevity in high-temperature environments
- Pre-lubricated boots with dielectric grease ensures optimal corrosion resistance
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMIG-VW-0604
- Product Type: Ignition
- Length: 7.1 IN
- Overall Height: 1.68 IN
- Color: Black
- Terminal Type: Blade
- Connector Gender: Female
- Terminal Gender: Female
- Ignition Type: Electronic
- Coil Type: Pencil Coil
- Coil Wire Included: No
- Oil Filled: No
- Universal or Specific Fit: Specific
- Grade Type: Standard Replacement
- Option: Set of 4
- Engine Codes: Volkswagen/Audi TFSI
- Applications: Most Audi and VW FSI, TSI, and TFSI engines
- Includes: Mishimoto Ignition Coil(s), Mishimoto Lifetime Warranty
Frequently Asked Questions
What is the Mishimoto MMIG-VW-0604 ignition coil made from?
The coil’s primary frame is constructed from phenolic resin, which is designed to hold up in high-temperature engine bay environments.
Does the Mishimoto ignition coil come pre-lubricated?
Yes, the coils are pre-lubricated with dielectric grease to prevent corrosion and ensure an optimal connection between the spark plug and coil.
Is this ignition coil sold as a single unit or a set?
Mishimoto’s ignition coils are available as a single coil or in sets; this listing option is offered as a Set of 4.
What engines does the MMIG-VW-0604 ignition coil fit?
It is a specific-fit coil designed for most Audi and Volkswagen FSI, TSI, and TFSI engines, listed under the Volkswagen/Audi TFSI engine code.
Does the Mishimoto ignition coil include a warranty?
Yes, it includes the Mishimoto Lifetime Warranty.
Will this coil fit my Volkswagen GTI or Audi A4?
The MMIG-VW-0604 is a direct fit for the 2006-2014 Volkswagen GTI as well as the Audi A4 (2006–2008, 2016) and A4 Quattro (2005–2009, 2016), among other listed Audi and VW TSI/FSI/TFSI applications.
