Mishimoto MMINT-A2W-DP-1 Air-to-Water Intercooler – Forced Induction

Description

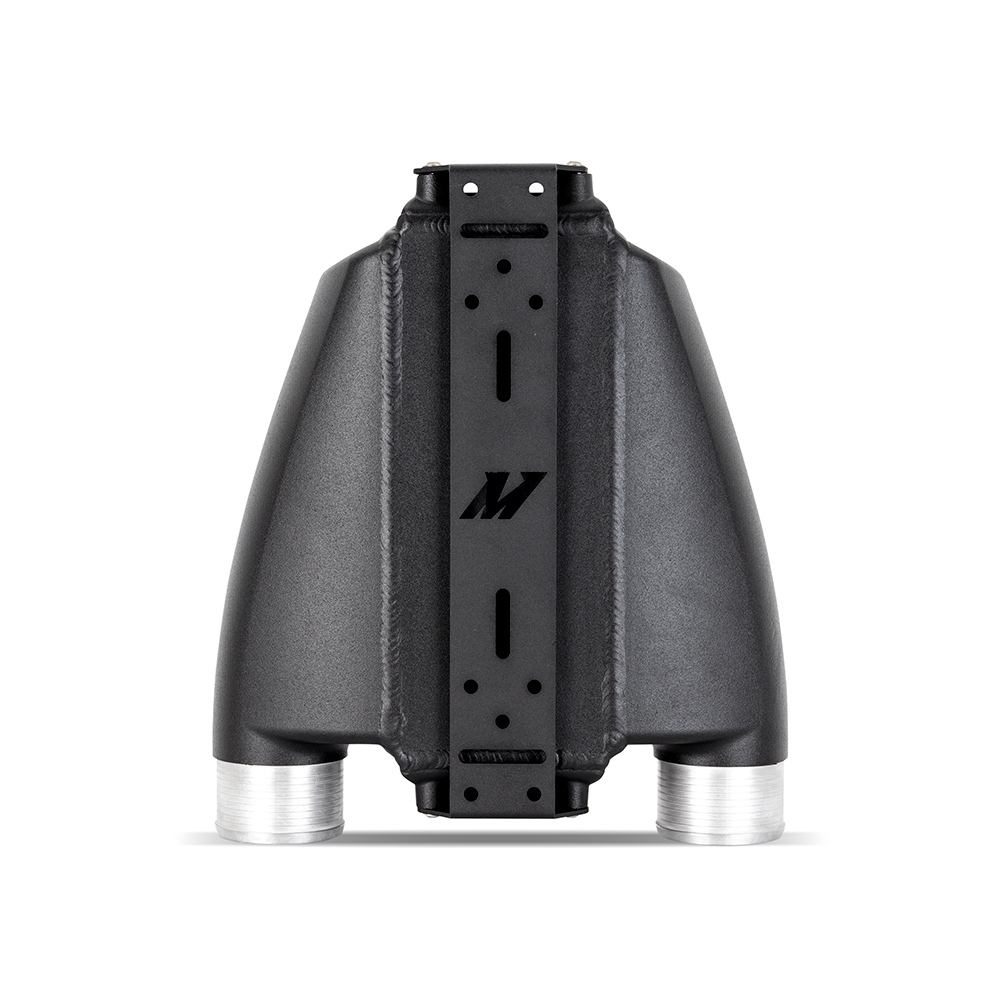

The Mishimoto MMINT-A2W-DP-1 is a purpose-built air-to-water intercooler engineered for forced induction projects that need serious charge-air cooling in a tight package. This particular configuration is the 500HP-rated core with same-side inlet and outlet connections, built around a bar-and-plate design that Mishimoto rates to withstand up to 100 psi of boost pressure.

Heat soak and the detonation risk that comes with it are the enemies of consistent power output in any forced induction system, and this intercooler is designed to pull heat out of the intake charge quickly and efficiently. Because it uses an air-to-water design rather than a traditional air-to-air core, it offers a compact footprint that suits custom induction system layouts where space is tight. The 5mm-thick cast-aluminum end tanks are custom engineered for strong airflow and are professionally TIG-welded to the core, while CNC-machined ribbed inlet and outlet couplers help keep piping connections locked in place under boost. Core-integrated ORB coolant ports simplify plumbing, and Mishimoto offers a matching aluminum fitting selection to adapt to your preferred coolant line setup.

Vehicle Applications

This Mishimoto intercooler is listed as a specific-fit core intended for integration into a custom forced induction turbo build rather than direct bolt-on installation on a single factory platform, and no OEM vehicle, chassis, or engine codes are specified for it. That makes it a strong fit for turbo swaps, engine builds, and other performance induction projects where the piping, mounting points, and coolant circuit are already being custom fabricated around a forced induction system or induction engine setup.

Features

• Highly efficient air-to-water design delivers effective cooling in a compact package
• Bar-and-plate aluminum core construction for durability and efficient heat rejection

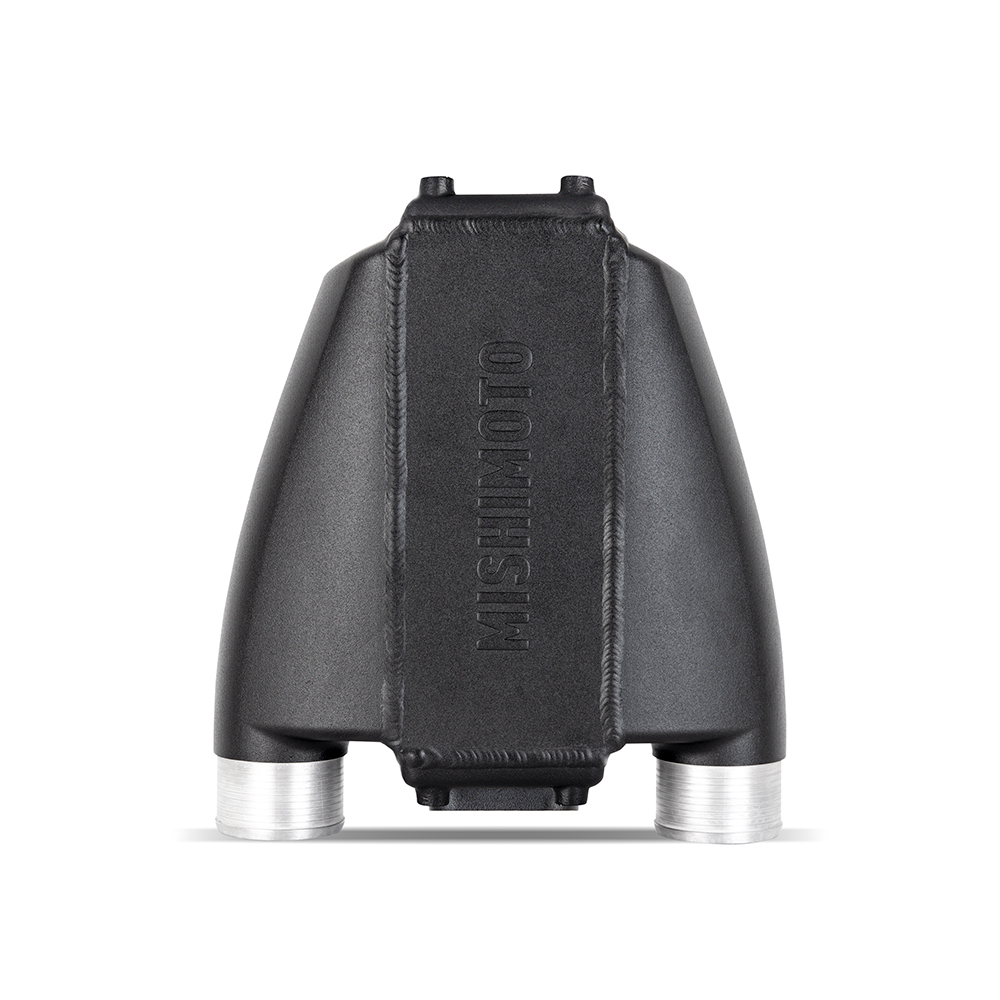

• Cast-aluminum end tanks custom engineered for superb airflow, professionally TIG-welded to the core
• Pressure tolerance rated to 100 psi of boost for this configuration
• CNC-machined ribbed inlet and outlet couplers for secure coupler-to-piping connections

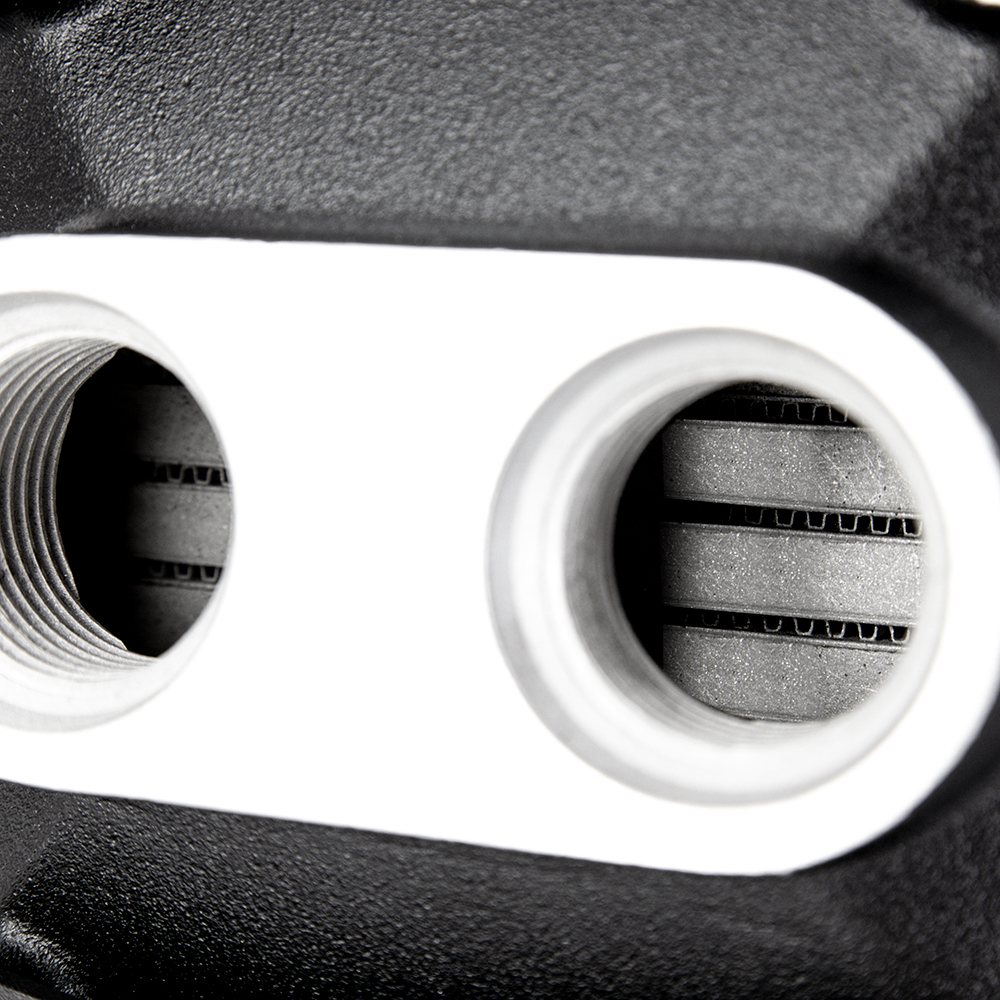

• Core-integrated ORB coolant ports with Mishimoto aluminum fitting options for line adaptation

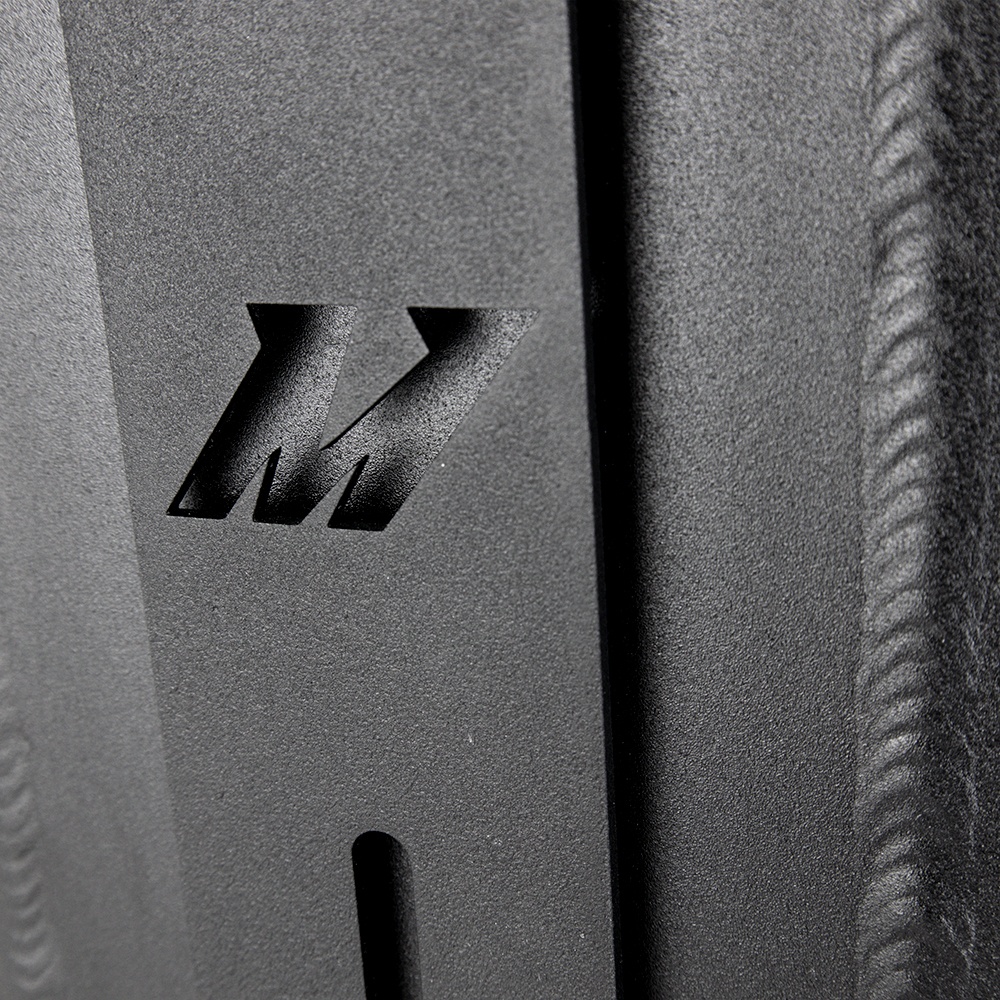

• Includes a 1/8-inch thick steel mounting bracket and mounting hardware
• Finished in a sleek, durable micro wrinkle black powder coat
• Available in multiple core sizes, end tank configurations, and single or dual pass coolant flow across the Mishimoto lineup
• Can be paired with a Mishimoto Air-to-Water Heat Exchanger for a complete charge-air cooling setup
• Backed by the Mishimoto Lifetime Warranty

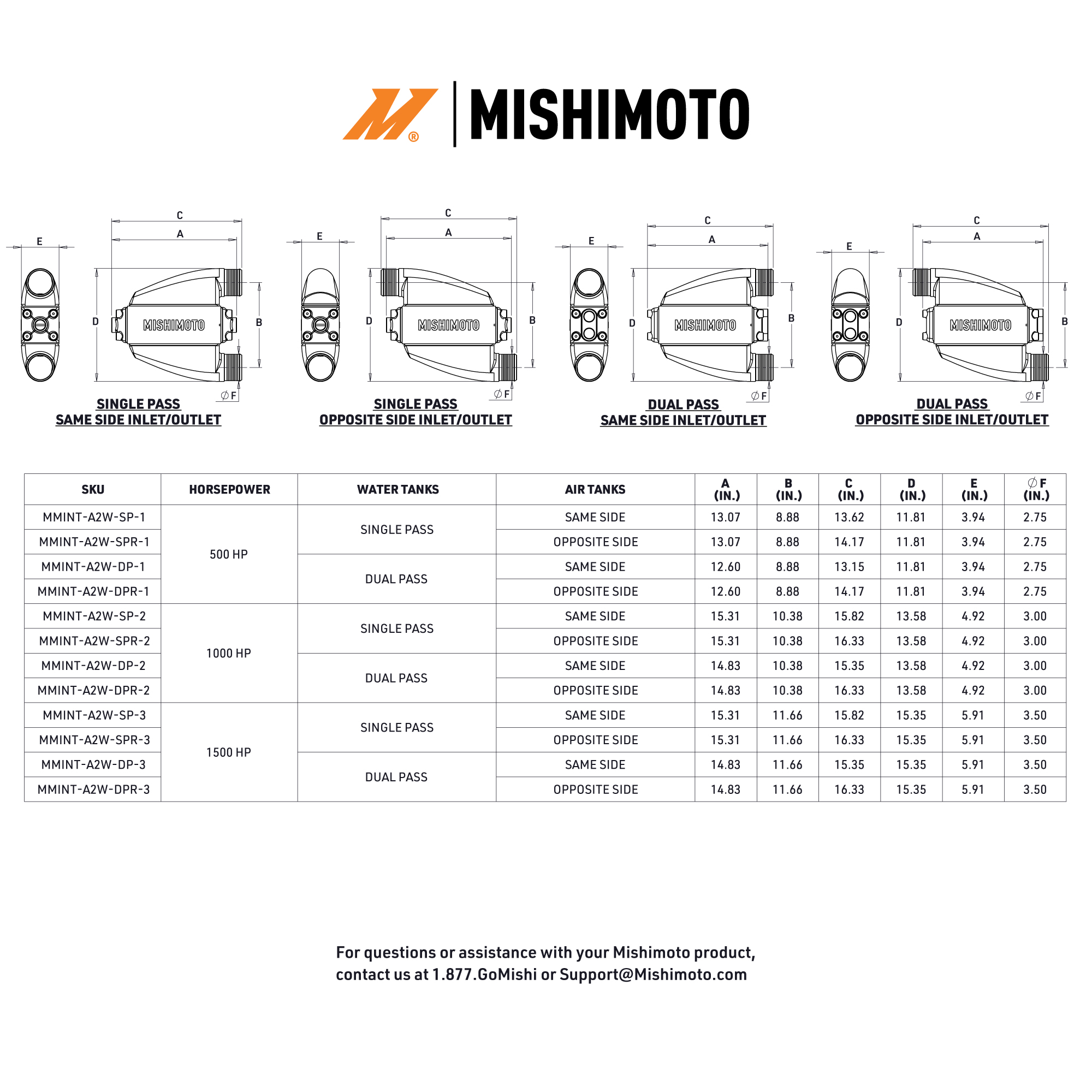

Specifications

• Brand: Mishimoto
• Part Number: MMINT-A2W-DP-1
• Type: Bar-and-Plate
• Core Material: Aluminum
• Inlet Tank Material: Aluminum
• Configuration: 500HP – Same Side Inlet/Outlet
• Overall Length: 13.61 in
• Overall Width: 3.93 in
• Overall Height: 9.25 in
• Core Length: 9.79 in
• Core Height: 3.93 in
• Core Thickness: 3.93 in
• Inlet Outside Diameter: 2.75 in
• Outlet Outside Diameter: 2.75 in
• Inlet Fitting Gender: Male
• Outlet Fitting Gender: Male
• Grade Type: Performance
• Universal or Specific Fit: Specific
• Maximum Recommended Horsepower: 500 HP
• Maximum Recommended Boost Pressure: 100 psi
• Weight: 25 lbs
• Includes: (1) Mishimoto Air-To-Water Intercooler, (1) Mounting Bracket, (4) Mounting Bracket Bolts M6x1.0 x 16mm, Mishimoto Lifetime Warranty
