Mishimoto MMINT-CAM4-16 Performance Intercooler Camaro ATS 2.0T

Description

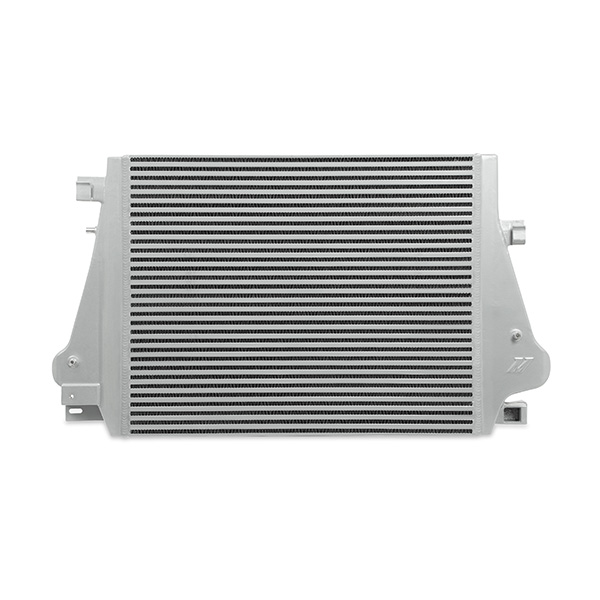

The Mishimoto MMINT-CAM4-16 is a direct-fit performance intercooler purpose-built for the LTG-powered Chevrolet Camaro 2.0T and Cadillac ATS 2.0T, replacing the factory unit with a bar-and-plate aluminum core that delivers a 78-percent increase in core size, a 45-percent increase in internal volume, and a 239-percent increase in external fin surface area over stock. Engineered and tested to combat heat-soak as effectively as a front-mount design, it bolts in using all factory equipment with no cutting or modification required.

As a forced induction upgrade, this intercooler is built to keep intake air temperatures in check as boost and airflow demands increase, making it an ideal supporting piece for other bolt-on modifications like an intake or an upgraded turbocharger. Mishimoto’s testing showed maximum temperature drops of 25°F compared to the stock intercooler when using factory charge pipes, along with a measured 15 hp and 12 ft-lbs of torque gain, turning heat management into real, bolt-on performance for this induction system. A 2-in thick core design, cast end tanks with an internal air diverter, and CNC-machined quick-disconnect fittings that mate to the stock intercooler pipes all work together to keep airflow efficient through the forced induction path.

Vehicle Applications

This intercooler is a specific fit for the Chevrolet Camaro LS (2017–2023) and LT (2016–2023), as well as the Cadillac ATS lineup, including the Base and Luxury trims (2013–2019), Coupe (2018–2019), Performance (2013–2017), Premium (2013–2016), Premium Performance (2017), Premium Sport (2013–2014), and Sedan (2018). All of these applications use the LTG engine on the Alpha chassis, and the intercooler pairs with Mishimoto’s upgraded intercooler pipes as well as the Mishimoto Camaro 2.0T Oil Cooler Kit.

Features

• Direct fit for the 2016-2024 Chevrolet Camaro 2.0T and 2013-2019 Cadillac ATS 2.0T
• 2-in thick intercooler design optimized for maximum airflow with minimal pressure drop
• 78-percent increase in core size with a 45-percent increase in internal core volume and 239-percent increase in external fin surface area
• Bar-and-plate, all-aluminum, TIG-welded core construction

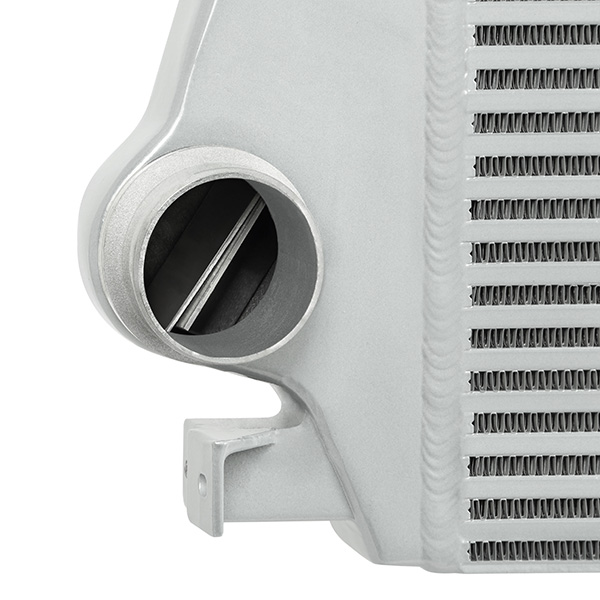

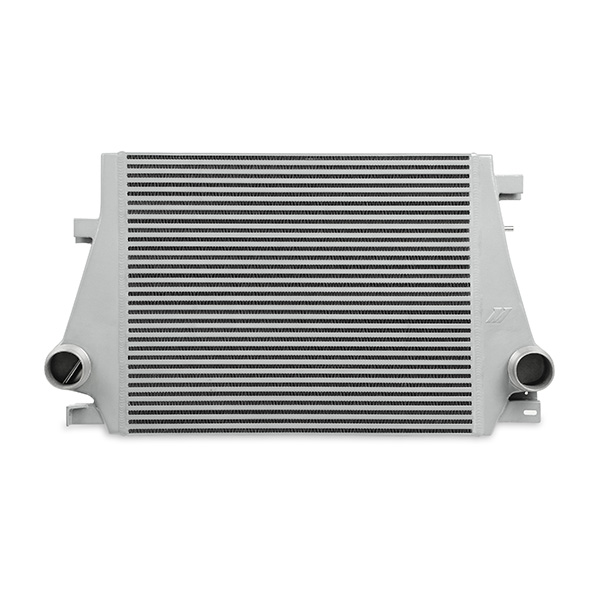

• Cast end tanks with internal air diverter for optimal airflow through the intercooler

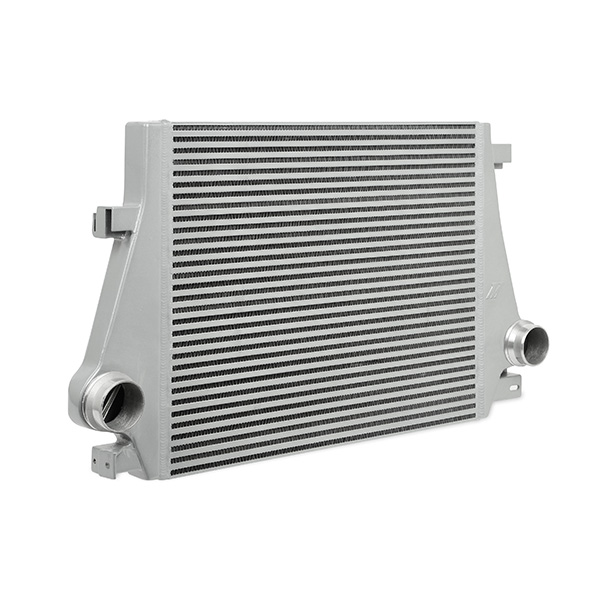

• Includes CNC-machined quick-disconnect fittings to mate with stock intercooler pipes
• No modification or cutting required for installation; uses all factory equipment
• Backed by the Mishimoto Lifetime Warranty

Specifications

• Type: Bar-and-Plate
• Core Material: Aluminum
• Inlet Tank Material: Aluminum
• Core Color: Silver
• Overall Length: 31.1 in
• Overall Width: 3.62 in
• Overall Height: 17.15 in
• Core Length: 21.65 in
• Core Height: 17.15 in

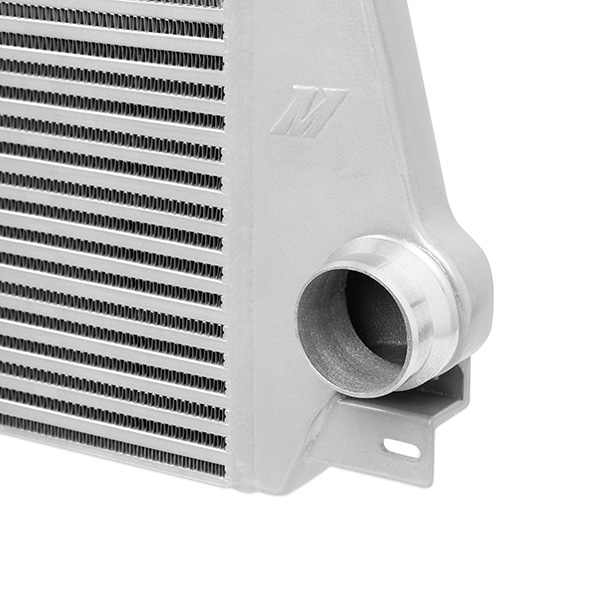

• Inlet Outside Diameter: 2.4 in
• Outlet Outside Diameter: 2.4 in
• Inlet/Outlet Fitting Gender: Male
• Universal or Specific Fit: Specific
• Grade Type: Performance
• Engine Codes: LTG
• Chassis Codes: Alpha
• Maximum Recommended Horsepower: 450
• Includes: (1) Aluminum Intercooler, (3) Tree Clips, Mishimoto Lifetime Warranty
