Description

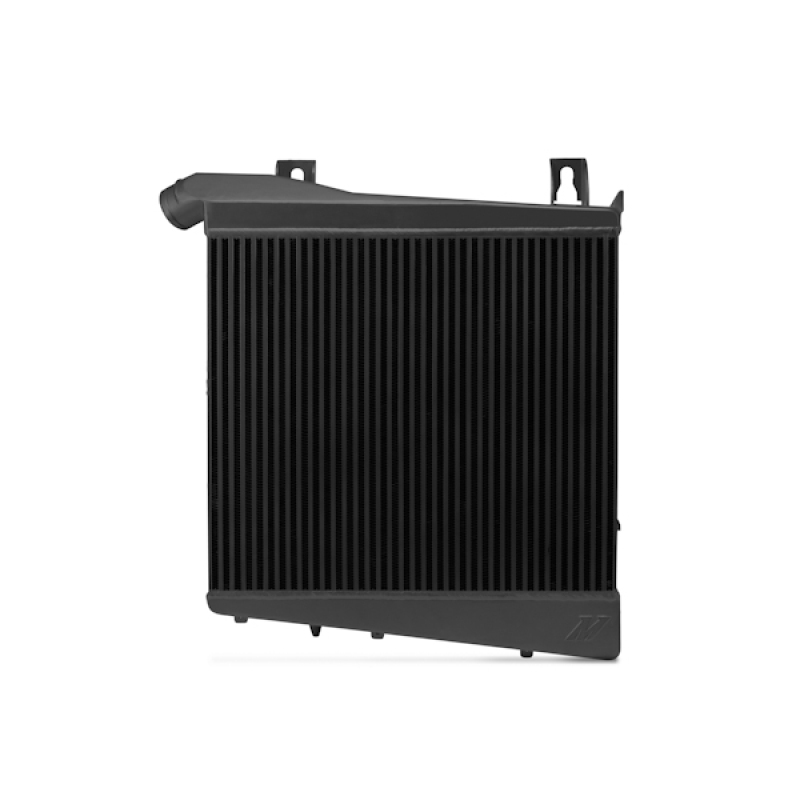

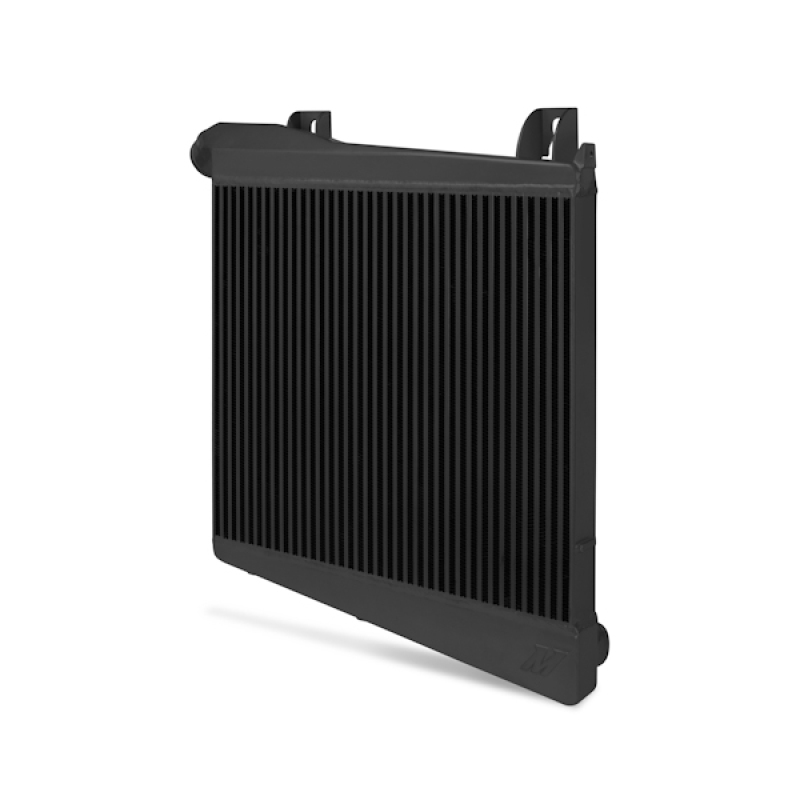

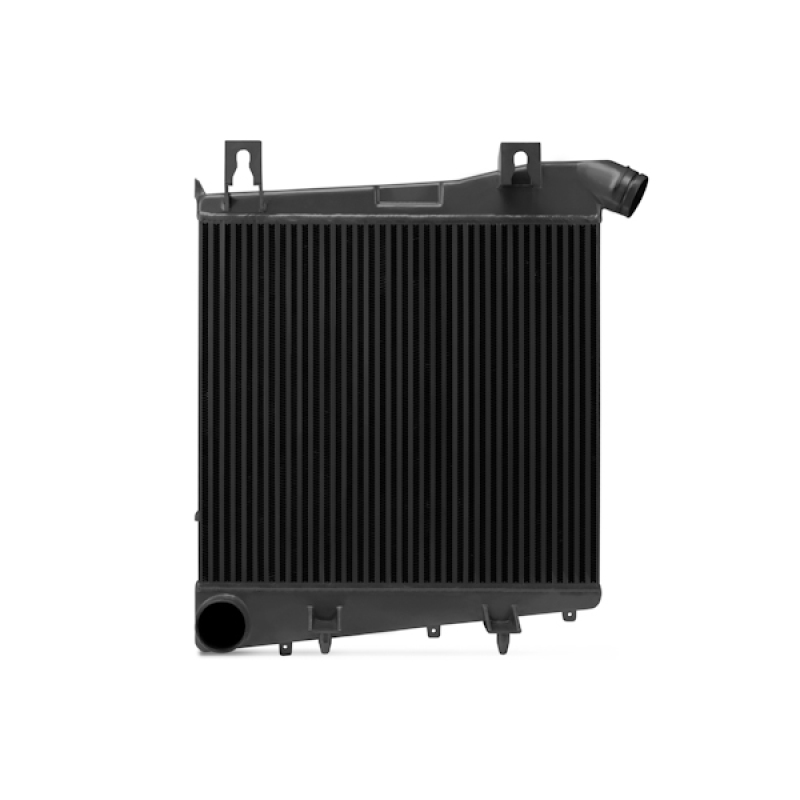

The Mishimoto MMINT-F2D-08BK is a black, direct-fit performance intercooler built specifically for the 2008-2010 Ford 6.4L Powerstroke. Constructed with heavy-duty cast aluminum end tanks and a durable bar-and-plate core, this forced induction upgrade replaces the factory unit with a design engineered to move more air at a lower temperature.
As part of Mishimoto’s forced induction lineup, this intercooler is built to decrease intake temperatures, improve airflow, and reduce pressure drop through the induction system. Compared to the factory cooler, it features a 20-percent larger core volume and a core that is 18-percent thicker, which together help lower AITs by 21 percent and cut pressure drop by 50 percent. Reducing pressure drop through the forced induction system eases stress on the turbocharger, helping extend its service life while improving the overall efficiency of the Powerstroke’s induction force. Mishimoto engineered this unit to deliver real gains on a stock truck while also having the capacity to support the boost levels of a heavily modified truck, making it a versatile performance induction upgrade whether the truck sees the job site or the strip.
Vehicle Applications
This intercooler is a specific fit for Ford Super Duty trucks equipped with the 6.4L Powerstroke engine. Coverage spans the Ford F-250 Super Duty in FX4, Harley-Davidson Edition, King Ranch, Lariat, XL, and XLT trims for 2008-2010, plus the Cabela’s trim for 2009-2010. The Ford F-350 Super Duty is covered in Harley-Davidson Edition, King Ranch, Lariat, XL, and XLT trims for 2008-2010, the Cabela’s trim for 2009-2010, and the FX4 trim for 2008-2009. On the Ford F-450 Super Duty, fitment includes the King Ranch, Lariat, XL, and XLT trims for 2008-2010, the Harley-Davidson Edition for 2009-2010, and the Base trim for 2010. The Ford F-550 Super Duty is covered in Lariat, XL, and XLT trims for 2008-2010, plus the Base trim for 2008.
Features
- Direct fit for the 6.4L Powerstroke

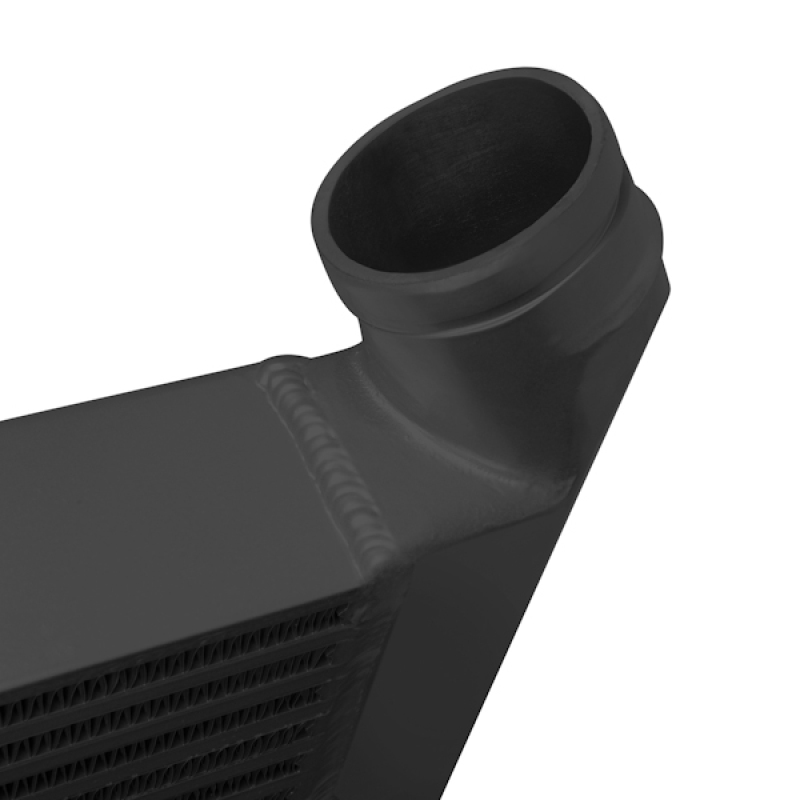

- Heavy-duty cast aluminum end tanks
- Durable bar-and-plate core construction
- Lowers AITs by 21 percent
- 50 percent less pressure drop than the factory intercooler
- 18 percent thicker core than factory
- 20 percent larger core volume than factory
- Reduces turbo stress and extends turbocharger life

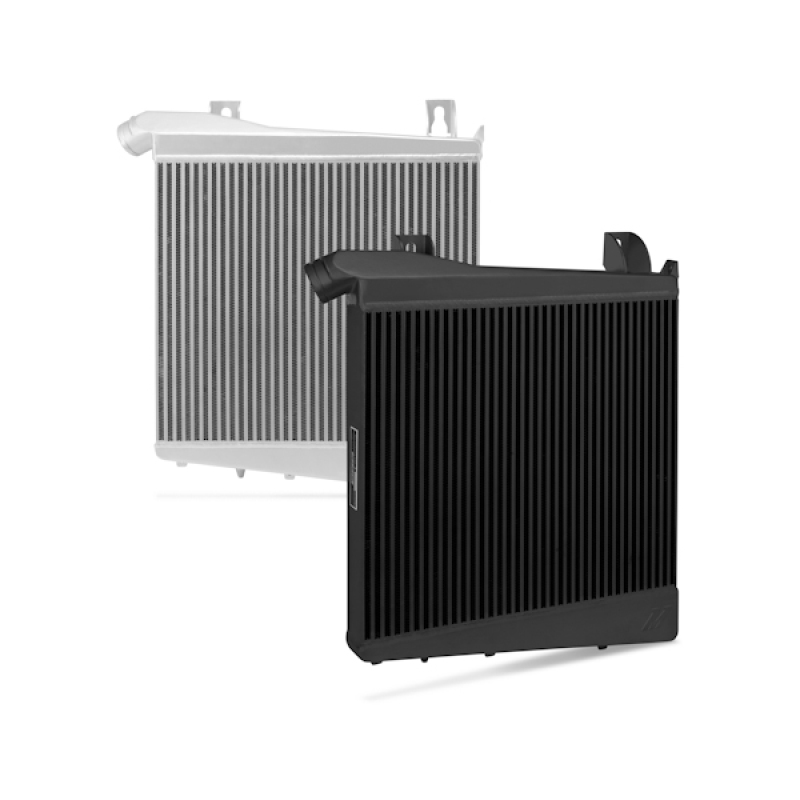

- Available in Sleek Silver or Stealth Black finishes
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Type: Bar-and-Plate
- Core Color: Black
- Overall Length: 28.9 in
- Overall Width: 5.1 in
- Overall Height: 31.9 in
- Core Length: 25.51 in
- Core Height: 23.11 in
- Inlet Outside Diameter: 3.23 in
- Outlet Outside Diameter: 3.23 in
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Grade Type: Performance
- Fit Type: Specific
- Includes: (1) Mishimoto Intercooler, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-F2D-08BK intercooler fit?
It fits 2008-2010 Ford F-250, F-350, F-450, and F-550 Super Duty trucks equipped with the 6.4L Powerstroke, with specific trim and year coverage varying by model as listed in the vehicle applications section.
What is the intercooler’s core construction?
It uses a bar-and-plate core paired with heavy-duty cast aluminum end tanks.
How much does this intercooler reduce pressure drop compared to factory?
Mishimoto states it delivers 50 percent less pressure drop than the factory intercooler.
How much does it lower intake air temperatures?
Mishimoto states this intercooler lowers AITs by 21 percent.
What colors are available for this intercooler?
It is available in Sleek Silver or Stealth Black; the MMINT-F2D-08BK is the black finish version.
What is included with the purchase and is there a warranty?
The package includes one Mishimoto intercooler and is backed by the Mishimoto Lifetime Warranty.
