Description

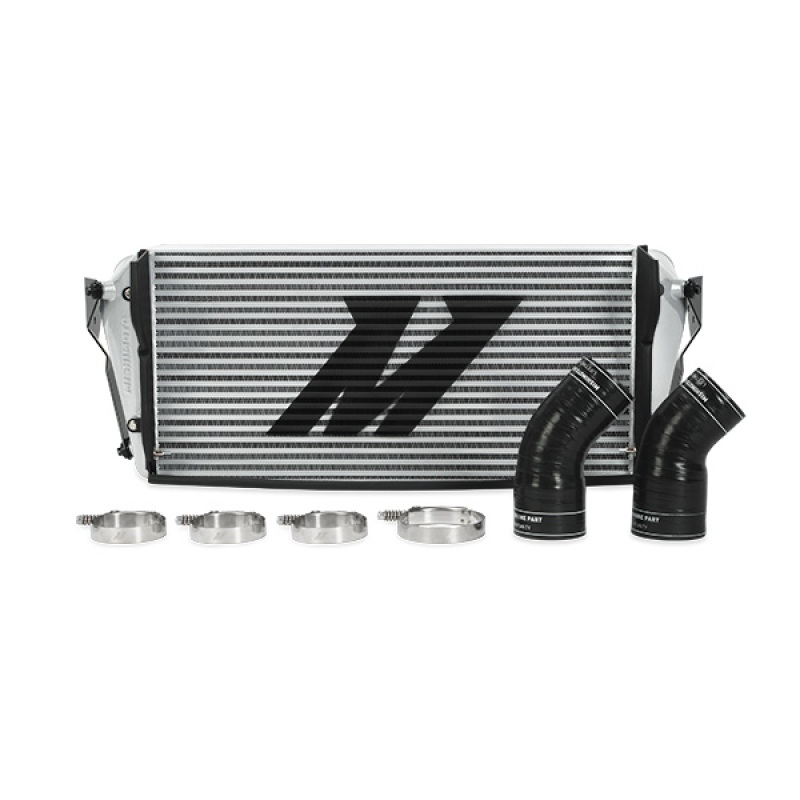

The Mishimoto MMINT-RAM-13SL is a purpose-built forced induction intercooler engineered specifically for the Dodge Ram 6.7L Cummins straight-six, pairing a dense bar-and-plate core with robust cast aluminum end tanks and larger-than-factory outlets for real gains in airflow. Backed by CARB EO number D-759-22 and the Mishimoto Lifetime Warranty, it’s offered in Sleek Silver or Stealth Black so you can match the rest of your Cummins performance parts lineup.
As the heart of your truck’s forced induction system, this Mishimoto intercooler was engineered with increased core volume to support substantial boost pressures and lower EGTs on a stock or modified truck. Mishimoto’s engineers built in 76.65-percent greater internal volume and a 37.8-percent larger core volume than the factory intercooler, which combine with strategically designed end tanks and internal fins to lower AIT by 12.5-percent while maximizing heat transfer with minimal pressure drop. Two silicone boots with Mishimoto’s DuraCore technology – a synthetic inner layer that resists heat, pressure, fuel, and oil better than standard silicone – are included along with signature Constant Tension T-Bolt Clamps for a leak-free, blowout-resistant induction system that’s built to last.
Vehicle Applications
This intercooler is a specific fit for the 2013-2018 Ram 2500, Ram 3500, Ram 4500, and Ram 5500, as well as the 2013 Ram 4000, all equipped with the 6.7L Cummins engine. Note that vehicles with snowplow mounts installed may require trimming of those mounts to fit this intercooler.
Features
- Direct fit for the 2013-2018 Dodge Ram 6.7L Cummins

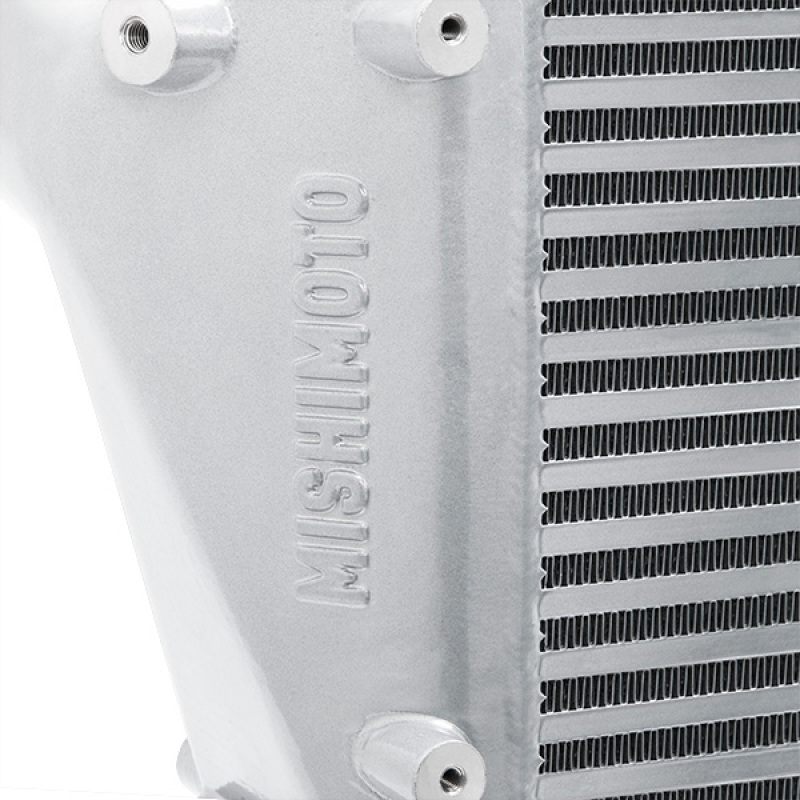

- Bar-and-plate construction with cast aluminum end tanks
- Lowers AIT by 12.5-percent
- 76.65-percent greater internal volume than factory
- 37.8-percent larger core volume than factory
- Includes new air ducts to divert air into the core and a new lower fan shroud section
- End tanks strategically designed for optimal airflow
- Internal fins designed for maximum heat transfer with minimal pressure drop
- Includes transition couplers for use with the stock intercooler pipes

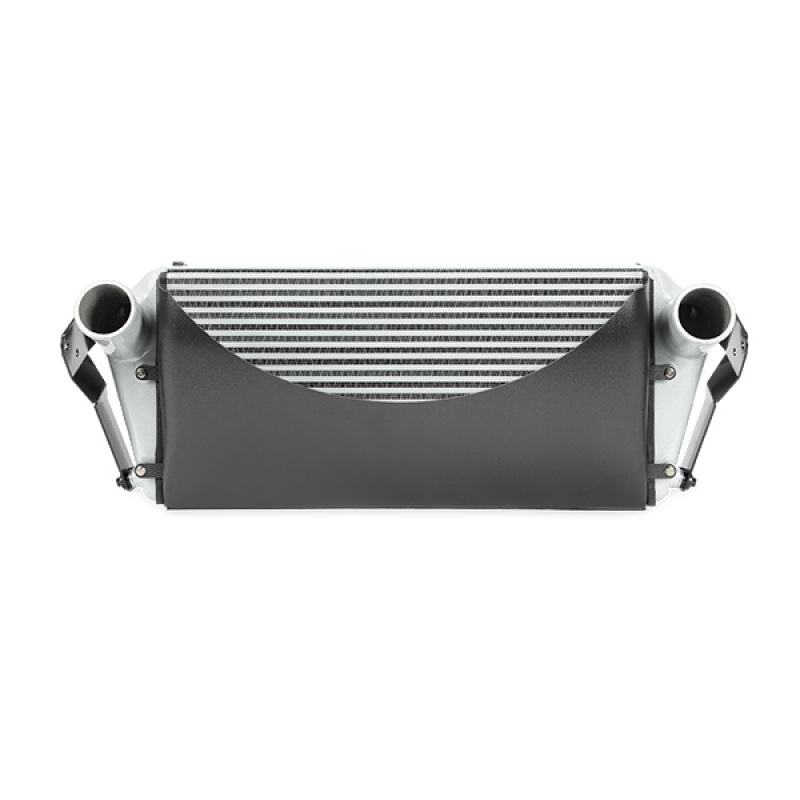

- Sleek Silver or Stealth Black intercooler options available
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-RAM-13SL
- Product Type: Forced Induction
- Overall Length: 33 in
- Overall Width: 10 in
- Overall Height: 12.5 in
- Core Length: 25.7 in
- Core Height: 12.5 in
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Color: Silver
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- CARB EO Number: D-759-22

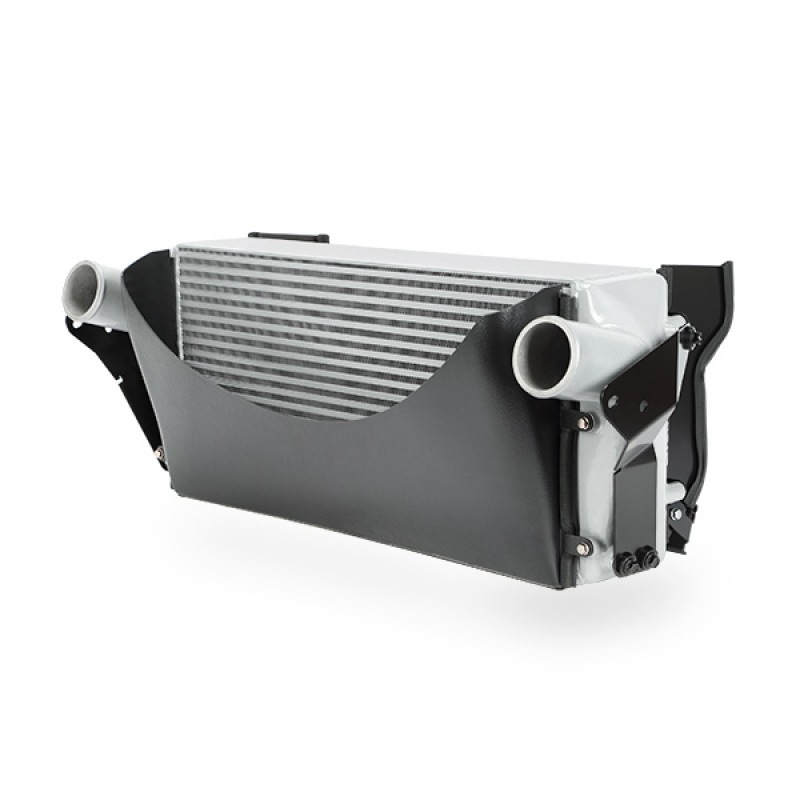

- Includes: (1) Mishimoto Intercooler, (3) Front Air Diversion Panels, (1) Replacement Lower Fan Shroud, (2) Mounting Brackets w/ Rubber Isolators, (2) Silicone Boots with DuraCore Technology, (4) Constant-Tension T-Bolt Clamps, Mishimoto Lifetime Warranty
- Installation Note: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps; operating range 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM)
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-RAM-13SL intercooler fit?
This intercooler is a specific fit for the 2013-2018 Ram 2500, 3500, 4500, and 5500, as well as the 2013 Ram 4000, all equipped with the 6.7L Cummins engine.
What color options are available for this intercooler?
This Mishimoto intercooler is offered in Sleek Silver or Stealth Black.
What is included with this intercooler kit?
The kit includes (1) Mishimoto Intercooler, (3) Front Air Diversion Panels, (1) Replacement Lower Fan Shroud, (2) Mounting Brackets w/ Rubber Isolators, (2) Silicone Boots with DuraCore Technology, (4) Constant-Tension T-Bolt Clamps, and the Mishimoto Lifetime Warranty.
Does this intercooler carry a CARB EO number?
Yes, this intercooler carries CARB EO number D-759-22.
Will this intercooler fit a truck with a snowplow mount installed?
Vehicles with snowplow mounts installed may require trimming of the mounts to fit this intercooler.
What torque setting should be used on the T-bolt clamps?
Mishimoto recommends 27 in-lbs (3NM) for all T-bolt and constant-tension T-bolt clamps, which have an operating range of 18-35 in-lbs (2-4NM); do not exceed the maximum torque rating of 35 in-lbs (4NM).
