Mishimoto MMINT-RAM-94KSL Intercooler Kit | 94-02 5.9L Cummins

Description

The Mishimoto MMINT-RAM-94KSL is a purpose-built performance intercooler kit engineered specifically for the 1994-2002 Dodge 5.9L Cummins, covering both 12-valve and 24-valve engines. Featuring cast aluminum end tanks and a bar-and-plate core, this forced induction upgrade delivers a 47-percent increase in core volume and is 50-percent thicker than the factory intercooler, giving your truck the cooling capacity to handle serious boost.

High intake and exhaust gas temperatures can reduce performance and potentially cause engine damage. By upgrading your forced induction system with the Mishimoto intercooler, you gain improved airflow, lower intake air temperatures, and improved EGTs. An air diverter built into the hot-side end tank reduces turbulence and evenly distributes airflow across the core, while the kit’s 3-inch mandrel-bent polished aluminum piping and Mishimoto DuraCore silicone boots with constant-tension T-bolt clamps are engineered to support substantial boost pressure on stock or highly modified trucks. Compared to normal silicone, DuraCore offers superior resistance to heat, pressure, fuel, and oil, preventing leaks and blowouts and extending the life of your induction system.

Vehicle Applications

This intercooler kit is a specific fit for the Dodge Ram 2500 and Ram 3500 equipped with the 5.9L Cummins. Coverage includes the Ram 2500 Base (1994-2002), Custom (1995-2002), SLT (1999-2002), Laramie (1996-1997), Limited (1995-1998), Lujo (1995-1998), and Runner (1995-1997) trims, as well as the Ram 3500 Base (1994-2002), Custom (1995-2002), and SLT (1999). Note that installation requires slight bending of the truck body.

Features

• Direct fit for 12V and 24V 1994-2002 Dodge 5.9L Cummins

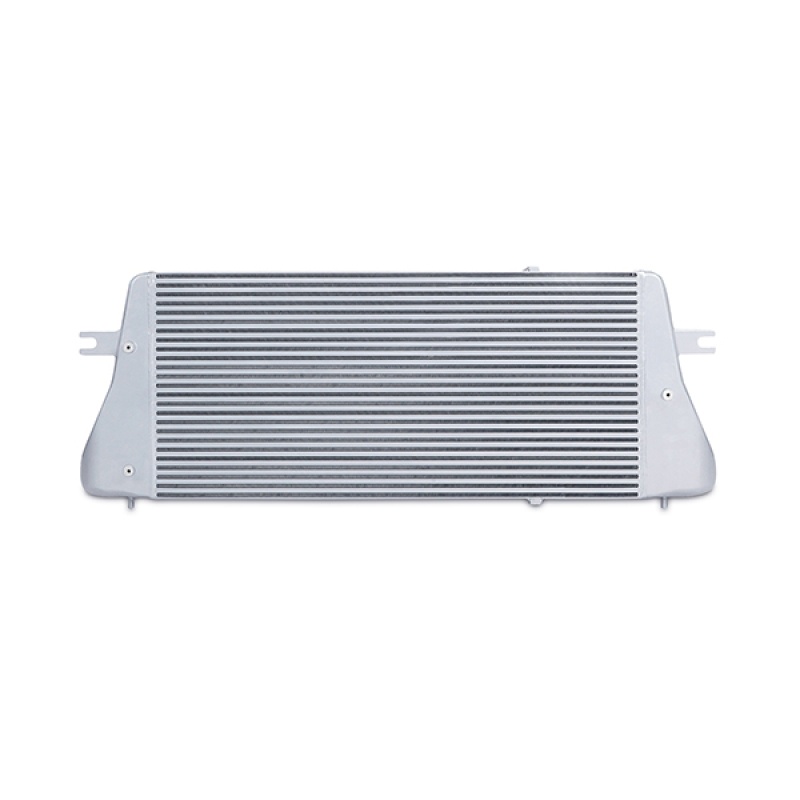

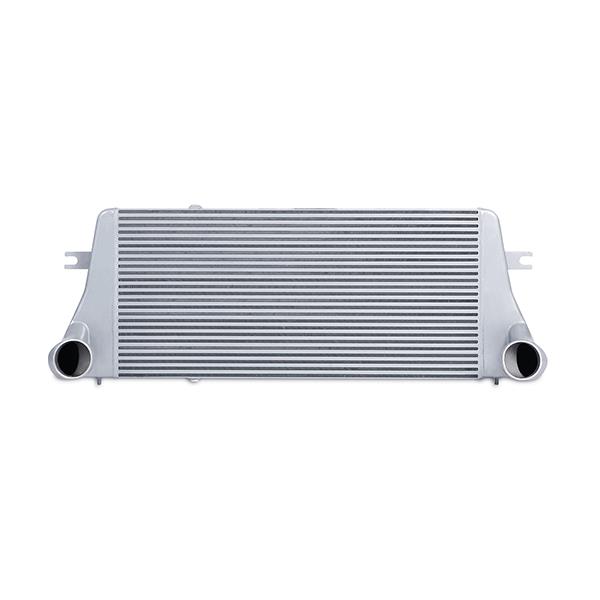

• Cast aluminum end tanks paired with a bar-and-plate, air-to-air core
• 47-percent increase in core volume and 50-percent thicker core than the factory intercooler
• Air diverter in the hot-side end tank reduces turbulence and evenly distributes airflow across the core

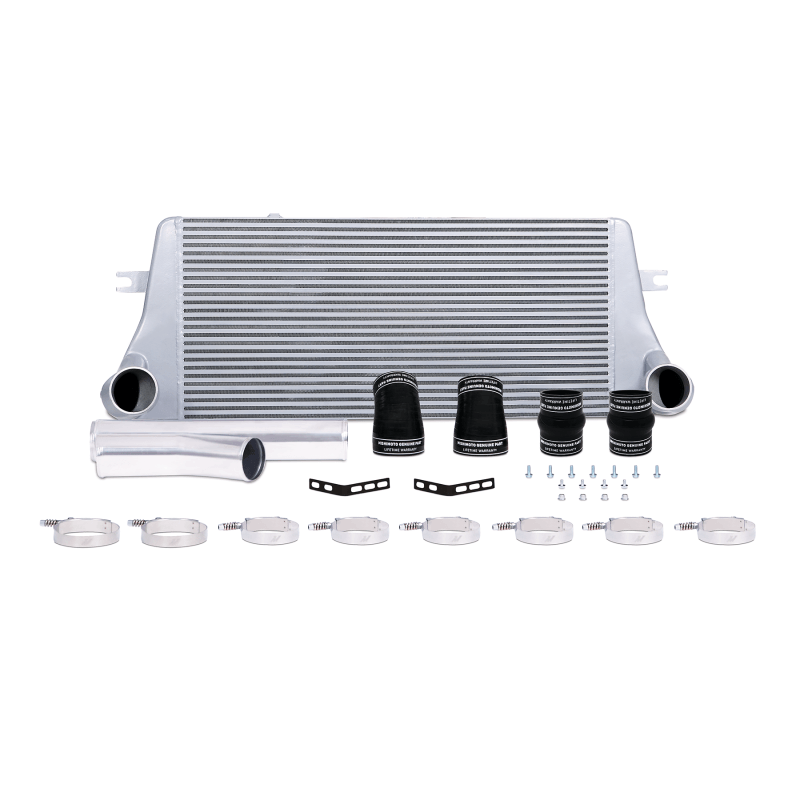

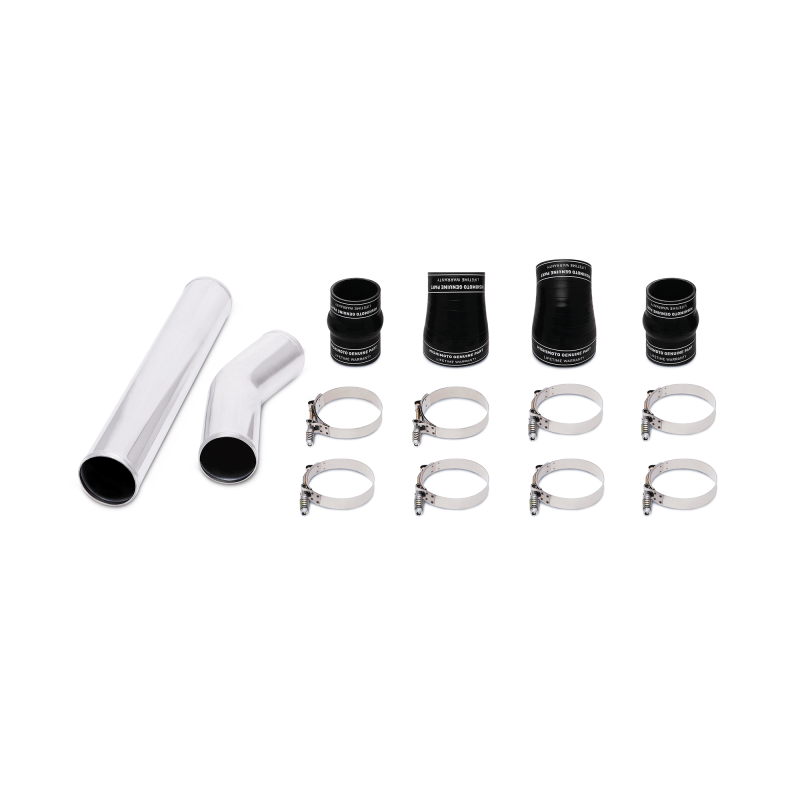

• Includes hot-side and cold-side 3-inch mandrel-bent polished aluminum intercooler pipes and boots
• Mishimoto DuraCore silicone boots and constant-tension T-bolt clamps resist heat, pressure, fuel, and oil
• Reduces IATs by 25-percent and helps reduce turbo stress, extending turbo life
• Compatible with the Mishimoto Dodge 5.9L Cummins Performance Aluminum Radiator
• Available in Sleek Silver or Stealth Black
• Backed by the Mishimoto Lifetime Warranty

Specifications

• Core Material: Aluminum
• Core Construction: Bar-and-Plate
• Intercooler Type: Air-to-Air
• End Tank Construction/Material: Cast Aluminum
• Core Height: 16.65 in
• Core Length: 35.91 in
• Inlet Diameter: 3.66 in
• Outlet Diameter: 3.66 in
• Overall Width: 10.9 in
• Overall Height: 17.5 in
• Overall Length: 47.2 in
• Pipe Material: Aluminum
• Pipe Finish: Powder Coated
• Pipe Color: Silver
• Coupler Material: Silicone
• Coupler Color: Black
• Hose Clamps Included: Yes
• Grade Type: Performance
• Core Color: Silver
• Universal or Specific Fit: Specific
