Description
The Mishimoto MMINT-UGB is a universal front-mount intercooler built for smaller turbo applications that still demand serious cooling capacity. Finished in a coated all-black look for a sleeper appearance, this bar-and-plate core carries a Mishimoto logo on only one side by design, and it’s rated to support up to 700 horsepower with a maximum recommended boost pressure of 32 PSI.
As a dedicated forced induction component, this intercooler is engineered to pull heat out of compressed air before it reaches the engine, helping any forced induction system run cooler and more consistently under boost. The bar-and-plate core construction is a proven approach in performance induction hardware, offering strong heat transfer in a compact universal package, while the 6061-aluminum build and TIG-welded joints are made to handle the stresses that come with a forced induction turbo setup. Whether you’re upgrading an existing induction system or building a custom forced induction system from scratch, this core is designed as a durable, boost-ready foundation rather than a stock replacement part.
Vehicle Applications
Because the MMINT-UGB is a universal front-mount intercooler, it is not tied to a single make, model, or year. Instead, it’s built around four M8 x 1.25 threaded universal mounting points, allowing it to be positioned and fitted into a wide range of smaller turbo and forced induction builds where a custom or aftermarket induction setup is being installed.
Features
- Durable bar-and-plate core provides superior heat transfer while effectively reducing intake air temperatures
- Robust, one-piece cast aluminum end tanks withstand high boost pressures
- Four M8 x 1.25 threaded universal mounting points for a universal fit
- Constructed from durable 6061-aluminum
- Precision TIG-welded joints won’t crack under pressure
- Coated all-black finish for a sleeper look when mounted

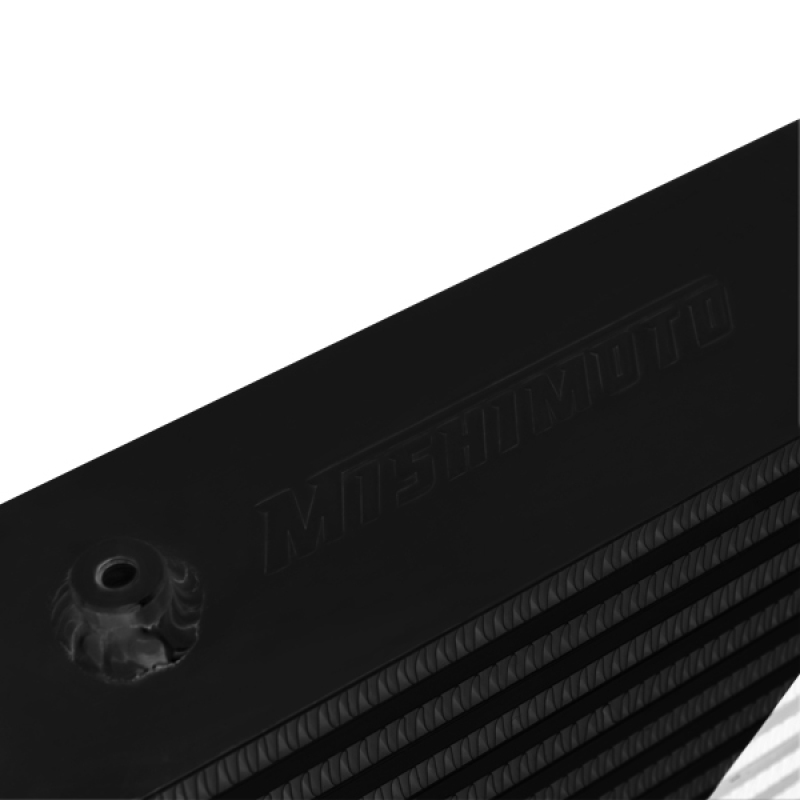

- Mishimoto logo appears on only one side of the intercooler
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Part Number: MMINT-UGB
- Type / Core Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Color: Black
- Grade Type: Performance
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Overall Length: 24.5 IN
- Overall Height: 13.1 IN
- Core Length: 17.5 IN
- Core Height: 11.75 IN
- Core Thickness: 2.76 IN
- Maximum Recommended Horsepower: 700
- Maximum Recommended Boost Pressure: 32 PSI
- Includes: (1) Mishimoto Intercooler, backed by the Mishimoto Lifetime Warranty
Frequently Asked Questions
What core construction does the Mishimoto MMINT-UGB intercooler use?
The MMINT-UGB uses a bar-and-plate core, which is built from 6061-aluminum and TIG welded for durability.
What is the maximum recommended horsepower and boost for this intercooler?
This intercooler carries a maximum recommended horsepower rating of 700 and a maximum recommended boost pressure of 32 PSI.
Does this intercooler fit a specific vehicle?
The MMINT-UGB is a universal front-mount intercooler that mounts using four M8 x 1.25 threaded universal mounting points rather than being tied to one specific vehicle.
Why is the Mishimoto logo only on one side of the intercooler?
According to Mishimoto, the coated all-black finish is designed with a sleeper look in mind, so only one side of the intercooler features the Mishimoto logo.
What is included with the Mishimoto MMINT-UGB intercooler?
The package includes one Mishimoto Intercooler, backed by the Mishimoto Lifetime Warranty.
What material are the end tanks and core made from?
The core is made from aluminum and the inlet tank material is also aluminum, with the core built using bar-and-plate construction and TIG-welded joints.
