Description

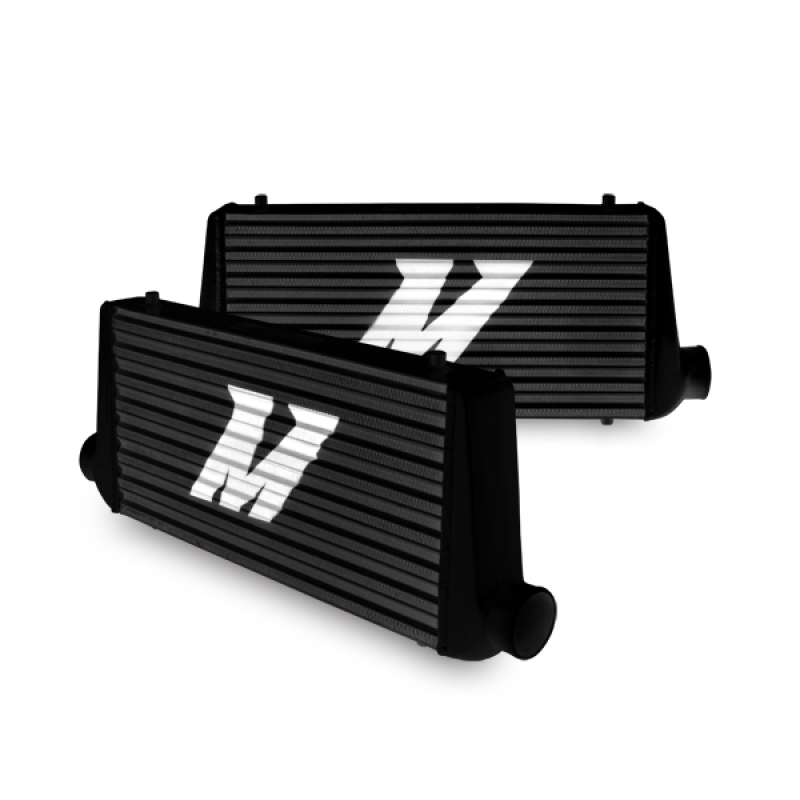

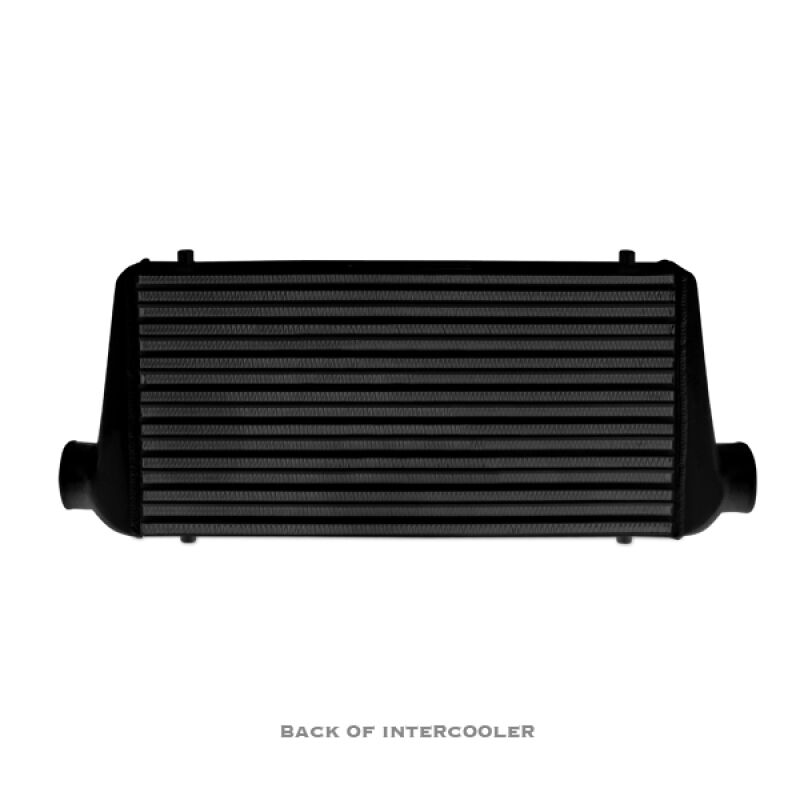

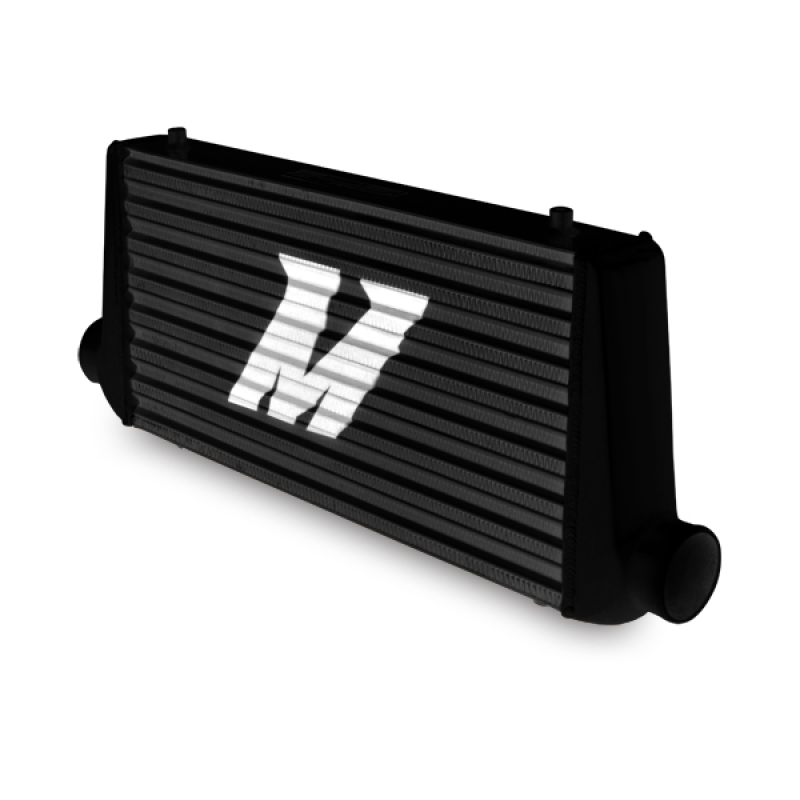

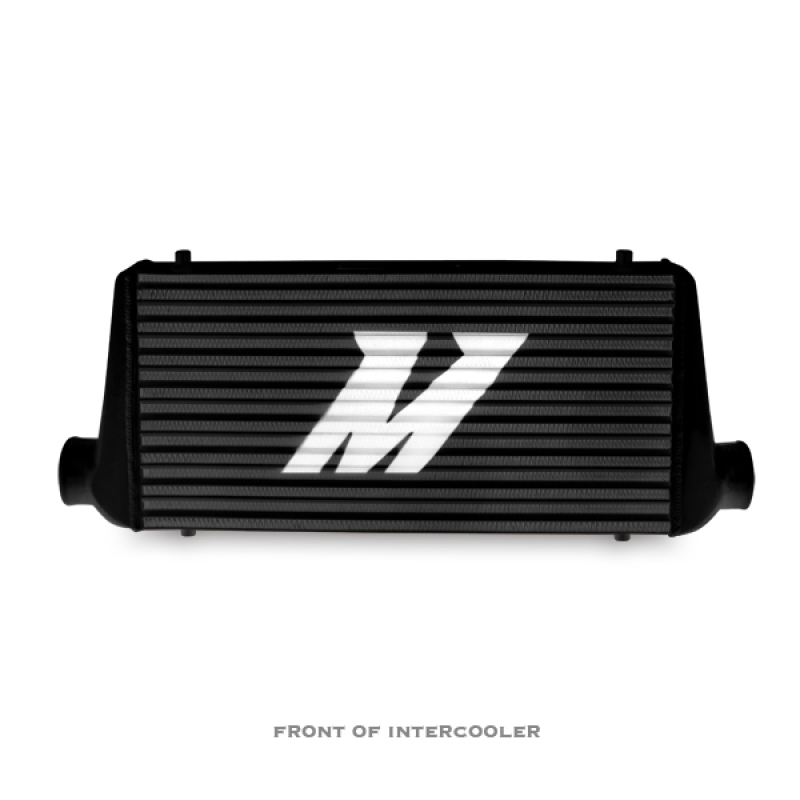

The Mishimoto MMINT-UMB is a universal front-mount intercooler purpose-built to deliver the cooling capacity that smaller turbo applications demand. Every unit is TIG welded from 6061 aluminum and finished in a coated all-black look, with the Mishimoto logo placed on only one side for a cleaner, sleeper appearance once mounted behind the bumper.
As a core piece of any forced induction system, an intercooler has to manage heat without adding unnecessary bulk or weight to the front of the vehicle, and this Mishimoto unit is engineered around that balance. Its tube-and-fin core, aluminum inlet tank, and robust one-piece cast aluminum end tanks are built to withstand high boost pressures, making it a practical upgrade for enthusiasts building out a forced induction turbo setup who want a performance-grade induction system without a flashy or oversized appearance. With four universal mounting points, it’s designed to be integrated into a custom forced induction system rather than dropped into one specific factory location, giving builders flexibility when planning their induction force layout.
Vehicle Applications
This Mishimoto intercooler is offered as a universal front-mount unit intended for smaller turbo applications rather than a single factory fitment. Because it relies on four universal mounting points and a compact core footprint, it’s suited to custom forced induction turbo builds where the installer sets the exact mounting position to match their own engine bay and piping layout.
Features
- Constructed with 6061 aluminum and TIG welded to perfection
- Robust, one-piece cast aluminum end tanks withstand high boost pressures
- Tube-and-fin core design
- Coated all-black finish for a sleeper look when mounted
- Mishimoto logo featured on only one side of the intercooler
- 4 universal mounting points for flexible installation
- Aluminum inlet tank material
- Male inlet and outlet fitting connections
- Performance grade construction
- Backed by the Mishimoto Lifetime Warranty
- Includes (1) Mishimoto Intercooler
Specifications
- Brand: Mishimoto
- Part Number: MMINT-UMB
- Product Type: Forced Induction / Intercooler
- Core Type: Tube-and-Fin
- Core Material: Aluminum
- Core Color: Black
- Inlet Tank Material: Aluminum
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Grade Type: Performance
- Overall Length: 31 in
- Overall Height: 11.75 in
- Core Length: 23.5 in
- Core Height: 11.75 in
- Maximum Recommended Horsepower: 600 HP
- Maximum Recommended Boost Pressure: 32 PSI
Frequently Asked Questions
What is the maximum recommended horsepower for this intercooler?
Mishimoto lists a maximum recommended horsepower of 600 HP for the MMINT-UMB.
What is the maximum recommended boost pressure?
The maximum recommended boost pressure is 32 PSI.
What is the core made of, and how is it built?
The core and end tanks are constructed of 6061 aluminum and TIG welded, with a tube-and-fin core design and an aluminum inlet tank.
Is this a universal-fit intercooler?
Yes, it is described as a universal front-mount intercooler with four universal mounting points, intended for smaller turbo applications.
Does the intercooler have the Mishimoto logo on both sides?
No, only one side of the intercooler features the Mishimoto logo.
What is included with purchase?
The package includes (1) Mishimoto Intercooler backed by the Mishimoto Lifetime Warranty.
