Description

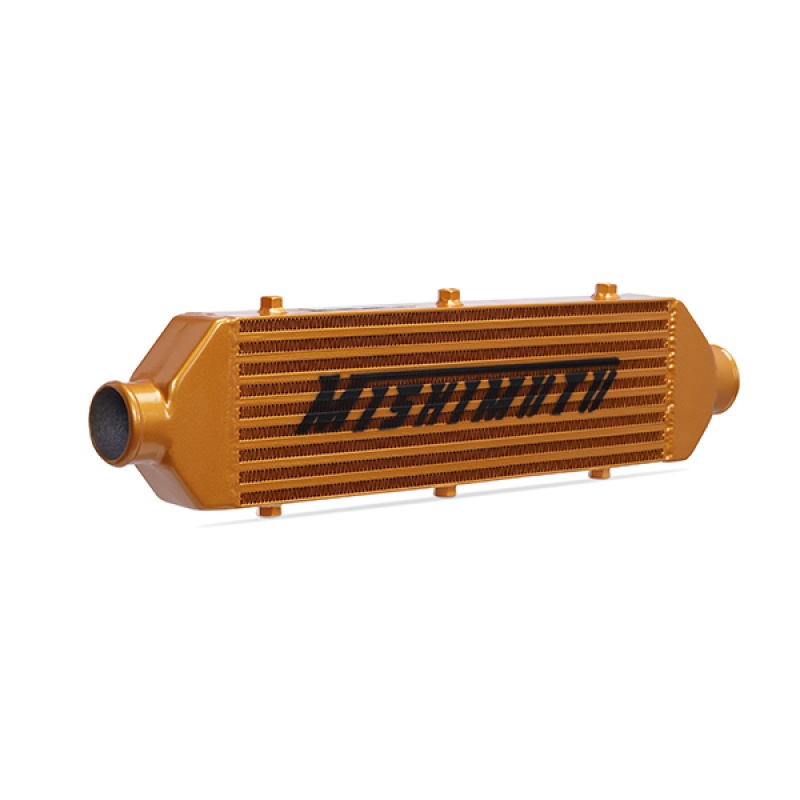

The Mishimoto MMINT-UZG is a universal front-mount intercooler built around a bar-and-plate core and finished in Bold Gold, with the signature Mishimoto logo appearing on just one side for a cleaner look. Constructed from 6061 aluminum and TIG welded for strength, this core is engineered to deliver the cooling capacity that larger turbo applications demand.
Forced induction systems generate significant heat, and an undersized core can hold back an otherwise capable induction engine setup. The Mishimoto MMINT-UZG addresses that with an all-aluminum bar-and-plate design, aluminum inlet tank construction, and TIG-welded end tanks for added durability under boost. It’s rated to 22 PSI of boost pressure and up to 500 maximum recommended horsepower, giving builders a performance-grade induction system upgrade for a wide range of forced induction turbo projects. Six threaded mounting points are built into the core specifically for universal fitment, so it can be positioned to suit the layout of a custom forced induction system rather than a single predetermined bracket location.
Vehicle Applications
Because the MMINT-UZG is designed as a universal front-mount intercooler rather than a vehicle-specific core, it is not tied to a single make, model, or engine code. Its six threaded mounting points and 2.5-inch male inlet and outlet fittings make it a flexible core for enthusiasts building or upgrading a forced induction system where a larger-capacity intercooler is needed to keep pace with turbo output.
Features
- All-aluminum construction with bar-and-plate core
- TIG-welded end tanks for increased strength and durability

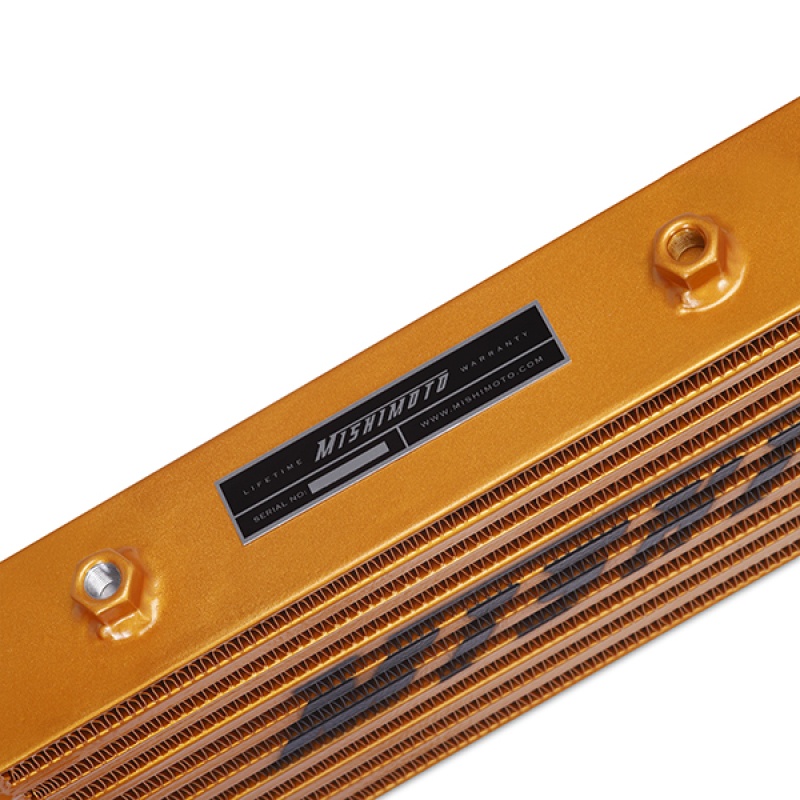

- 6 threaded mounting points for universal fitment
- Rated to 22 PSI

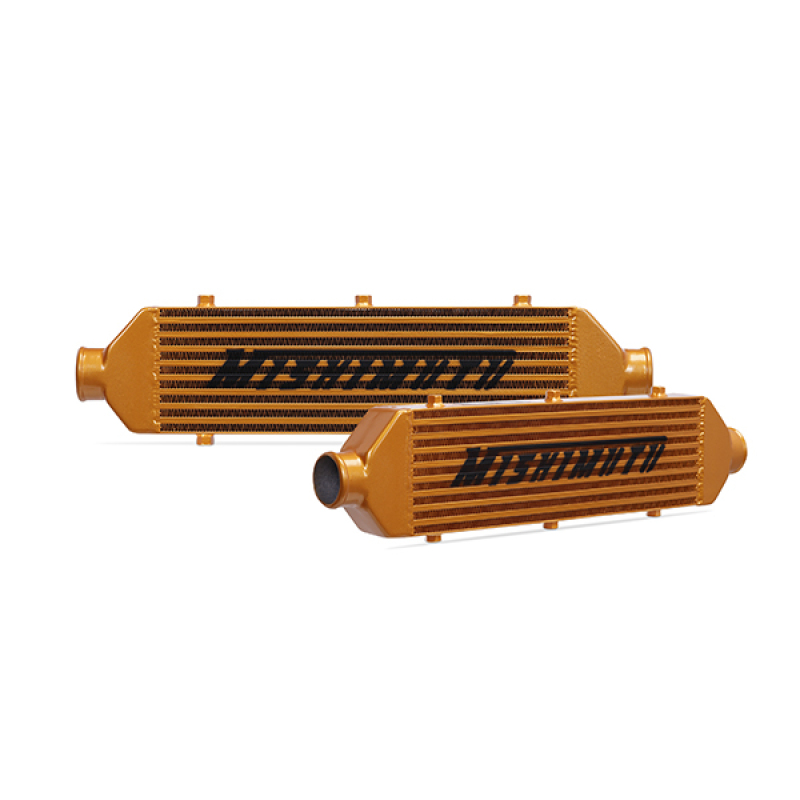

- Available in Sleek Silver, Stealth Black, or Bold Gold (this listing is the Bold Gold option)
- Mishimoto Lifetime Warranty

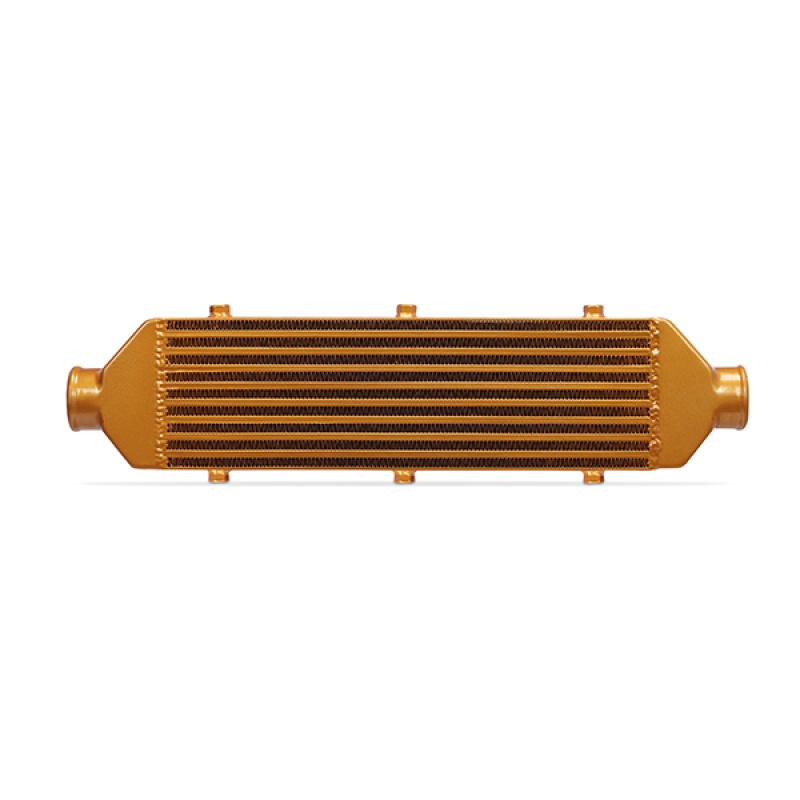

- Mishimoto logo featured on one side of the core only
Specifications
- Core Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Color: Gold
- Grade Type: Performance
- Universal or Specific Fit: Universal front-mount design
- Inlet Outside Diameter: 2.5 in
- Outlet Outside Diameter: 2.5 in
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male

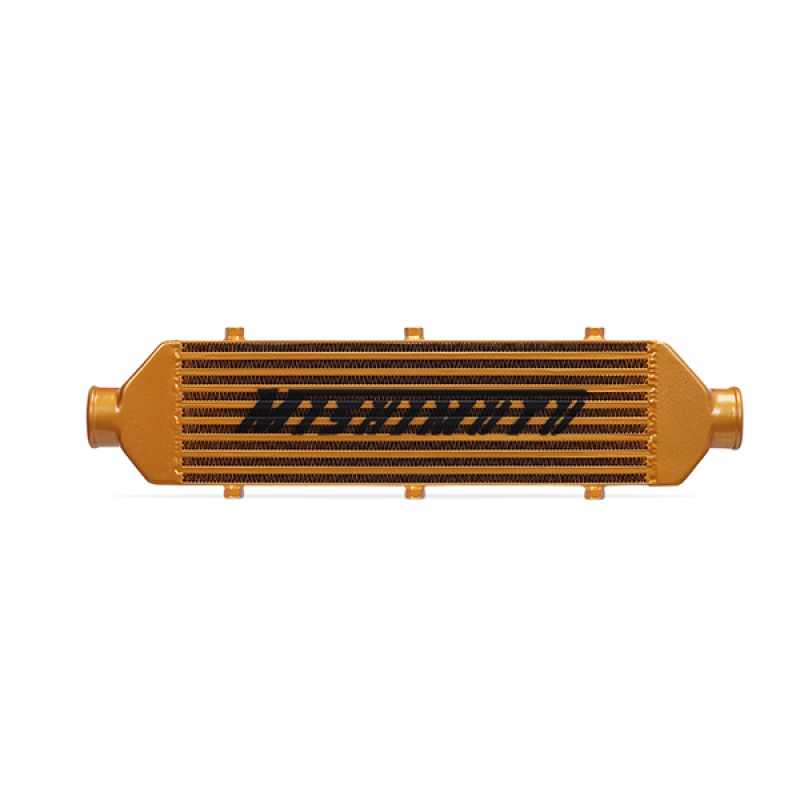

- Core Height: 6.25 in
- Core Length: 20.5 in
- Core Thickness: 2.5 in
- Overall Length: 28 in
- Overall Width: 2.5 in
- Overall Height: 7.5 in
- Maximum Recommended Horsepower: 500
- Maximum Recommended Boost Pressure: 22 PSI
- Mounting Point Thread Pitch: M12x1.25
- Includes: (1) Mishimoto Intercooler, Mishimoto Lifetime Warranty
Frequently Asked Questions
What is the Mishimoto MMINT-UZG made of?
It is constructed of 6061 aluminum with a bar-and-plate core, aluminum inlet tanks, and TIG-welded end tanks for increased strength and durability.
What boost pressure and horsepower is this intercooler rated for?
The Mishimoto MMINT-UZG is rated to 22 PSI of boost pressure with a maximum recommended horsepower of 500.
Does this intercooler fit a specific vehicle?
It is a universal front-mount intercooler with six threaded mounting points for universal fitment, rather than a vehicle-specific application.
What color is this intercooler?
This listing is the Bold Gold color option. Mishimoto also offers this intercooler in Sleek Silver and Stealth Black, and only one side of the core features the Mishimoto logo.
What are the inlet and outlet sizes?
The inlet and outlet outside diameters are both 2.5 inches, with male fittings on both the inlet and outlet.
What comes included with this intercooler and what is the mounting thread pitch?
It includes (1) Mishimoto Intercooler with a Mishimoto Lifetime Warranty, and the mounting point thread pitch is M12x1.25.
