Description

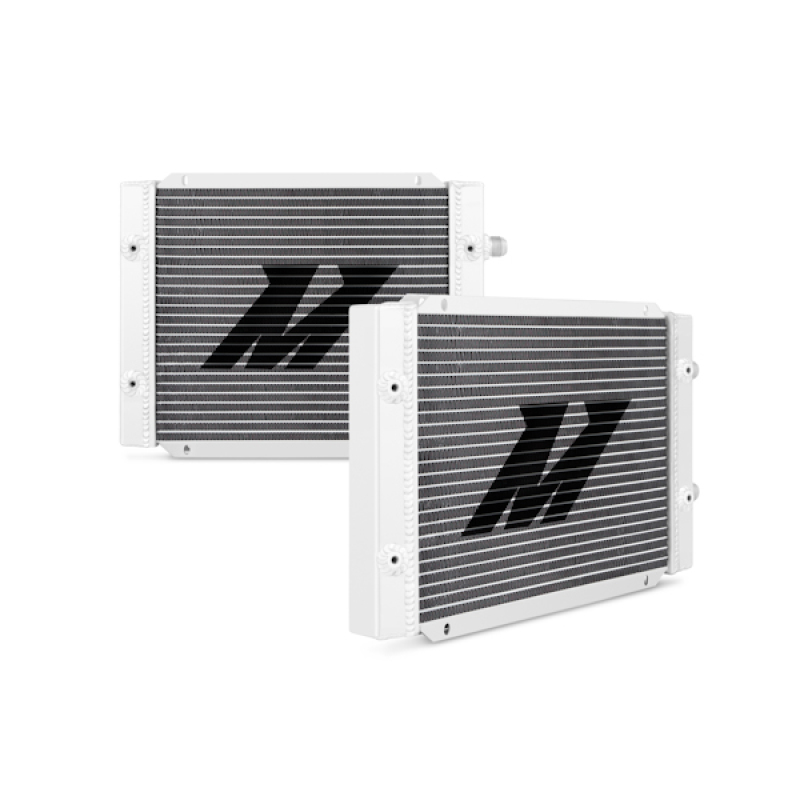

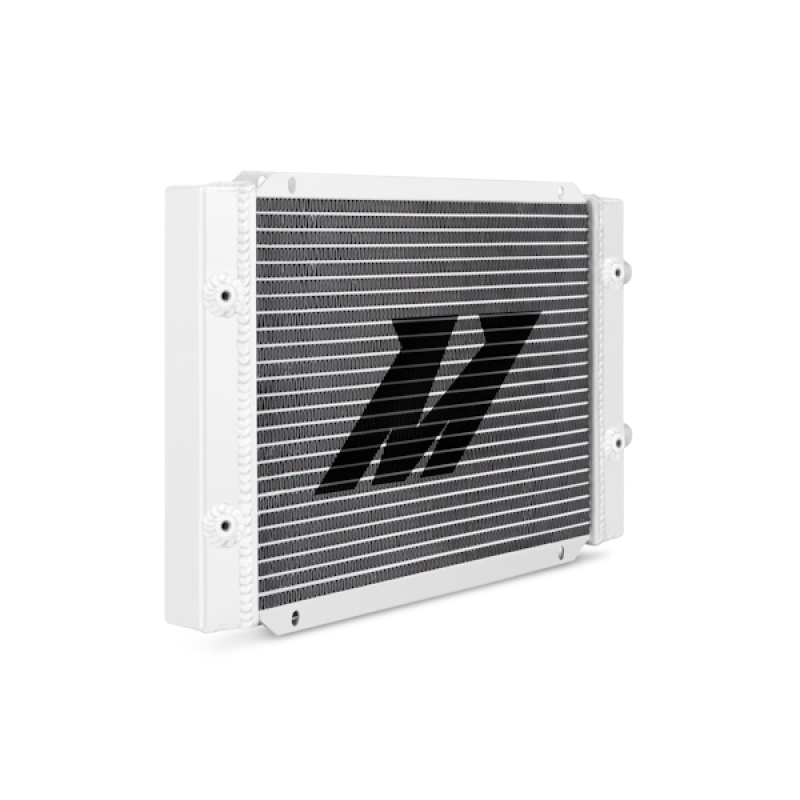

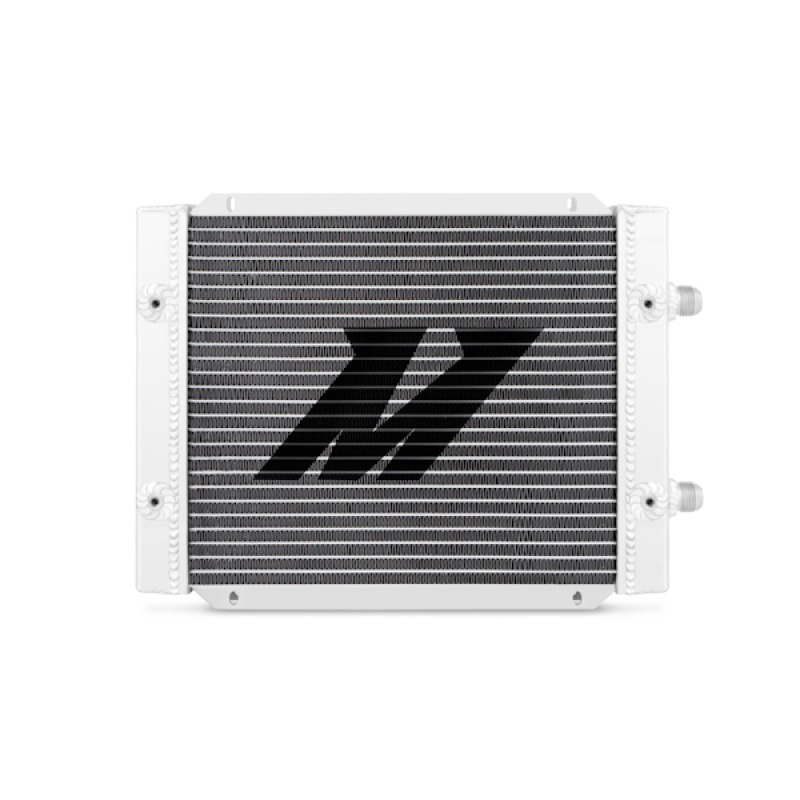

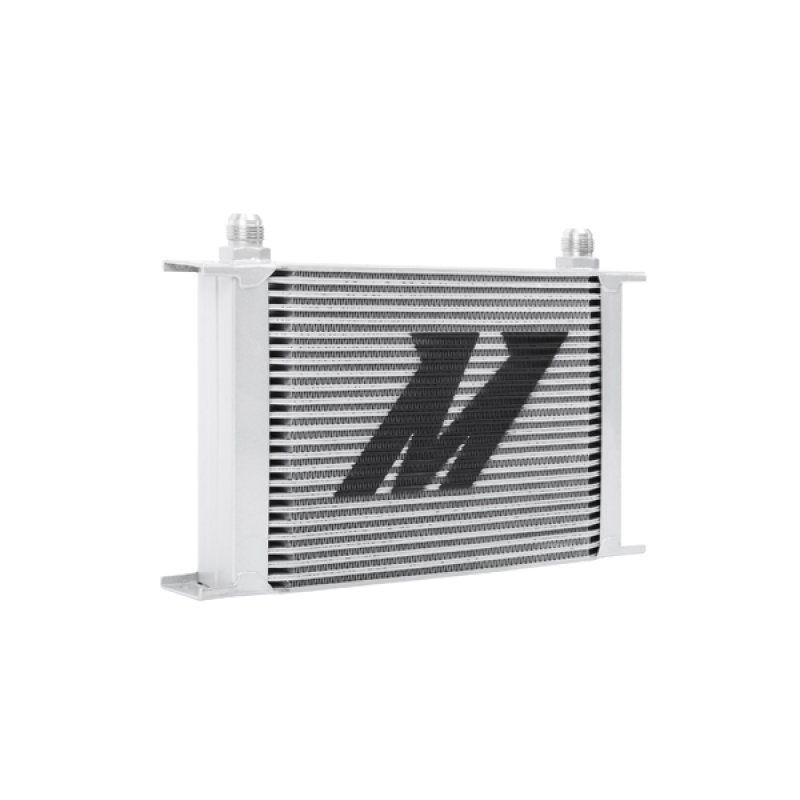

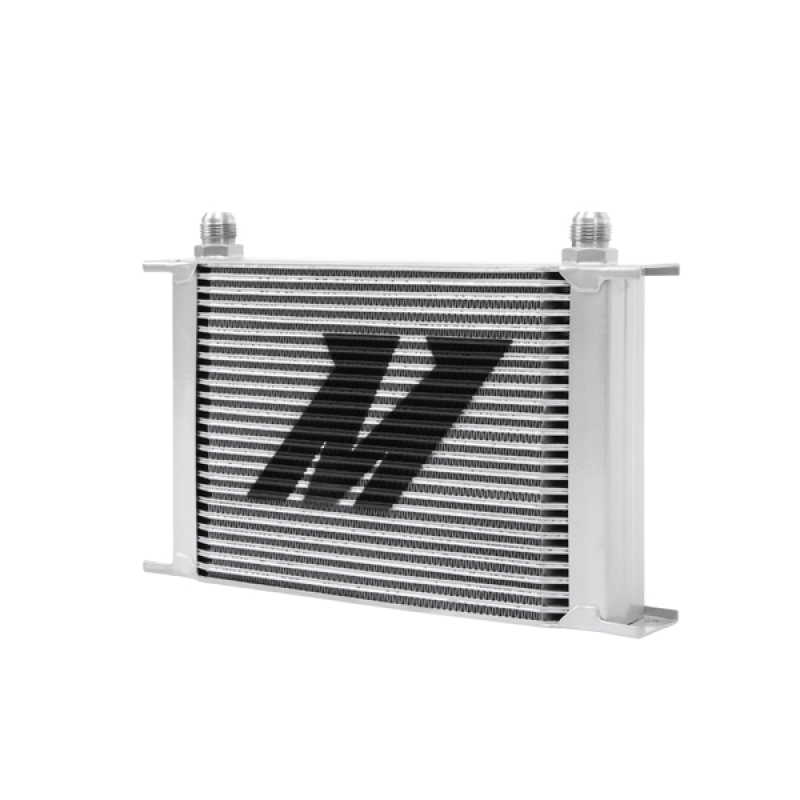

The Mishimoto MMOC-25DP is a purpose-built universal dual pass oil cooler engineered for enthusiasts who push their vehicles hard on the street, strip, or track. Built around a 25-row bar-and-plate core with high-pressure internal tubes rated to 120psi, this Mishimoto cooler is designed to keep fluid temperatures in check when the heat is on. Finished in a durable silver anodized coating, the MMOC-25DP pairs performance-grade construction with a compact, mountable footprint.
Controlling oil temperature is critical to protecting internal engine components — excessive heat accelerates wear and can lead to serious damage over time. This Mishimoto oil cooler tackles that problem with a dense 25-row dual pass design that maximizes fluid temperature reduction while its 8mm external fins deliver a large surface cooling area, so you can focus on driving instead of watching the gauges. Beyond engine oil duty, this Mishimoto cooler is versatile enough to serve as a Mishimoto trans cooler or Mishimoto transmission cooler and Mishimoto power steering cooler, making it a genuinely universal transmission fluid cooler solution for cooling automotive fluids such as transmission fluid and power steering fluid, all while maintaining minimal pressure loss through the core.
Vehicle Applications
As a universal-fit Mishimoto cooler, the MMOC-25DP is not tied to a single make or model — it’s designed to be mounted and plumbed into a wide range of performance builds where oil, transmission, or power steering fluid cooling is needed. Its -10AN male fittings with AN Flare connections and compact 1.77 in width give builders flexibility when integrating this cooler into custom cooling setups for track, street, or strip applications.
Features
- 25-row dual pass design for optimal fluid temperature reduction
- Extends life of high-wear engine components
- 8mm external fins provide a large surface cooling area
- High pressure internal tubes rated to 120psi
- Can be used to cool transmission and power steering fluid
- Minimal pressure loss through the core
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-25DP
- Color / Finish: Silver, Anodized
- Core Type: Bar-and-Plate
- Core Row Quantity: 25
- Core Color: Silver
- Core Height: 10.16 in
- Core Thickness: 1.42 in
- Core Width: 11.81 in
- Overall Width: 1.77 in
- Overall Height: 14.8 in
- Overall Length: 11.57 in

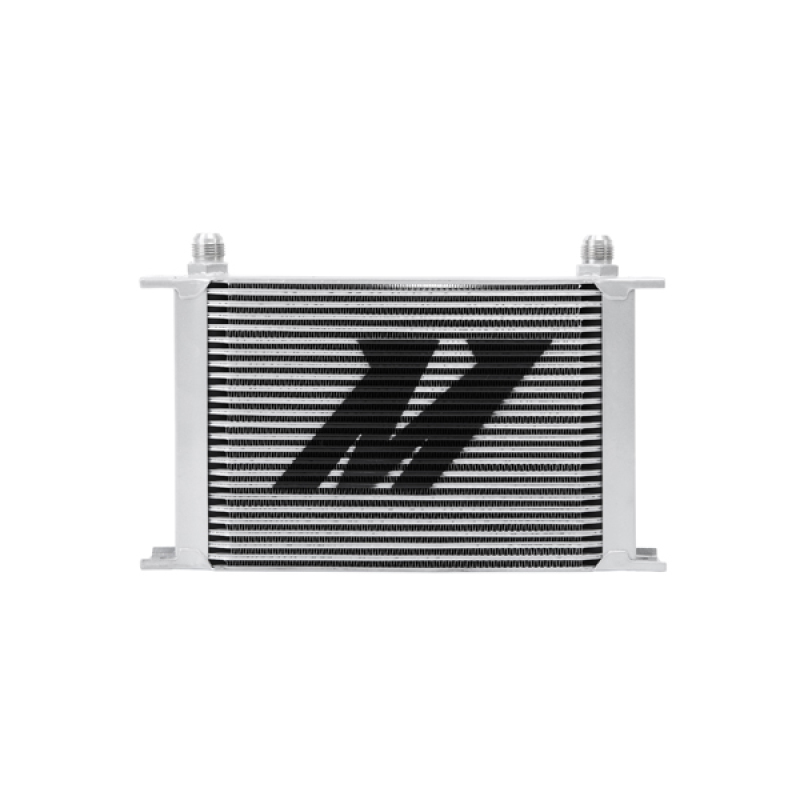

- Inlet Fitting Type: AN Flare, Male, -10AN
- Outlet Fitting Type: AN Flare, Male, -10AN
- Inlet Outside Diameter: 0.625 in
- Outlet Outside Diameter: 0.625 in
- Grade Type: Performance
- Includes: Mishimoto Oil Cooler, Mishimoto Lifetime Warranty
Frequently Asked Questions
What type of core does the Mishimoto MMOC-25DP oil cooler use?
The MMOC-25DP uses a 25-row bar-and-plate core finished in silver, with a silver anodized exterior.
Can this Mishimoto cooler be used for transmission or power steering fluid?
Yes, this dual pass oil cooler can also be used to cool transmission fluid and power steering fluid, not just engine oil.
What pressure rating do the internal tubes have?
The internal tubes are high pressure and rated to 120psi.
What fitting type and size does the MMOC-25DP use?
It uses Male AN Flare fittings sized at -10AN on both the inlet and outlet, with an outside diameter of 0.625 in each.
What are the dimensions of the Mishimoto MMOC-25DP?
The core measures 10.16 in in height, 1.42 in in thickness, and 11.81 in in width, while the overall unit measures 1.77 in wide, 14.8 in tall, and 11.57 in long.
What is included with this oil cooler and what warranty does it carry?
The package includes the Mishimoto Oil Cooler and is backed by the Mishimoto Lifetime Warranty.
