Mishimoto MMOC-DP-MSL Dual Pass Silver Race Oil Cooler

Description

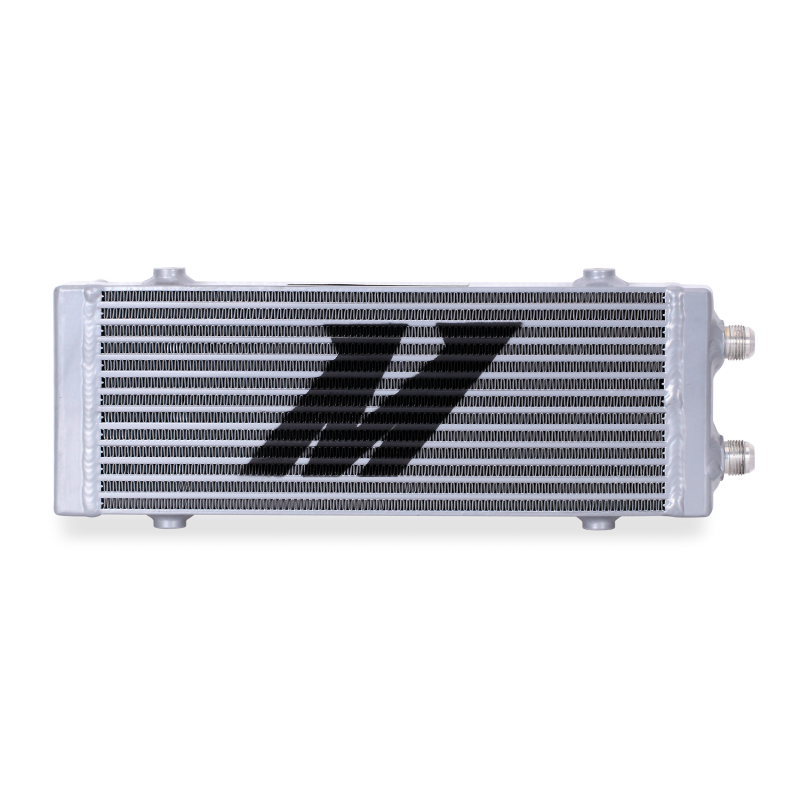

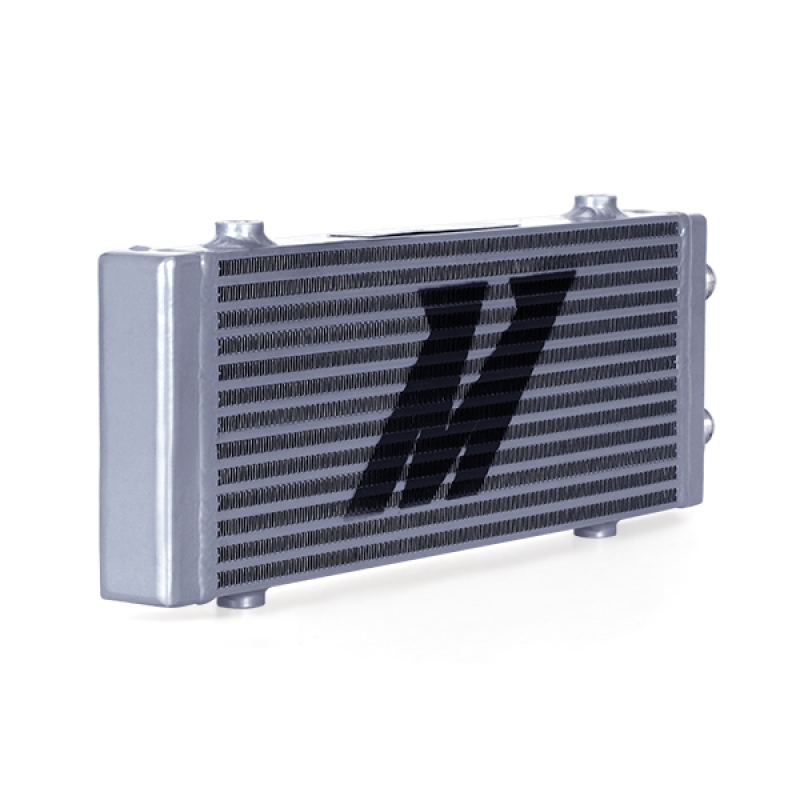

The Mishimoto MMOC-DP-MSL is a dedicated race oil cooler built around a bar-and-plate, dual pass core and finished in a sleek silver anodized coating. Oil enters one side of the core, travels through the internal passages, and exits on that same side — a dual pass design engineered specifically to pull heat out of hot-running oil before it can break down. This is the medium-sized version of Mishimoto’s dual pass lineup, sized to suit a wide range of performance and race builds rather than one narrow application.

Keeping oil temperature in check is critical once you start pushing a vehicle hard, because overheated oil loses the viscosity that lets it lubricate and protect high-wear components inside the engine. This Mishimoto oil cooler is built to hold that line, using a durable bar-and-plate core with a dual pass flow path for optimal fluid temperature reduction and 100-percent aluminum construction with CNC-machined end tanks for long-term durability. The result is an oil cooling upgrade that reduces oil temperatures with minimal pressure loss while boosting overall oil system capacity for added cooling capability, letting the rest of your build focus on performance instead of heat management.

Vehicle Applications

This Mishimoto oil cooler is designed as a bar-and-plate cooling solution for custom applications rather than a single factory fitment, which is why it comes ready for use in custom builds with M8x1.25 welded bungs for mounting brackets. Its medium-sized dual pass core and -10AN plumbing make it a practical choice for track and race builds where a flexible, universal-style oil cooler needs to be integrated into an existing or custom oiling system.

Features

• Durable bar-and-plate cooler design for use in custom applications
• Dual pass design for optimal fluid temperature reduction
• M8x1.25 welded bungs for attaching mounting brackets
• -10AN fittings for attaching oil lines
• 100-percent aluminum construction with CNC end tanks
• Reduces oil temperatures with minimal pressure loss
• Increased oil system capacity for increased cooling capability

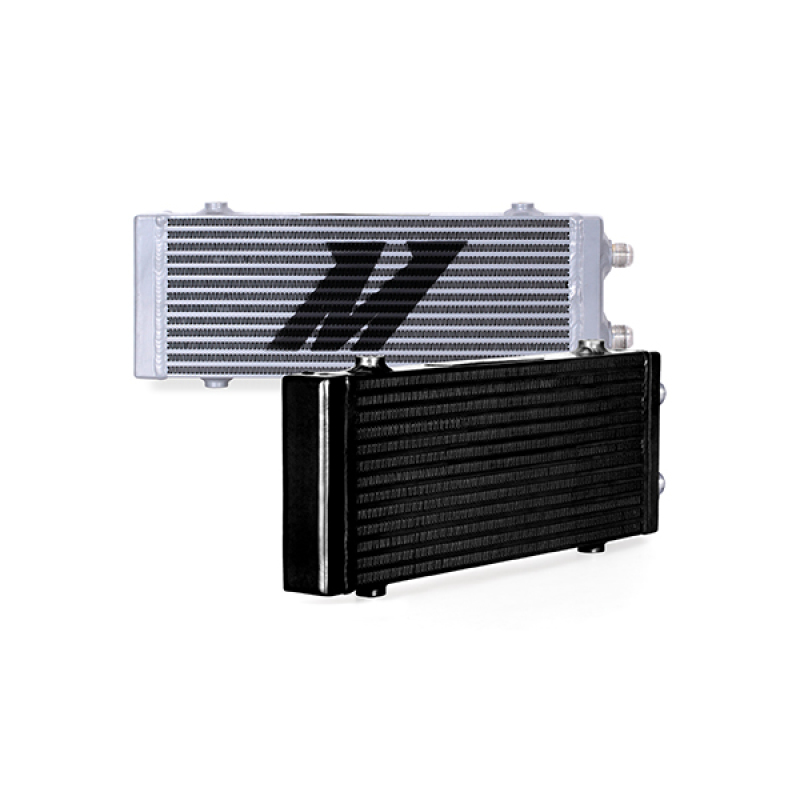

• Available in sleek silver or stealth black finishes

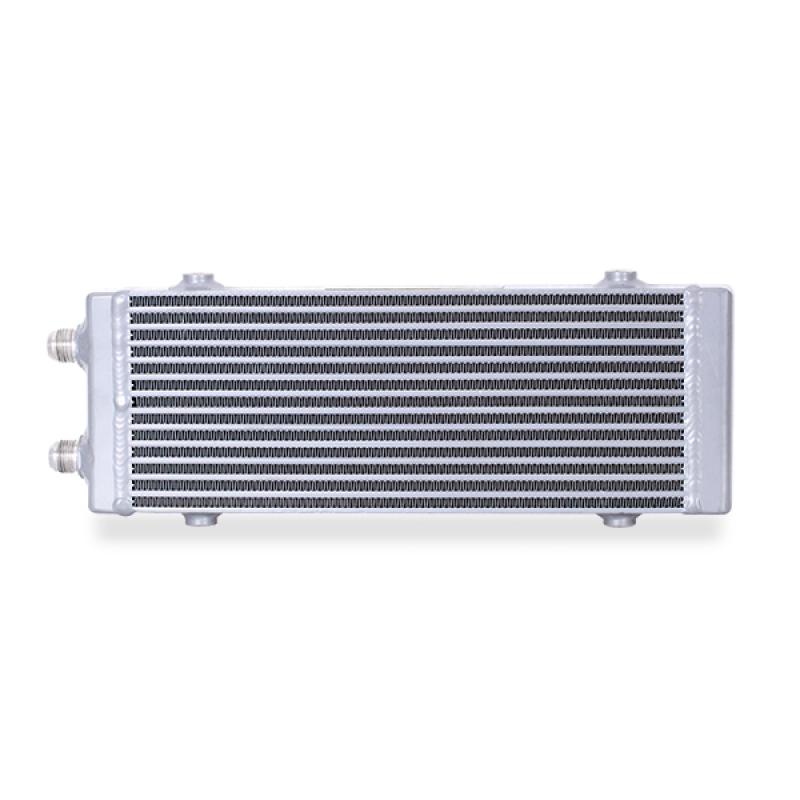

• Only one side of the silver oil coolers carries the Mishimoto “M” logo; the stealth black option has no logo
• Backed by the Mishimoto Lifetime Warranty

Specifications

• Brand: Mishimoto
• Part Number: MMOC-DP-MSL
• Color/Finish: Silver, Anodized
• Core Type: Bar-and-Plate
• Core Color: Silver
• Grade Type: Performance
• Core Height: 5.51 in
• Core Thickness: 1.57 in
• Overall Width: 1.57 in
• Overall Height / Base Height: 6.3 in
• Overall Length: 17.01 in
• Inlet Fitting Type: AN Flare, Male (-10AN)
• Outlet Fitting Type: AN Flare, Male (-10AN)
• Inlet Outside Diameter: 0.625 in
• Outlet Outside Diameter: 0.625 in
• Fluid Capacity: 0.65 GA
• Cooler Fluid Capacity: 0.7 QT
• Includes: (1) Oil Cooler — Mishimoto Lifetime Warranty
