Description
The Mishimoto Universal Oil Cooler Kit, part number MMOC-UHT, centers on a 25-row stacked-plate, bar-and-plate cooler finished in silver anodized aluminum. Built to bolt onto most makes and models thanks to dual 3/4-16 and M20-1.5 sandwich plate adapters, this kit pairs a proven Mishimoto core with a billet anodized sandwich plate available in standard or thermostatic form.
Consistent oil temperature is critical to protecting a stock or high performance engine from oil degradation, and this Mishimoto oil cooler kit is engineered to keep temperatures in check without sacrificing flow. The 25-row core is designed to withstand high fluid pressures while reducing oil temperatures and exhibiting minimal pressure loss, making it a strong fit for anyone piloting a boosted rotary, a blown small block, or any application that needs added oil cooling capacity. For drivers in cooler climates, the optional Mishimoto Thermostatic Sandwich Plate limits oil flow to the cooler until the oil reaches optimal operating temperature, adding an extra layer of temperature control. The kit is completed with pre-assembled stainless steel braided oil lines fitted with -10AN connections and dowty seals for durable, leak-free plumbing.
Vehicle Applications
This is a universal oil cooler kit, engineered with fitment flexibility in mind rather than a single vehicle platform. The inclusion of both 3/4-16 and M20-1.5 sandwich plate adapters allows this Mishimoto cooler kit to support installation across most makes and models, giving builders and shops a single kit that can be adapted to a wide range of engine platforms during a custom or performance cooling install.
Features
- Universal fitment supported by dual 3/4-16 and M20-1.5 sandwich plate adapters for most makes and models
- 25-row stacked-plate, bar-and-plate cooler core that withstands high fluid pressures, reduces oil temperatures, and exhibits minimal pressure loss

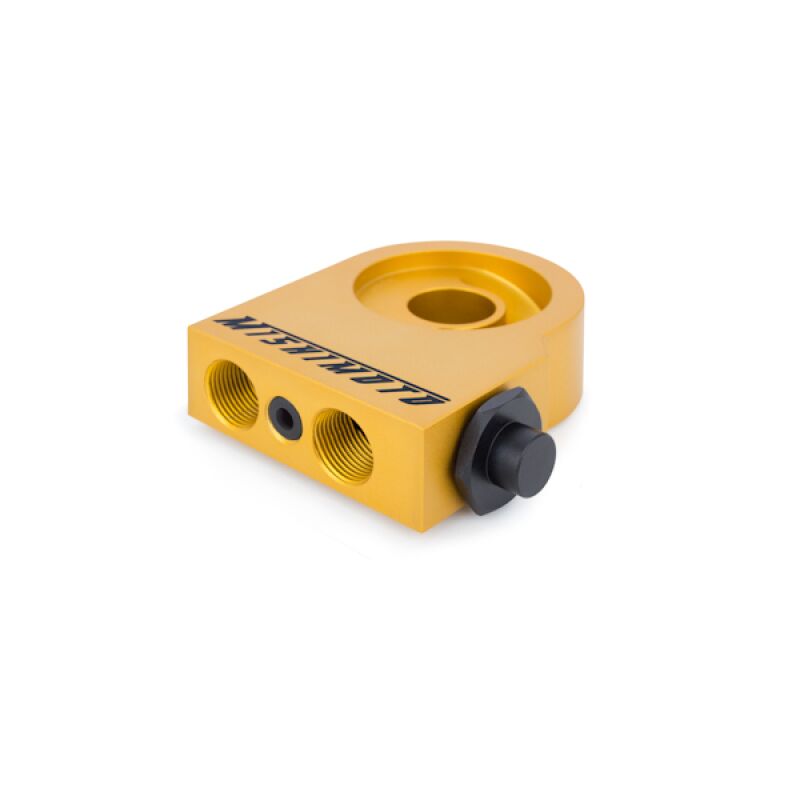

- Billet anodized aluminum sandwich plate available in standard or thermostatic form
- Optional Mishimoto Thermostatic Sandwich Plate limits oil flow to the cooler until optimal temperature is reached, ideal for cooler climates
- Pre-assembled stainless steel braided oil lines with -10AN fittings and dowty seals for durable, leak-free connections
- Kit includes a 4ft and a 5ft stainless steel braided hose, each with a straight fitting and a 90-degree swivel fitting

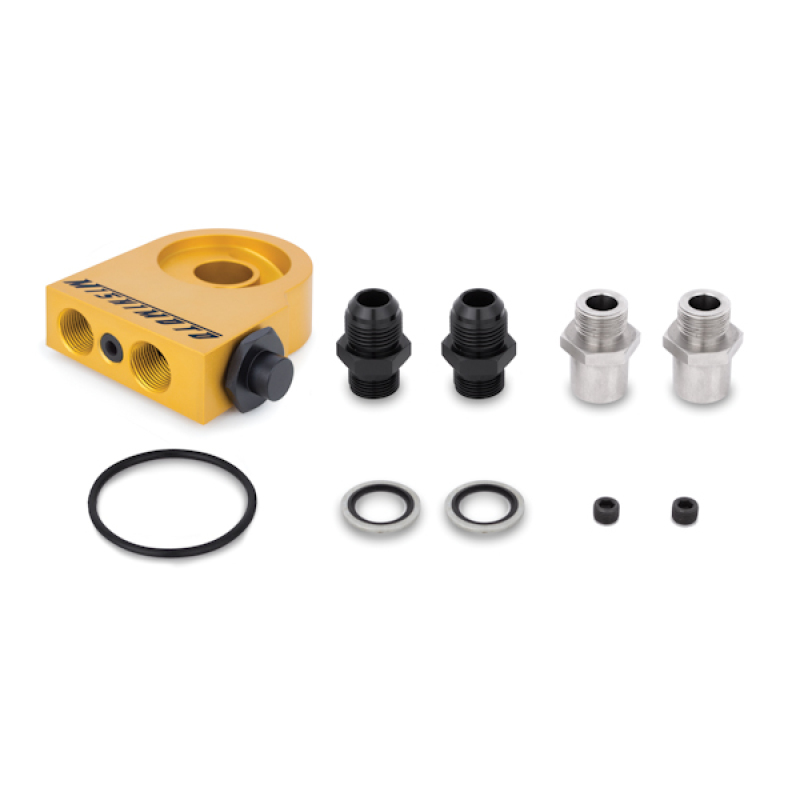

- Also includes an M20 Thermostatic Sandwich Plate, -10AN fittings, dowty oil seals, a large O-ring, and 1/8-in NPT Allen key plugs
- Backed by the Mishimoto Limited Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-UHT
- Product Type: Cooling
- Color/Finish: Silver, Anodized
- Core Color: Silver
- Core Type: Bar-and-Plate
- Grade Type: Performance
- Core Row Quantity: 25
- Core Height: 7.32 in
- Core Width: 11 in
- Core Thickness: 1.97 in
- Overall Width: 1.97 in
- Overall Height: 12.95 in
- Overall Length: 8.35 in
- Base Height: 12.95 in
- Inlet/Outlet Fitting Type: AN Flare
- Inlet/Outlet Fitting Gender: Male
- Sandwich plate adapter threads: M20 x 1.5 or 3/4-16 UNF
- Recommended torque for straight fittings and banjo bolts: 15-25 lb-ft (do not exceed 35 ft-lb)
Frequently Asked Questions
What does the Mishimoto Universal Oil Cooler Kit include?

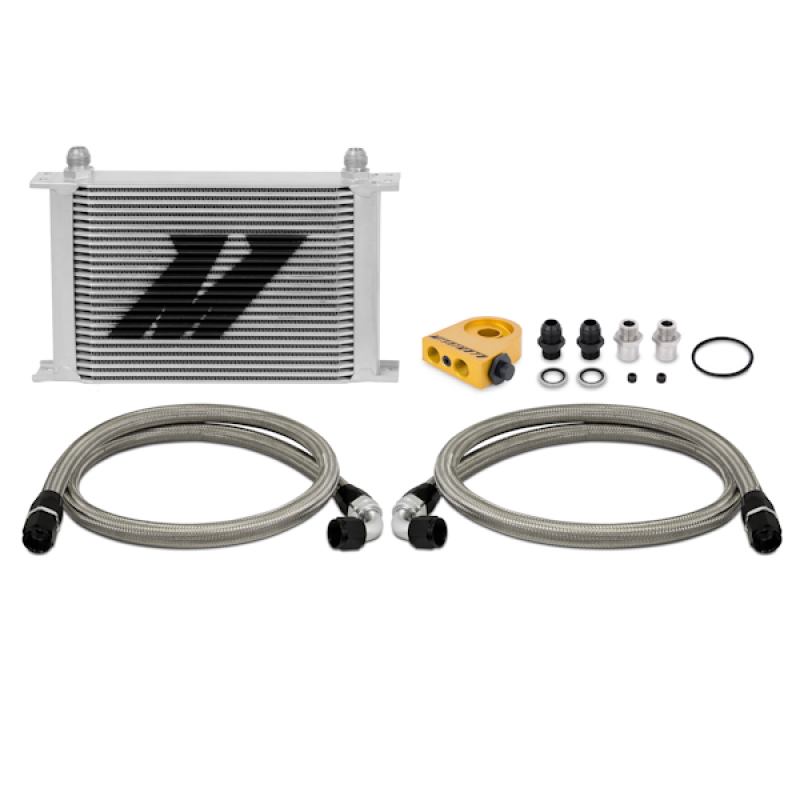

The kit includes the 25-row oil cooler, a 4ft stainless steel braided hose with -10AN fittings (one straight and one 90-degree swivel fitting), a 5ft stainless steel braided hose with -10AN fittings (one straight and one 90-degree swivel fitting), an M20 Thermostatic Sandwich Plate, -10AN fittings, dowty oil seals, a large O-ring, 1/8-in NPT Allen key plugs, sandwich plate adapters, and the Mishimoto Lifetime Warranty.
What sandwich plate options come with this kit?
The kit includes a billet anodized aluminum sandwich plate available in either standard or thermostatic form. The optional Mishimoto Thermostatic Sandwich Plate limits oil flow to the cooler until optimal temperature is reached, which is ideal for cooler climates.
What adapters are included for vehicle fitment?
This kit includes both a 3/4-16 and an M20-1.5 sandwich plate adapter, which supports fitment for most makes and models.
What torque specification should be used when installing the fittings?
The recommended torque specification for all straight fittings and banjo bolts is 15-25 lb-ft, and the maximum torque rating of 35 ft-lb should not be exceeded.
What type of core does this Mishimoto oil cooler use?
It uses a 25-row, bar-and-plate stacked-plate cooler core finished in silver anodized aluminum, engineered to withstand high fluid pressures while reducing oil temperatures with minimal pressure loss.
Does the Mishimoto Universal Oil Cooler Kit come with a warranty?
Yes, this kit includes the Mishimoto Limited Lifetime Warranty.
