Description

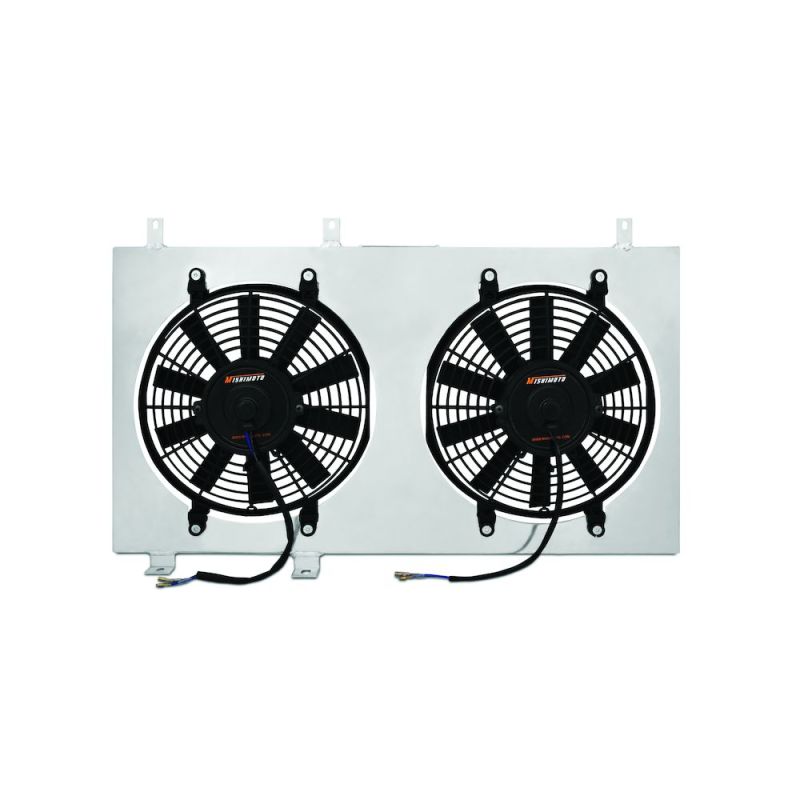

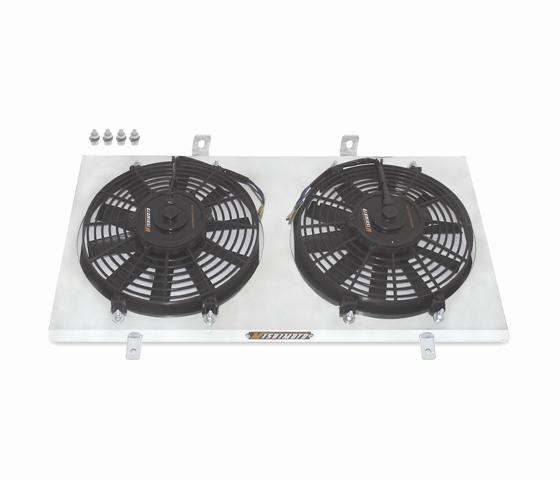

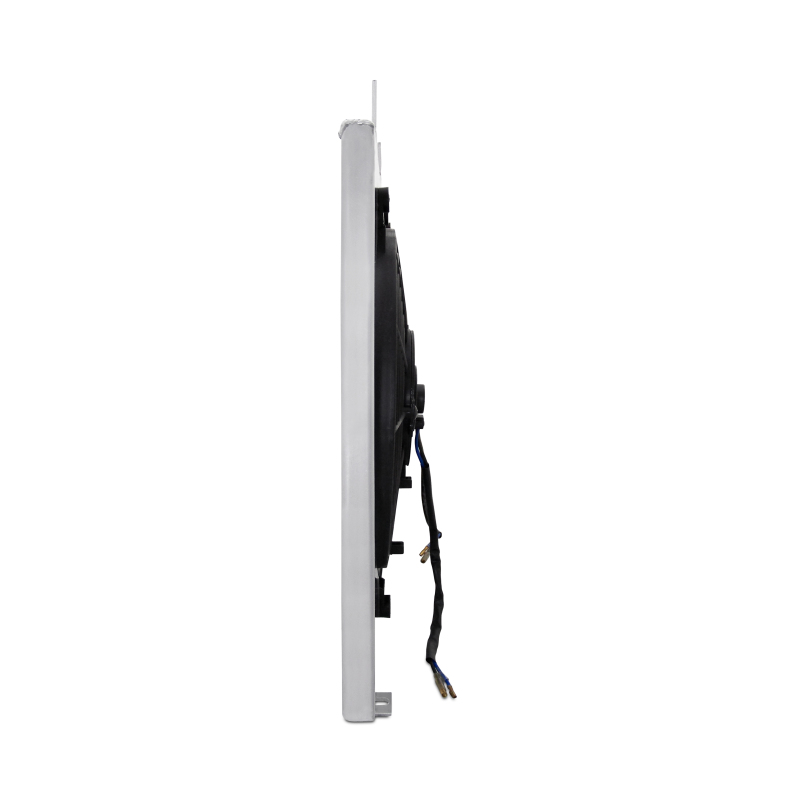

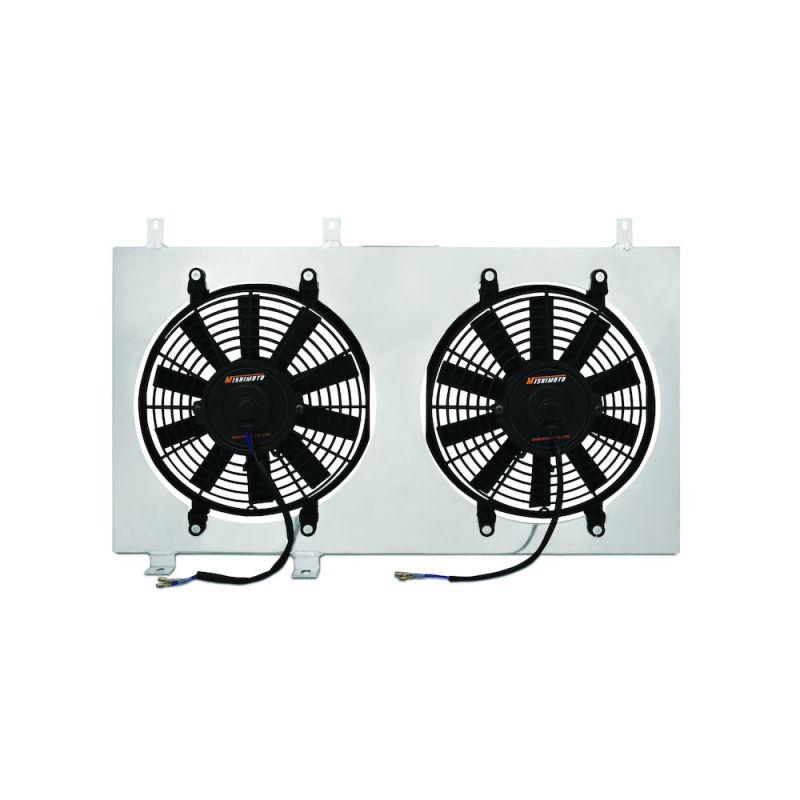

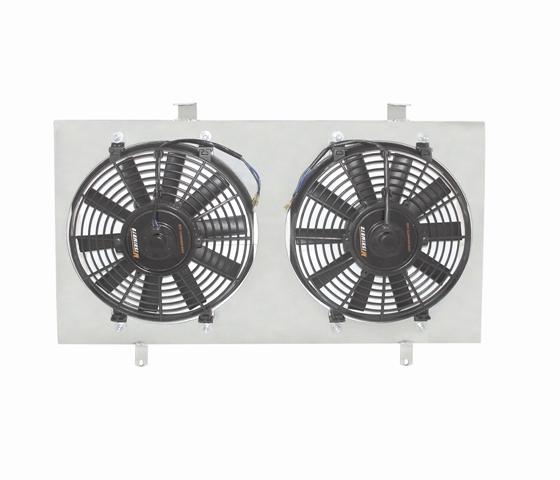

The Mishimoto Nissan 240SX Performance Aluminum Fan Shroud Kit (MMFS-240-95KA) pairs a lightweight polished aluminum shroud with two 12-inch electric fans, each moving over 1150 CFM, to replace the factory setup on KA-powered 240SX chassis. Built as a direct OEM-fit piece, this shroud kit is engineered specifically for the KA24E and KA24DE engine applications found in the S14 chassis, giving these cars a cooling upgrade that bolts in without fabrication.
Because this Mishimoto cooling component is significantly lighter than a standard fan shroud, it reduces unnecessary bulk in the engine bay while still doing the two jobs a shroud is meant to do: pulling heat away from the radiator core and physically containing the fan blades. Keeping those blades secured in position matters, since a fan blade that works loose can strike the radiator, hoses, or other nearby engine components and cause real damage. With two 12-inch electric fans generating strong airflow and a plug-in electrical setup, this Mishimoto shroud kit is built to maximize airflow through the radiator for drivers who want dependable, consistent cooling performance.
Vehicle Applications
This fan shroud kit is designed for KA-engine applications only and is a direct fit for the Nissan 240SX Base trim from 1995 through 1998, the 240SX LE from 1997 through 1998, and the 240SX SE from 1995 through 1998. It is compatible with vehicles equipped with the KA24E or KA24DE engine on the S14 chassis, and it works with both the factory OEM radiator and the Mishimoto radiator, giving owners flexibility in how they build out their cooling system. Note that the electric fans may require additional wiring during installation.
Features
- Direct fit for 1995-1998 KA-engine Nissan 240SX applications
- Compatible with both stock OEM radiators and Mishimoto radiators
- Includes two 12-inch electric fans, each rated over 1150 CFM, for maximized airflow
- Polished aluminum shroud construction that is lighter than a standard fan shroud
- Straight-blade fans with 10 black plastic blades per fan
- Electrical, plug-in fan motors included
- All mounting hardware included for installation
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFS-240-95KA
- Shroud Material: Aluminum
- Shroud Color: Silver
- Shroud Included: Yes
- Blade Material: Plastic
- Blade Type: Straight
- Blade Color: Black
- Blade Quantity: 10 per fan
- Fan Quantity: 2
- Fan Diameter: 12 in (each)
- Motor Included: Yes
- Electrical or Mechanical: Electrical
- Hardwired or Plug-In: Plug-In
- Maximum CFM: 1150 per fan
- Grade Type: Performance
- Mounting Hardware Included: Yes
- Width: 3.5 in
- Height: 17.7 in
- Length: 26 in
- Engine Codes: KA24E, KA24DE
- Chassis Code: S14
- Kit Includes: (1) Aluminum Fan Shroud, (2) 12-inch Slim Electric Fans, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMFS-240-95KA fan shroud kit fit?
It is a direct fit for the KA-engine Nissan 240SX Base (1995-1998), 240SX LE (1997-1998), and 240SX SE (1995-1998), specifically vehicles equipped with the KA24E or KA24DE engine on the S14 chassis.
What is included in this fan shroud kit?
The kit includes one aluminum fan shroud, two 12-inch slim electric fans, all mounting hardware, and is backed by the Mishimoto Lifetime Warranty.
How much airflow do the included fans provide?
Each of the two included 12-inch electric fans is rated at a maximum of 1150 CFM.
Will this shroud work with my factory radiator?
Yes, this shroud kit is compatible with both OEM and Mishimoto radiators.
What is the fan shroud made of and what color is it?
The shroud is made of aluminum and finished in silver; the included fan blades are black plastic with a straight blade type.
Does installation require extra wiring?
The electric fans may require additional wiring during installation.
