Description
The Mishimoto MMBCC-RGR-19PBE is a direct-fit baffled oil catch can kit engineered specifically for the 2019-2023 Ford Ranger’s 2.3L EcoBoost engine. Machined from 6061-T6 billet aluminum with a black anodized finish, this catch can attacks the carbon buildup that direct-injected car engines are prone to, giving Ranger owners a real solution rather than a generic bolt-on accessory. Every line, fitting, and bracket in this kit is built to mount on this specific engine bay without any cutting or drilling.

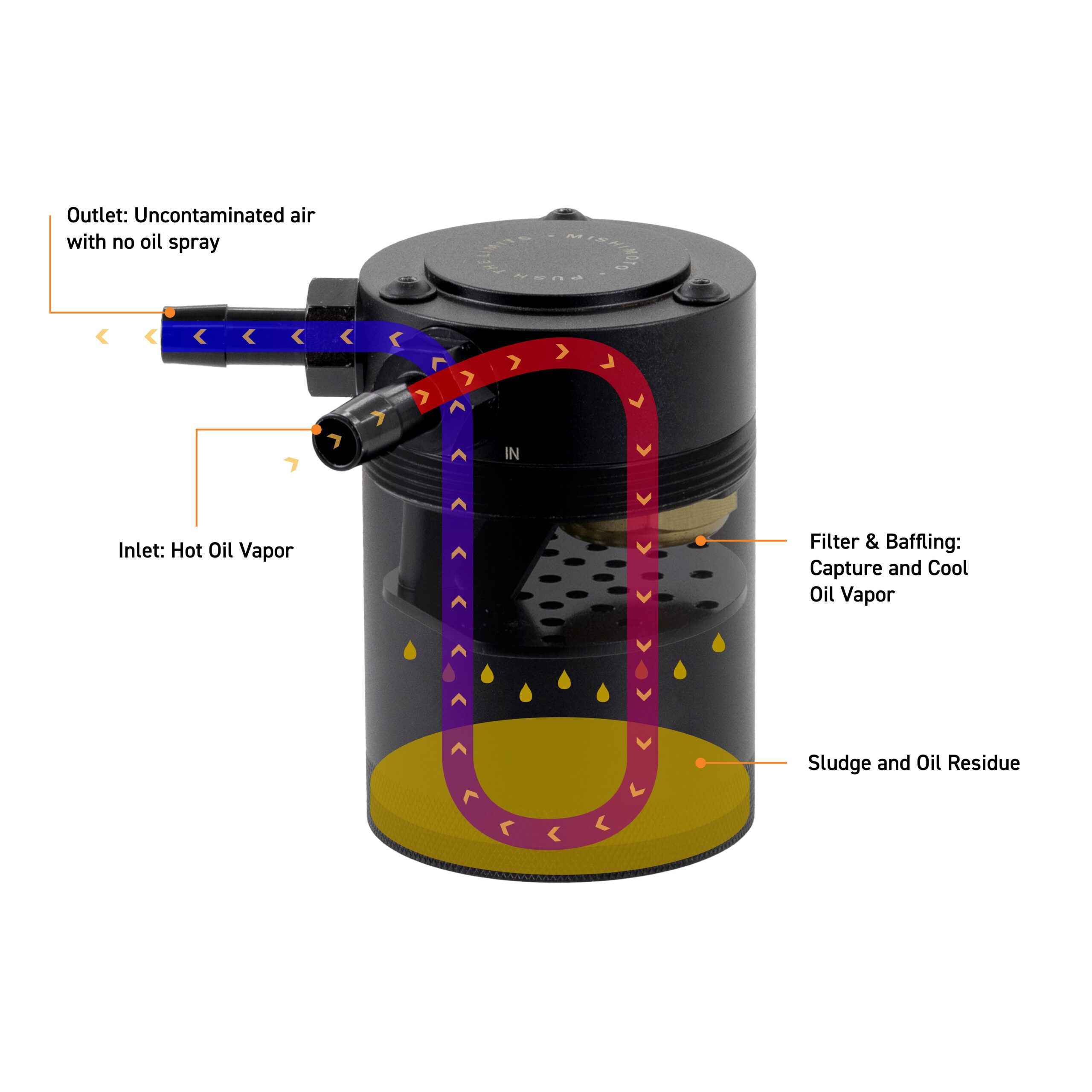

Direct injection lets the 2.3L EcoBoost make over 310 lb-ft of torque and tow up to 7,500 lbs, but that same technology means fuel never washes over the back of the intake valves the way it does in port-injected car engines. Left unmanaged, blow-by from normal combustion condenses into hard carbon deposits on the intake valves — one of the more overlooked parts of a car engine — robbing power, fuel economy, and eventually compression. Mishimoto’s catch can intercepts that blow-by before it reaches the intake, using an internal baffle and air diverters to condense oil, fuel, and water vapor out of the vapor stream, while a 50-micron bronze filter on the outlet strips out carbon and particulate so only clean air continues downstream. For anyone researching engine parts for car maintenance or trying to protect the components of an automobile engine from long-term carbon fouling, this kit addresses the root cause rather than just the symptom.
Vehicle Applications
This Mishimoto catch can kit is a direct fit for the 2019-2023 Ford Ranger Lariat, XL, and XLT trims, as well as the 2023 Ford Ranger Wildtrak, all equipped with the 2.3L EcoBoost engine. The kit is also designed to fit alongside the stock Lariat engine cover. Because Ford revised engine bay packaging partway through the model run, late 2021-2023 Rangers use different installation steps than earlier trucks, so installers should reference the specific instructions that match their model year.
Features
- Direct fit for 2019-2023 Ford Ranger models equipped with the 2.3L EcoBoost engine

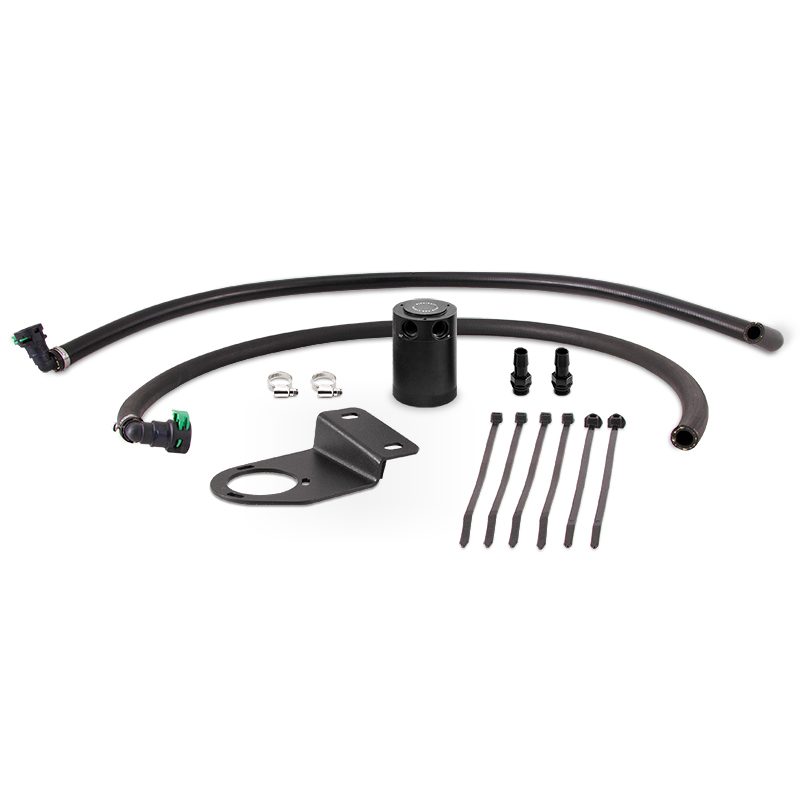

- Includes direct-fit hoses with pre-installed quick-disconnect fittings

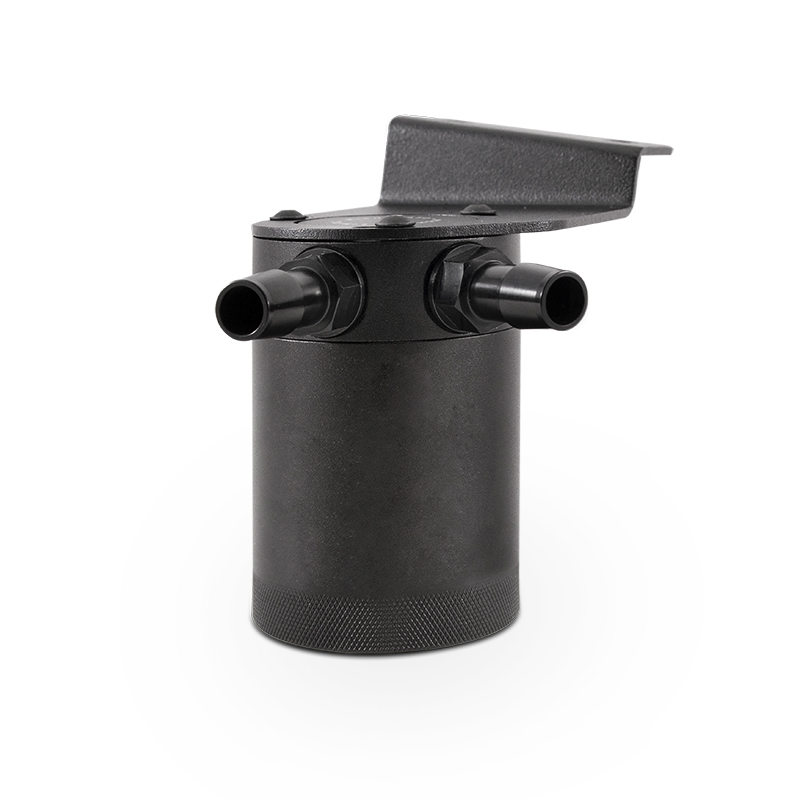

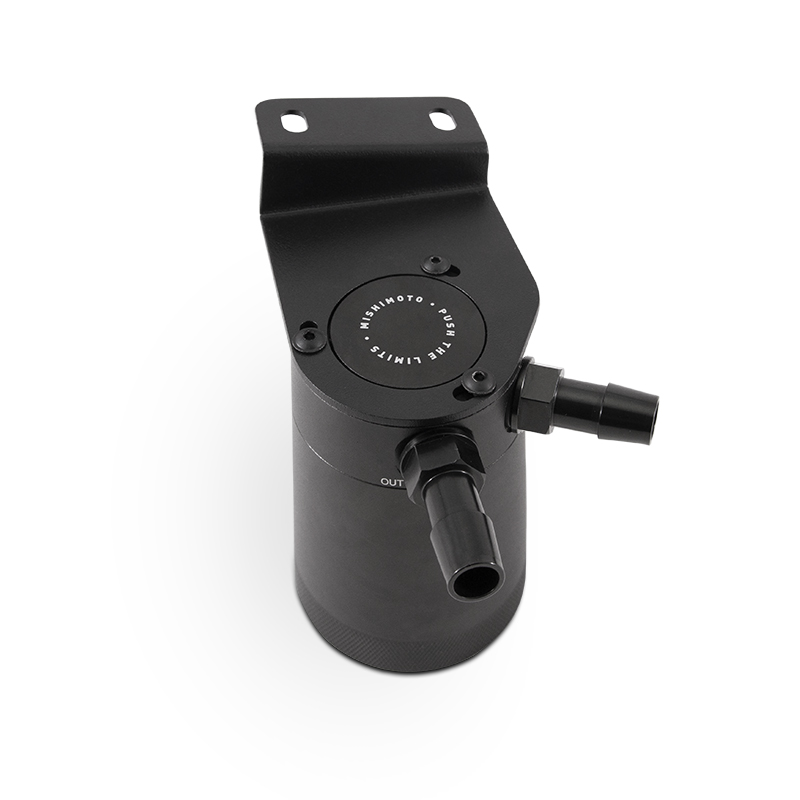

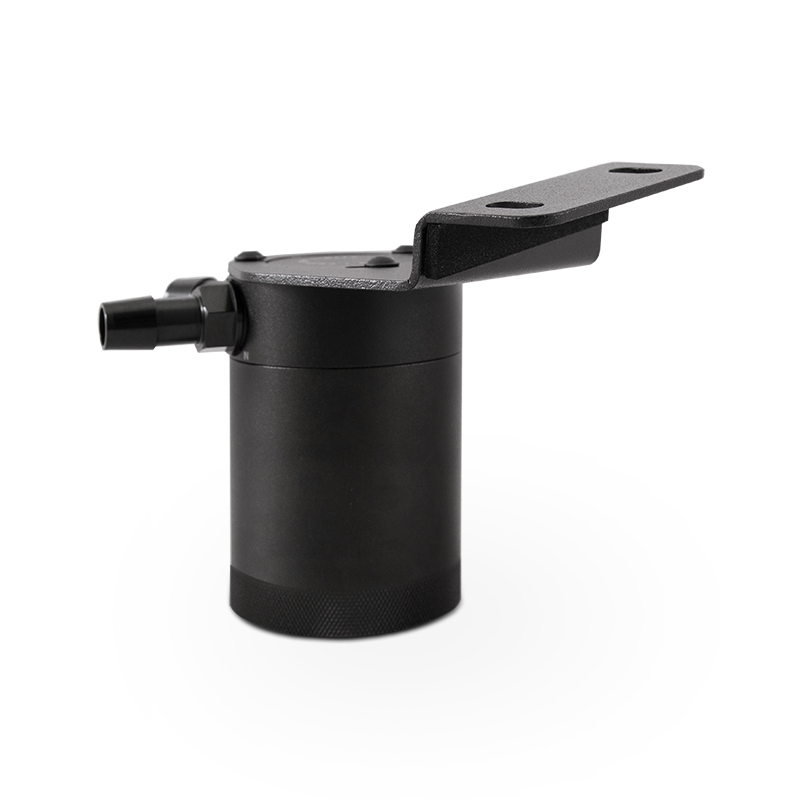

- Durable 2.5mm thick steel bracket mounts the catch can out of the way of other engine components and isolates it from engine vibration
- Fits with the stock Lariat engine cover
- 3 oz. capacity for longer service intervals
- CNC-machined aluminum barbed fittings create a secure connection between lines and can

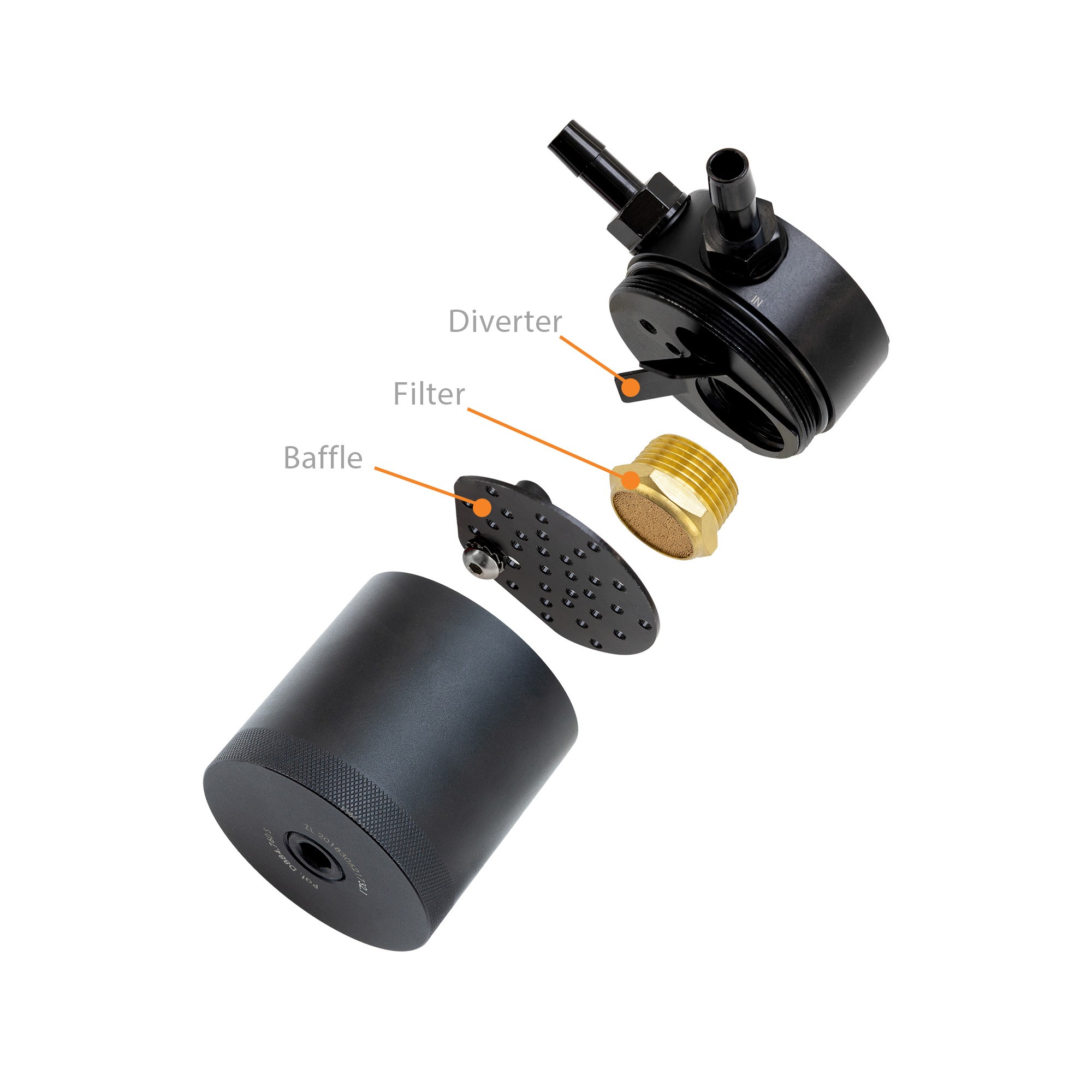

- Internal air diverter increases air turbulence to improve oil separation
- Helps maintain proper octane levels to reduce potential detonation
- 50-micron bronze filter removes carbon and particulate from the vapor stream

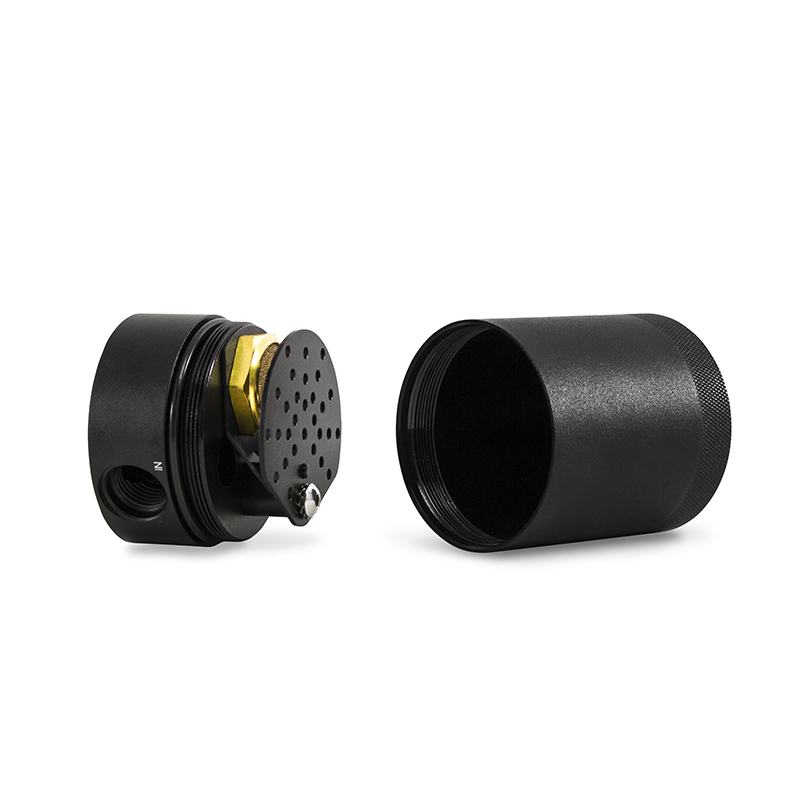

- Filters and can are fully serviceable, with a twist-off can and included drain plug
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Color: Black
- Finish: Anodized
- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Can Outside Diameter: 2.5 in
- Height: 3.7 in
- Maximum Can Capacity: 3 oz.
- Inlet Port Inside Diameter: 0.6 in
- Outlet Port Inside Diameter: 0.6 in
- Interior Baffle: Yes
- Hose Included: Yes
- Drain Plug Included: Yes
- Mounting Bracket Included: Yes
Frequently Asked Questions
Which Ford Ranger models does this catch can kit fit?
It is a direct fit for the 2019-2023 Ford Ranger Lariat, XL, and XLT, and the 2023 Ford Ranger Wildtrak, all with the 2.3L EcoBoost engine.
Does installation require cutting or drilling?
No, the kit uses direct-fit lines and a bracket that mounts securely without cutting or drilling.
What is the catch can’s capacity?
The catch can has a 3 oz. capacity, allowing for longer service intervals.
Are the filters and can serviceable?
Yes, the filters and can are fully serviceable, and the can uses a twist-off design with an included drain plug.
Do late-model Rangers install differently than earlier ones?
Yes, late 2021-2023 Rangers use different installation instructions than earlier 2019-2021 Rangers, so installers should follow the instructions matching their specific model year.
Is this kit covered by a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
