Description
The Mishimoto MMBCC-BR27-21P is a direct-fit baffled oil catch can kit engineered specifically for the 2021+ Ford Bronco’s second-generation 2.7L EcoBoost, an engine that combines port and direct injection for efficiency across the RPM range. Where the factory air-oil-separator simply drains blow-by back into the oil pan, this Mishimoto catch can intercepts it before it ever reaches the intake, using custom-molded hoses with Ford-specific quick-disconnect fittings for a clean, factory-style install.
Blow-by is one of the more overlooked threats to car engine parts: as it flows through the intake it coats sensors and the intercooler in a film of oil, carbon, and fuel, while the fuel and water it carries can thin engine oil and dilute its effectiveness. Any blow-by that finds its way back into the cylinder can also lower the effective octane of the fuel, which on a turbocharged engine like the 2.7L EcoBoost translates directly into lost power. By capturing that vapor before it fouls components of the automobile engine, the Mishimoto catch can helps keep parts of a car engine running cleaner, preserves octane for better combustion, and protects the engine oil that lubricates the engine inside your car.
Vehicle Applications
This kit is a direct fit for the 2021+ Ford Bronco equipped with the 2.7L EcoBoost. Coverage spans the Bronco Badlands and Outer Banks trims from 2021 through 2026, the Big Bend, Black Diamond, and Wildtrak trims from 2021 through 2024, the Base trim from 2021 through 2023, the First Edition for the 2021 model year, the Heritage Limited Edition for 2023–2024, the Heritage Edition for 2024–2026, and the Stroppe Edition for 2025–2026.
Features
- Direct fit for 2021+ Ford Bronco with 2.7L EcoBoost

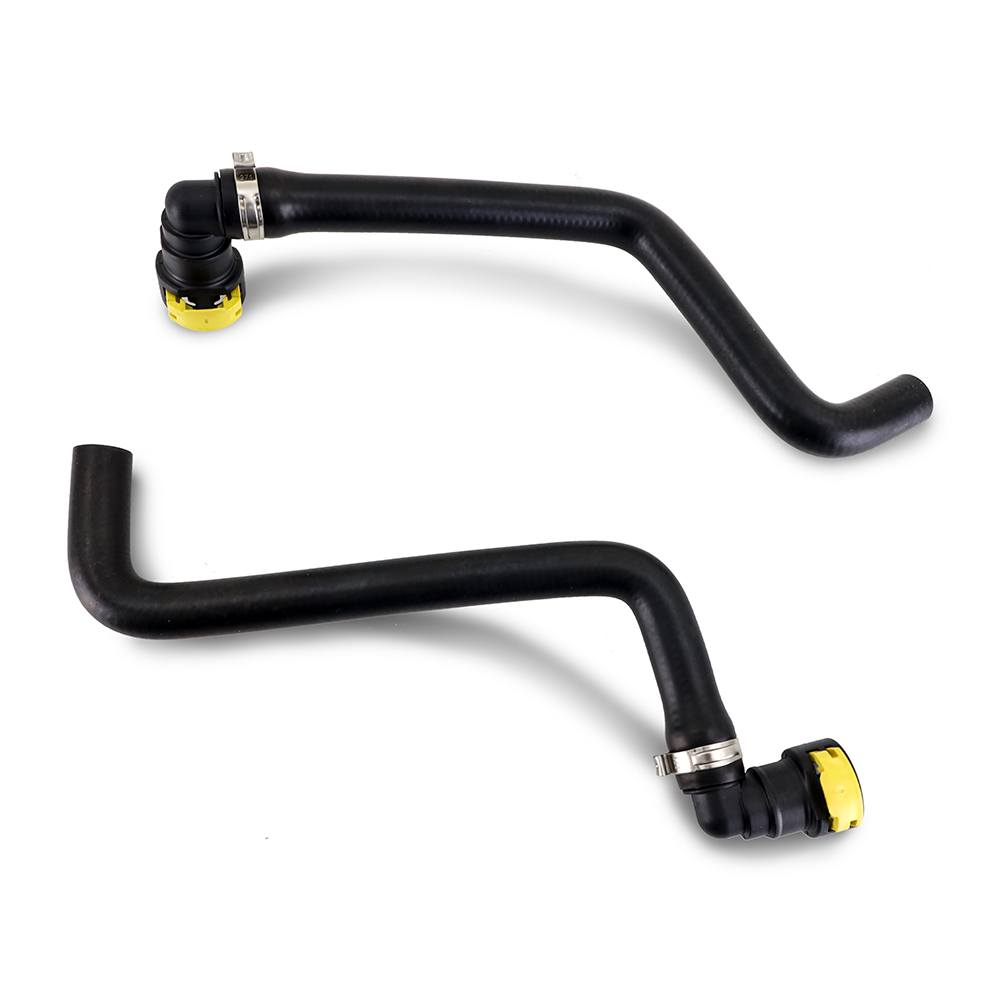

- Pre-installed factory-style quick-disconnect fittings for clean installation

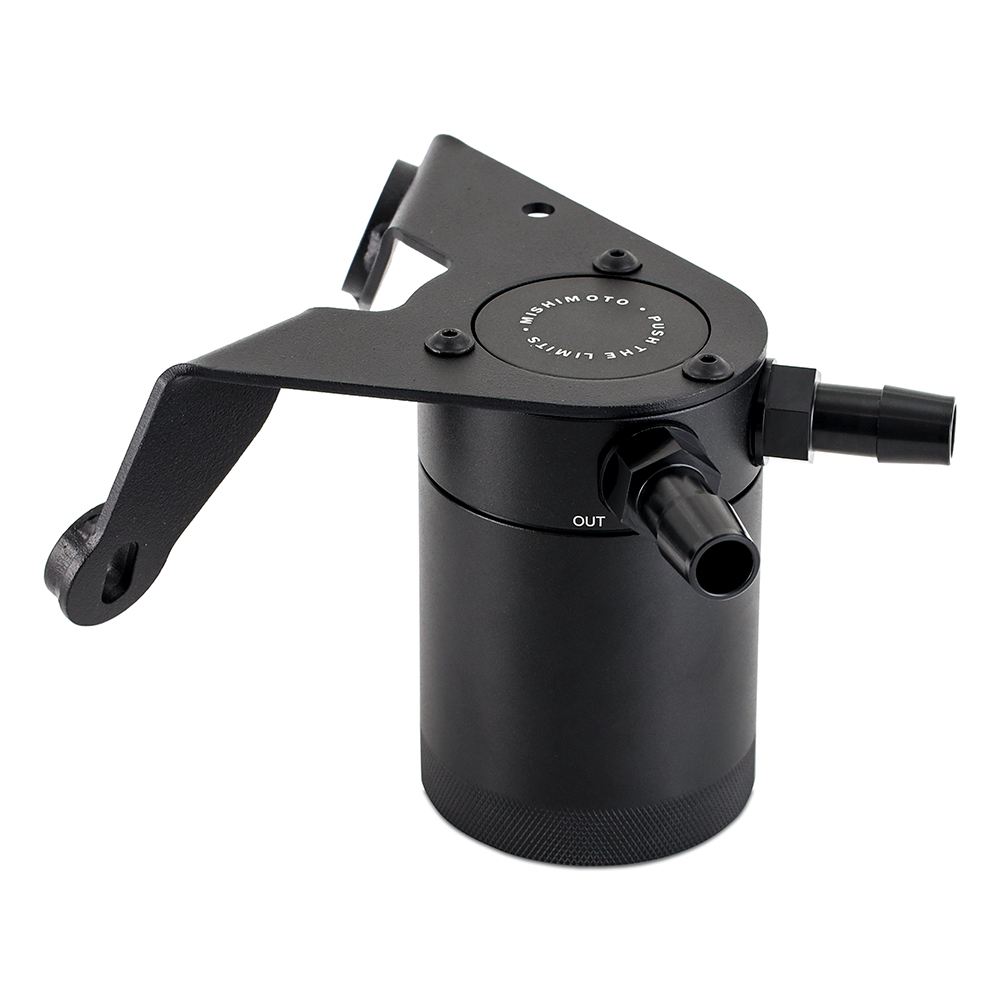

- Direct-fit bracket mounts the catch can away from engine vibration

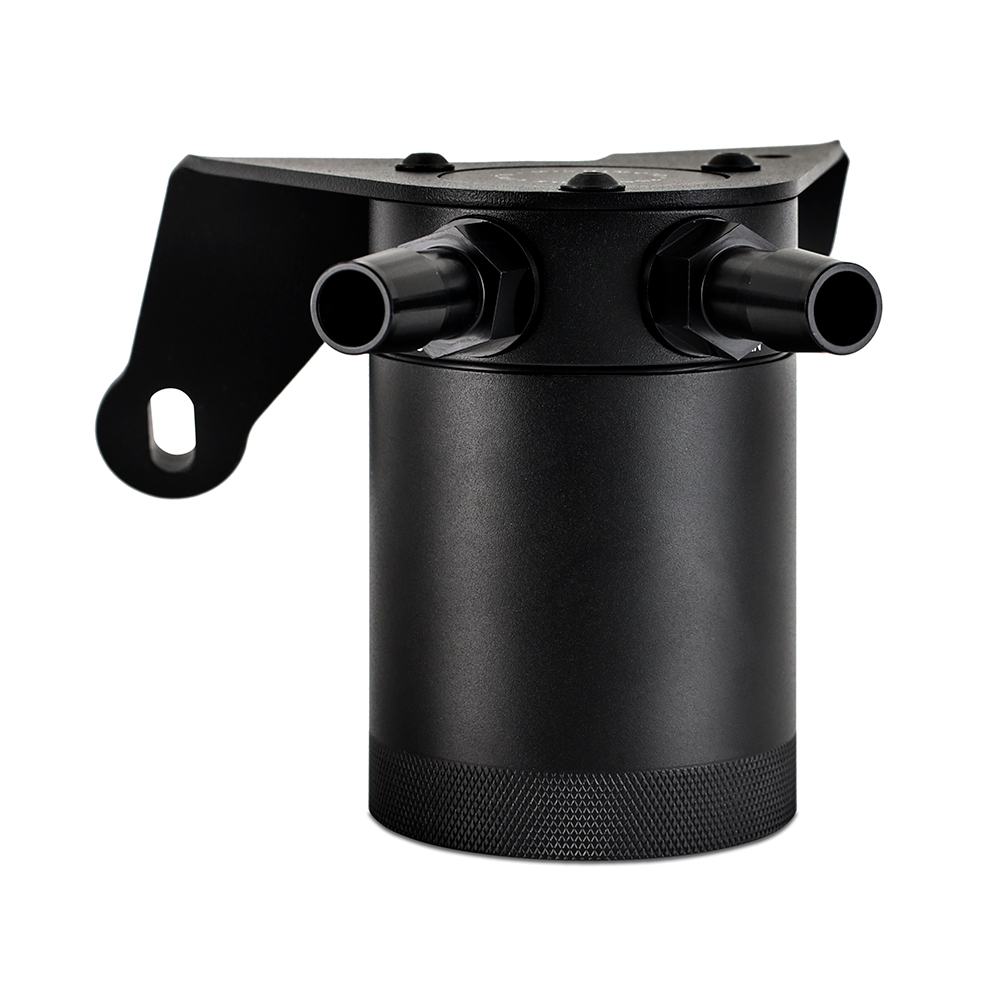

- Sturdy 2.5mm-thick steel brackets withstand rough roads and off-road abuse

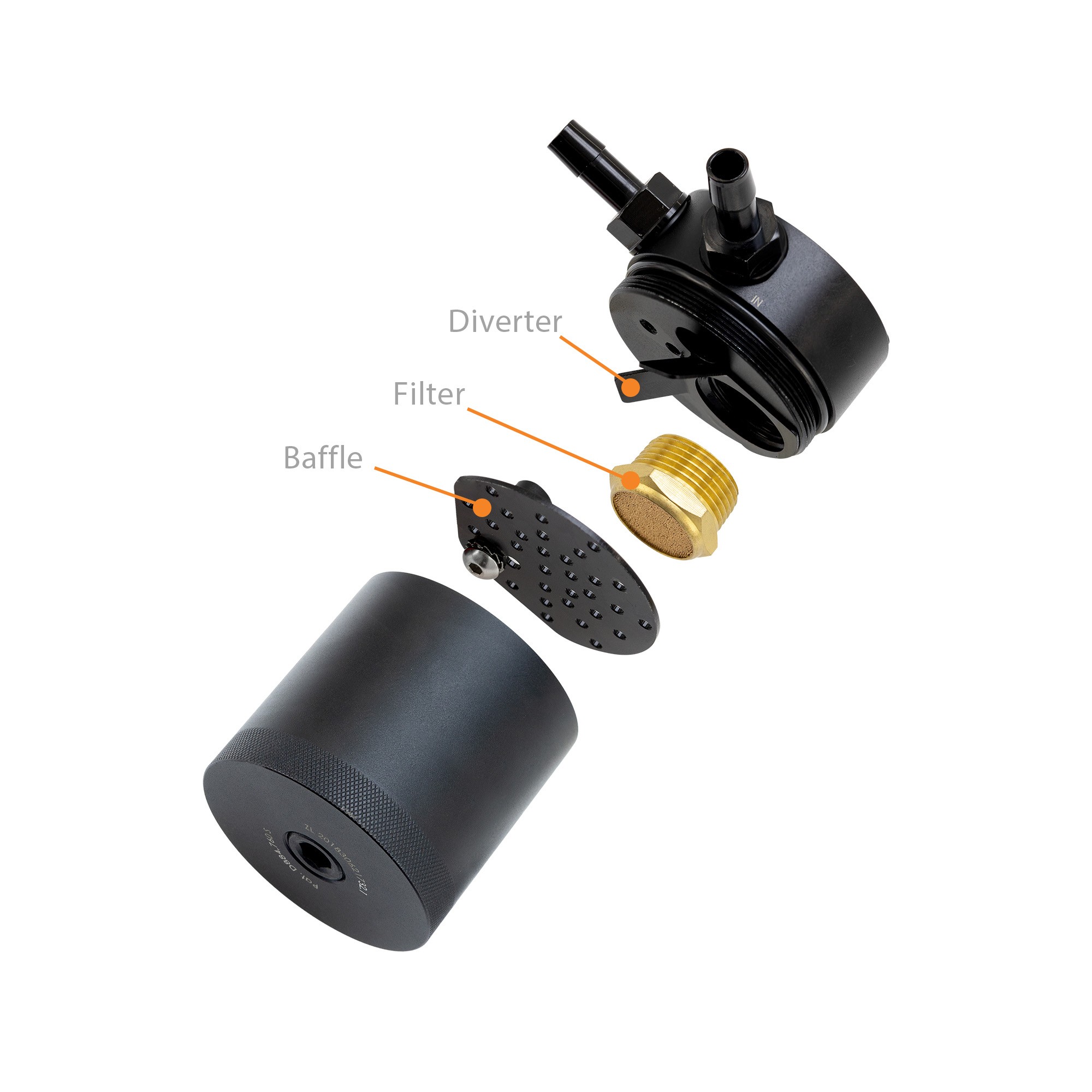

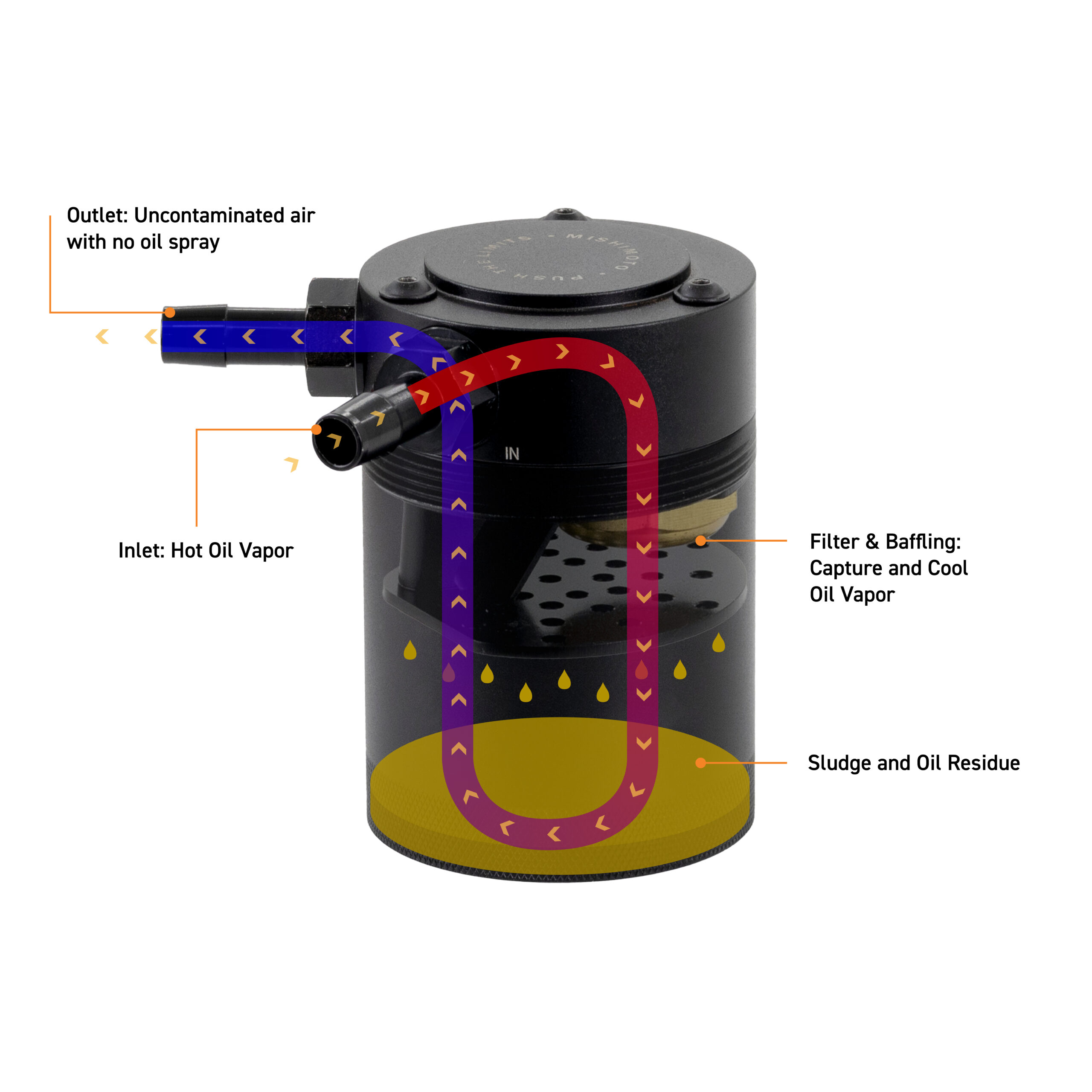

- Internal baffle and air turbulators help condense oil, fuel, and water vapor from blow-by

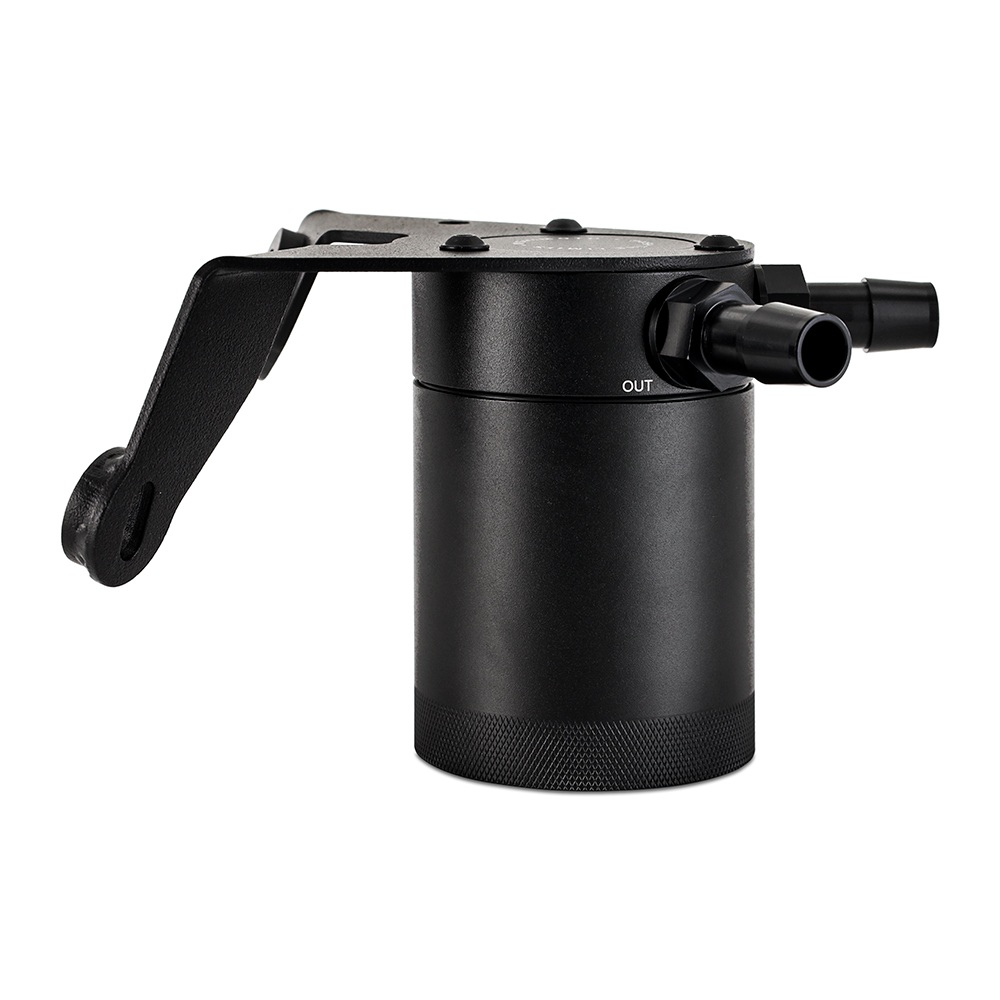

- 50-micron sintered bronze filter captures carbon particles
- Helps prevent fuel dilution and preserve octane rating
- Catch can captures blow-by, preventing it from fouling the engine oil

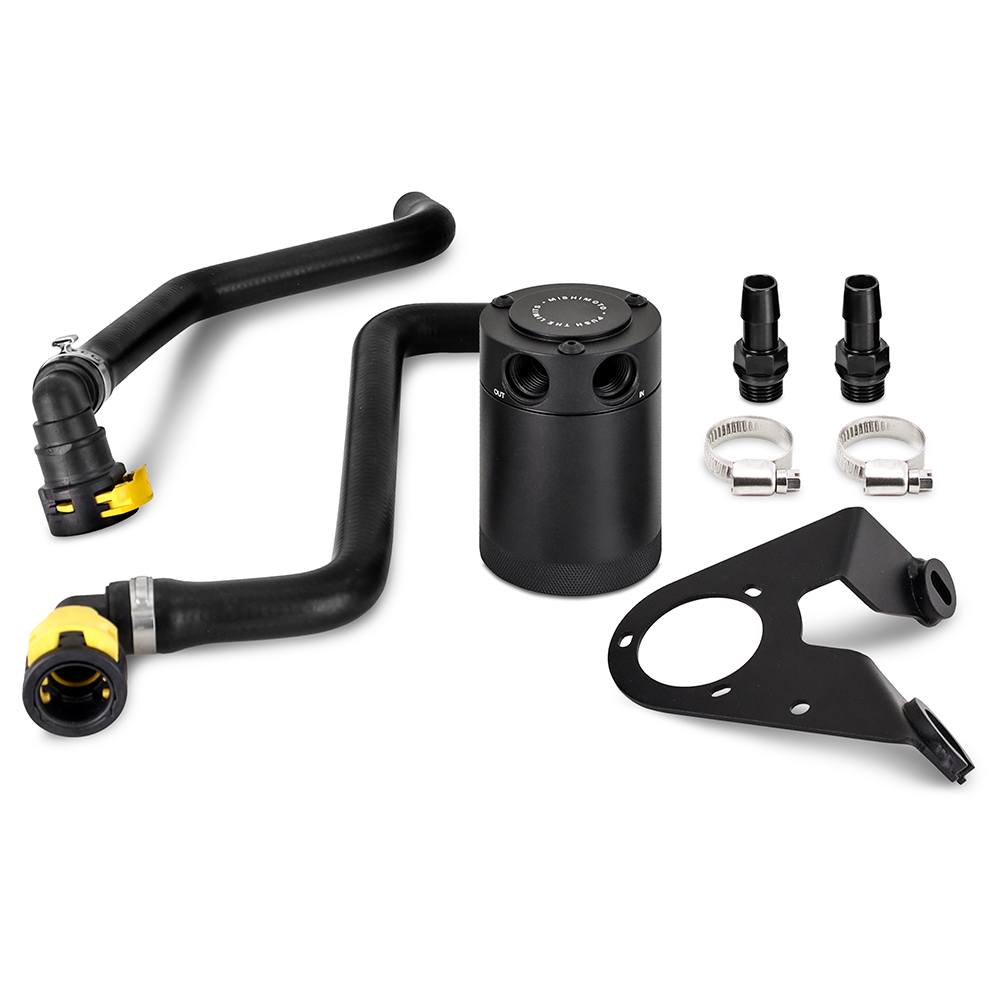

- Includes molded hoses specifically designed for the 2.7L EcoBoost PCV system
- Internal components can be easily cleaned and reused for a lifetime of service
- Patent No. US D884,760
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMBCC-BR27-21P
- Color: Black
- Finish: Anodized
- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Can Outside Diameter: 2.5 in
- Can Finish: Anodized
- Height: 3.7 in
- Inlet Port Inside Diameter: 0.6 in
- Outlet Port Inside Diameter: 0.6 in
- Interior Baffle: Yes
- Mounting Bracket Included: Yes
- Hose Included: Yes
- Drain Plug Included: Yes
Frequently Asked Questions
What vehicles does the Mishimoto MMBCC-BR27-21P catch can kit fit?
It is a direct fit for the 2021+ Ford Bronco 2.7L EcoBoost, covering the Badlands and Outer Banks (2021–2026), Big Bend, Black Diamond, and Wildtrak (2021–2024), Base (2021–2023), First Edition (2021), Heritage Limited Edition (2023–2024), Heritage Edition (2024–2026), and Stroppe Edition (2025–2026).
What does this catch can protect against?
It captures blow-by before it enters the intake, preventing the sludge of oil, carbon, and fuel that would otherwise coat sensors and the intercooler, while also helping prevent fuel dilution and preserving the fuel’s octane rating.
What is the catch can made of and how does it mount?
The can is made from 6061-T6 billet aluminum with an anodized finish and a twist-off design, and it mounts via a sturdy 2.5mm-thick steel bracket that keeps it away from engine vibration.
Does the kit include the hoses and hardware needed for installation?
Yes, it includes molded hoses with Ford-specific, pre-installed quick-disconnect fittings designed specifically for the 2.7L EcoBoost PCV system, along with a mounting bracket and drain plug.
How does the internal filtration work?
The catch can features an internal baffle and air turbulators that help condense oil, fuel, and water vapor from blow-by, plus a 50-micron sintered bronze filter that captures carbon particles.
Is this catch can reusable, and is it covered by a warranty?
Yes, the internal components can be easily cleaned and reused for a lifetime of service, and the kit is backed by the Mishimoto Lifetime Warranty.
