Description
The Mishimoto MMBCC-ACRD20-18PBERD is a direct-fit baffled oil catch can kit built specifically for the 2018-2022 Honda Accord 2.0T and its K20C4 engine. At the heart of the kit is Mishimoto’s patented (US D884,760 S) 3 oz. billet 6061 aluminum can, finished in red and sealed with Viton O-rings, that mounts in line with the factory PCV system to intercept oil and fuel vapor before it reaches the intake tract.

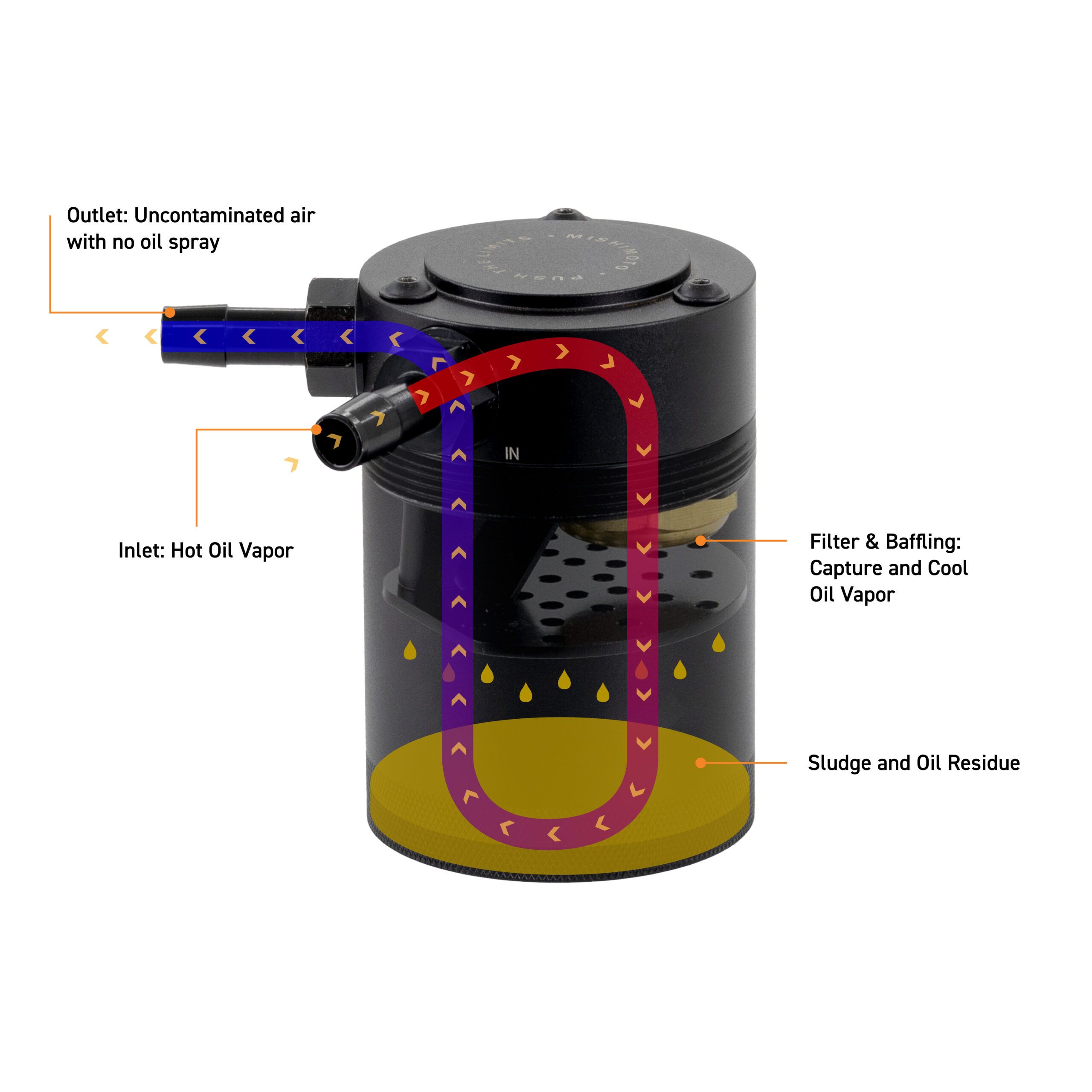

Blow-by is a fact of life for internal combustion engines, and the Accord’s 2.0T is no exception. As crankcase pressure pushes an oily fuel-and-oil mixture back through the intake system, it coats intake valves and top-end internals with carbon over time, chipping away at both performance and efficiency. This catch can kit addresses that problem directly: a single can with a 50-micron bronze filter and internal air diverter increases turbulence to improve oil separation, trapping oil and fuel vapor in the bottom of the can instead of letting it recirculate. An integrated check valve keeps boost pressure from reaching the can and crankcase, and by removing that murky mixture from the intake charge, the kit also helps maintain proper octane levels and reduces the potential for detonation. Both the filter and the can itself are fully serviceable, so upkeep is straightforward.
Vehicle Applications
This Mishimoto baffled oil catch can kit is a direct fit for the 2018-2022 Honda Accord 2.0T equipped with the K20C4 engine. No other years, makes, or models are covered by this kit.
Features
- Direct fit for the 2018-2022 Honda Accord 2.0T
- Single can mounts in line with the PCV system, using a 50-micron bronze filter to separate oil from air
- Helps reduce carbon build-up on intake valves
- Patented (US D884,760 S) billet 6061 aluminum sealed can, sealed with Viton O-rings
- Installs in under 30 minutes

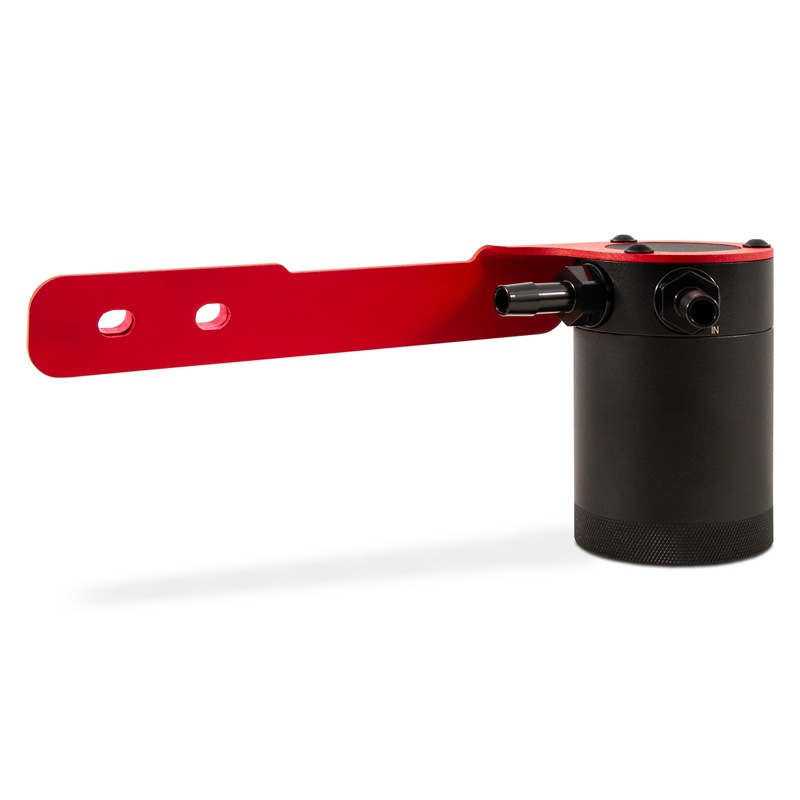

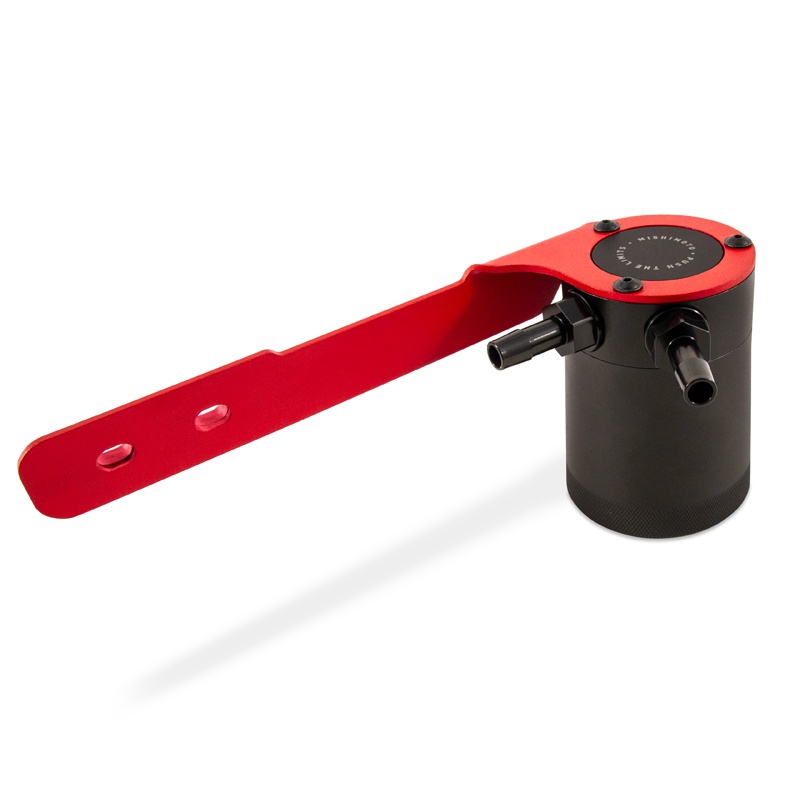

- Robust, application-specific mounting bracket available in wrinkle black or wrinkle red
- Includes pre-molded hoses for simplified installation

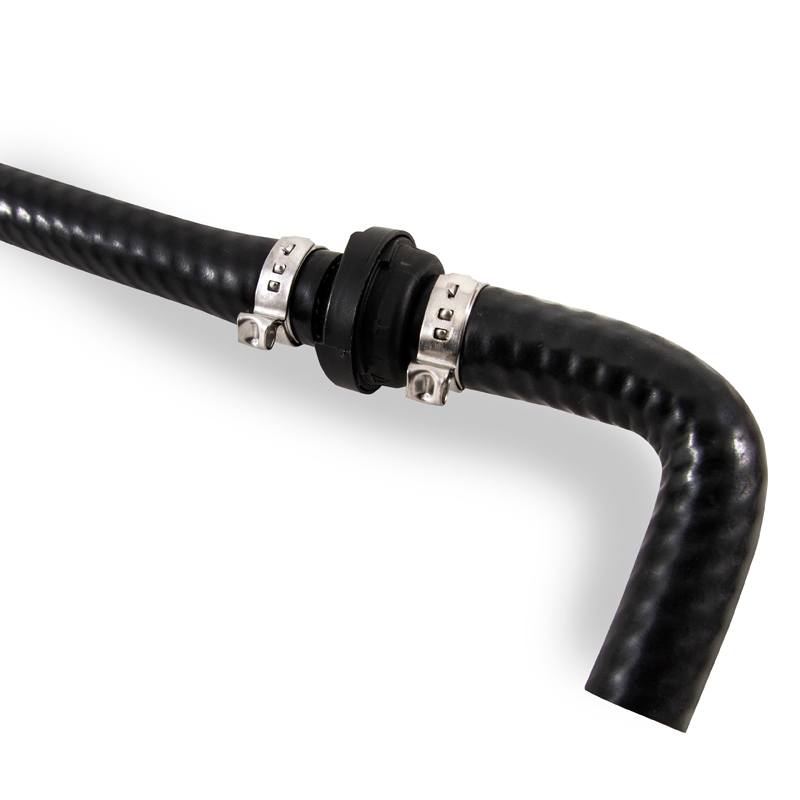

- Integrated check valve prevents leaks by keeping boost pressure from reaching the catch can and crankcase
- Defends the intake system and essential engine components from oil blow-by
- CNC-machined aluminum barbed fittings ensure a sturdy connection between lines and can
- 3 oz. capacity catch can for longer servicing intervals

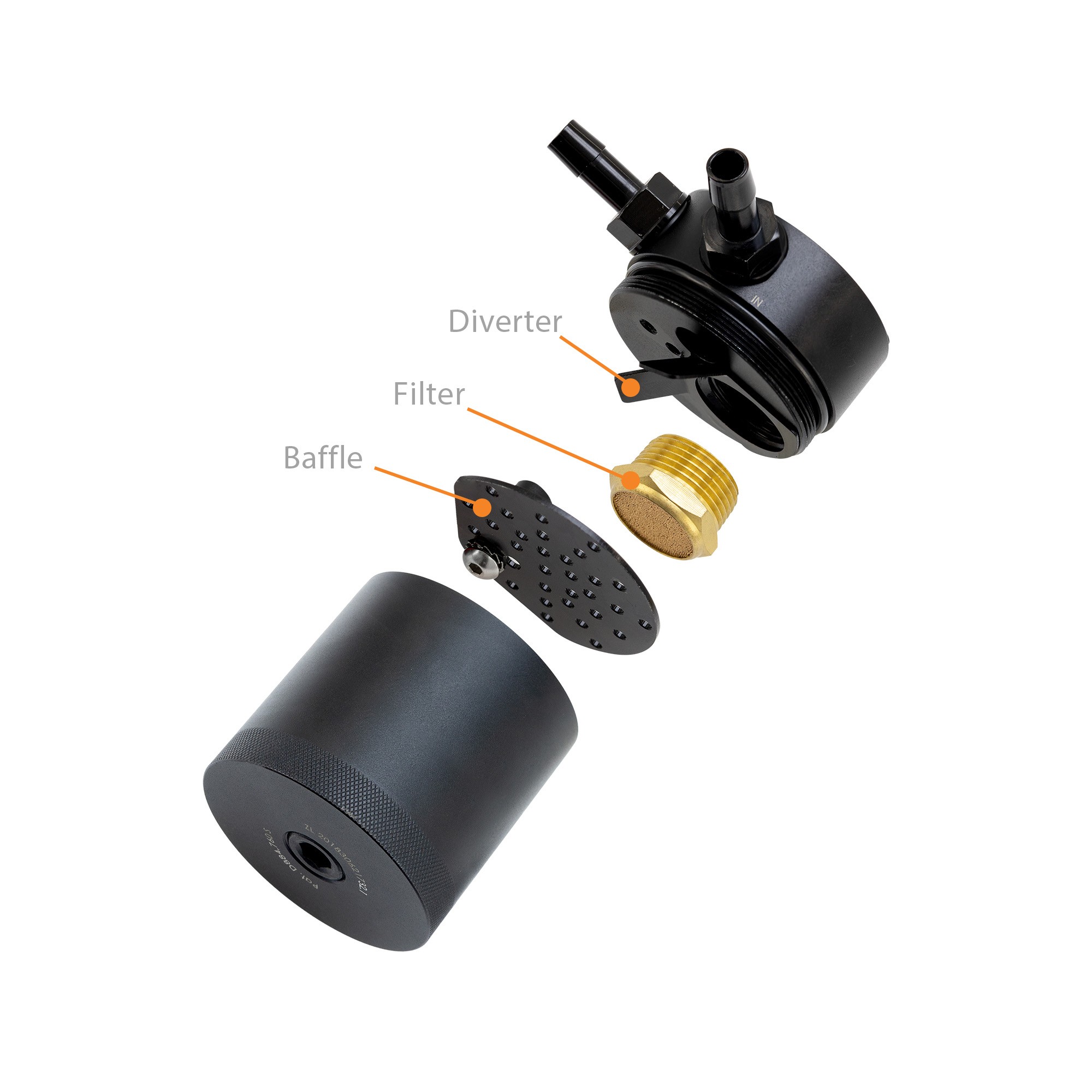

- Internal air diverter increases air turbulence to improve oil separation
- Helps maintain proper octane levels to reduce potential detonation

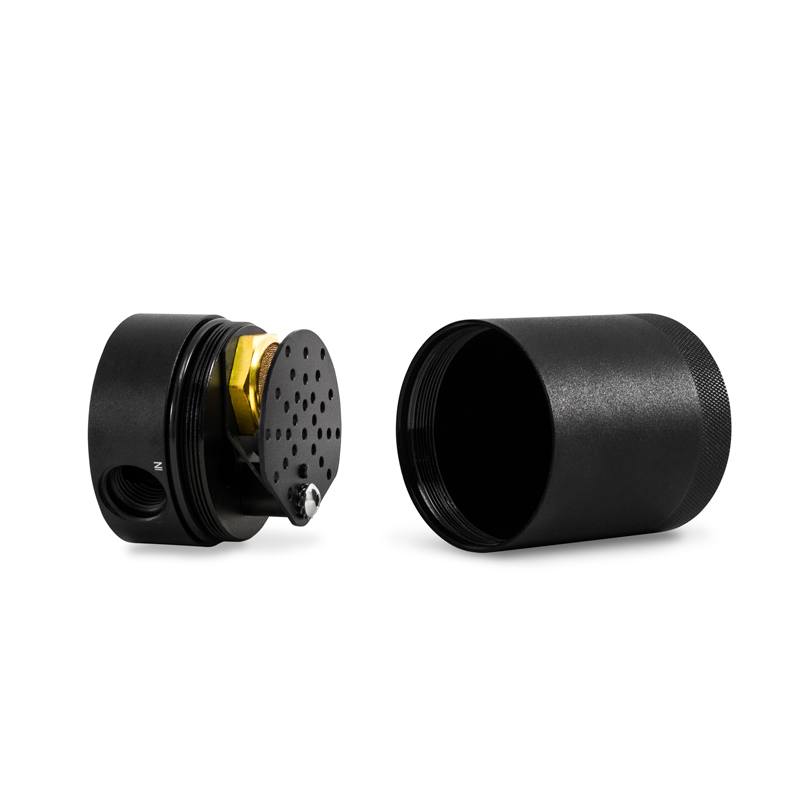

- Filter and can are fully serviceable
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMBCC-ACRD20-18PBERD
- Color: Red
- Finish: Anodized / Powder-Coat
- Material: 6061 Aluminum
- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Can Outside Diameter: 2.5 in
- Height: 3.7 in
- Maximum Can Capacity: 3 oz.
- Inlet Port Inside Diameter: 0.6 in
- Outlet Port Inside Diameter: 0.6 in
- Interior Baffle: Yes
- Drain Plug Included: Yes
- Hose Included: Yes
- Mounting Bracket Included: Yes
- Engine Code: K20C4

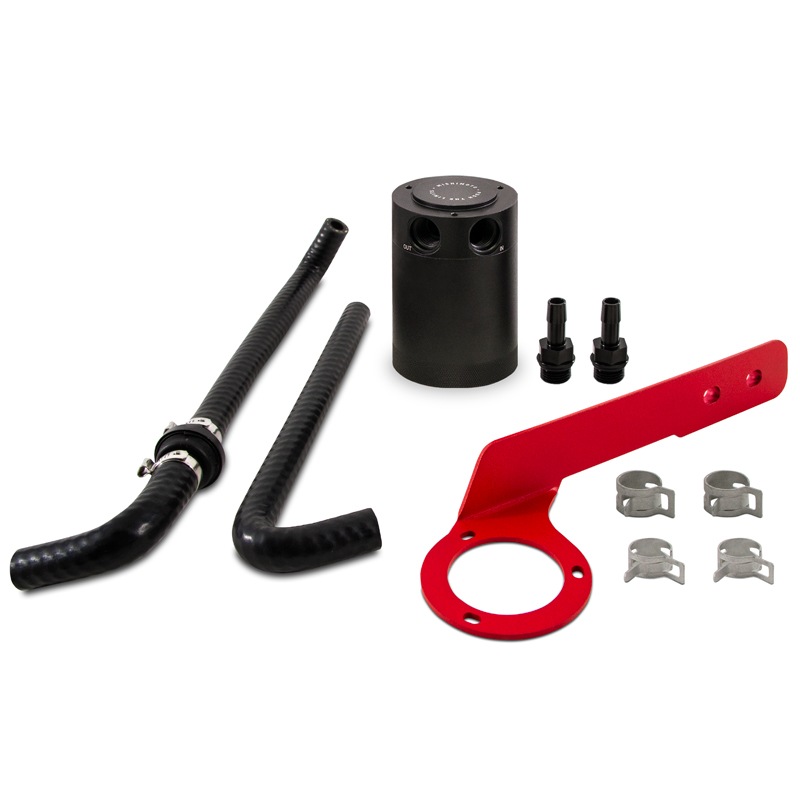

- Includes: (1) Compact Baffled Oil Catch Can, (1) Application-Specific Mounting Bracket, (2) Direct-Fit Hoses with Integrated Check Valve, (4) Spring Clamps, (2) 3/8-in Aluminum Barbed Fittings, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does this Mishimoto oil catch can kit fit?
This kit is a direct fit for the 2018-2022 Honda Accord 2.0T equipped with the K20C4 engine.
What is the capacity of the catch can?
The catch can has a maximum capacity of 3 oz.
What material is the catch can made from?
The can is machined from 6061-T6 billet aluminum with an anodized finish and sealed with Viton O-rings.
Is the mounting bracket included, and what colors are available?
Yes, an application-specific mounting bracket is included and is available in wrinkle black or wrinkle red.
How long does installation take?
Installation takes under 30 minutes.
What is included in the kit?
The kit includes one compact baffled oil catch can, one application-specific mounting bracket, two direct-fit hoses with an integrated check valve, four spring clamps, two 3/8-in aluminum barbed fittings, mounting hardware, and the Mishimoto Lifetime Warranty.
