Description

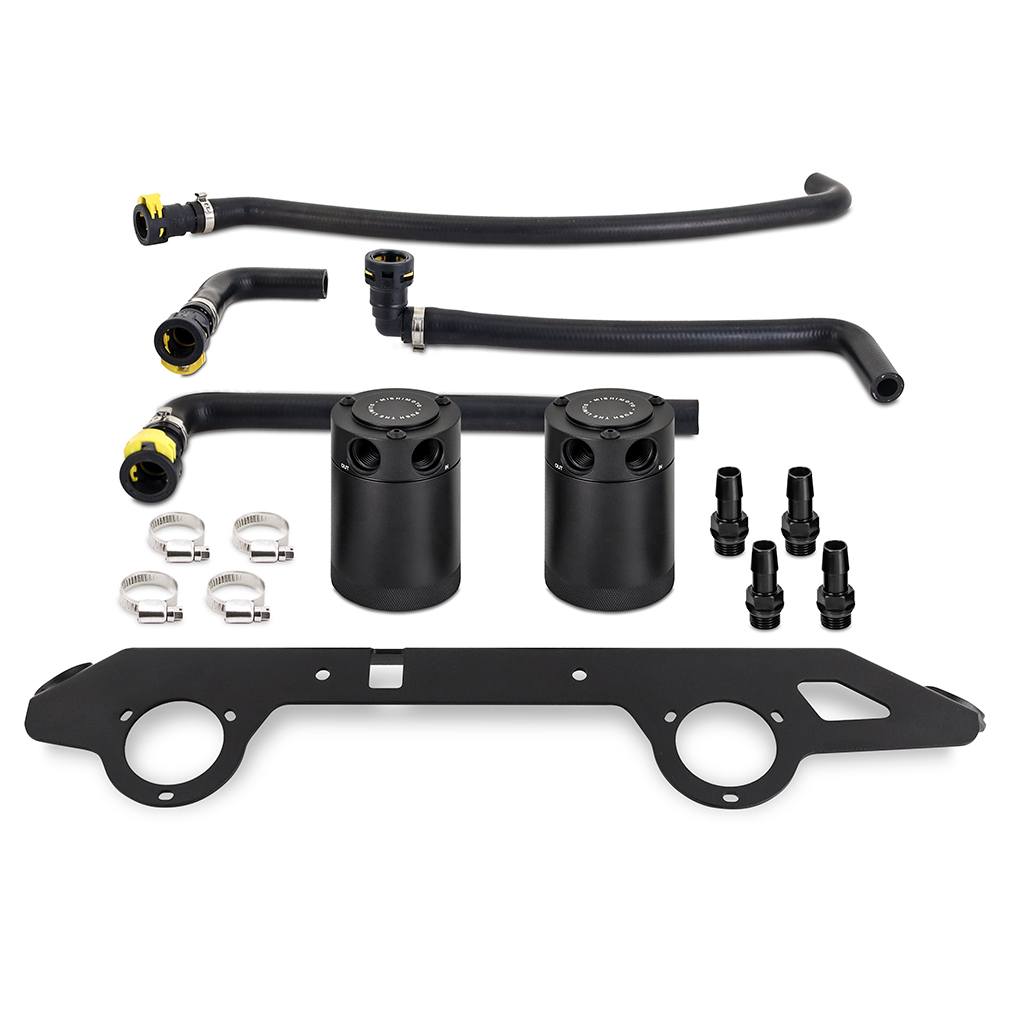

The Mishimoto Baffled Oil Catch Can System, part number MMBCC-BR27-21S, is a direct-fit dual-can oil catch can built specifically for the 2021-2022 Ford Bronco’s 2.7L EcoBoost engine. Unlike a generic catch can, this Mishimoto system separates and captures blow-by from both the PCV and CCV circuits at the same time, using twist-off 6061-T6 billet aluminum cans that mount to the Bronco’s engine bay with Ford-specific quick-disconnect fittings for a clean, factory-style install.
Blow-by is a natural byproduct of automobile combustion, and on the 2.7L EcoBoost’s second-generation port-and-direct-injection setup, unmanaged blow-by coats sensors and the intercooler in oil, carbon, and fuel while thinning engine oil and lowering the octane of incoming fuel. For anyone who cares about the parts of a car engine that keep performance consistent, this Mishimoto catch can system intercepts that vapor before it reaches the intake, helping preserve oil viscosity and fuel octane. It’s a practical upgrade for drivers researching engine components, car engine parts, or how the components of an automobile engine work together to protect long-term reliability, and every Mishimoto catch can captures oil, fuel, and water vapor before it can foul other engine parts.
Vehicle Applications
This Mishimoto catch can system is a direct fit for the 2021-2022 Ford Bronco Badlands, Base, Big Bend, Black Diamond, Outer Banks, and Wildtrak, all equipped with the 2.7L EcoBoost engine. It also fits the 2021 Ford Bronco First Edition. No modification is required thanks to the Ford-specific quick-disconnect fittings and molded hoses included with the kit.
Features
- Direct fit for 2021-2022 Ford Bronco models with the 2.7L EcoBoost engine
- Dual can system captures blow-by from both the PCV and CCV system
- Helps prevent fuel dilution and preserves octane rating
- Direct-fit bracket mounts the catch cans away from engine vibration

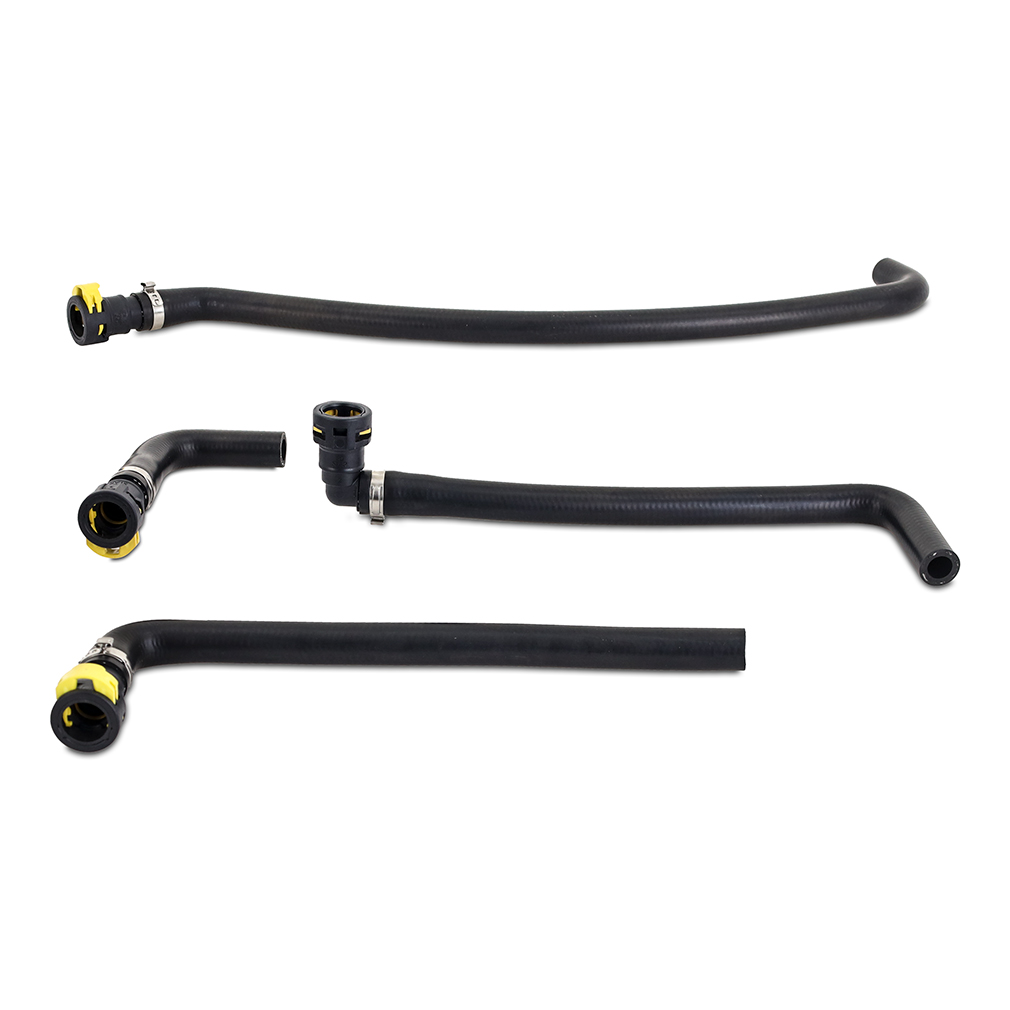

- Includes molded hoses specifically designed for the 2.7L EcoBoost
- Pre-installed factory-style quick-disconnect fittings for clean installation

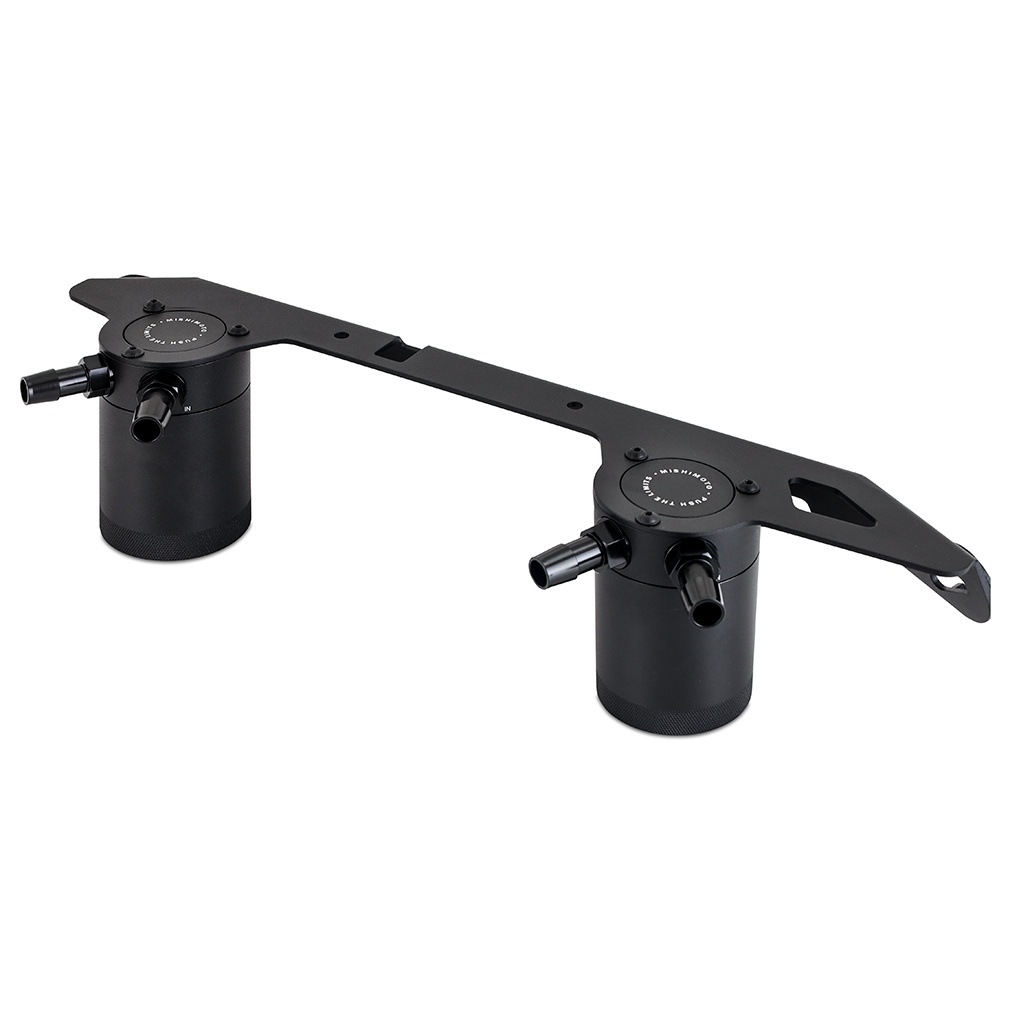

- Sturdy 2.5mm-thick steel bracket withstands rough roads and off-road abuse

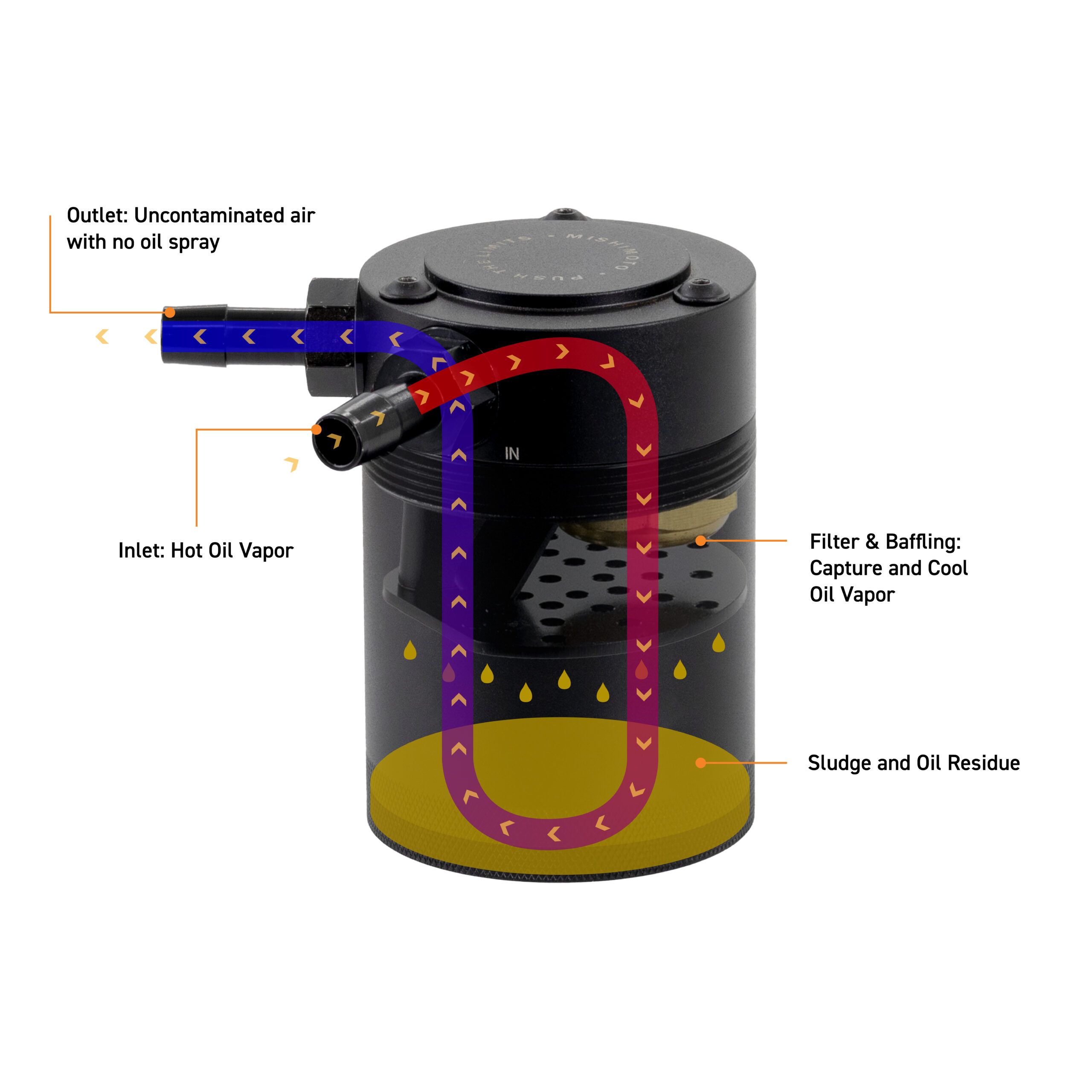

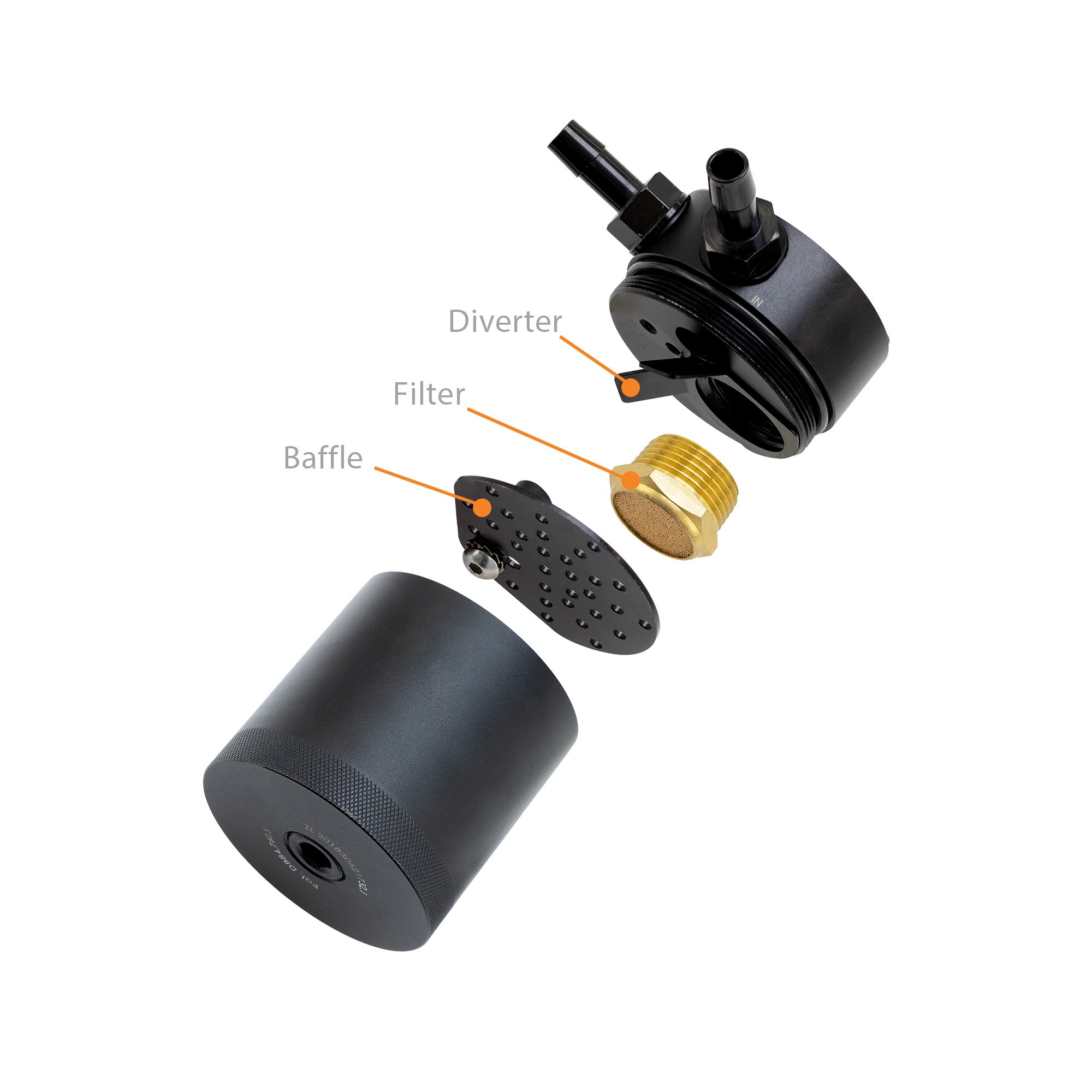

- Internal baffle and air turbulators help condense oil, fuel, and water vapor from blow-by
- 50-micron sintered silver filter captures carbon particles
- Internal components can be easily cleaned and reused for a lifetime of service
- Billet 6061 aluminum cans sealed with Viton O-rings
- Covered by Patent No. US D884,760
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMBCC-BR27-21S
- Color: Black
- Finish: Anodized
- Height: 3.7 in

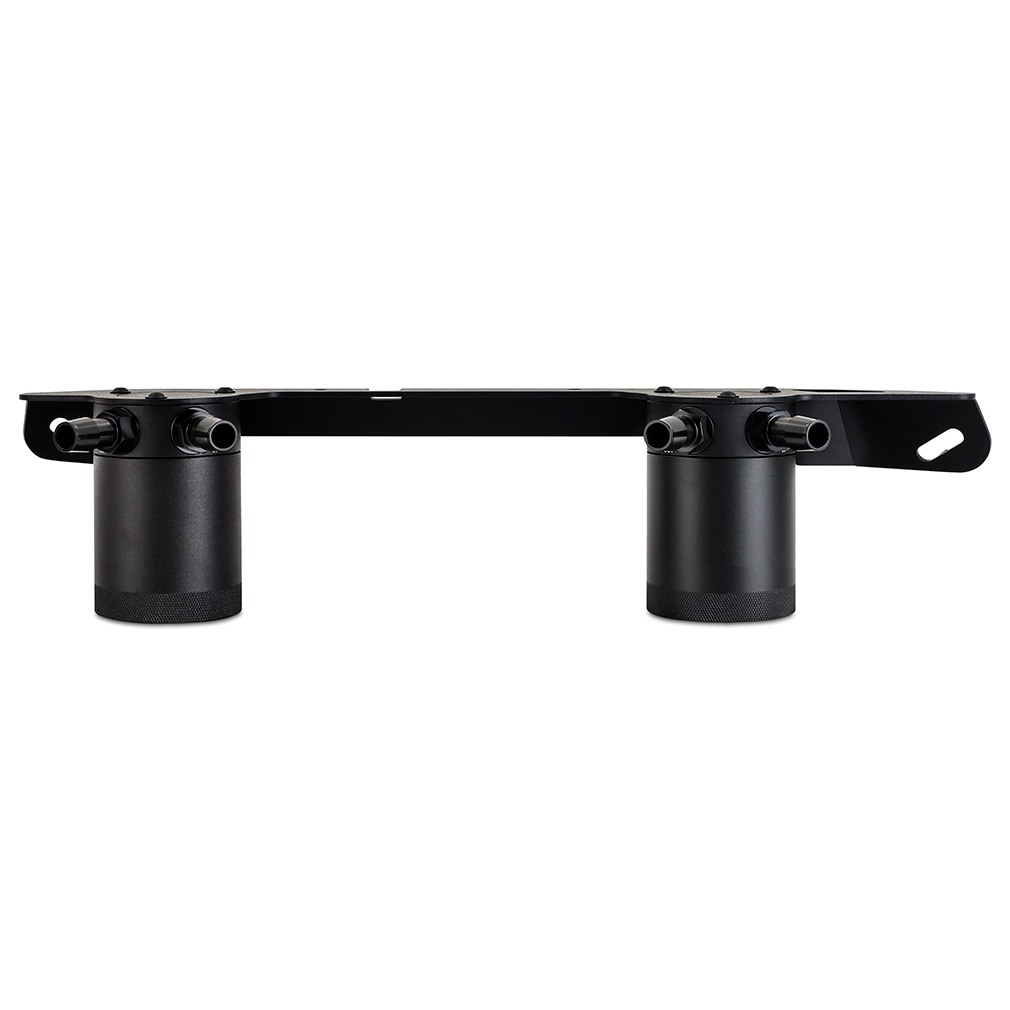

- Can Material: 6061-T6 Billet Aluminum

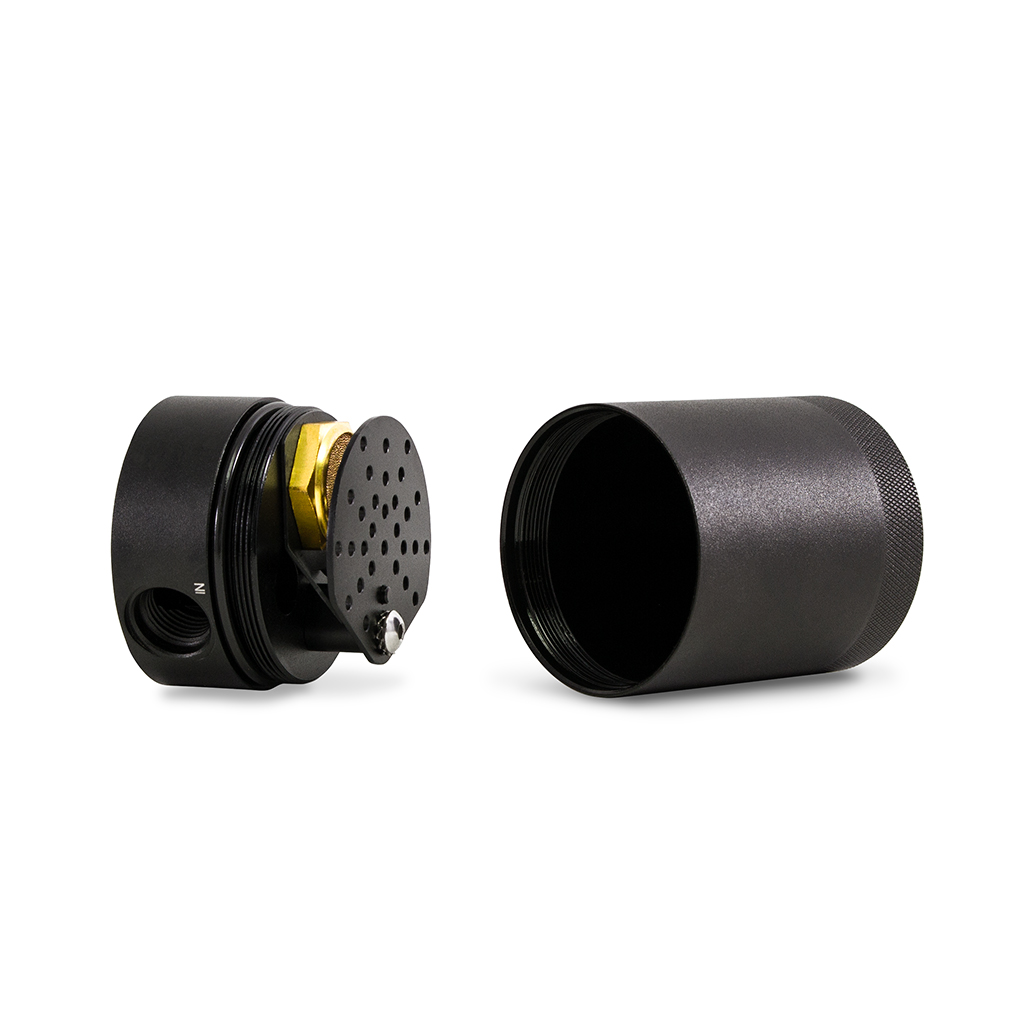

- Can Type: Twist Off
- Can Outside Diameter: 2.5 in
- Can Finish: Anodized
- Inlet Port Inside Diameter: 0.6 in
- Outlet Port Inside Diameter: 0.6 in
- Mounting Bracket Included: Yes
- Hose Included: Yes
- Drain Plug Included: Yes
- Interior Baffle: Yes
Frequently Asked Questions
What vehicles does the Mishimoto MMBCC-BR27-21S fit?
This catch can system is a direct fit for the 2021-2022 Ford Bronco Badlands, Base, Big Bend, Black Diamond, Outer Banks, and Wildtrak, plus the 2021 Ford Bronco First Edition, all with the 2.7L EcoBoost engine.
What does this catch can system capture?
It captures blow-by from both the PCV and CCV systems before it reaches the intake, using an internal baffle, air turbulators, and a 50-micron sintered silver filter that captures carbon particles.
What are the catch cans made of?
The cans are made from 6061-T6 billet aluminum with an anodized finish and use a twist-off design sealed with Viton O-rings.
Does the kit include mounting hardware and hoses?
Yes, the system includes a mounting bracket, molded hoses, and a drain plug, along with Ford-specific quick-disconnect fittings.
What is the mounting bracket made of?
The bracket is a sturdy 2.5mm-thick steel bracket designed to withstand rough roads and off-road abuse.
What warranty comes with this catch can system?
It is backed by the Mishimoto Lifetime Warranty.
