Description
The Mishimoto MMOC-WRX-01 Oil Cooler Kit is a direct-fit, front grille-mounted oil cooler engineered specifically for the Subaru WRX and STI platform. Built around a 10-row, bar-and-plate performance core, this Mishimoto oil cooler kit is designed to drop oil temperatures over 20 degrees while installing in as little as two hours thanks to application-specific mounting brackets and hardware.
As part of Mishimoto’s Cooling lineup, this oil cooler kit gives WRX and STI owners a straightforward way to manage oil temperatures whether the car sees daily street duty or track days. The silver anodized, bar-and-plate core is paired with -10AN male flare fittings for a secure connection, and Mishimoto backs the kit with the reported 2 psi pressure loss and a Lifetime Warranty. Buyers can choose between a sleek silver finish or a stealth black cooler, and a thermostatic option is also available for those who want additional temperature control.
Vehicle Applications
This Mishimoto oil cooler kit is a direct fit for the 2002-2005 Subaru Impreza WRX as well as the 2004-2005 Subaru Impreza WRX STI. Mishimoto designed the kit around this specific chassis and grille layout so the cooler mounts cleanly in the front grille for optimal airflow without major fabrication.
Features
- Provides a dramatic oil temperature drop, with Mishimoto citing reductions of over 20 degrees
- Only 2 psi of pressure loss through the system
- Direct fit for the Subaru WRX/STI application with roughly a two-hour install

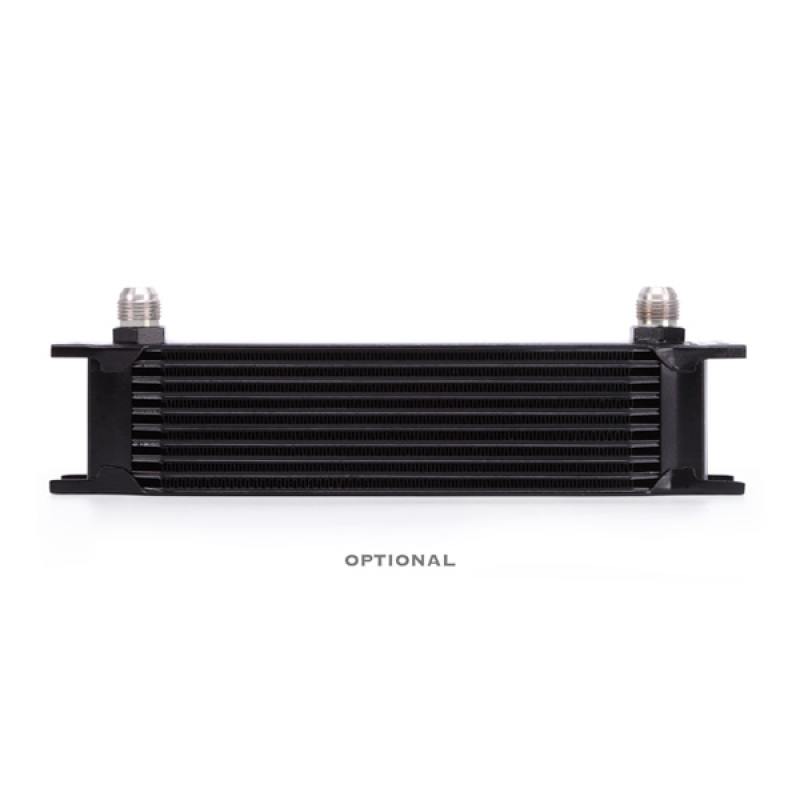

- Available in a sleek silver or stealth black cooler finish; a thermostatic option is also offered
- 10-row, bar-and-plate performance core construction with a silver anodized finish
- -10AN male flare inlet and outlet fittings
- Backed by a Mishimoto Lifetime Warranty

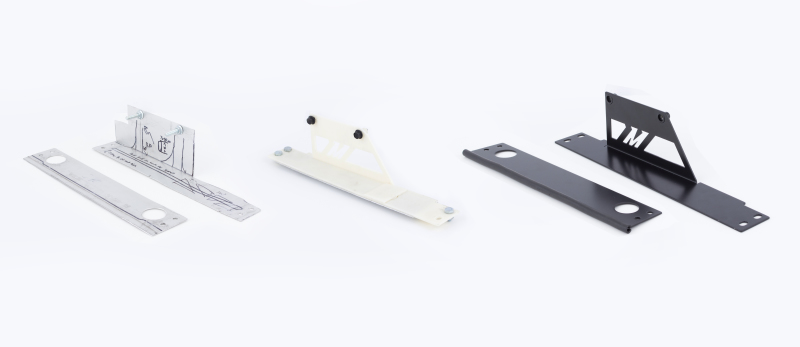

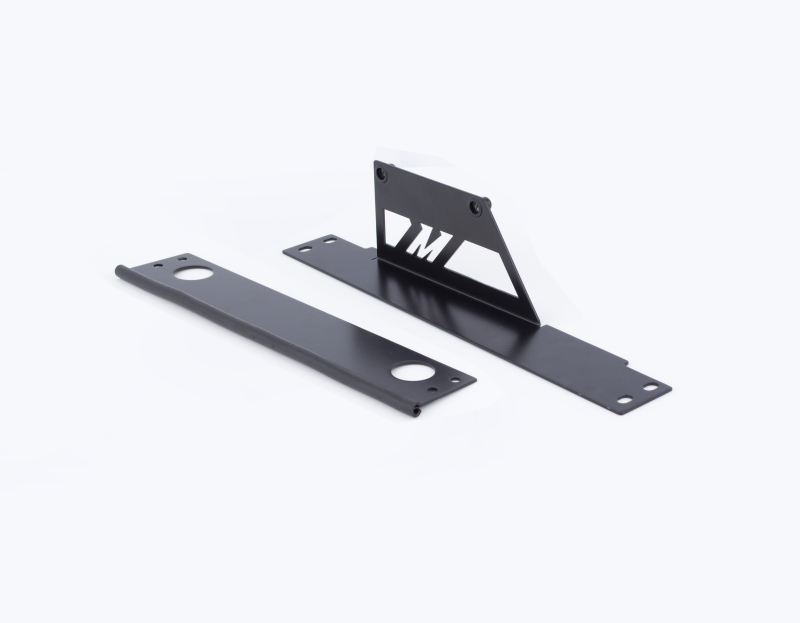

- Kit includes application-specific mounting brackets, a 3-ft and a 4-ft 4-in stainless steel braided hose with -10AN fittings, an oil sandwich plate, a stainless steel sandwich plate adapter (M20), a black banjo fitting with bolt (M20 x -10AN), a black rubber seal, and a mounting hardware set
Specifications
- Brand: Mishimoto
- Part Number: MMOC-WRX-01
- Product Type: Cooling / Oil Cooler Kit
- Color/Core Color: Silver
- Finish: Anodized
- Core Type: Bar-and-Plate
- Grade Type: Performance
- Core Height: 2.76 in
- Core Thickness: 1.97 in
- Core Width: 11 in
- Inlet Fitting Type: AN Flare, Male
- Outlet Fitting Type: AN Flare, Male
- Option Available: Silver Cooler, Non-Thermostatic
Installation notes: this kit requires trimming of the exhaust heat shield for proper installation and will not fit vehicles equipped with front mount intercoolers, though it fits both automatic and manual applications. Mishimoto recommends a torque specification of 15-25 lb-ft for all straight fittings and banjo bolts, not to exceed a maximum torque rating of 35 ft-lb, and advises checking all thermostat plugs, NPT plugs, and line fittings at regular intervals, especially during the first few miles after installation.
Frequently Asked Questions
What vehicles does the Mishimoto MMOC-WRX-01 oil cooler kit fit?
This Mishimoto oil cooler kit is a direct fit for the 2002-2005 Subaru Impreza WRX and the 2004-2005 Subaru Impreza WRX STI.
How much can this Mishimoto oil cooler lower oil temperatures?
Mishimoto states the oil cooler kit provides a dramatic temperature drop, dropping temperatures over 20 degrees.
How long does it take to install the Mishimoto oil cooler kit?
The kit is a direct fit designed for the Subaru WRX/STI and can be installed in as little as two hours.
What color options are available for this Mishimoto oil cooler?
The kit is available with either a sleek silver or a stealth black cooler; a thermostatic option is also available.

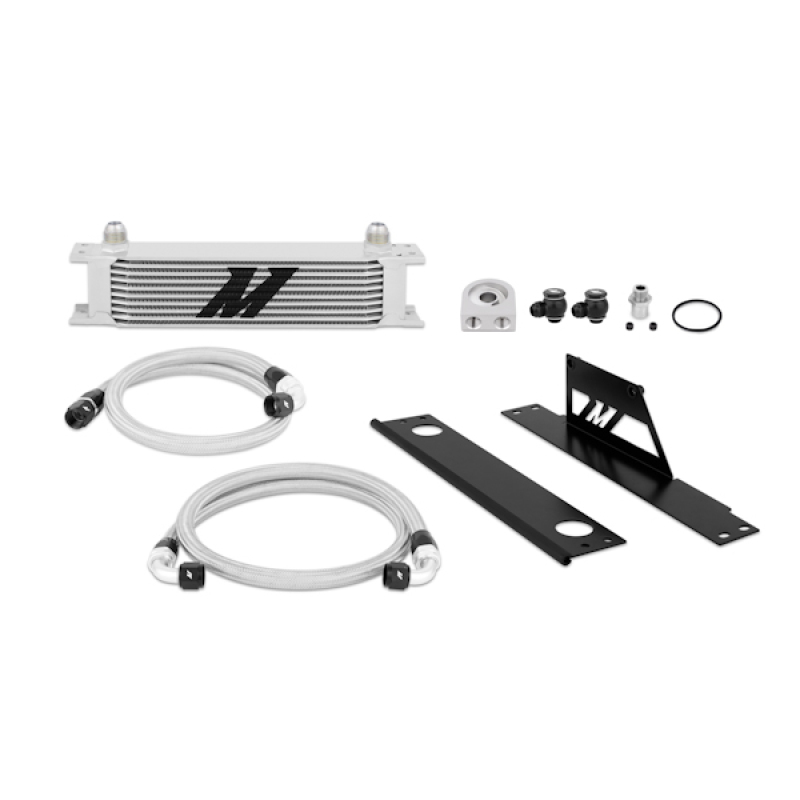

What is included with the Mishimoto MMOC-WRX-01 kit?
The kit includes application-specific mounting brackets, a 10-row oil cooler, a 3-ft and a 4-ft 4-in stainless steel braided hose with -10AN fittings, an oil sandwich plate, a stainless steel sandwich plate adapter (M20), a banjo fitting with bolt (M20 x -10AN, black), a black rubber seal, a mounting hardware set, and the Mishimoto Lifetime Warranty.
Are there any installation limitations for this oil cooler kit?
Yes, installation requires trimming of the exhaust heat shield, and the kit will not fit vehicles equipped with front mount intercoolers, though it fits both automatic and manual applications.
