Description
Mishimoto’s MMOC-EVO-08BK Oil Cooler Kit is a direct-fit, V-mounted dual oil cooler system engineered specifically for the Mitsubishi Lancer Evolution X, finished in a black anodized coating. Mounted behind the passenger side foglight, this Cooling kit pairs two 19-row bar-and-plate coolers run in series with a purpose-built splitter that channels air directly across the cores. Backed by a Mishimoto Lifetime Warranty, it’s built to help keep oil temperatures in check whether you’re commuting or running the car hard.
Running an Evo X hard on the street or at the track puts real stress on the factory oiling system, and this Mishimoto oil cooler kit is designed to address that. The dual-core layout maintains optimum oil temperatures without any drop in oil pressure, and because it adapts to the thermostatically controlled stock oil housing, the coolers work alongside the factory setup rather than replacing its logic. Mishimoto states the kit helps prevent the car from going into limp mode under aggressive street or track conditions. The mounting brackets are also engineered to double as ducting, directing incoming air straight to the cooler cores — a detail that sets this Cooling upgrade apart from a basic bolt-on cooler kit.
Vehicle Applications
This Mishimoto oil cooler kit is a direct-fit application built specifically for the Mitsubishi Lancer Evolution X platform, identified by chassis code CZ4A and engine code 4B11T. Coverage includes the 2008-2015 Lancer Evolution GSR and 2008-2015 Lancer Evolution MR, the 2010-2011 Lancer Evolution MR Touring, the 2009 Lancer Evolution RS, the 2010 Lancer Evolution SE, the 2014 Lancer Evolution, and the 2015 Lancer Evolution Final Edition. It also fits the 2009-2015 Lancer Ralliart and the 2010-2011 Lancer Ralliart Sportback.
Features
- Direct-fit application designed specifically for the Mitsubishi Lancer Evolution X

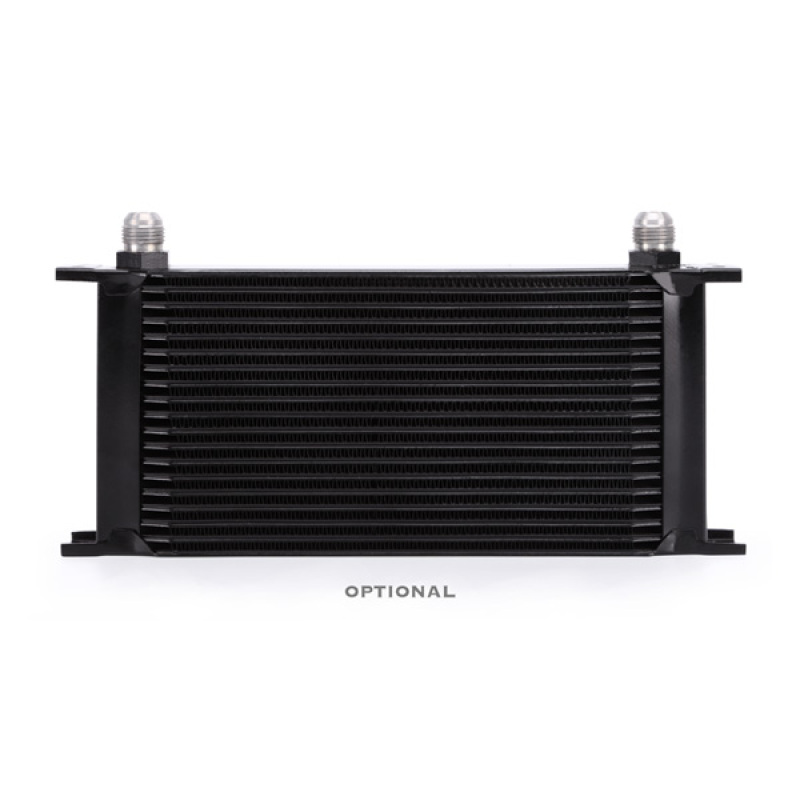

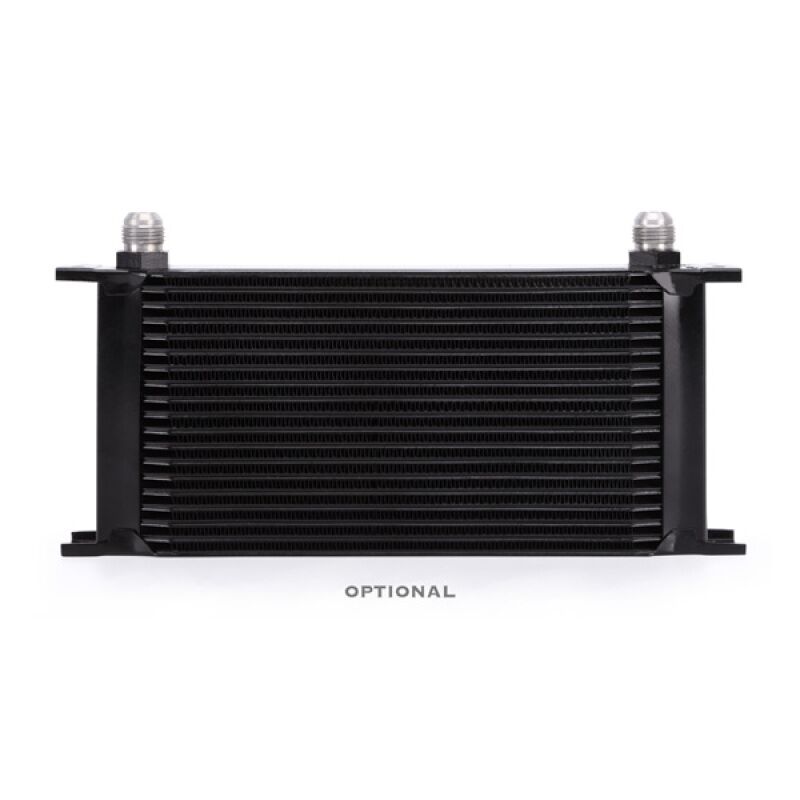

- Includes two 19-row oil coolers run in series for optimum cooling
- Specially engineered mounting brackets that also serve as ducting to channel air to the coolers
- Adapts to the thermostatically controlled stock oil housing
- Helps prevent the car from going into limp mode under aggressive street or track conditions
- Bar-and-plate core construction with a black anodized finish
- AN Flare male inlet and outlet fittings
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-EVO-08BK
- Product Type: Cooling
- Color: Black
- Finish: Anodized
- Core Type: Bar-and-Plate
- Core Color: Black
- Grade Type: Performance
- Core Row Quantity: 19
- Core Height: 5.43 in
- Core Thickness: 1.97 in
- Core Width: 11 in
- Inlet Fitting Type: AN Flare (Male)
- Outlet Fitting Type: AN Flare (Male)
- Engine Code: 4B11T
- Chassis Code: CZ4A
- Recommended Torque: 15-25 lb-ft for straight fittings and banjo bolts; do not exceed 35 ft-lb
Frequently Asked Questions
What vehicles does this Mishimoto oil cooler kit fit?
This kit is a direct-fit application for the Mitsubishi Lancer Evolution X, covering the 2008-2015 Lancer Evolution GSR and MR, 2010-2011 MR Touring, 2009 RS, 2010 SE, 2014 Lancer Evolution, 2015 Final Edition, 2009-2015 Ralliart, and 2010-2011 Ralliart Sportback.
Is this oil cooler kit available in colors other than black?
Yes, the kit is available with either silver or stealth black coolers; this listing (part number MMOC-EVO-08BK) is the black version.
What is included with the Mishimoto Evolution X Oil Cooler Kit?

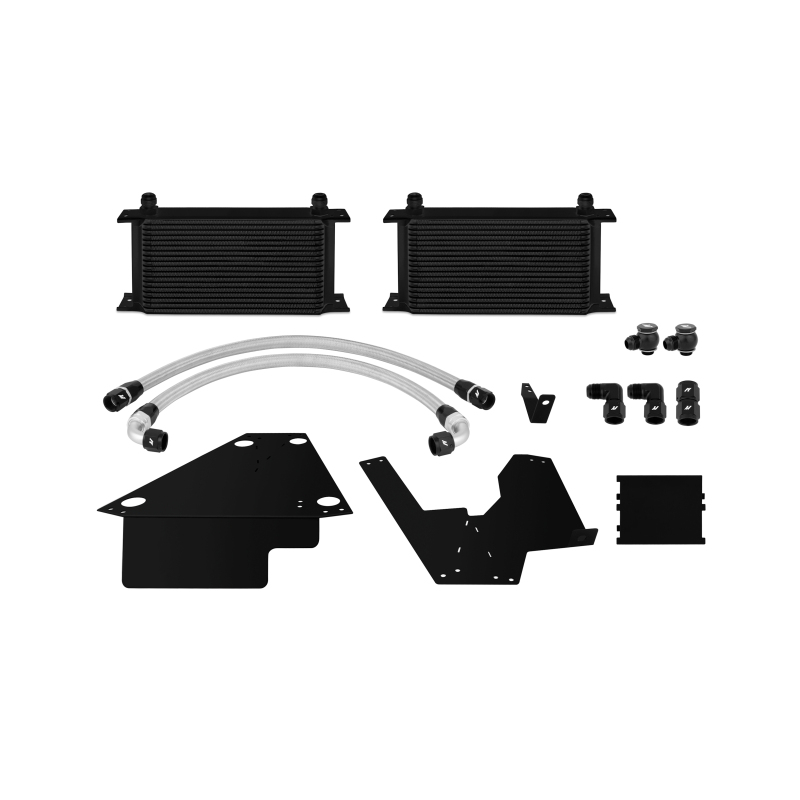

The kit includes application-specific mounting brackets, a 19-row oil cooler, a 2ft stainless steel braided hose with -10AN fittings, a 2ft 1.5in stainless steel braided hose with -10AN fittings, a 90-degree -10AN female-to-male swivel adapter, a straight -10AN female-to-female adapter, a black banjo fitting with M18 x -10AN bolt, a mounting hardware set, and the Mishimoto Lifetime Warranty.
Does this kit include a warranty?
Yes, it comes with the Mishimoto Lifetime Warranty.
What is the recommended torque for the fittings and banjo bolts?
Mishimoto recommends a torque of 15-25 lb-ft for all straight fittings and banjo bolts, and advises not to exceed a maximum torque rating of 35 ft-lb.
What engine and chassis codes does this kit support?
This kit is engineered for the 4B11T engine code and CZ4A chassis code used in the Mitsubishi Lancer Evolution X.
