Description
The Mishimoto MMOC-MUS-11TBK is a direct-fit oil cooler kit engineered specifically for the Coyote-powered Ford Mustang GT, pairing a 25-row stacked-plate cooler with a billet aluminum thermostatic sandwich plate. This Stealth Black finished kit is proven to reduce oil temperatures by 35°F while adding 0.75 qt of oil capacity, giving 5.0L Mustang owners real thermal margin on the street, at the drag strip, or on track.
Aggressive driving raises oil temperatures quickly, and elevated heat causes oil to lose viscosity, leading to inferior lubrication and premature engine wear. Mishimoto built this oil cooler kit as part of its Cooling lineup to combat that heat directly at the source. An application-specific mounting bracket attaches to the existing points on the front bumper support, positioning the Mishimoto oil cooler for maximum airflow and fluid temperature reduction. The billet aluminum thermostatic sandwich plate speeds oil warm-up and then maintains tighter oil temperature regulation once the engine is up to operating temperature, a benefit for both spirited street driving and repeated track sessions.
Vehicle Applications
This Mishimoto oil cooler kit is a direct fit for the 2011–2014 Ford Mustang GT equipped with the 5.0L Coyote engine on the S-197 chassis. Per Mishimoto, it does not fit Boss 302, Track Pack, or Shelby models.
Features
- Direct-fit for the 2011-2014 Ford Mustang 5.0L
- Reduces oil temperatures by 35°F
- Increases oil capacity by 0.75 qt

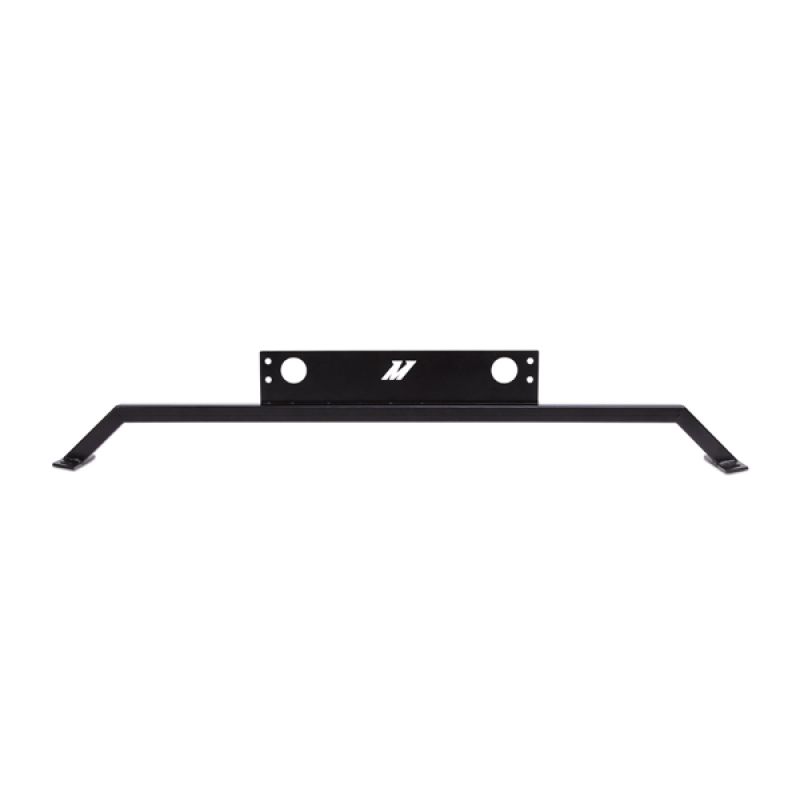

- Application-specific mounting bracket that mounts to existing points on the front bumper support

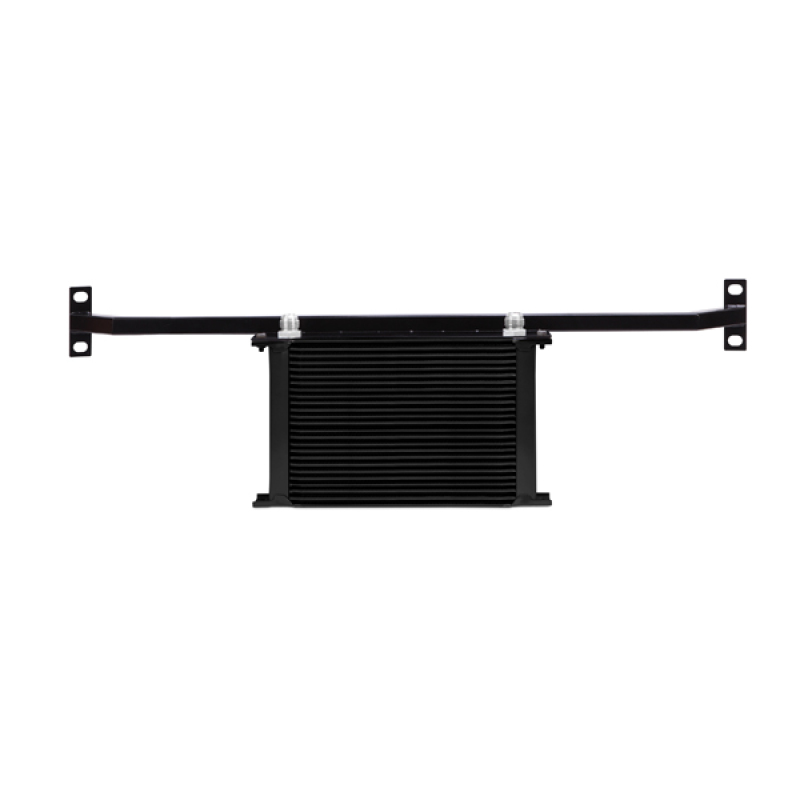

- 25-row stacked-plate oil cooler with bar-and-plate core construction for maximum airflow and fluid temperature reduction
- Preassembled stainless steel braided oil lines with durable -AN fittings, including a 3 ft 8 in hose and a 4 ft 7.5 in hose with -10AN fittings
- Billet aluminum thermostatic M22 sandwich plate for quicker oil warm-up and enhanced oil temperature regulation
- Anodized black finish
- Includes stainless steel sandwich plate adapter (M22 x 1.5), M20 x -10AN straight fittings, 1/8-in NPT plugs, a large O-ring, and a mounting hardware set
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-MUS-11TBK
- Color: Black
- Finish: Anodized
- Core Type: Bar-and-Plate
- Grade Type: Performance
- Core Rows: 25-row
- Core Height: 7.32 in
- Core Width: 11 in
- Core Thickness: 1.97 in
- Inlet Fitting Type: AN Flare, Male
- Outlet Fitting Type: AN Flare, Male
- Chassis Code: S-197
- Engine Code: 5.0L Coyote
- Applications: 2011-2014 Ford Mustang GT
- Installation torque: 15-25 lb-ft for all straight fittings and banjo bolts; do not exceed the maximum torque rating of 35 ft-lb
Frequently Asked Questions
What vehicles does this Mishimoto oil cooler kit fit?
This kit is a direct fit for 2011–2014 Ford Mustang GT models equipped with the 5.0L Coyote engine on the S-197 chassis. It does not fit Boss 302, Track Pack, or Shelby models.
How much does this kit reduce oil temperatures?
The Mishimoto oil cooler kit is proven to reduce oil temperatures by 35°F.
Does this kit increase oil capacity?
Yes, installing this kit increases oil capacity by 0.75 qt.
What’s included in the kit?

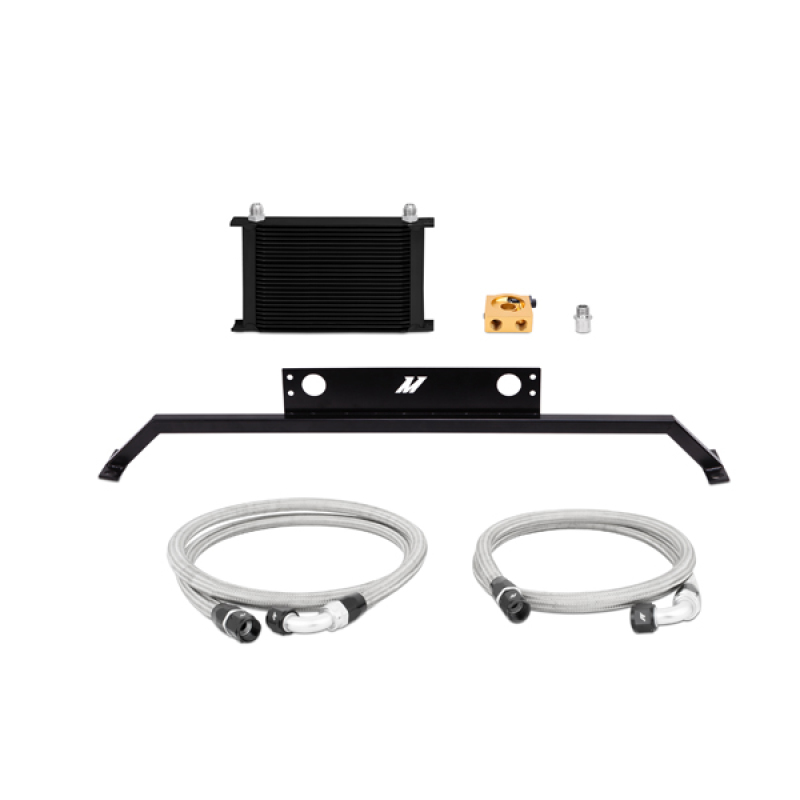

The kit includes an application-specific mounting bracket, a 25-row oil cooler, a 3 ft 8 in stainless steel braided hose with -10AN fittings, a 4 ft 7.5 in stainless steel braided hose with -10AN fittings, an M22 thermostatic sandwich plate, a stainless steel sandwich plate adapter (M22 x 1.5), M20 x -10AN straight fittings, 1/8-in NPT plugs, a large O-ring, a mounting hardware set, and the Mishimoto Lifetime Warranty.
What torque should I use when installing the fittings?
Mishimoto recommends a torque specification of 15-25 lb-ft for all straight fittings and banjo bolts, and states not to exceed the maximum torque rating of 35 ft-lb.
Is this cooler available in other colors?
Per Mishimoto, the cooler is available in either Sleek Silver or Stealth Black; this kit, MMOC-MUS-11TBK, is the Black version.
