Description
The Mishimoto Oil Cooler Kit (MMOC-MUS8-15T) is a purpose-built cooling solution engineered from scratch specifically for the 2015-2017 Ford Mustang GT. Billed by Mishimoto as the largest oil cooler the company offers, it’s mounted in the upper grille where it captures the most ambient airflow, and it’s available with either a Sleek Silver or Stealth Black bar-and-plate cooler paired with the Mishimoto Thermostatic Oil Sandwich Plate. This isn’t a generic universal cooler — it’s an application-specific kit built around the Mustang GT’s front-end packaging.
High oil temperatures from forced induction setups or repeated track sessions can accelerate engine wear, and this Mishimoto oil cooler kit addresses that head-on. The bar-and-plate core and application-specific braided stainless steel lines with -10AN fittings work together to move heat away from the oil efficiently, while the mounting bracket doubles as an air diversion panel that channels maximum airflow through the cooler. Because the kit removes the factory fluid-based oil cooler, it also reduces the load on the engine’s coolant system, and the included Thermostatic Oil Sandwich Plate helps regulate oil temperature during operation. It’s a complete Mishimoto cooling upgrade designed for enthusiasts who push their Mustang GT hard, on the street or at the track.
Vehicle Applications
This oil cooler kit is a direct fit for left-hand drive 2015-2017 Ford Mustang GT and Ford Mustang GT Premium models. It also covers the 2015 Ford Mustang GT 50 Years Limited Edition, the 2016 Ford Mustang Base, and the 2017 Ford Mustang V8. Per Mishimoto’s application data, the kit is engineered around the 5.0 Coyote engine code and the S-550 chassis, and it fits most aftermarket supercharger kits for owners running forced induction.
Features
- Direct fit for the 2015-2017 Ford Mustang GT (LHD)
- Innovative bar-and-plate oil cooler mounts in the upper grille, allowing more room for supercharger heat exchangers
- Mounting bracket also serves as an air diversion panel, directing the maximum amount of ambient air through the oil cooler
- Pre-made stainless steel braided oil lines with durable -AN fittings

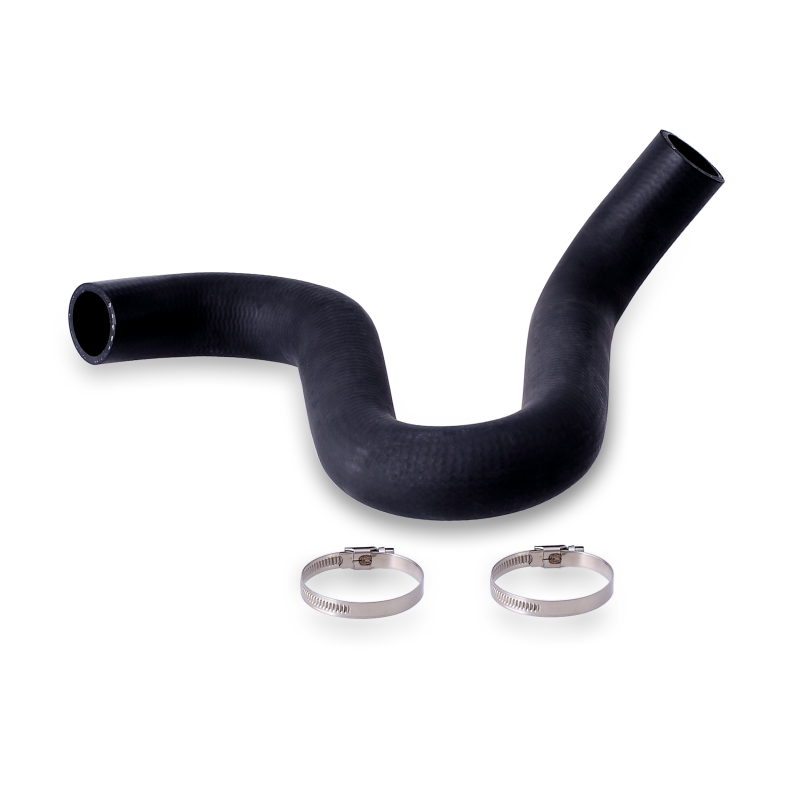

- Comes with replacement lower radiator hose to bypass the stock fluid-based oil cooler
- Removes the stock fluid-based oil cooler for less stress on the engine’s cooling system

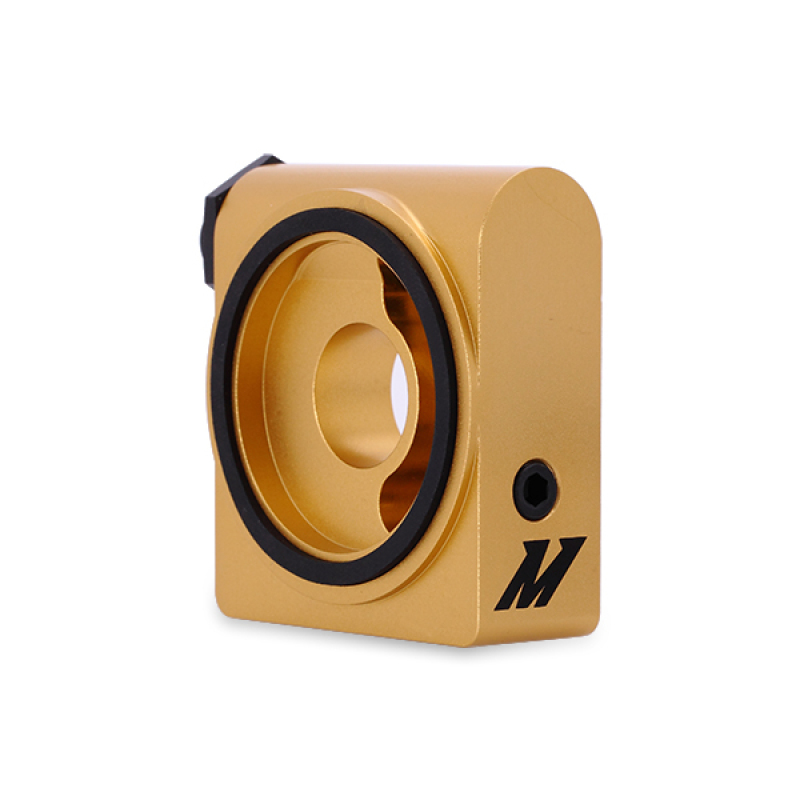

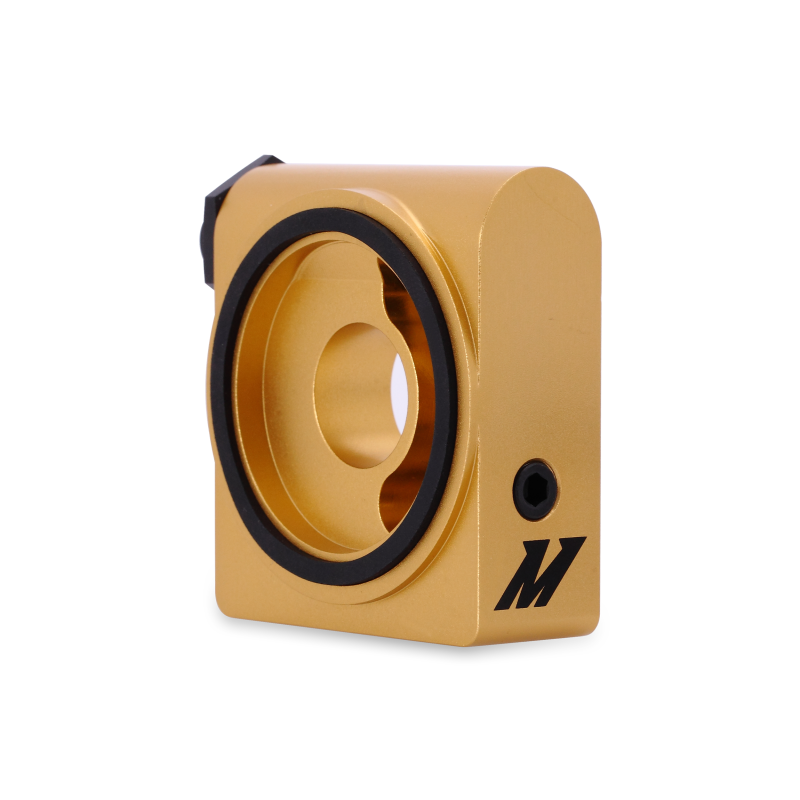

- Billet aluminum thermostatic oil sandwich plate
- Increases oil capacity by 1qt
- Fits with most aftermarket supercharger kits
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Type: Bar-and-Plate
- Grade Type: Performance
- Finish: Anodized
- Core Color: Silver
- Inlet Fitting Type: AN Flare, Male, -10AN
- Outlet Fitting Type: AN Flare, Male, -10AN
- Inlet/Outlet Outside Diameter: 0.625 in each
- Overall Width: 10.5 in
- Overall Length: 31.7 in
- Core Width: 18.5 in
- Engine Code: 5.0 Coyote
- Chassis Code: S-550
- Recommended torque for straight fittings and banjo bolts: 15-25 lb-ft (do not exceed 35 ft-lb)

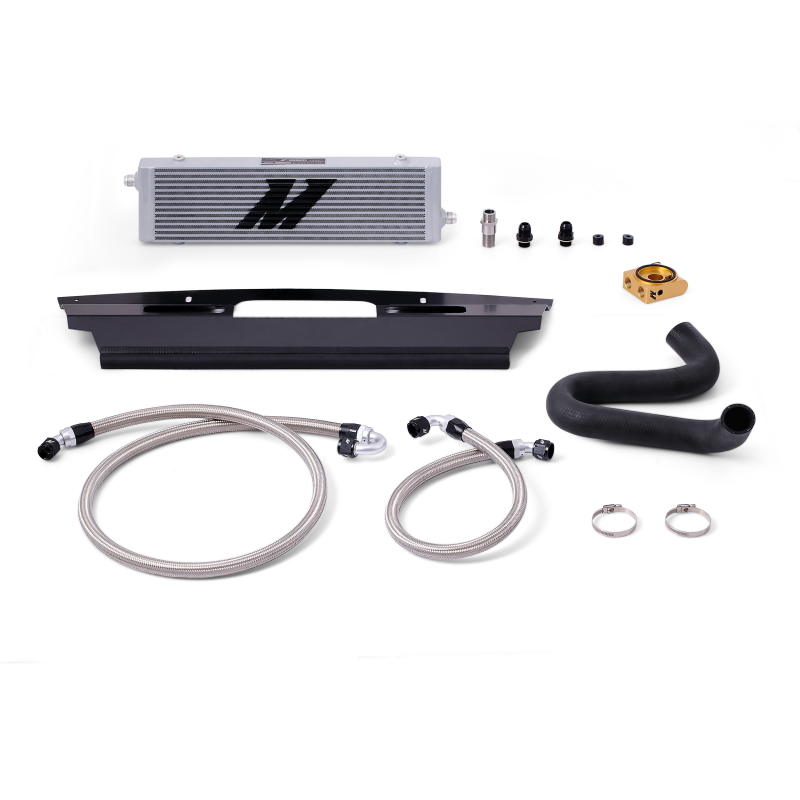

- Kit Includes: application-specific mounting bracket/air diversion shield, bar-and-plate oil cooler, 2ft 5in stainless steel braided hose with -10AN fittings, 4ft 11in stainless steel braided hose with -10AN fittings, M22 thermostatic sandwich plate, application-specific M22 x 1.5 extended length center bolt, M20 x -10AN straight fittings, 1/8-in NPT plugs, large O-ring, lower radiator hose with worm gear clamps, mounting hardware set, and Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does this Mishimoto oil cooler kit fit?
It is a direct fit for left-hand drive 2015-2017 Ford Mustang GT and Ford Mustang GT Premium models, the 2015 Ford Mustang GT 50 Years Limited Edition, the 2016 Ford Mustang Base, and the 2017 Ford Mustang V8.
What color options are available for this oil cooler?
The kit is available with either a Sleek Silver or Stealth Black oil cooler, both paired with the Mishimoto Thermostatic Oil Sandwich Plate.
Does the kit include a replacement for the factory oil cooler hose?
Yes, it comes with a replacement lower radiator hose with worm gear clamps to bypass the stock fluid-based oil cooler.
What fitting size does this oil cooler use?
The cooler uses -10AN fittings with AN Flare, Male connections and a 0.625-inch outside diameter on both the inlet and outlet.
Does this kit increase oil capacity?
Yes, the kit increases oil capacity by 1 quart.
What is the recommended torque for the fittings and banjo bolts?
The recommended torque for all straight fittings and banjo bolts is 15-25 lb-ft, and the maximum torque rating should not exceed 35 ft-lb.
