Description
The Mishimoto Direct-Fit Oil Cooler Kit (MMOC-CAM4-16TBK) is a purpose-built cooling upgrade engineered specifically for the turbocharged LTG engine found in the Chevrolet Camaro 2.0T. Finished in Stealth Black and built around a 25-row bar-and-plate core, this kit is designed to drop oil temperatures by up to 60°F, giving your LTG the thermal margin it needs when you’re pushing it hard on track, at the strip, or through an autocross course.

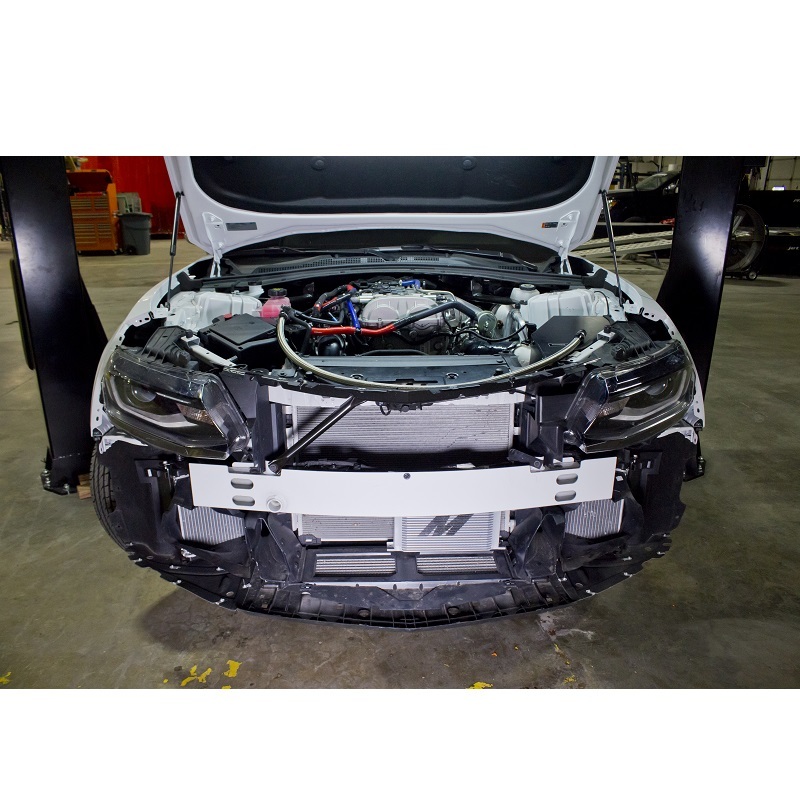

Overheated oil can’t properly lubricate an engine’s internals, and that risk only grows as you demand more from your Camaro. This Mishimoto oil cooler kit addresses that head-on with an all-aluminum stacked-plate core, a billet aluminum sandwich plate (with an optional thermostatic sandwich plate), and premade braided stainless steel lines fitted with durable -AN hardware. The result is a Cooling upgrade that mounts behind the front bumper on application-specific brackets, operates with minimal pressure drop, and even increases oil capacity by 0.75 qt — all while retaining the use of your Camaro’s stock oil cooler components. Whether you’re searching for a Mishimoto oil cooler or a complete Mishimoto oil cooler kit, this system is built to help your LTG keep its cool.
Vehicle Applications
This Mishimoto oil cooler kit is a direct-fit solution for the Chevrolet Camaro LT, covering the 2016 through 2023 model years, and the Chevrolet Camaro LS, covering 2017 through 2023. Both trims share the turbocharged 2.0L LTG engine on the Alpha chassis, and the kit installs using the vehicle’s factory oil cooler provisions.
Features
- Reduces oil temperatures by up to 60°F

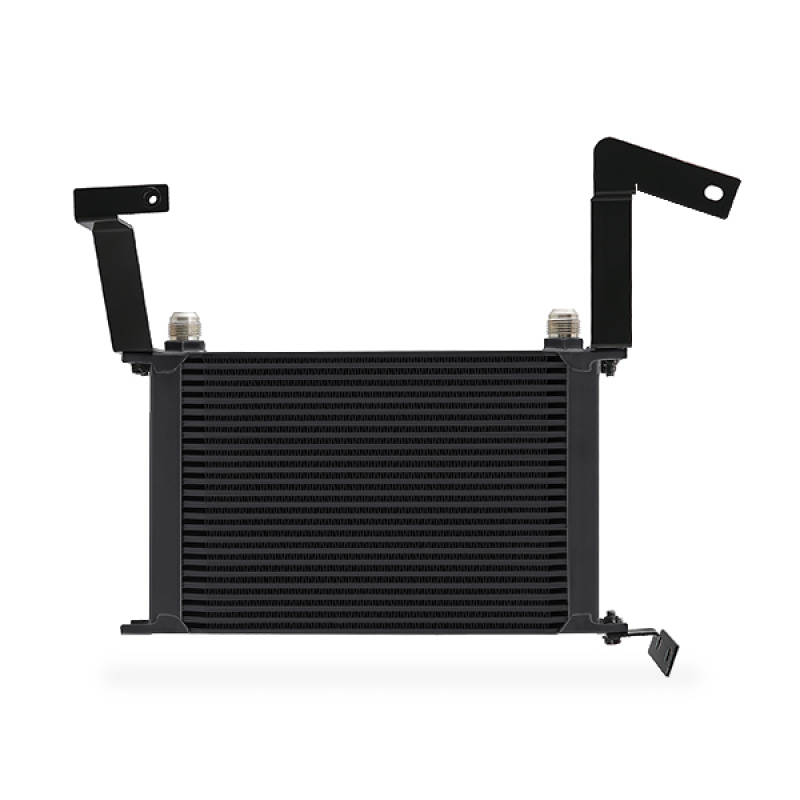

- 25-row all-aluminum bar-and-plate stacked heat exchanger core

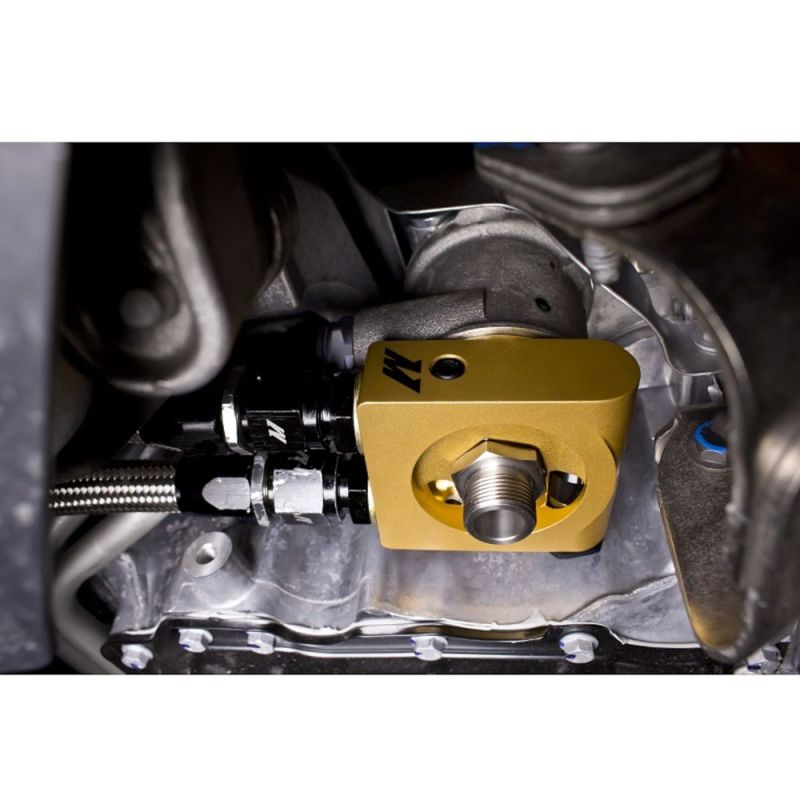

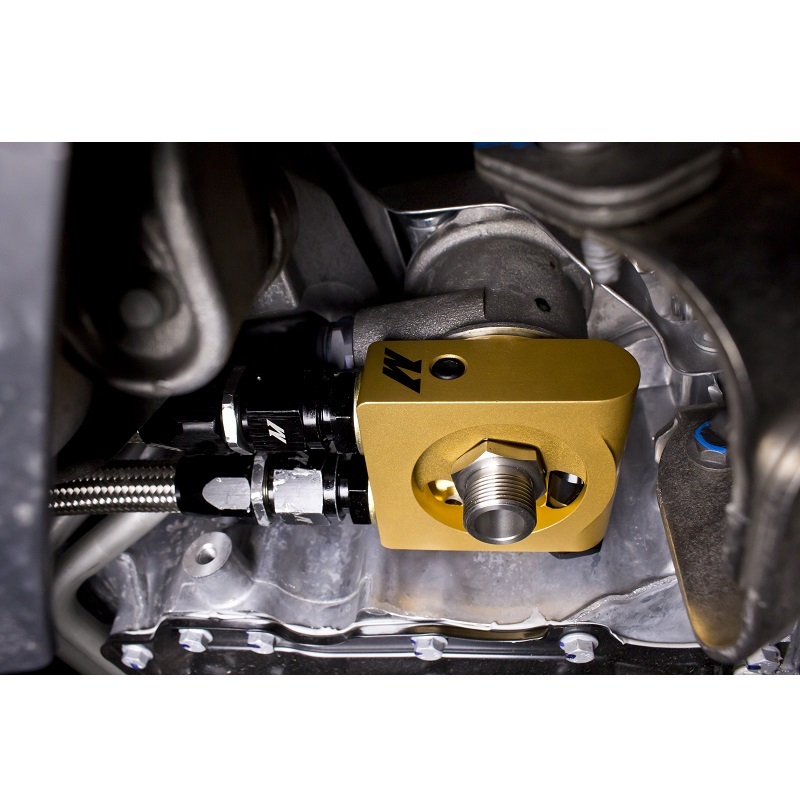

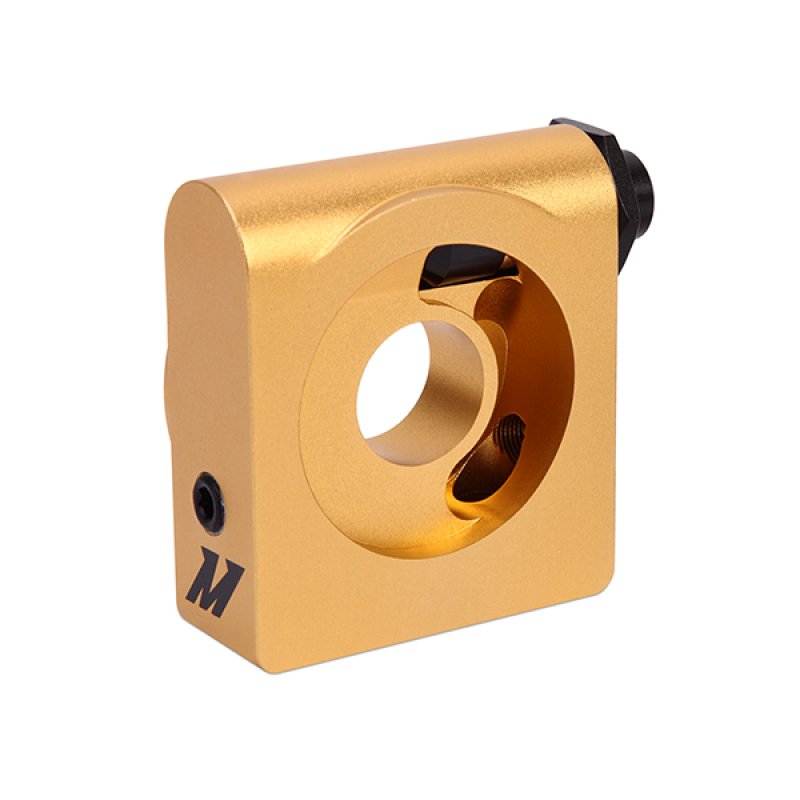

- Billet aluminum oil sandwich plate, with a thermostatic sandwich plate option

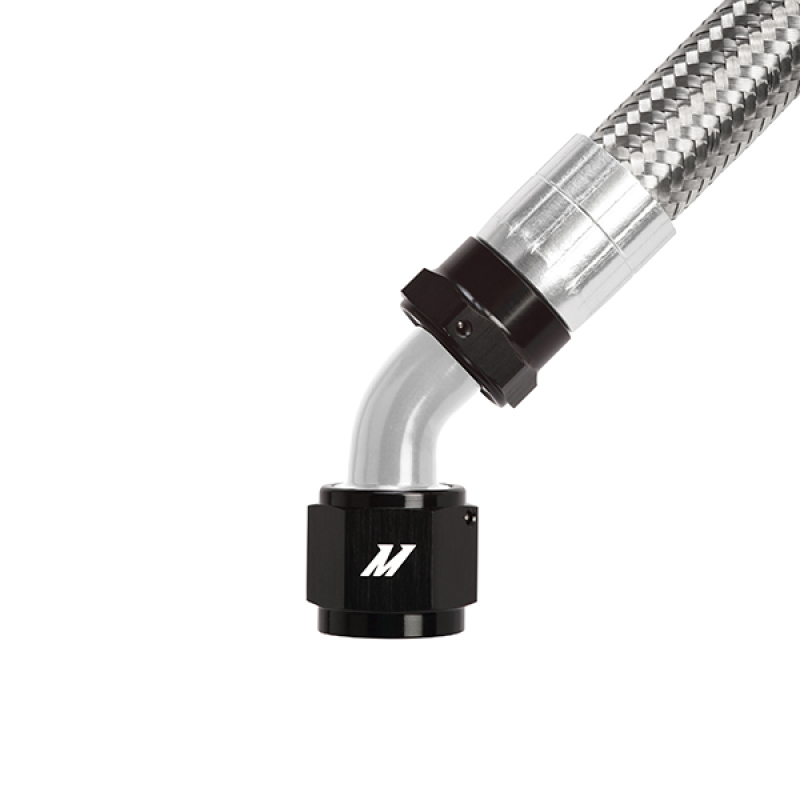

- Premade braided stainless steel oil lines with durable -AN fittings

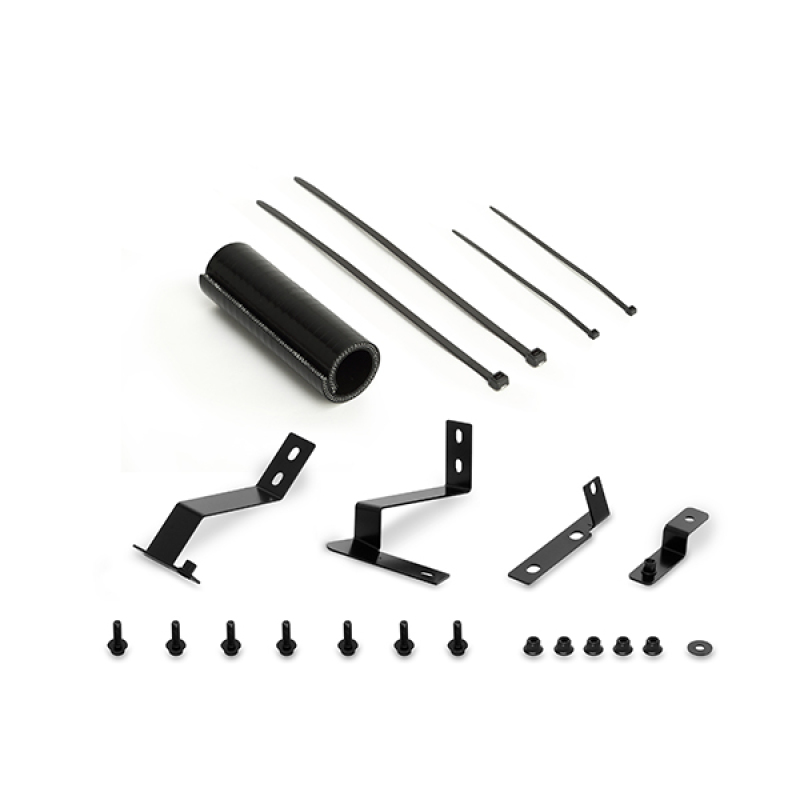

- Application-specific mounting brackets with corrosion-resistant hardware
- Minimal pressure drop
- Increases oil capacity by 0.75 qt
- Retains use of stock oil cooler components
- Available finish: Stealth Black
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-CAM4-16TBK
- Color/Finish: Black, Anodized
- Core Type: Bar-and-Plate
- Core Color: Black
- Core Row Quantity: 25
- Grade Type: Performance
- Inlet Fitting Type: AN Flare, Male
- Outlet Fitting Type: AN Flare, Male
- Overall Width: 1.97 in
- Overall Height: 12.95 in
- Overall Length: 8.35 in
- Engine Code: LTG
- Chassis Code: Alpha
- Option Configurations: Stealth Black, Thermostatic

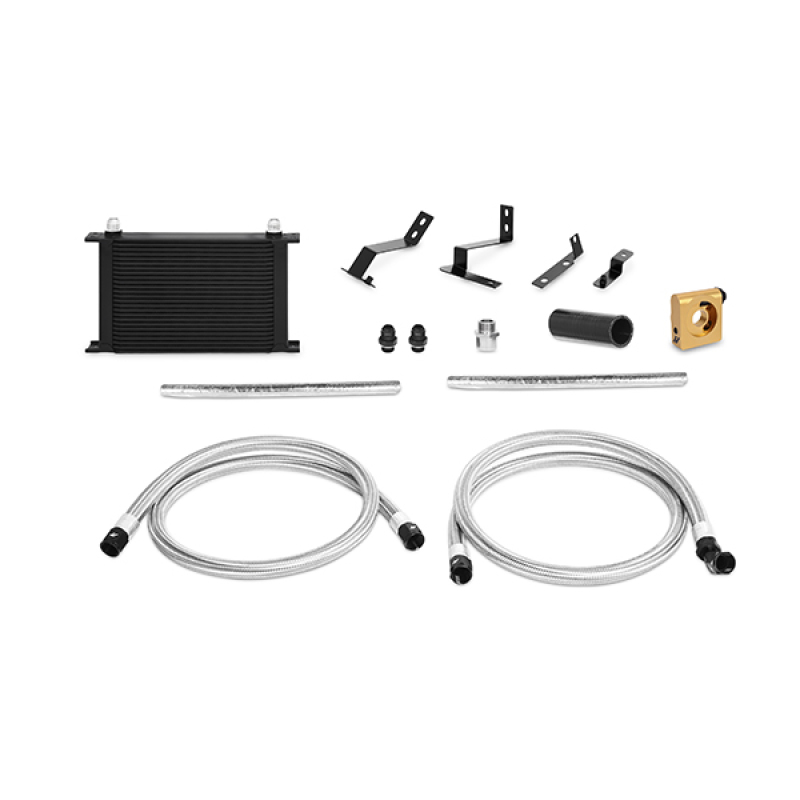

- Kit Includes: application-specific mounting brackets with corrosion-resistant hardware, horn relocation mounting bracket, 25-row oil cooler, 4ft 4in stainless steel braided hose with straight -10AN fittings, 4ft 10in stainless steel braided hose with straight and 45-degree -10AN fittings, M22 oil sandwich plate, M22 x 1.5 sandwich plate adapter, M20 x -10AN sandwich plate fitting with Dowty seal, 1ft thermal heat wrap, zip ties, and a 4-in hose
- Installation Note: Recommended torque specification for all straight fittings and banjo bolts is 15-25 lb-ft; do not exceed the maximum torque rating of 35 ft-lb
Frequently Asked Questions
What vehicles fit this Mishimoto oil cooler kit?
It is a direct fit for the Chevrolet Camaro LT (2016-2023) and Chevrolet Camaro LS (2017-2023), both equipped with the turbocharged 2.0L LTG engine.
How much does this kit reduce oil temperatures?
This Mishimoto oil cooler kit is designed to reduce oil temperatures by up to 60°F.
What color is the Mishimoto oil cooler kit available in?
The kit is available in Stealth Black.
Does this oil cooler kit affect oil capacity?
Yes, installing this kit increases oil capacity by 0.75 qt.
What is included with the Mishimoto oil cooler kit?
The kit includes application-specific mounting brackets with corrosion-resistant hardware, a horn relocation mounting bracket, a 25-row oil cooler, stainless steel braided hoses with -10AN fittings, an M22 oil sandwich plate, an M22 x 1.5 sandwich plate adapter, an M20 x -10AN sandwich plate fitting with Dowty seal, thermal heat wrap, zip ties, and a hose.
Does the kit retain factory oil cooler components?
Yes, this oil cooler kit retains the use of any stock oil cooler components your vehicle came with.
