Description

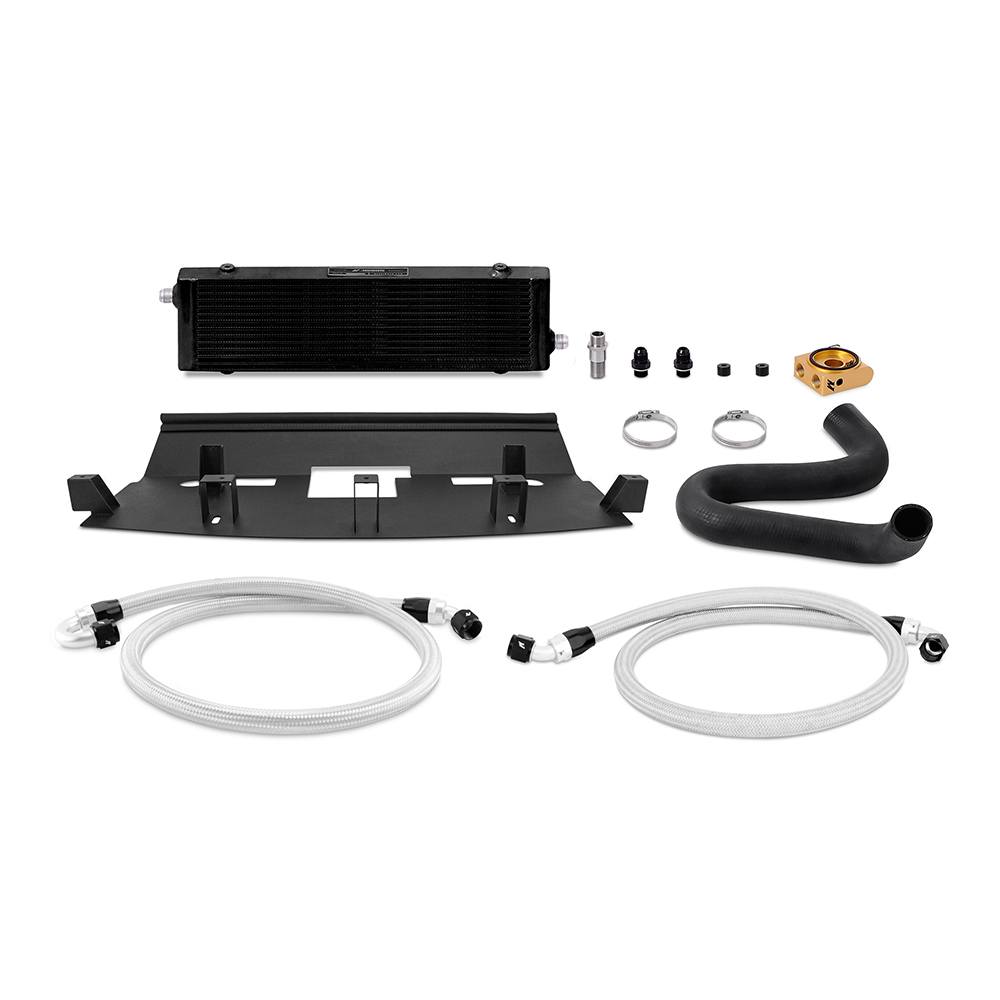

The Mishimoto MMOC-MUS8-18TBK Oil Cooler Kit is a purpose-built cooling upgrade engineered from the ground up for the S-550 chassis Ford Mustang GT. Mishimoto’s engineers designed the largest oil cooler they offer for this platform, mounting it directly to the front of the vehicle for maximum airflow, and paired it with an application-specific mounting bracket that doubles as an air diversion panel.
This Mishimoto oil cooler kit is built to keep engine oil temperatures in check without adding unnecessary complexity to your Mustang GT’s cooling system. The bar-and-plate oil cooler is finished in anodized black and mounts in the upper grille, freeing up space for aftermarket supercharger heat exchangers, while pre-made stainless steel braided lines with -10AN fittings simplify installation and provide a secure conduit between the cooler and engine. A billet aluminum thermostatic oil sandwich plate is included to protect against overcooling, and the kit even increases oil capacity by 1 quart. As a Mishimoto cooling product, it carries the Mishimoto Lifetime Warranty.
Vehicle Applications
This oil cooler kit is a direct fit for 2018-2023 Ford Mustang GT and GT Premium models, including the 2019-2023 Mustang GT V8, the 2018 Mustang V8, the 2019-2020 Mustang Bullitt, and the 2021-2023 Mustang Mach 1. Per Mishimoto’s application data, this kit is designed for the S-550 chassis with the 5.0 Coyote III engine and fits left-hand drive (LHD) vehicles only.
Features
- Direct fit for the 2018-2023 Ford Mustang GT (LHD)
- Bar-and-plate oil cooler mounts in the upper grille, leaving room for supercharger heat exchangers

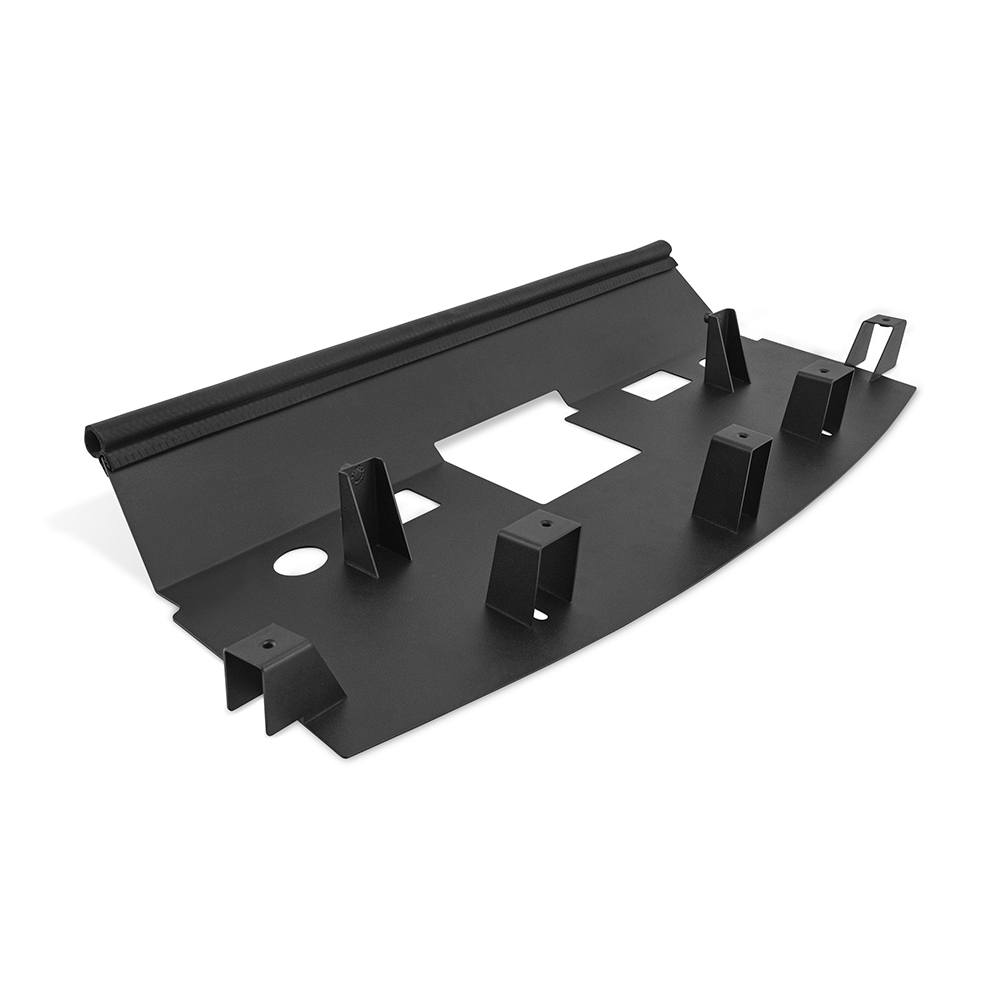

- Application-specific mounting bracket doubles as an air diversion panel to maximize airflow through the cooler
- Pre-made stainless steel braided oil lines with durable -10AN fittings

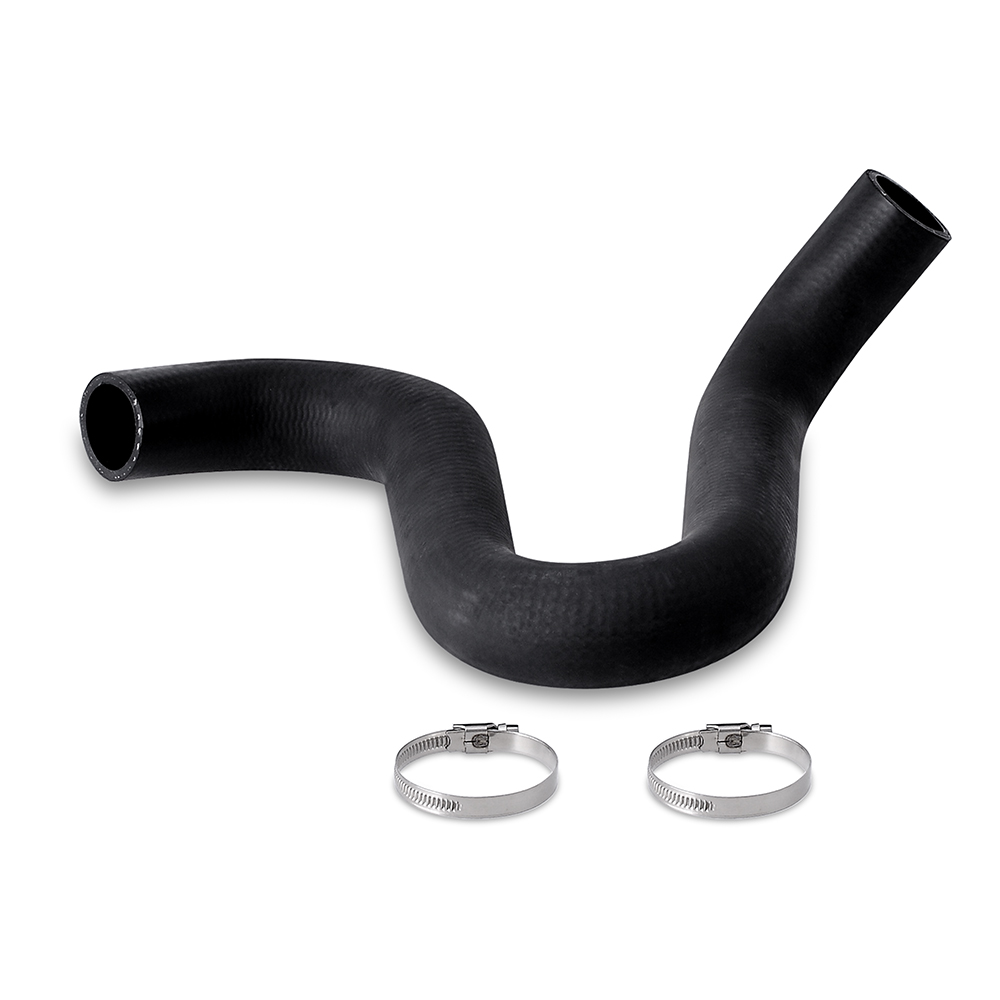

- Includes a replacement lower radiator hose to bypass the stock fluid-based oil cooler
- Removes the stock fluid-based oil cooler for less stress on the engine’s cooling system

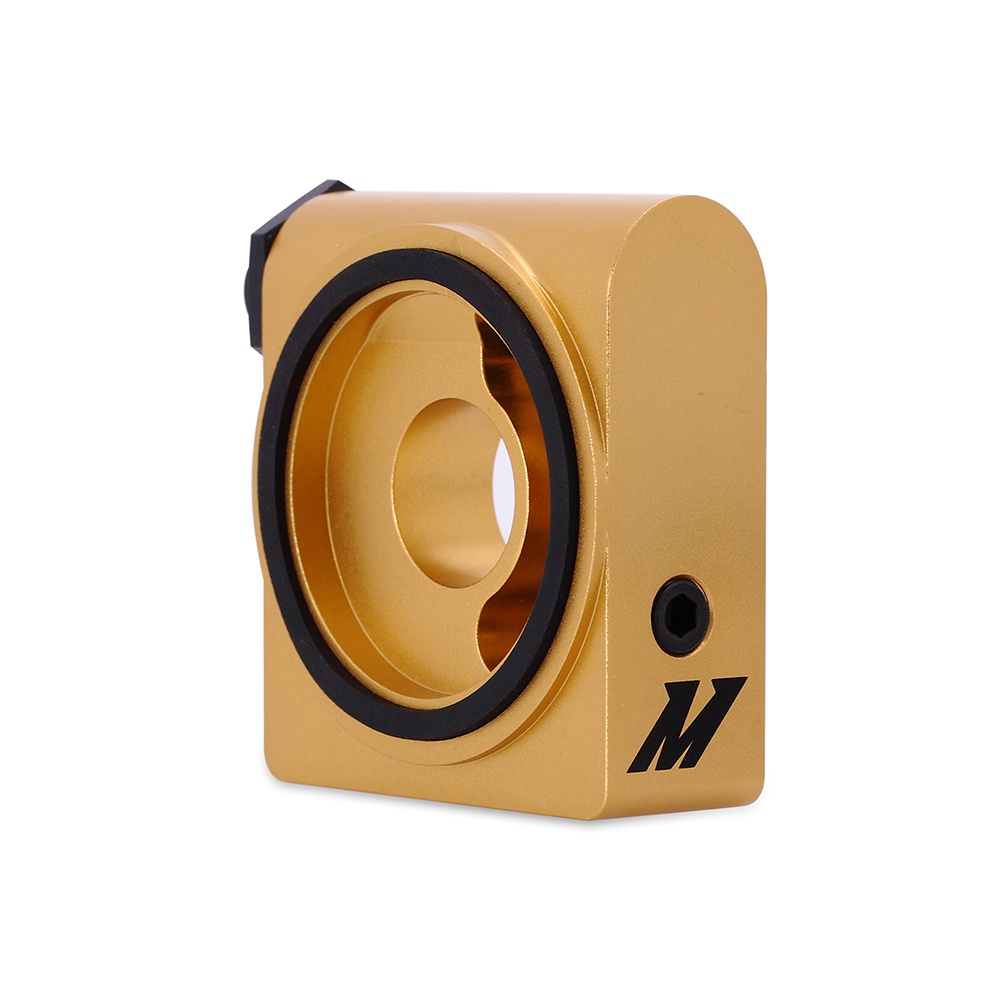

- Billet aluminum thermostatic oil sandwich plate
- Increases oil capacity by 1 quart
- Fits with most aftermarket supercharger kits
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Color/Core Color: Black
- Finish: Anodized
- Core Type: Bar-and-Plate
- Grade Type: Performance
- Inlet/Outlet Fitting Type: AN Flare
- Inlet/Outlet Fitting Gender: Male
- Overall Width: 12.3 in
- Overall Length: 28.6 in
- Overall Height: 2.5 in
- Core Width: 18.5 in
- Chassis Code: S-550
- Engine Code: 5.0 Coyote III
- Option: Black, Thermostatic (also available in Sleek Silver)
- Applications: 2018-2023 Ford Mustang GT (Left Hand Drive vehicles only)
Frequently Asked Questions
Which Mustang models does this Mishimoto oil cooler kit fit?
It is a direct fit for the 2018-2023 Ford Mustang GT and GT Premium, the 2019-2023 Mustang GT V8, the 2018 Mustang V8, the 2019-2020 Mustang Bullitt, and the 2021-2023 Mustang Mach 1, on left-hand drive vehicles only.
Does this kit work on right-hand drive Mustangs?
No. Per Mishimoto’s application data, this oil cooler kit is designed for left-hand drive (LHD) 2018-2023 Ford Mustang GT vehicles only.
What color options are available for this oil cooler kit?
The kit is available with either a Sleek Silver or Stealth Black cooler, with the black option featuring an anodized finish.
Does the kit include a thermostatic sandwich plate?
Yes, it includes a billet aluminum thermostatic oil sandwich plate to help protect against overcooling of the engine oil.
Will this oil cooler kit increase my engine’s oil capacity?
Yes, this Mishimoto oil cooler kit increases oil capacity by 1 quart.
What warranty comes with this Mishimoto oil cooler kit?
This kit is backed by the Mishimoto Lifetime Warranty.
