Description
The Mishimoto MMOC-S2K-00BK is a direct-fit oil cooler kit engineered specifically for the AP1 and AP2 Honda S2000, built around a large 19-row cooler that mounts in the front grille for optimum airflow. This particular kit ships in the stealth black, non-thermostatic configuration, paired with preassembled stainless steel braided lines and S2000-specific mounting brackets for a clean, painless installation.
Whether you’re carving corners with the top down or running the drag strip, a high-revving S2000 needs a cooling system that keeps pace. This Mishimoto oil cooler kit increases overall oil capacity by .6 qt and delivers a significant temperature drop while maintaining minimal pressure loss, so the factory liquid-to-liquid oil cooler unit can be retained alongside the added cooling capacity. The bar-and-plate core uses AN Flare male fittings on both the inlet and outlet, and the black anodized finish gives the front-mount cooler a stealth appearance. Owners looking for even greater control over oil temperature can step up to the thermostatic sandwich plate option offered within this kit family, and the cooler itself is available in stealth black or sleek silver.
Vehicle Applications
This Mishimoto oil cooler kit is a direct fit for the Honda S2000, covering the Base trim from 2000 through 2009 as well as the S2000 CR from 2008 through 2009, spanning both the AP1 and AP2 chassis codes and the F20C and F22C engine codes. Owners of AP1 S2000 vehicles should note that minor bending of the A/C lines is required for cooler and bracket installation.
Features

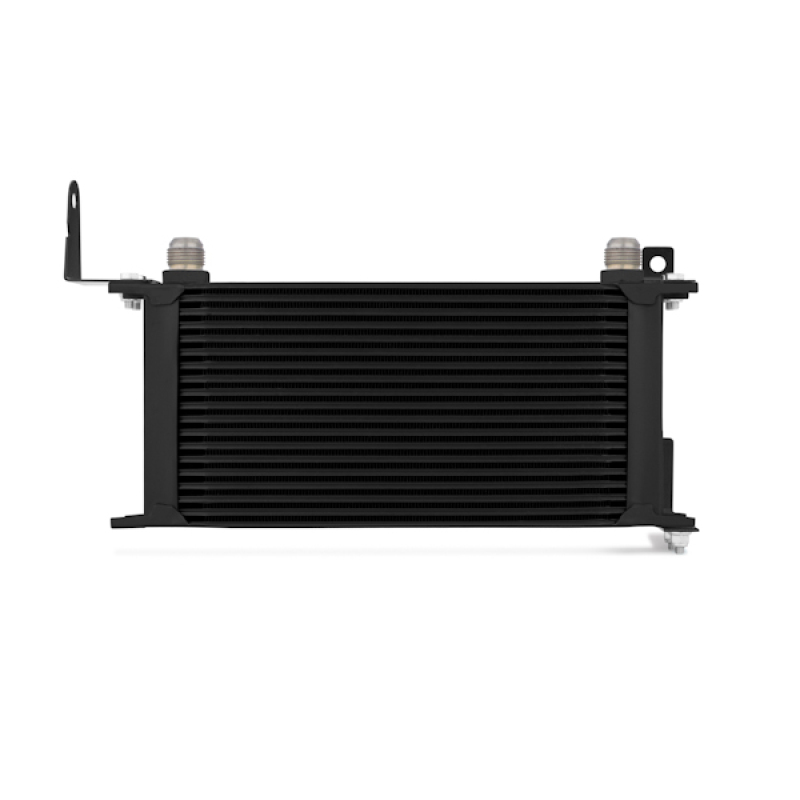

- Large 19-row oil cooler mounted in the front grille for optimum airflow and cooling capability
- Bar-and-plate core construction with a Performance grade rating
- Preassembled stainless steel braided lines with -10AN fittings for a clean install
- S2000-specific application mounting brackets included
- Increases overall oil capacity by .6 qt while maintaining minimal pressure drop
- Retains use of the stock liquid-to-liquid oil cooler unit
- Available with a thermostatic sandwich plate for additional oil-temperature control
- Offered in stealth black or sleek silver cooler finishes
- Backed by the Mishimoto lifetime warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-S2K-00BK
- Product Type: Cooling / Oil Cooler Kit
- Option: Black Cooler, Non-Thermostatic
- Core Type: Bar-and-Plate
- Core Rows: 19-Row
- Core Height: 5.43 in
- Core Thickness: 1.97 in
- Core Width: 11 in
- Core Color: Black
- Finish: Anodized
- Grade Type: Performance
- Inlet Fitting Type: AN Flare, Male
- Outlet Fitting Type: AN Flare, Male
- Oil Capacity Increase: .6 qt
- Chassis Codes: AP1, AP2
- Engine Codes: F20C, F22C

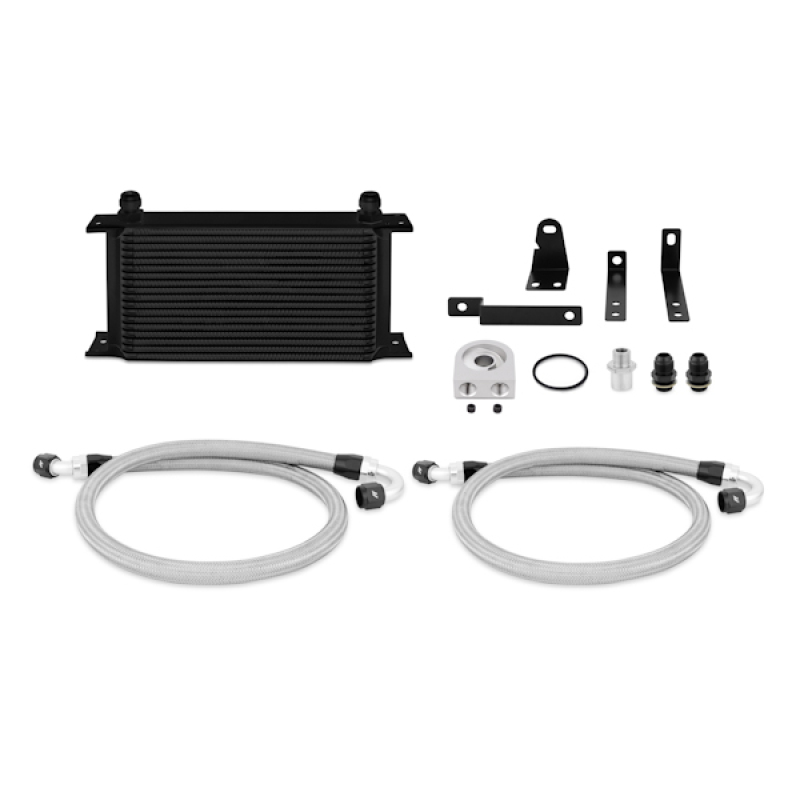

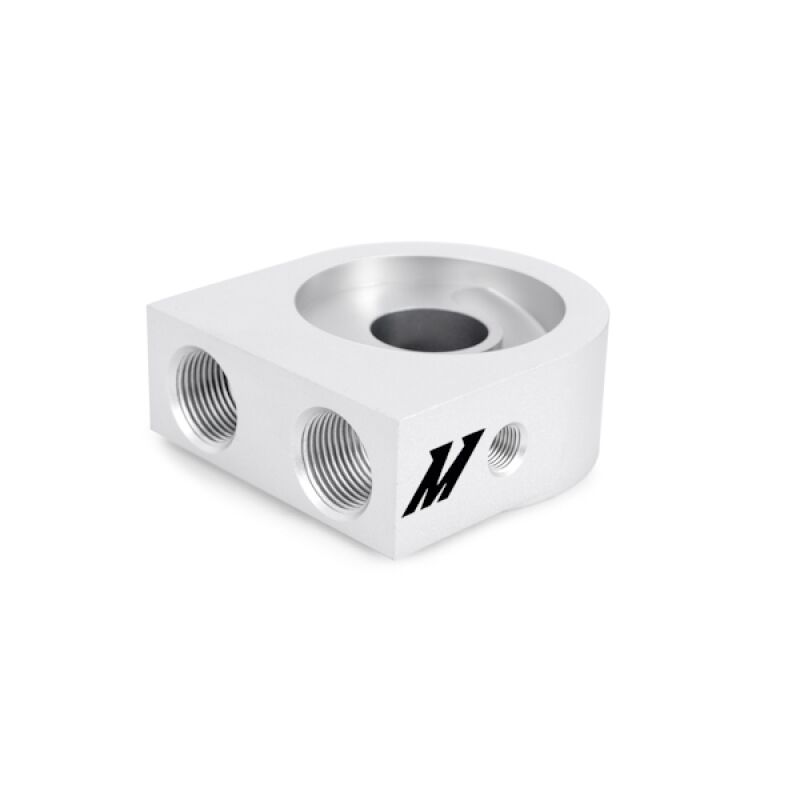

- Kit Includes: Application specific mounting brackets, 19-row oil cooler, 2ft 11in stainless steel braided hose with 45-degree and 150-degree -10AN fittings, 3ft 8in stainless steel braided hose with 45-degree and 150-degree -10AN fittings, M20 thermostatic sandwich plate, M20 stainless steel sandwich plate adapter, M20 x -10AN straight fittings, mounting hardware set, and the Mishimoto lifetime warranty
- Recommended Torque: 15-25 lb-ft for all straight fittings and banjo bolts; do not exceed 35 ft-lb
Frequently Asked Questions
Which Honda S2000 vehicles does this Mishimoto oil cooler kit fit?
This kit is a direct fit for the Honda S2000 Base from 2000-2009 and the Honda S2000 CR from 2008-2009, covering both the AP1 and AP2 chassis codes.
What engine codes are supported by this oil cooler kit?
This kit supports the F20C and F22C engine codes.
Does installation require any modifications to the vehicle?
AP1 S2000 vehicles will require minor bending of the A/C lines for cooler and bracket installation.
What does the Mishimoto oil cooler kit include?
The kit includes application-specific mounting brackets, a 19-row oil cooler, a 2ft 11in stainless steel braided hose with 45-degree and 150-degree -10AN fittings, a 3ft 8in stainless steel braided hose with 45-degree and 150-degree -10AN fittings, an M20 thermostatic sandwich plate, an M20 stainless steel sandwich plate adapter, M20 x -10AN straight fittings, a mounting hardware set, and the Mishimoto lifetime warranty.
Does this oil cooler kit increase oil capacity?
Yes, the Mishimoto oil cooler kit increases overall oil capacity by .6 qt while maintaining minimal pressure drop.
What warranty is included with this kit?
This kit includes the Mishimoto lifetime warranty.
