Description

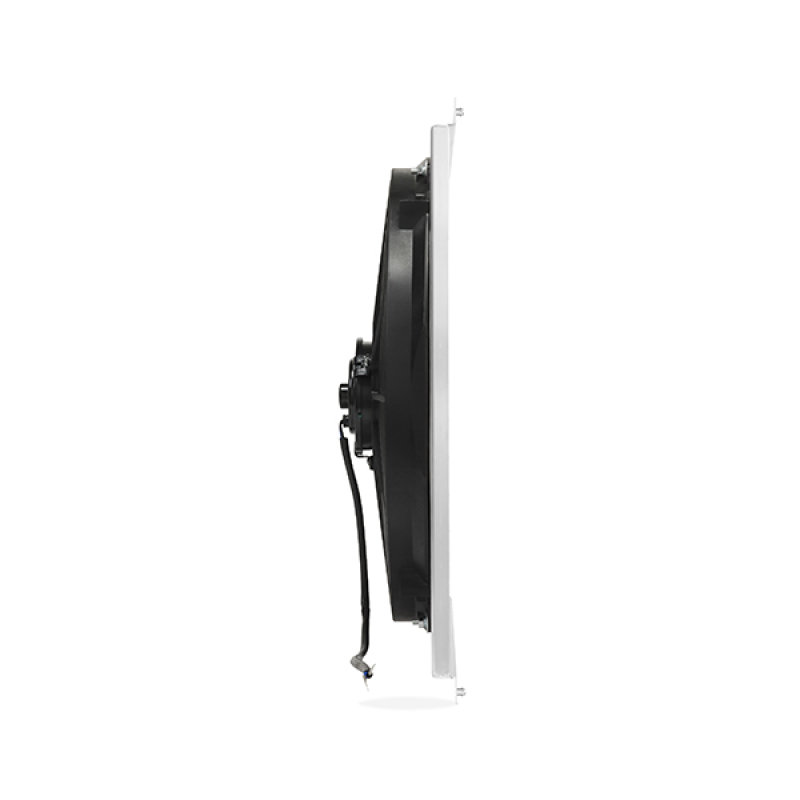

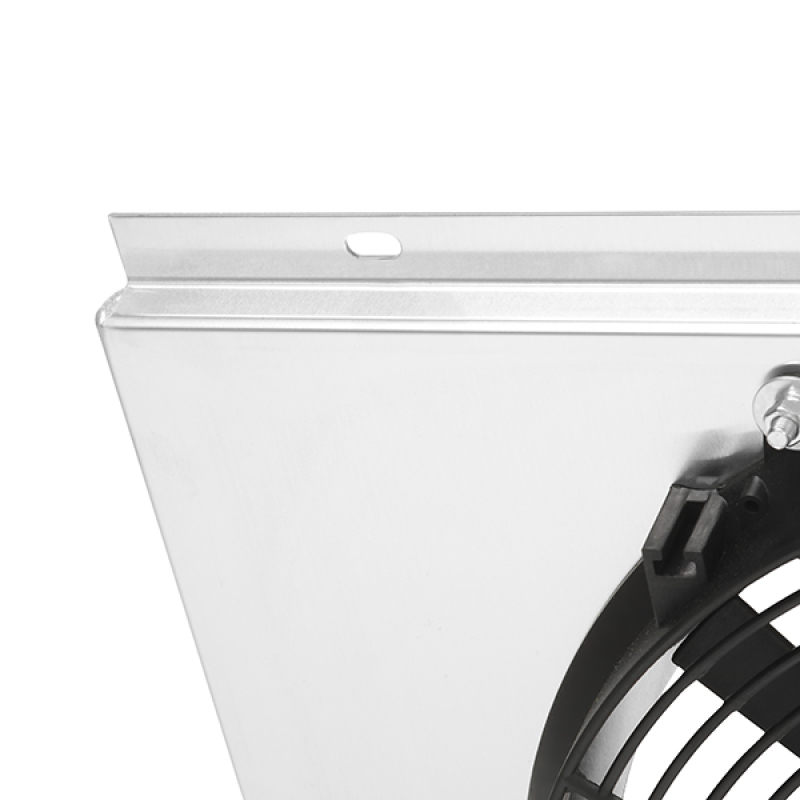

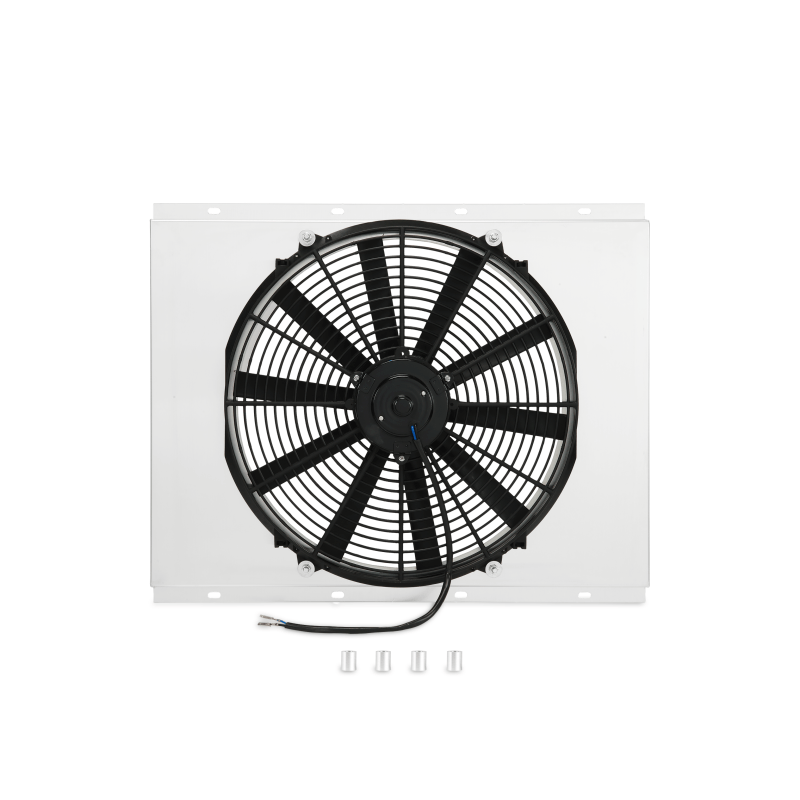

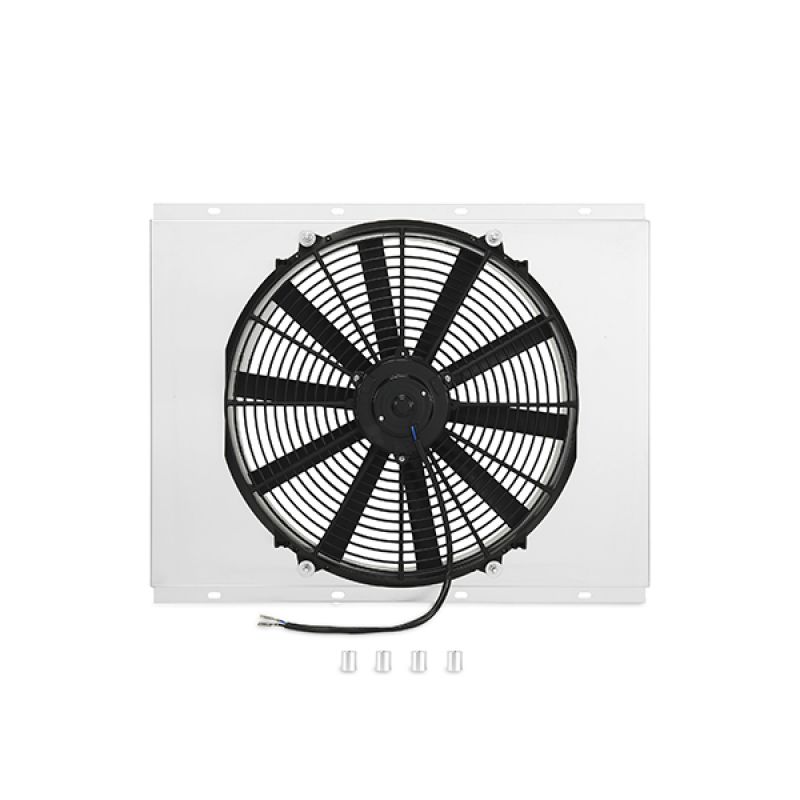

The Mishimoto Performance Fan Shroud Kit (MMFS-FIR-67) is a purpose-built cooling upgrade for the 1967-1969 Pontiac Firebird, pairing a brushed-aluminum shroud with a 16-inch, plug-in electric fan rated to move over 1850 CFM. Unlike a generic fan setup, this shroud is engineered to mount exclusively to Mishimoto’s Pontiac Firebird Performance Radiator, giving it a tailored fit that a universal cooling fan simply can’t match.
This kit exists to solve a real problem for classic Firebird and Camaro owners: the stock mechanical fan is failure-prone and offers no real control over coolant temperatures. By replacing it with an all-aluminum shroud and a straight, ten-blade electric fan, the Mishimoto system delivers dedicated, high-flow cooling airflow without cutting or bending any factory sheet metal. All mounting hardware is included for a straightforward installation, and the setup can be paired with the optional Mishimoto Adjustable Fan Controller Kit for complete control of coolant temperatures, including at idle when airflow across the radiator is naturally reduced. As with every Mishimoto cooling product, this fan shroud kit is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This fan shroud kit is built for the 1967-1969 Pontiac Firebird lineup, covering the Base and 400 trims across all three model years, the 326 in 1967, the HO in 1967-1968, the 350 in 1968-1969, and the 350 HO and Trans Am in 1969. It also fits the 1967-1969 Chevrolet Camaro Base, RS, SS, and Z28 trims. Because the shroud is designed to mate exclusively with Mishimoto’s Pontiac Firebird Performance Radiator, it should be installed alongside that specific radiator to achieve the intended fit and cooling performance.
Features
- Includes a high-flow 16-inch electric fan producing over 1850 CFM of airflow
- All-aluminum shroud construction with a brushed finish and silver color
- Designed to mate exclusively with Mishimoto’s Pontiac Firebird Performance Radiator
- Replaces the failure-prone stock mechanical fan with an electrical, plug-in fan system
- No cutting or bending of the shroud required for installation
- Includes all mounting hardware needed for installation
- Optional Mishimoto Adjustable Fan Controller Kit available for complete control of coolant temperatures, including at idle
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFS-FIR-67
- Shroud Material: Aluminum
- Shroud Color: Silver
- Finish: Brushed
- Shroud Width: 3.69 in
- Shroud Height: 19.64 in
- Shroud Depth: 3.69 in
- Fan Diameter: 16 in
- Blade Quantity: 10
- Blade Material: Plastic
- Blade Type: Straight
- Blade Color: Black
- Maximum Airflow: 1850 CFM
- Electrical or Mechanical: Electrical
- Hardwired or Plug-In: Plug-In
- Motor Included: Yes
- Mounting Hardware Included: Yes
- Control Module Included: No
- Kit Includes: (1) Aluminum Fan Shroud, (1) 16-inch Mishimoto Slim Electric Fan, Mishimoto Lifetime Warranty
- Note: Electric fan already comes attached to the shroud; additional wiring may be required
Frequently Asked Questions
What vehicles does the Mishimoto MMFS-FIR-67 fan shroud kit fit?
It fits the 1967-1969 Pontiac Firebird (Base and 400 trims all three years, 326 in 1967, HO in 1967-1968, 350 in 1968-1969, and 350 HO and Trans Am in 1969), as well as the 1967-1969 Chevrolet Camaro Base, RS, SS, and Z28 trims.
Does this shroud work with any radiator, or does it require a specific one?
The fan shroud is designed to mount exclusively to Mishimoto’s Pontiac Firebird Performance Radiator.
How much airflow does the included fan produce?
The kit includes a 16-inch high-flow electric fan that produces over 1850 CFM of airflow.
Is a fan controller included with this kit?
The base kit does not include a control module or control unit. Mishimoto offers an optional Adjustable Fan Controller Kit that provides complete control of coolant temperatures, including at idle.
Will I need to modify my vehicle to install this shroud?
No. The shroud is designed so that no cutting or bending is required, and all mounting hardware is included for installation.
What is included in the Mishimoto Performance Fan Shroud Kit?
The kit includes one aluminum fan shroud, one 16-inch Mishimoto slim electric fan, and the Mishimoto Lifetime Warranty.
