Description

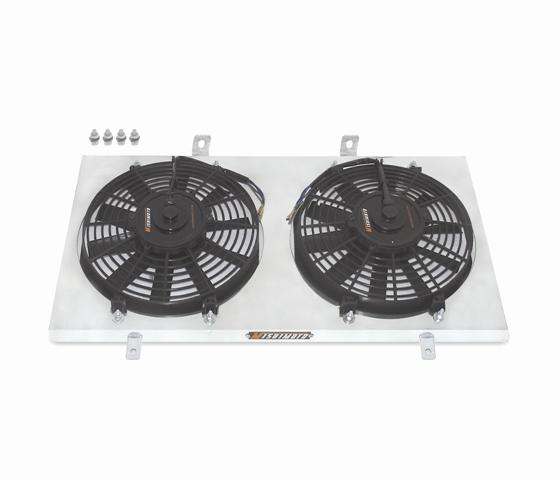

The Mishimoto Performance Fan Shroud Kit (MMFS-CK-78) is an aluminum fan shroud engineered exclusively for Mishimoto’s Chevrolet/GM C/K Performance Radiator, replacing the factory mechanical fan with two high-flow 14-inch electric fans that each move over 1300 cfm of air. Finished in silver aluminum with black plastic straight blades, this shroud arrives with the electric fans already attached and includes all mounting hardware needed for installation, with no cutting or bending required.
This Mishimoto cooling upgrade is built to eliminate the stock, failure-prone mechanical fan found on classic GM trucks, giving owners a plug-in electric fan setup instead. Because the fans are plug-in rather than hardwired, wiring is more straightforward, though the manufacturer notes that fans may require additional wiring to complete the installation. Shoppers can optionally pair this fan shroud kit with the Mishimoto Adjustable Fan Controller Kit for total control over coolant temperatures at idle. Like every Mishimoto cooling product, this fan shroud kit is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
According to Mishimoto’s application data, this fan shroud kit is built for 1978-1986 GM C/K Series pickups equipped with the 292ci (4.8L) L6, 305ci (5.0L) V8, 350ci (5.7L) V8, or 454ci (7.4L) V8, as well as 1987-1991 Chevrolet Blazer models with the 305ci (5.0L) V8 or 350ci (5.7L) V8. It also fits the 1981-1991 GMC Jimmy equipped with the 305ci (5.0L) V8 or 350ci (5.7L) V8, along with 1987-1991 R-Series and V-Series trucks running the 305ci (5.0L) V8, 350ci (5.7L) V8, or 454ci (7.4L) V8. Because this shroud mounts exclusively to Mishimoto’s Chevrolet/GM C/K Performance Radiator, confirm that radiator is already installed before ordering.
Features
- Includes two high-flow 14-inch electric fans, each providing over 1300 cfm of airflow
- All-aluminum construction with a silver finish
- Optional fan controller provides complete control of coolant temperatures at idle
- Designed to mate exclusively with Mishimoto’s Chevrolet/GM C/K Performance Radiator
- Replaces failure-prone stock mechanical fan
- No cutting or bending of shroud required

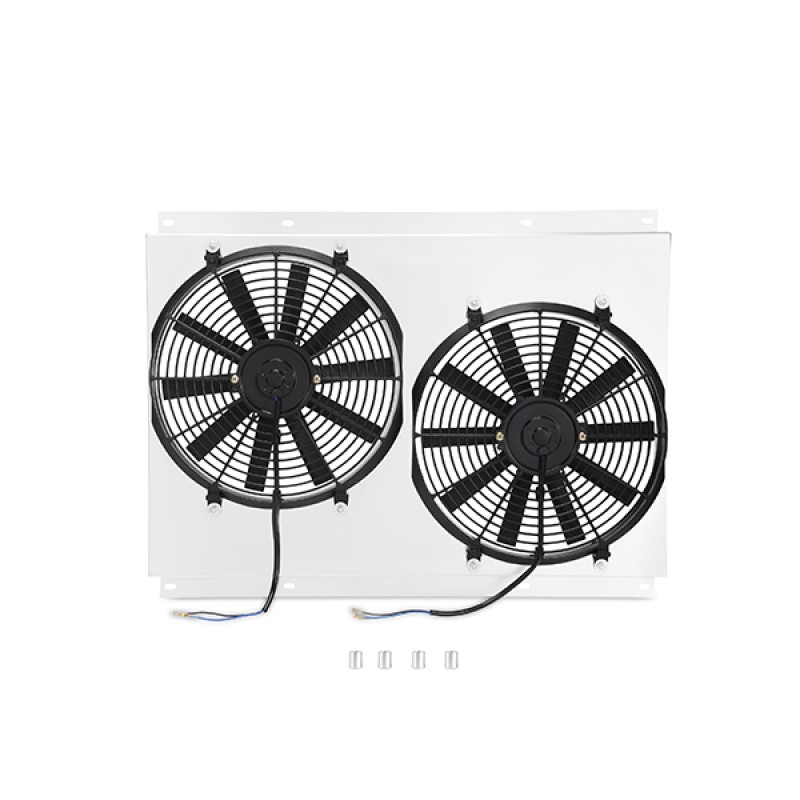

- Includes all mounting hardware for installation

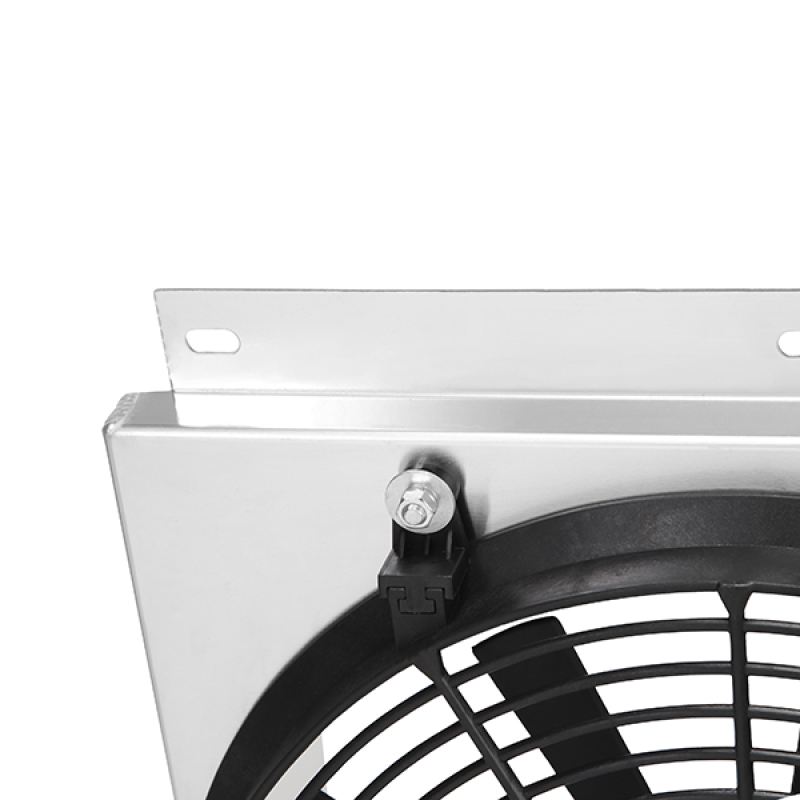

- Electric fans come already attached to the shroud (may require additional wiring)
- Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFS-CK-78
- Product Type: Cooling
- Shroud Material: Aluminum
- Shroud Color: Silver
- Housing Finish: Aluminum
- Blade Material: Plastic
- Blade Type: Straight
- Blade Color: Black
- Fan Diameter: 14 in (each fan)
- Airflow Rate: 1300 cfm (each fan)
- Maximum CFM: 1300
- Blade Quantity: 10 per fan
- Electrical or Mechanical: Electrical
- Hardwired or Plug-In: Plug-In
- Motor Included: Yes
- Control Unit Included: No
- Mounting Hardware Included: Yes
- Grade Type: Performance

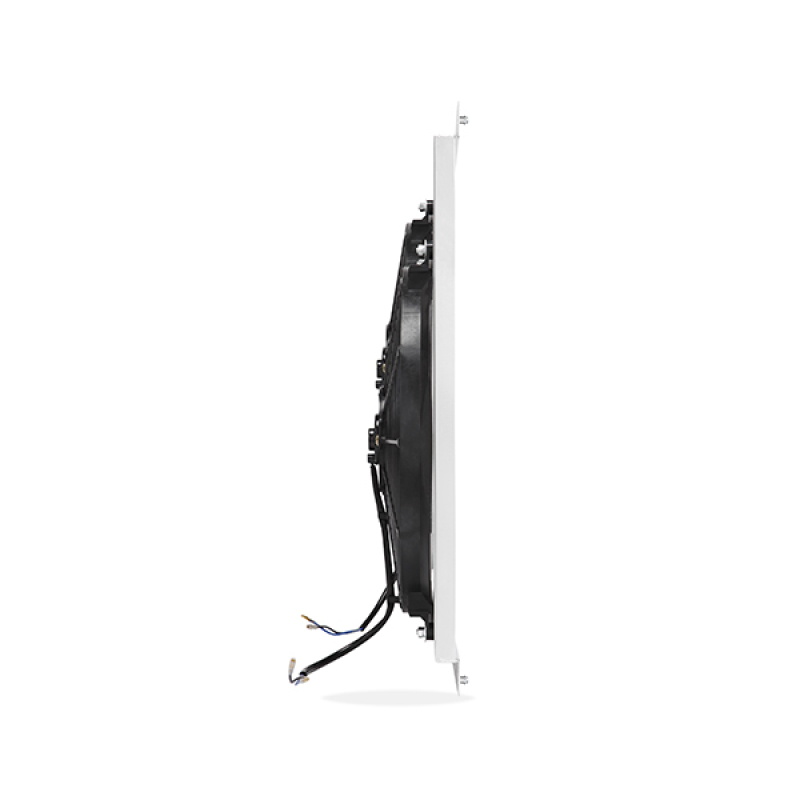

- Width: 3.9 in
- Height: 23.53 in
- Length: 30.48 in
- Engine Codes: 292ci (4.8L) L6, 305ci (5.0L) V8, 350ci (5.7L) V8, 454ci (7.4L) V8
- Chassis Codes: ED3, ED4, ED6, ED7, ED8, ED9, EE2, EE4
- Includes: (1) Aluminum Fan Shroud, (2) 14-inch Slim Electric Fans, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMFS-CK-78 fan shroud fit?
This fan shroud kit fits 1978-1986 GM C/K Series pickups with the 292ci (4.8L) L6, 305ci (5.0L) V8, 350ci (5.7L) V8, or 454ci (7.4L) V8, 1987-1991 Chevrolet Blazer models with the 305ci (5.0L) V8 or 350ci (5.7L) V8, 1981-1991 GMC Jimmy models with the 305ci (5.0L) V8 or 350ci (5.7L) V8, and 1987-1991 R-Series and V-Series trucks with the 305ci (5.0L) V8, 350ci (5.7L) V8, or 454ci (7.4L) V8.
Does this kit include the electric fans?
Yes. It includes two high-flow 14-inch electric fans, each producing over 1300 cfm of airflow, and the fans come already attached to the shroud, though they may require additional wiring.
Can this shroud be used with a stock radiator?
This fan shroud is designed to mount exclusively to Mishimoto’s Chevrolet/GM C/K Performance Radiator.
Is a fan controller included with this kit?
No control unit is included in the base kit, but the shroud can optionally be paired with the Mishimoto Adjustable Fan Controller Kit for total control over coolant temperatures at idle.
What material is the Mishimoto fan shroud made from?
The shroud is made from aluminum and finished in silver, with black plastic straight-blade electric fans.
What warranty comes with this Mishimoto fan shroud kit?
This fan shroud kit includes the Mishimoto Lifetime Warranty.
