Description

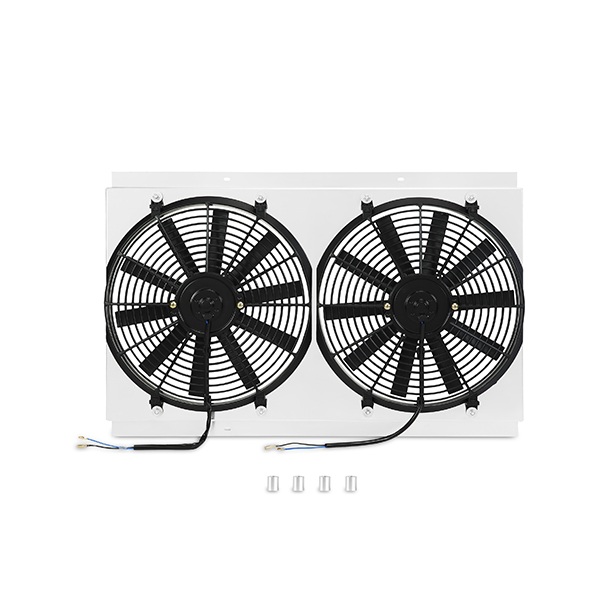

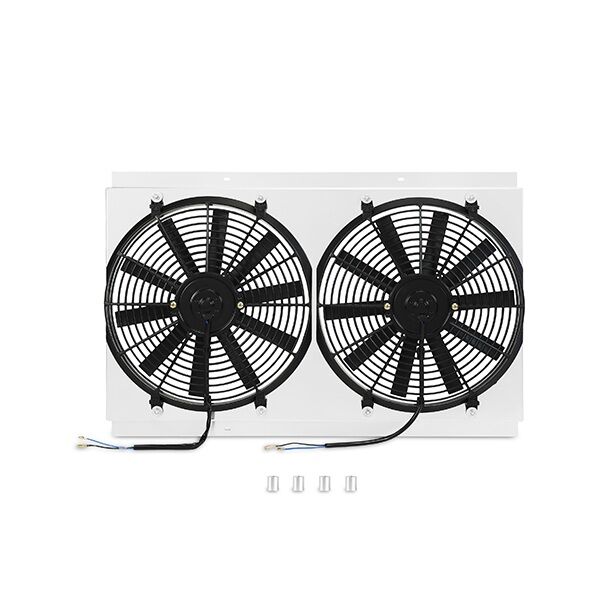

The Mishimoto Performance Fan Shroud Kit, MPN MMFS-CK-67K, is an all-aluminum electric fan shroud engineered specifically for the 1967-1972 GM C/K Series. Rather than relying on the outdated, failure-prone stock mechanical fan, this shroud houses two 14-inch high-flow electric fans that together produce over 1300 cfm of airflow, and it is built to mount exclusively to Mishimoto’s Chevrolet/GM C/K Performance Radiator.
This Mishimoto Cooling upgrade delivers dependable, plug-in electric fan operation without the drag, noise, or wear issues associated with mechanical fan clutches. The aluminum shroud requires no cutting or bending during installation and ships with all mounting hardware included, so the fans bolt straight up to the matched Mishimoto radiator. For owners who want total command over engine temperatures, the kit can be optioned with the Mishimoto Adjustable Fan Controller Kit (MMFAN-CNTL-U), which includes both NPT and probe-type temperature sensors for precise, on-demand fan control at idle and beyond. Every Mishimoto fan shroud kit is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This fan shroud kit is built for a wide span of classic GM trucks and vans. It covers the 1967-1972 Chevrolet C10, C20, and C30 pickups, C10 and C20 Suburbans, C50 and C60 trucks, K10 and K20 pickups and Suburbans, and the G20 van, along with the 1968-1972 Chevrolet K30 pickup and the 1969-1972 Chevrolet Blazer. On the GMC side, it fits the 1967-1972 C15/C1500 and C35/C3500 pickups, the 1967-1972 K15/K1500 and K25/K2500 pickups, the 1968-1972 K35/K3500 pickup, and the 1970-1972 GMC Jimmy. Coverage also extends to the GMC G15/G1500, G25/G2500, and G35/G3500 vans across their Base, Rally, and Vandura trims from 1967 through 1971 (exact years vary by trim), plus the 1975-1979 Chevrolet P10, P20, and P30 vans and step-vans, the 1968-1974 GMC P15/P1500, P25/P2500, and P35/P3500 vans, and the 1975-1978 GMC P25 and P25 Value Van.
Features
- Includes two high-flow 14-inch electric fans, each rated to help produce over 1300 cfm of airflow
- All-aluminum shroud construction with a brushed finish and silver shroud color
- Ten black, plastic straight blades per fan
- Plug-in, electrical fan operation with motor included
- Designed to mate exclusively with Mishimoto’s Chevrolet/GM C/K Performance Radiator
- No cutting or bending of the shroud required for installation
- Includes all mounting hardware needed for installation
- Optional Mishimoto Adjustable Fan Controller Kit (MMFAN-CNTL-U) provides complete control of coolant temperatures at idle and includes both NPT and probe-type temperature sensors
- Kit includes a push-in radiator temperature probe, a 1/8-in NPT temperature sensor, an adjustable relay, a wiring harness, zip ties, wire connectors, an in-line mini fuse holder, 10 AWG and 12 AWG wire, and heat shrink
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFS-CK-67K
- Width: 3.69 in
- Height: 19.56 in
- Length: 29.5 in
- Shroud Material: Aluminum
- Housing Finish: Brushed
- Shroud Color: Silver
- Fan Quantity: 2
- Fan Diameter: 14 in (each)
- Blade Material: Plastic
- Blade Type: Straight
- Blade Color: Black
- Blade Quantity: 10 per fan
- Maximum CFM: 1300
- Motor Included: Yes
- Mounting Hardware Included: Yes
- Hardwired or Plug-In: Plug-In
- Electrical or Mechanical: Electrical
- Control Unit Included: No
- Weight: N/A
Frequently Asked Questions
Does the Mishimoto MMFS-CK-67K fan shroud fit any radiator?
No, this fan shroud is designed to mount exclusively to Mishimoto’s Chevrolet/GM C/K Performance Radiator.
What electric fans come with this Mishimoto fan shroud kit?
The kit includes two 14-inch high-flow electric fans that produce over 1300 cfm of airflow.
Can I add temperature control to this fan shroud kit?
Yes, the kit can optionally include the Mishimoto Adjustable Fan Controller Kit (MMFAN-CNTL-U), which provides control of coolant temperatures and includes both NPT and probe-type temperature sensors.
What is included with the Mishimoto MMFS-CK-67K kit?
The kit includes an aluminum fan shroud, two 14-inch Mishimoto slim electric fans, an adjustable relay, a push-in radiator temperature probe, a 1/8-in NPT temperature sensor, a wiring harness, zip ties, wire connectors, an in-line mini fuse holder, 10 AWG and 12 AWG wire, heat shrink, and the Mishimoto Lifetime Warranty.
Does this fan shroud kit require cutting or bending to install?
No, the shroud is designed so that no cutting or bending is required, and all mounting hardware is included.
Which vehicles does the Mishimoto MMFS-CK-67K fan shroud fit?
It fits the 1967-1972 Chevrolet C10/C20/C30 pickups, C10/C20 Suburbans, C50/C60, K10/K20 pickups and Suburbans, and G20 van, the 1968-1972 Chevrolet K30, the 1969-1972 Chevrolet Blazer, the 1967-1972 GMC C15/C1500, C35/C3500, K15/K1500, and K25/K2500, the 1968-1972 GMC K35/K3500, the 1970-1972 GMC Jimmy, the 1967-1971 GMC G15/G1500, G25/G2500, and G35/G3500 vans (Base, Rally, and Vandura trims, years vary by trim), the 1975-1979 Chevrolet P10/P20/P30 vans and step-vans, the 1968-1974 GMC P15/P1500, P25/P2500, and P35/P3500 vans, and the 1975-1978 GMC P25 and P25 Value Van.
