Description

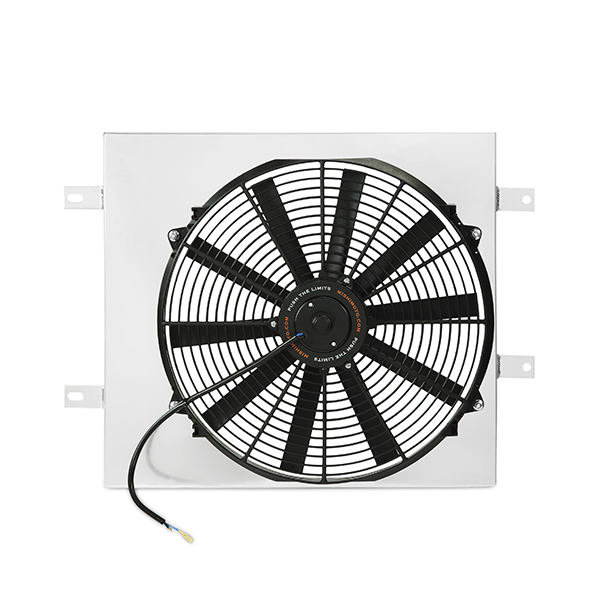

The Mishimoto Performance Fan Shroud Kit (MMFS-WRA-87K) is a direct-fit electric fan and shroud assembly engineered to completely eliminate the stock mechanical fan on the Jeep Wrangler YJ and TJ. Built around a 16-inch High-Flow Electric Fan that produces over 1850 CFM of airflow, this aluminum shroud is finished in a brushed silver aluminum look that blends cleanly into the engine bay.
Beyond raw airflow, this Mishimoto cooling upgrade is designed to work seamlessly with your existing setup: it mounts directly to the stock radiator or to the Mishimoto Jeep Wrangler Performance Radiator, and it remains compatible with the stock coolant expansion tank and power steering reservoir thanks to included aluminum brackets. Drain ports engineered into the bottom of the shroud let water escape after off-road water crossings, and every bracket needed for either the 2.5L I-4 or 4.0L I-6 engine is included so there’s nothing extra to source. For owners who want finer control over engine temperatures, this kit can be optioned with the Mishimoto Adjustable Fan Controller Kit, giving total command over coolant temperature at idle.
Vehicle Applications
This kit is a direct fit for the YJ-chassis Wrangler built from 1987 through 1995 and the TJ-chassis Wrangler built from 1997 through 2006, covering vehicles equipped with the 2.5L I-4 or 4.0L I-6 engine. Specific coverage includes the 1987-1993 Wrangler Base, 1988-1992 Islander, 1987-1990 Laredo, 1991-1994 Renegade, 1995 Rio Grande, 2003-2006 Rubicon, 1988 and 1991-1994 S, 1988-1995 and 1997-2004 Sahara, 1994-1995 and 1997-2006 SE, 1987-1988 and 1997-2006 Sport, 2004-2006 Unlimited, 2005-2006 Unlimited Rubicon, 2002-2006 X, and the 2006 65th Anniversary Edition. It fits both the YJ and TJ chassis codes.
Features
- Direct fit for the 1987-2006 Jeep Wrangler TJ/YJ with 2.5L or 4.0L engine
- Includes a 16-in High-Flow Electric Fan that provides over 1850 CFM of airflow
- Optional Mishimoto Adjustable Fan Controller (MMFAN-CNTL-U) provides control of coolant temperatures, with both NPT and probe-type sensors
- Compatible with the stock radiator and the Mishimoto Jeep Wrangler Performance Radiator

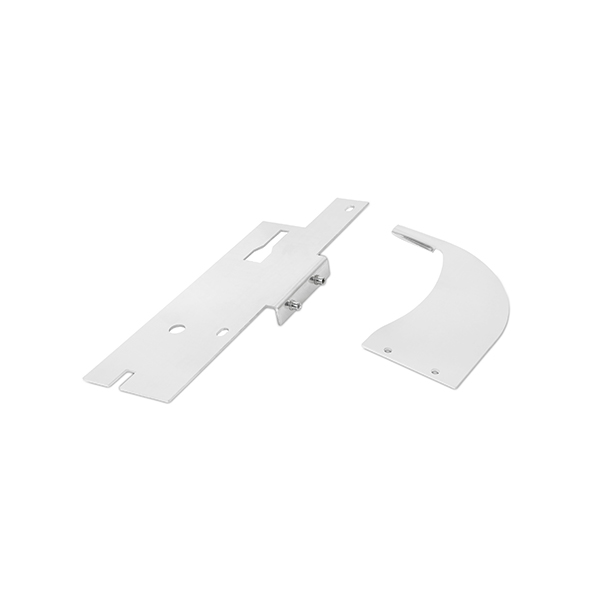

- Accommodates the stock coolant overflow tank and power steering reservoir
- Drain ports on the bottom of the shroud allow water drainage during off-road conditions

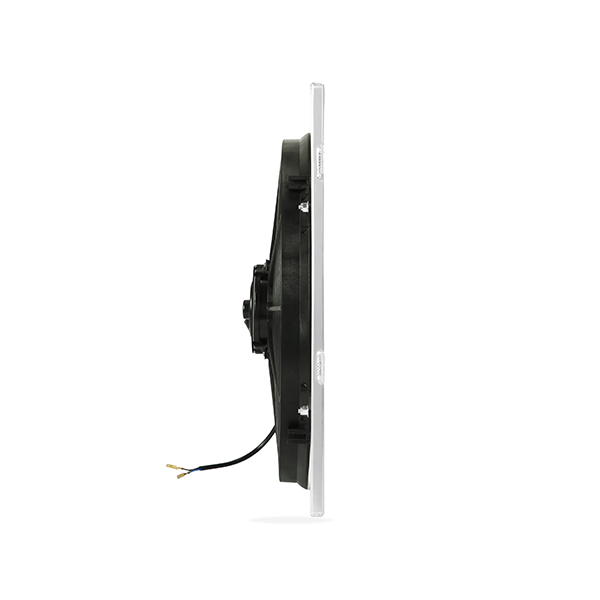

- Slim profile with a maximum thickness of just 3.5 inches
- Brushed aluminum finish in silver

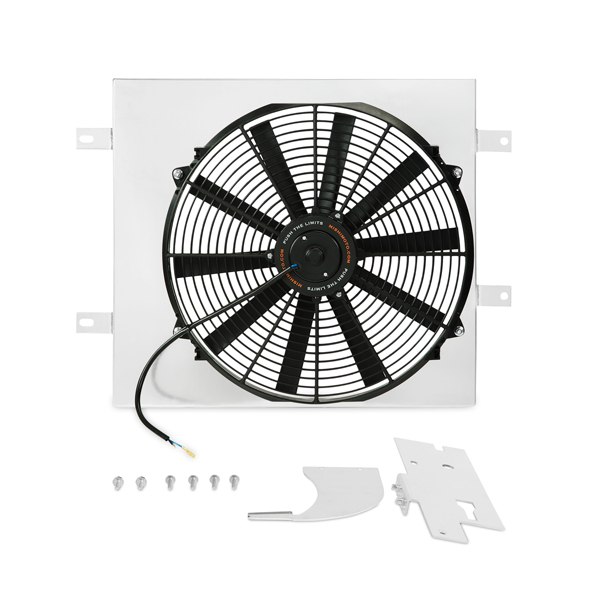

- Includes all mounting hardware and brackets required for installation
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFS-WRA-87K
- Product Type: Cooling
- Shroud Material: Aluminum
- Shroud Color: Silver
- Finish: Brushed Aluminum
- Grade Type: Performance
- Blade Material: Plastic
- Blade Type: Straight
- Blade Color: Black
- Blade Quantity: 10
- Fan Diameter: 16 in
- Maximum CFM: 1850
- Motor Included: Yes
- Hardwired or Plug-In: Plug-In
- Electrical or Mechanical: Electrical
- Fan Clutch Mounted: No
- Mounting Hardware Included: Yes
- Width: 3.5 in
- Height: 18 in
- Length: 23.6 in
- Chassis Codes: YJ, TJ
- Engine Codes: 2.5L I-4, 4.0L I-6
- Weight: N/A
Frequently Asked Questions
Does this fan shroud kit fit both the Jeep Wrangler YJ and TJ?
Yes, it’s a direct fit for the 1987-1995 Jeep Wrangler YJ and 1997-2006 Jeep Wrangler TJ, including the 2004-2006 Wrangler Unlimited, for vehicles with the 2.5L I-4 or 4.0L I-6 engine.
What size electric fan comes with this kit?
It includes a 16-inch High-Flow Electric Fan rated to produce over 1850 CFM of airflow.
Will this shroud work with my stock radiator?
Yes, the shroud mounts directly to the stock radiator as well as the Mishimoto Jeep Wrangler Performance Radiator.
Does the kit include a fan controller?
A Mishimoto Adjustable Fan Controller Kit (MMFAN-CNTL-U) can be included as an option, providing control over coolant temperatures with both NPT and probe-type sensors.
Is mounting hardware included?
Yes, all hardware and brackets required for installation are included, and the kit is compatible with the stock expansion tank and power steering reservoir.
What is the shroud made from and how is it finished?
The shroud is constructed from aluminum with a brushed aluminum finish in silver.
