Description

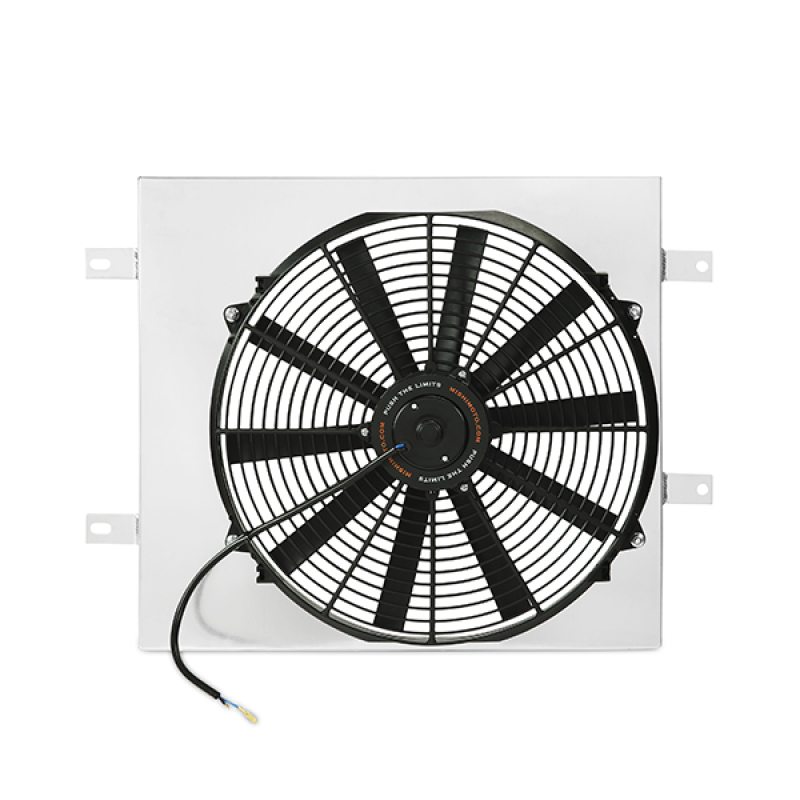

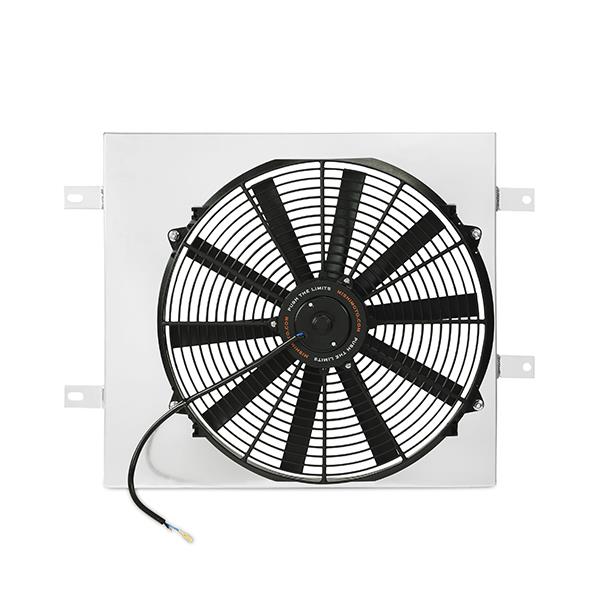

The Mishimoto Performance Fan Shroud Kit (MMFS-WRA-87) is a direct-fit electric fan shroud engineered specifically for the Jeep Wrangler YJ and TJ, replacing the factory mechanical fan with a slim 16-inch High-Flow Electric Fan rated at over 1850 CFM. Machined with a brushed aluminum finish, this shroud bolts straight to the stock radiator or the Mishimoto Jeep Wrangler Performance Radiator, and its housing includes built-in drain ports so water can escape the shroud during off-road water crossings.
As part of Mishimoto’s Cooling lineup for the Wrangler platform, this fan shroud kit is built to help manage coolant temperatures whether you’re crawling rocks or cruising the highway. Because it’s a fully electric, plug-in setup, the drag and bulk of the stock mechanical fan are eliminated entirely, and this shroud can be paired with an optional Mishimoto Adjustable Fan Controller Kit (sold separately, not included with this shroud-only kit) for complete control over coolant temperatures at idle. The kit ships with all mounting hardware and brackets, including an aluminum overflow reservoir bracket and an aluminum power steering reservoir bracket, so it installs without the need to source extra parts.
Vehicle Applications
This Mishimoto fan shroud kit is designed for the Jeep Wrangler YJ and TJ chassis equipped with the 2.5L I-4 or 4.0L I-6 engine, covering the 1987-1995 Wrangler YJ and the 1997-2006 Wrangler TJ, including the 2004-2006 Wrangler Unlimited. Trim coverage spans the Wrangler Base (1987-1993), Laredo (1987-1990), Sport (1987-1988, 1997-2006), Islander (1988-1992), S (1988, 1991-1994), Sahara (1988-1995, 1997-2004), Renegade (1991-1994), SE (1994-1995, 1997-2006), Rio Grande (1995), X (2002-2006), Rubicon (2003-2006), Unlimited Rubicon (2005-2006), and the 2006 65th Anniversary Edition. The overflow reservoir bracket is used on 1997-2006 4- and 6-cylinder applications, while the power steering bracket applies to 1997-2006 4-cylinder applications.
Features
- Direct fit for the 1987-2006 Jeep Wrangler TJ/YJ with 2.5L or 4.0L engine
- Includes a 16-inch High-Flow Electric Fan that provides over 1850 CFM of airflow
- Compatible with an optional Mishimoto Adjustable Fan Controller Kit for complete coolant temperature control at idle (sold separately)
- Fits with both the stock radiator and the Mishimoto Jeep Wrangler Performance Radiator
- Accommodates the stock coolant overflow tank and power steering reservoir
- Drain ports on the bottom of the shroud allow for water drainage during off-road conditions

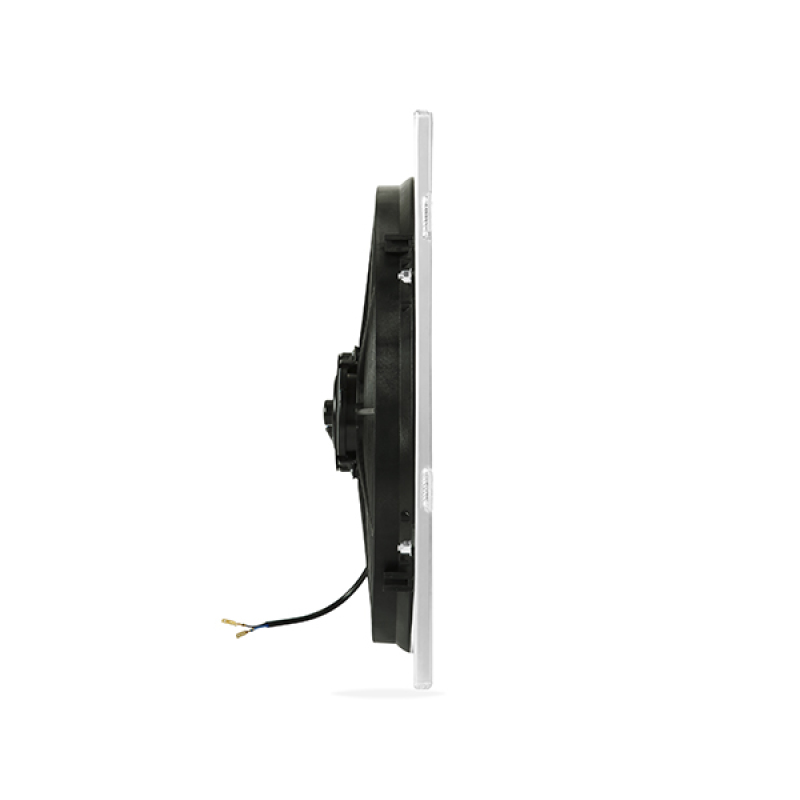

- Slim profile with a maximum thickness of just 3.5 inches
- Brushed aluminum finish
- Includes all mounting hardware, an aluminum overflow reservoir bracket, and an aluminum power steering reservoir bracket
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFS-WRA-87
- Product Type: Cooling
- Shroud Material: Aluminum
- Shroud Color: Silver
- Finish: Brushed Aluminum
- Fan Diameter: 16 in
- Fan Blade Quantity: 10
- Blade Material: Plastic
- Blade Type: Straight
- Blade Color: Black
- Maximum Airflow: 1850 CFM
- Electrical or Mechanical: Electrical
- Hardwired or Plug-In: Plug-In
- Motor Included: Yes
- Mounting Hardware Included: Yes
- Control Module Included: No (optional controller available separately)
- Width: 3.5 in
- Height: 18 in
- Length: 23.6 in
- Weight: N/A
Frequently Asked Questions
Does the Mishimoto MMFS-WRA-87 fan shroud kit include the fan controller?
No. This is the fan shroud-only kit; the Mishimoto Adjustable Fan Controller Kit is optional and sold separately.
Which Jeep Wrangler models does this fan shroud kit fit?
It fits the 1987-1995 Jeep Wrangler YJ and the 1997-2006 Jeep Wrangler TJ, including the 2004-2006 Wrangler Unlimited, across trims such as Base, Laredo, Sport, Islander, S, Sahara, Renegade, SE, Rio Grande, X, Rubicon, Unlimited Rubicon, and the 2006 65th Anniversary Edition, with 2.5L I-4 or 4.0L I-6 engines.
What is included with the Mishimoto Performance Fan Shroud Kit?

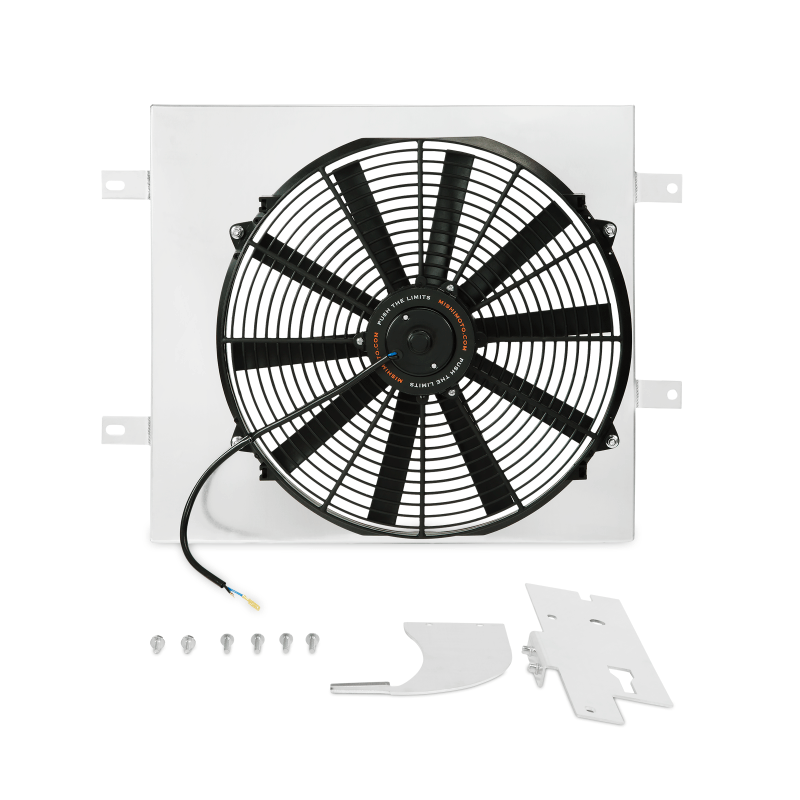

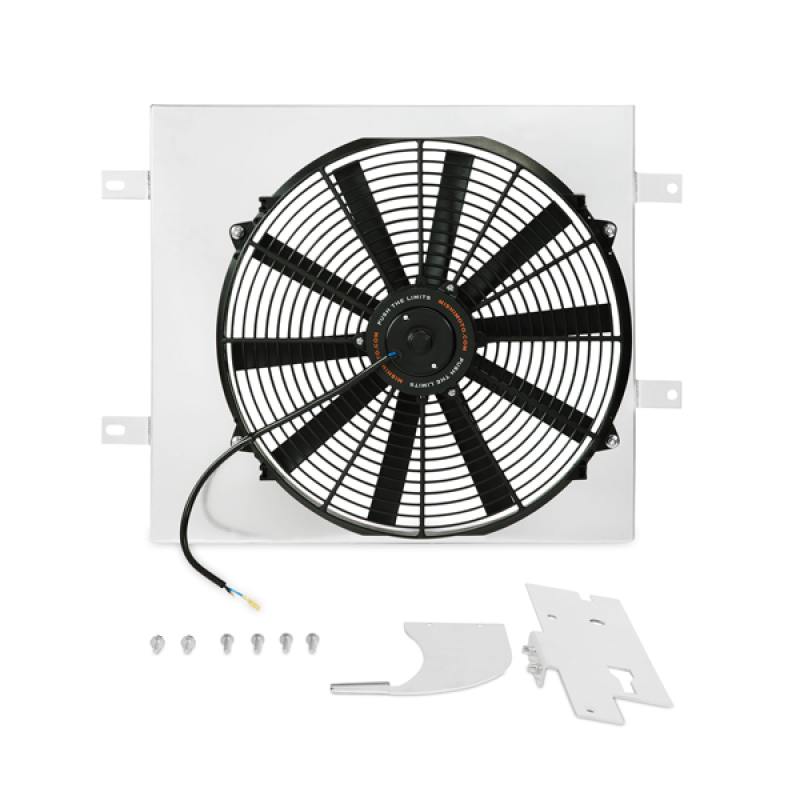

The kit includes one aluminum fan shroud, one 16-inch Mishimoto slim electric fan, one aluminum overflow reservoir bracket, one aluminum power steering reservoir bracket, a hardware kit, and the Mishimoto Lifetime Warranty. An optional Mishimoto fan controller (1/8-inch NPT or probe) is available separately.
Is this fan shroud compatible with the stock Jeep Wrangler radiator?
Yes, it is compatible with the stock radiator as well as the Mishimoto Jeep Wrangler Performance Radiator.
How much airflow does the electric fan provide?
The included 16-inch High-Flow Electric Fan provides over 1850 CFM of airflow.
Does this shroud still work with the stock overflow tank and power steering reservoir?
Yes, the kit is compatible with the stock expansion tank and power steering reservoir, and includes brackets for both.
