Description
The Mishimoto Performance Front-Mount Intercooler Kit (MMINT-WRX-22BKBK) is a purpose-built forced induction upgrade engineered specifically for the 2022+ Subaru WRX. Built around a massive bar-and-plate core with CFD-optimized cast end tanks, this kit relocates the intercooler to the lower bumper grille for maximum airflow, and Mishimoto’s own dyno testing shows outlet temperatures brought to within 10-degrees of ambient air temp.
As the centerpiece of any serious forced induction system, an intercooler determines how much heat gets pulled out of compressed air before it reaches the engine, and heat soak is the enemy of consistent power. This Mishimoto induction system upgrade pairs a 4-inch thick core with ID-matched, high-flow pipes to produce just a 1.5 PSI pressure drop, meaning less of the boost your turbo generates goes to waste. On the stock tune, Mishimoto reports gains of 12 hp and 11.8 lb-ft of torque, all while remaining safe for repeated performance runs. Whether you’re chasing lap times, dragstrip numbers, or simply want a more dependable forced induction turbo setup for daily driving, this kit is engineered to keep power consistent run after run.
Vehicle Applications
This kit is a specific fit for the Subaru WRX platform and covers a range of trims and model years. It fits the Subaru WRX Base for 2022–2024, and it fits the WRX GT, Limited, Premium, Sport, and Sport-tech trims for 2022–2026. It also fits the WRX High, Series.Yellow, Sportwagon, TS, and tS Performance trims for the 2026 model year. Per Mishimoto’s technical specifications, this intercooler is designed around the Subaru WRX 2.4L H4 (engine code FA24F, chassis code VB), 2022 and newer.
Features
- Max power gains of 12 hp and 11.8 lb-ft of torque on stock tune
- Lowers outlet temperatures to within 10-degrees of ambient air temp
- 4-inch thick core protects against heat soak and detonation

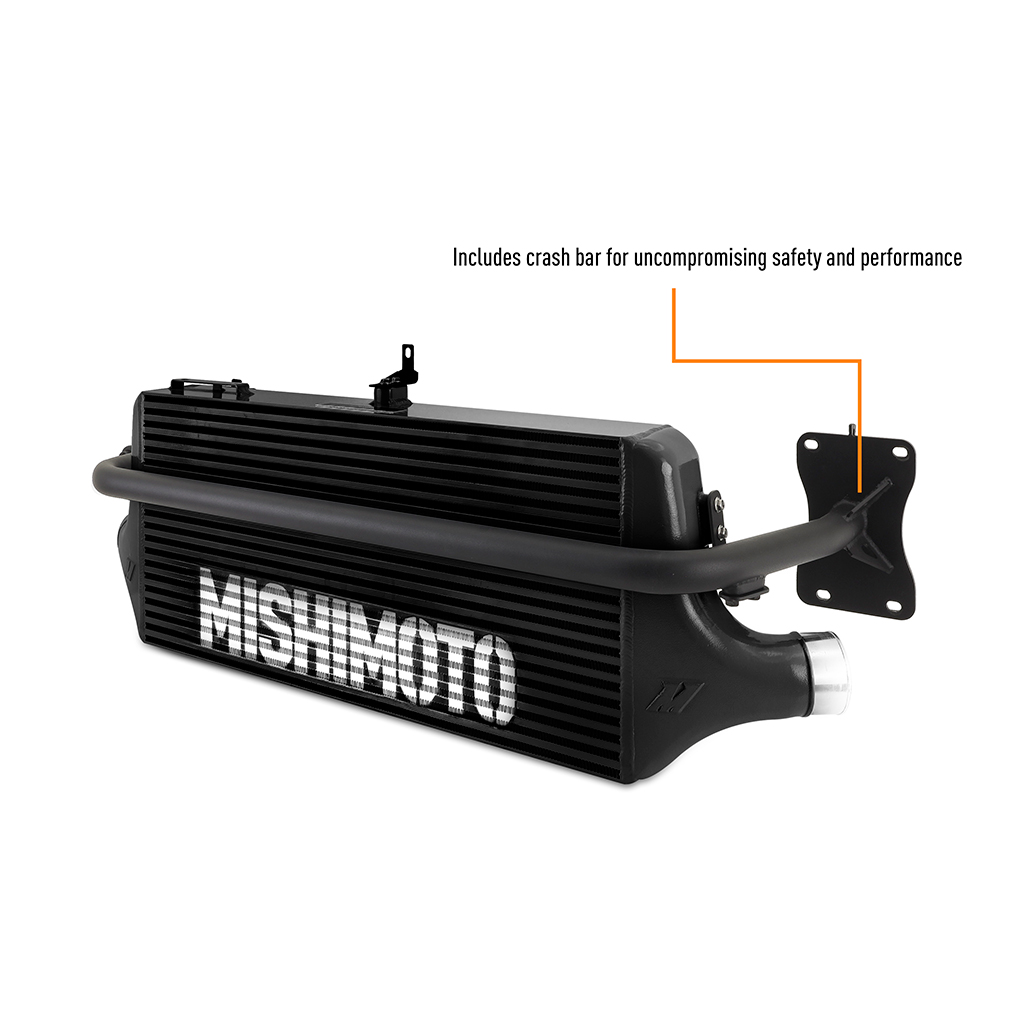

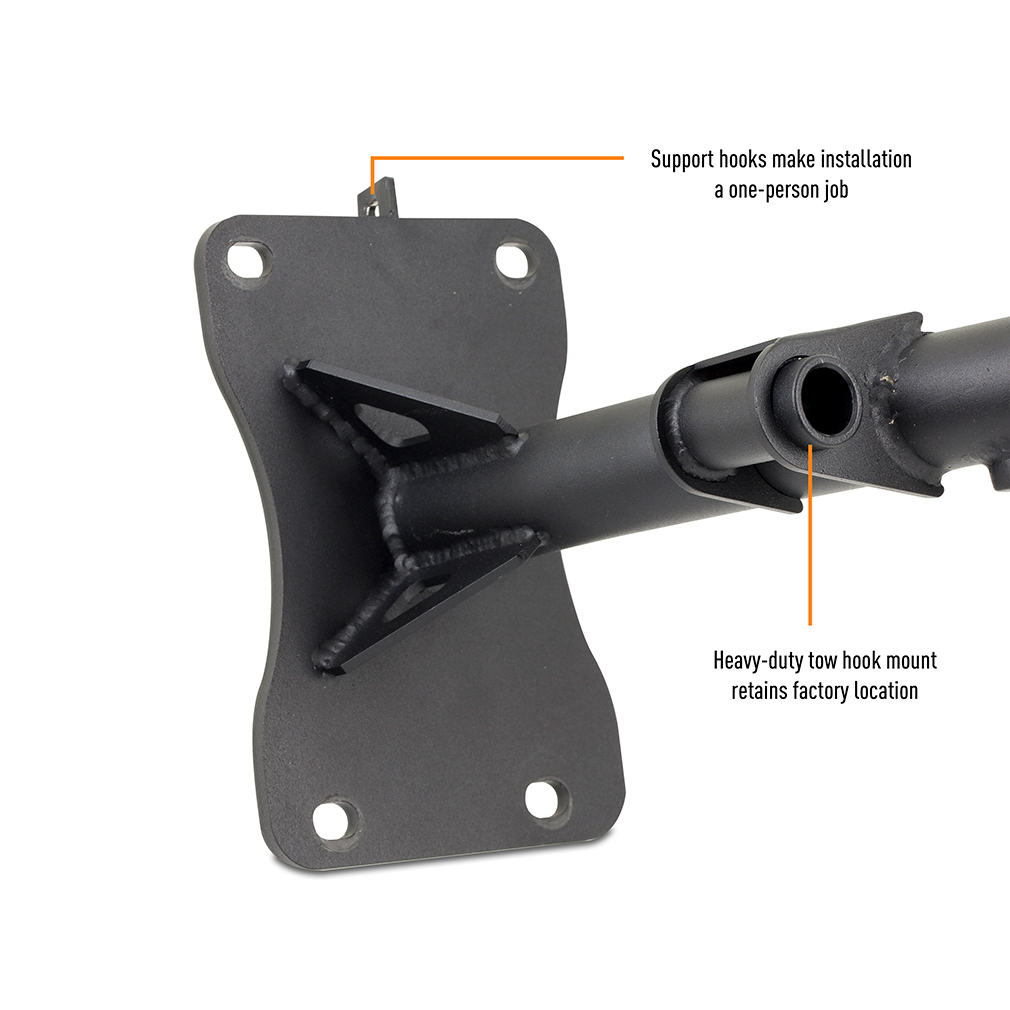

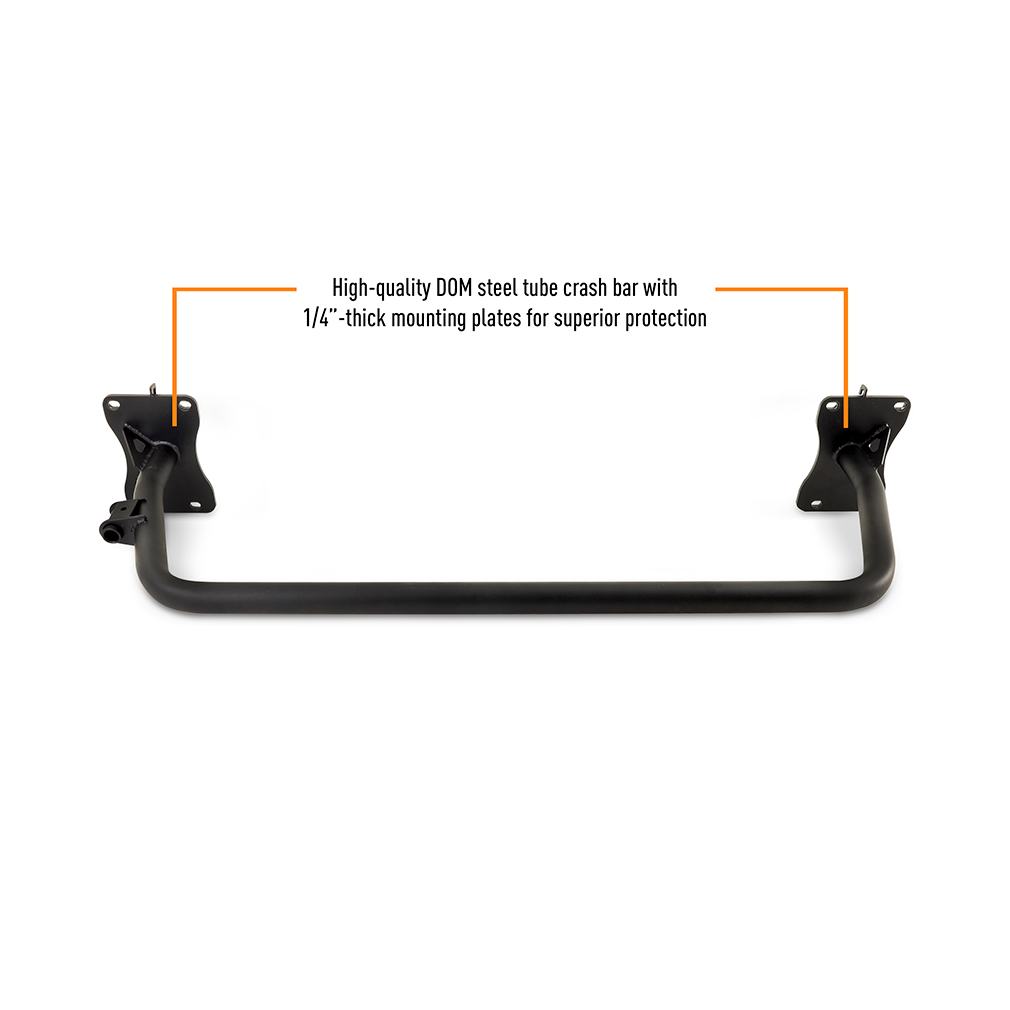

- Includes bumper support bar with tow hook location to keep your WRX track-ready
- Comprehensive kit includes everything needed for installation
- Safe for use with stock tuning

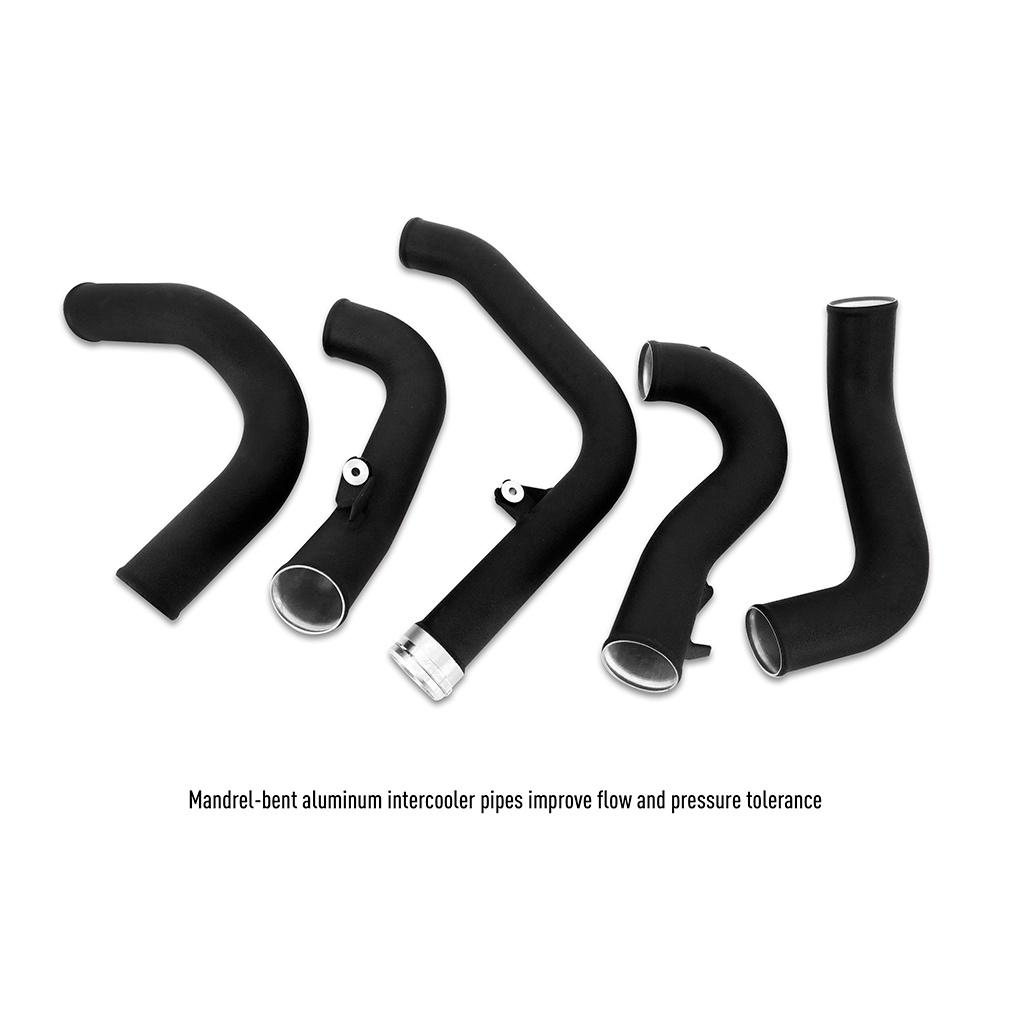

- ID-matched pipes and intercooler ensure unrestricted airflow and low pressure drop
- Built-in crash bar hooks make installation a one-person job
- Cast end tanks withstand massive boost pressures

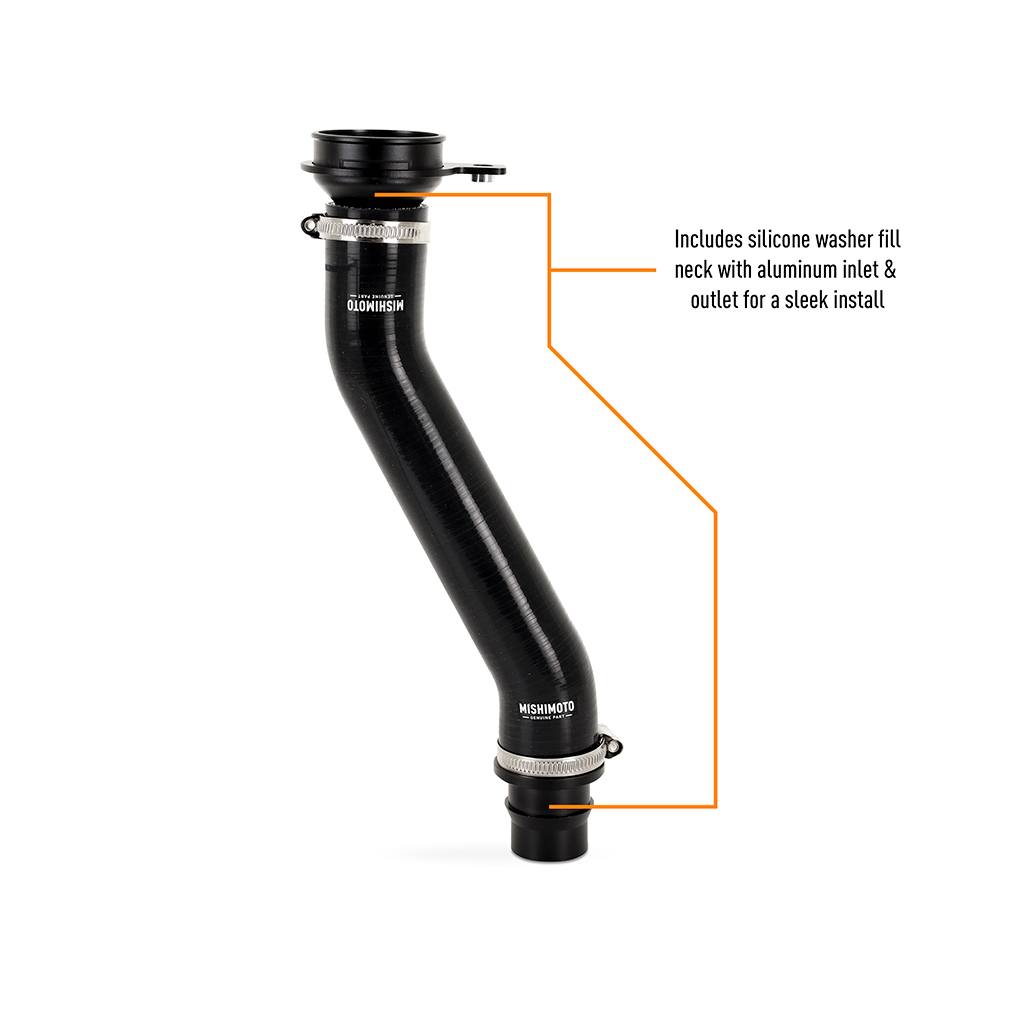

- Includes washer fill neck relocation for easy maintenance
- No bending of A/C lines required
- Fits with most popular strut bars
- Fits with Mishimoto radiator and oil cooler
- Patent Pending
- Backed by Mishimoto’s Lifetime Warranty
Specifications
- Intercooler Type: Air-to-Air
- Core Construction: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Black
- Core Height: 12.14 in
- Core Thickness: 3.93 in
- Core Length: 26.57 in
- End Tank Construction: Cast
- End Tank Material: Aluminum
- Pipe Material: Aluminum
- Pipe Finish: Powder Coated
- Pipe Color: Black
- Inlet Diameter: 2.4 in
- Outlet Diameter: 2.4 in
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Maximum Boost Pressure: 60 PSI
- Maximum Horsepower: 1000 HP
- Overall Width (intercooler): 6 in
- Overall Height (intercooler): 12.89 in
- Overall Length (intercooler): 40.22 in
- Engine Code: FA24F
- Chassis Code: VB

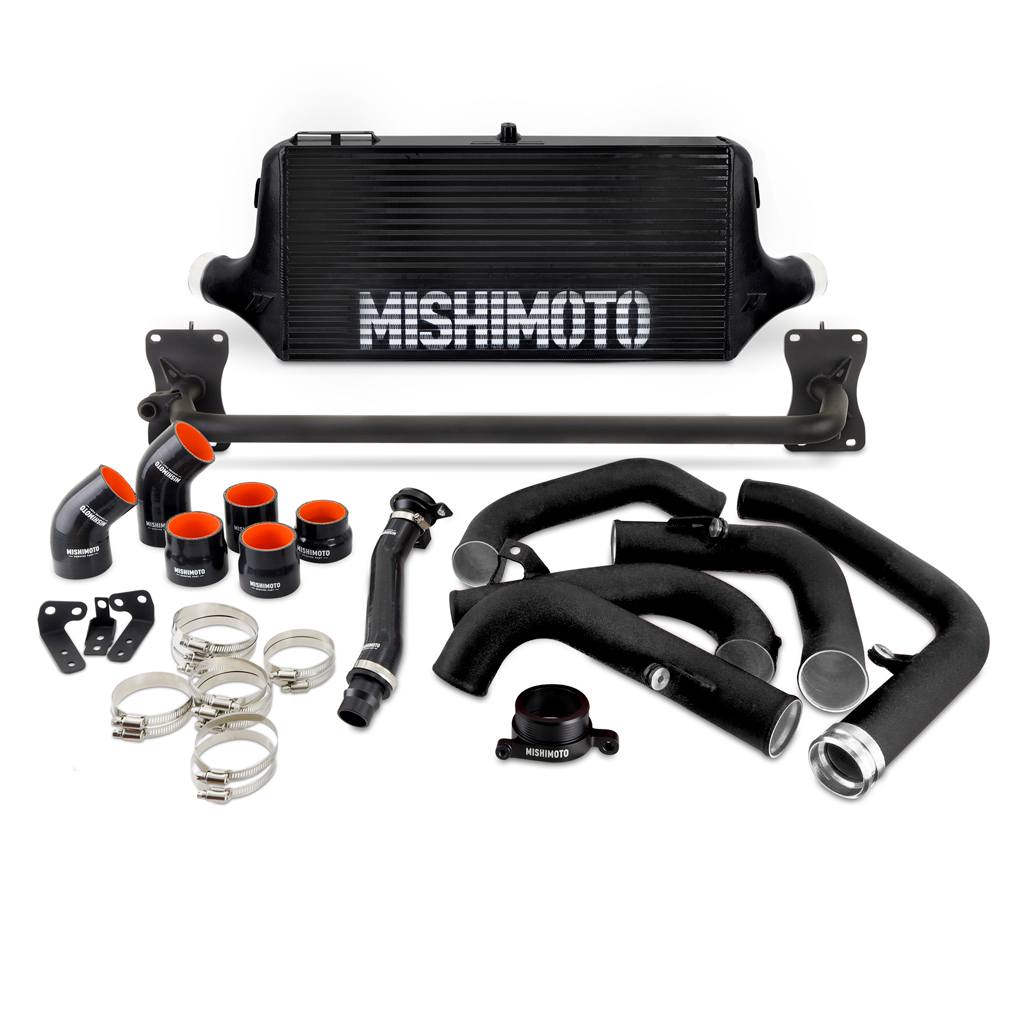

- Includes: (1) Front Mount Intercooler, (1) Pipe and Boot Kit with Adaptors, (1) Bumper Support Bar, (1) Washer Fluid Fill Neck Relocation, Mishimoto Lifetime Warranty
Frequently Asked Questions
What power gains does the Mishimoto Performance Front-Mount Intercooler Kit offer?
Mishimoto reports max power gains of 12 hp and 11.8 lb-ft of torque on the stock tune with this intercooler kit.
Does this intercooler help reduce heat soak?
Yes. In dyno testing, the intercooler brought outlet temperatures to within 10-degrees of ambient air temp, and the 4-inch thick core is designed to protect against heat soak and detonation.
Which Subaru WRX models does this intercooler kit fit?
This kit fits the Subaru WRX Base for 2022–2024; the WRX GT, Limited, Premium, Sport, and Sport-tech trims for 2022–2026; and the WRX High, Series.Yellow, Sportwagon, TS, and tS Performance trims for 2026. It is designed around the Subaru WRX 2.4L H4 engine (code FA24F, chassis code VB), 2022 and newer.
Does installation require cutting the bumper or body?
No. The kit contains everything needed for installation with no cutting of the bumper or body required, and it retains the factory side impact bars.
What is the maximum boost pressure and horsepower rating for this intercooler?
This intercooler has a maximum boost pressure rating of 60 PSI and a maximum horsepower rating of 1000 HP.
What does the kit include?
The kit includes (1) Front Mount Intercooler, (1) Pipe and Boot Kit with Adaptors, (1) Bumper Support Bar, (1) Washer Fluid Fill Neck Relocation kit, and is backed by the Mishimoto Lifetime Warranty.
âš WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Not CARB approved. This item is not legal for sale or use on pollution-controlled motor vehicles in California or states that adopt California emissions standards. Intended for off-road / competition use where permitted by law.
